Overview

MST (Multiport Service Terminal) is a factory pre-terminated, hermetically sealed and ruggedized optical fiber distribution terminal. It is designed to distribute trunk feeder optical fibers to multiple subscriber/equipment drop cables, enabling plug-and-play deployment without on-site fiber splicing. Only cabinet fixation and connector plug-and-play are required on site, boosting construction efficiency by over 80%. It effectively eliminates the drawbacks of on-site splicing such as unstable connection quality, excessive insertion loss and high failure rate. The enclosure is made of UV-resistant and flame-retardant PC material with excellent anti-aging and impact resistance. It operates stably in an extreme temperature range of -40℃ to +85℃, widely deployed in FTTH, 5G base stations and other outdoor harsh environments.

Application

FTTH / FTTB

5G / 4G Mobile Communication Base Station

Smart Parks & Enterprise Private Networks

Urban Infrastructure Intelligence

Feature

Factory pre-terminated with full quality assurance

IP68 rated protection

Hardened OptiTap-compatible connectors, allowing repeated outdoor plug-and-play

Flexible configuration for optical splitting and straight-through connectivity

Optional port counts: 4/6/8/12/16 output ports

Multiple installation options: aerial mounting, wall mounting, pole mounting

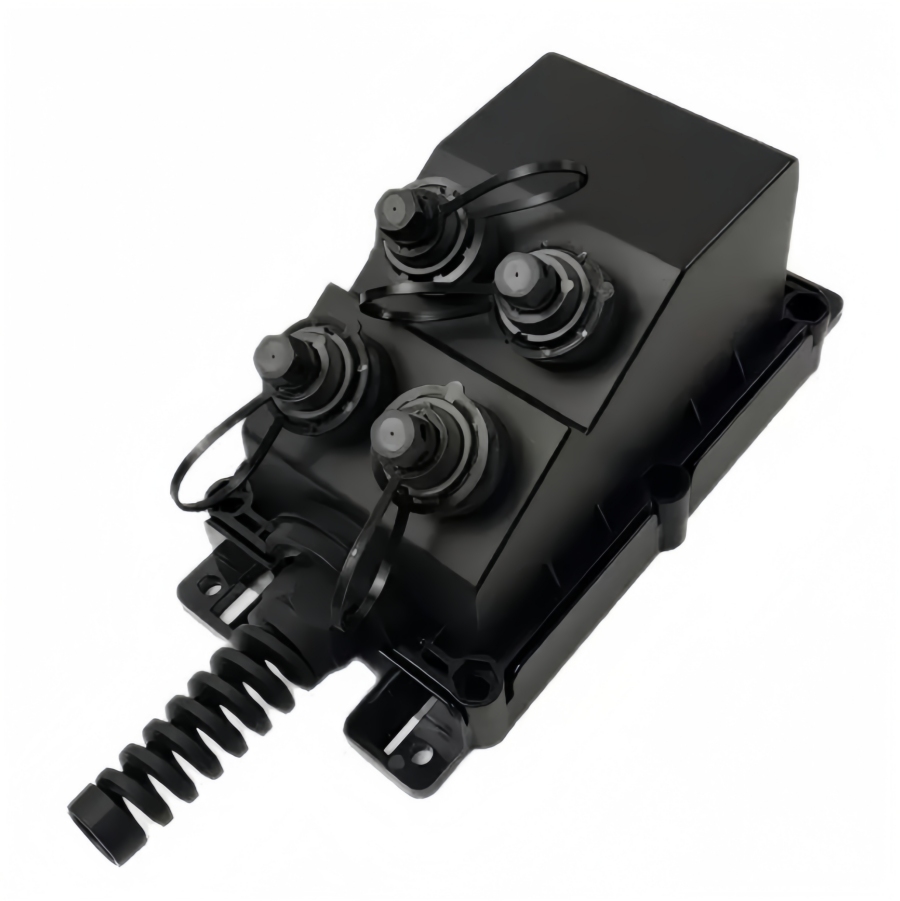

4-port MST features overall dimensions of 275×110×126 mm and is equipped with 4 SC hardened outlet ports, two standard configurations are available:

Configuration A: 4-core SC pre-connected tail cable

Configuration B: SC hardened inlet and 1:4 PLC splitter

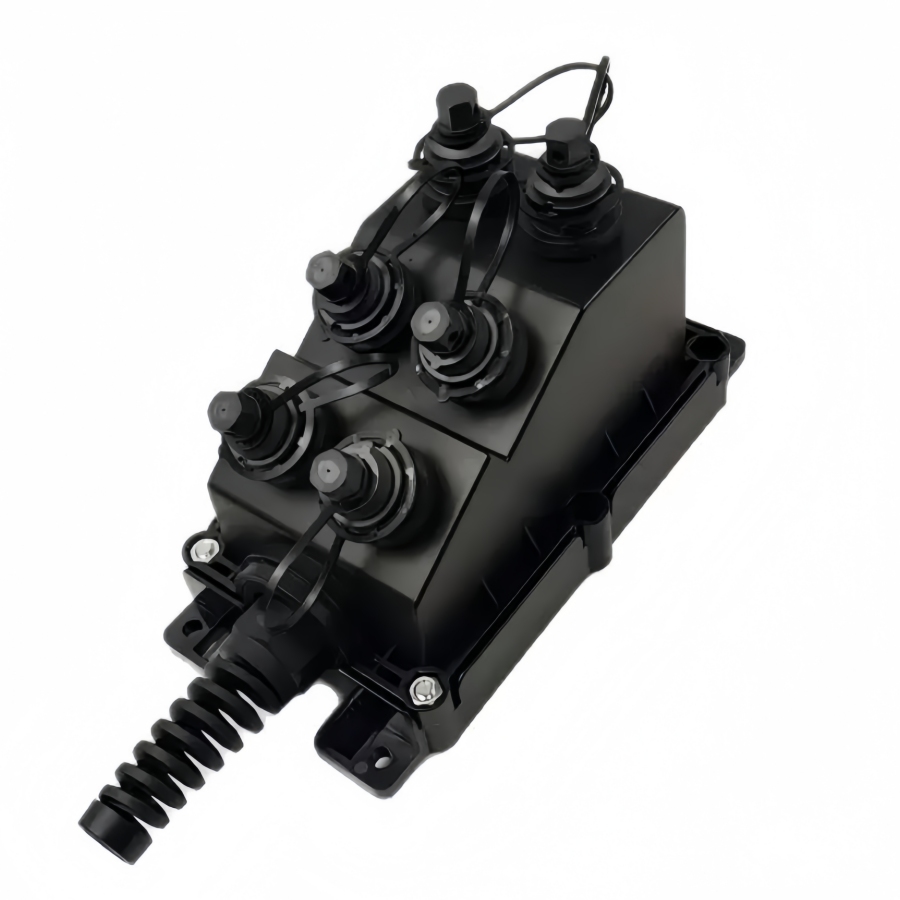

6-port MST features overall dimensions of 275*110*127mm and is equipped with 6 SC hardened outlet ports, two standard configurations are available:

Configuration A: 6-core SC pre-connected tail cable

Configuration B: SC hardened inlet and 1:6 PLC splitter

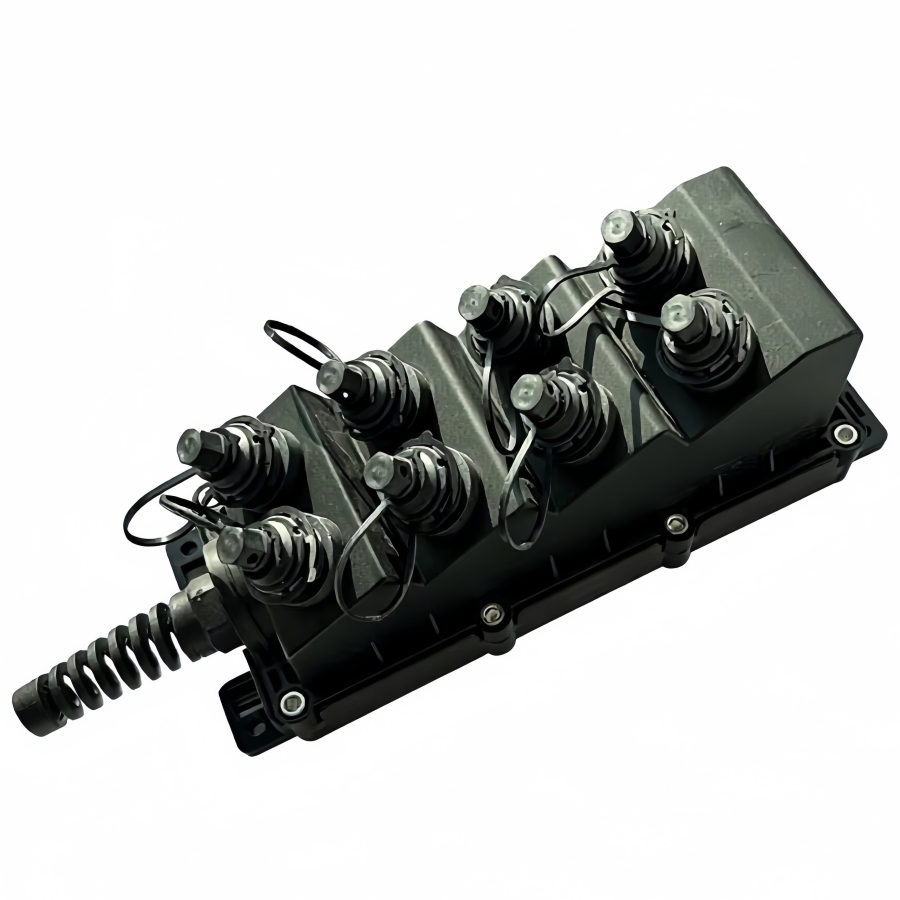

8-port MST features overall dimensions of 340*110*126mm and is equipped with 8 SC hardened outlet ports, three standard configurations are available:

Configuration A: 8-core SC pre-connected tail cable

Configuration B: SC hardened inlet and 1:8 PLC splitter

Configuration C: MPO hardened inlet and MPO-SC fanout pigtail cable

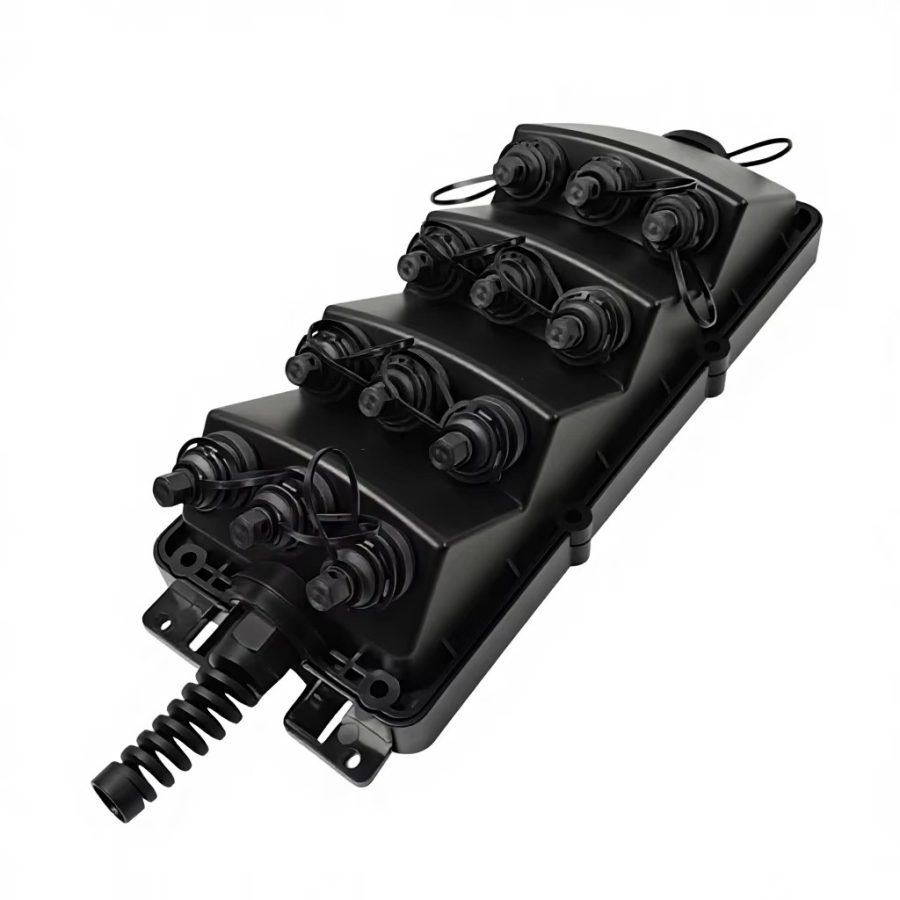

12-port MST features overall dimensions of 360*144*120mm and is equipped with 12 SC hardened outlet ports, three standard configurations are available:

Configuration A: 12-core SC pre-connected tail cable

Configuration B: SC hardened inlet and 1:12 PLC splitter

Configuration C: MPO hardened inlet and MPO-SC fanout pigtail cable

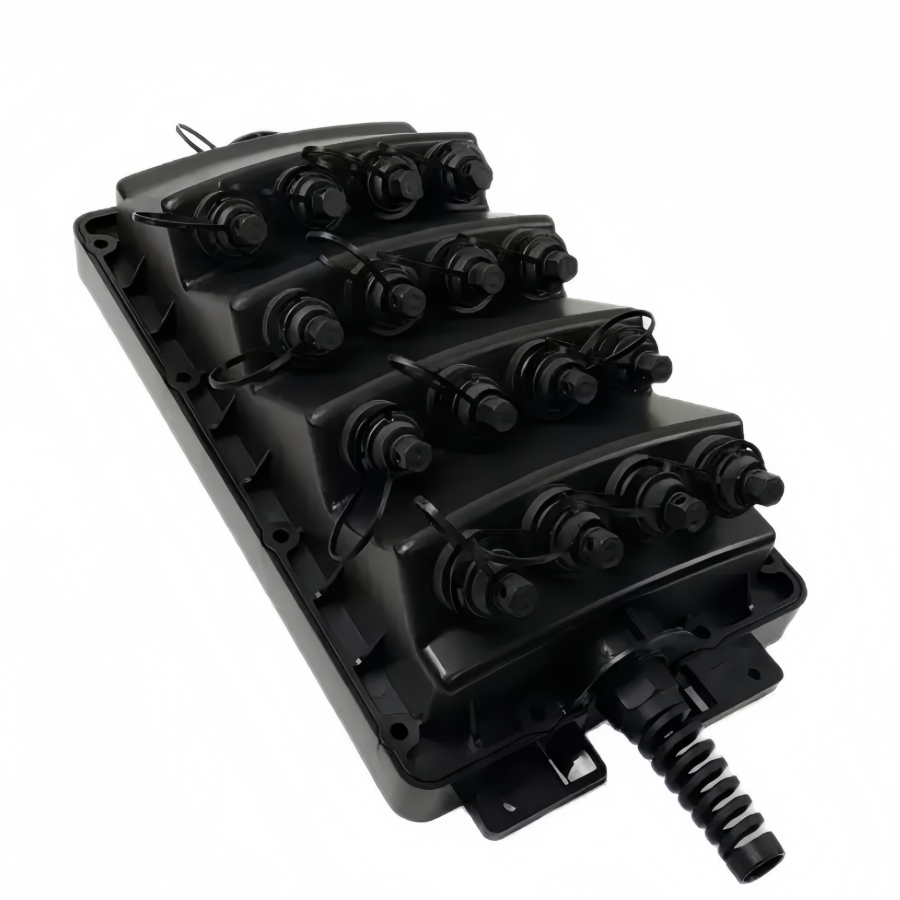

16-port MST features overall dimensions of 360*144*120mm and is equipped with 16 SC hardened outlet ports, two standard configuration is available:

Configuration A: SC hardened inlet and 1:16 PLC splitter

Configuration B: MPO hardened inlet and MPO-SC fanout pigtail cable

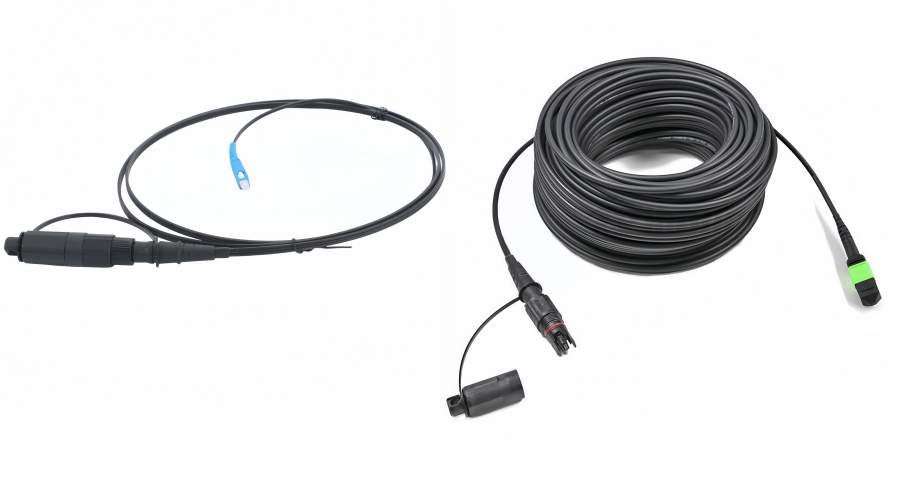

Pre-terminated Cable
Parameter	Specification
Connectorized	SC hardened connectors at both ends; SC hardened connector at one end; SC hardened connector at one end; standard SC connector at the other end; MPO hardened connectors at both ends; MPO hardened connectors at one ends; MPO hardened connector at one end, standard MPO connector at the other end;
Ingress Rating	IP65 connector, dustproof, water-resistant and UV-stable for outdoor use
Optical Performance	SC: Insertion loss ≤0.3dB; Return loss ≥50dB (UPC) / ≥55dB (APC) MPO: Insertion loss ≤0.75dB(Standard)≤0.35dB(Ultra-low); Return loss ≥60dB (APC)
Fiber Type	G657A2 bend-insensitive fiber
Cable Type	5.0mm ADSS cable, Double-sheathed LSZH jacket, UV resistant and high tensile strength 5.0*2.0mm flat drop cable, PVC/LSZH jacket
Length	1m~500m on request
