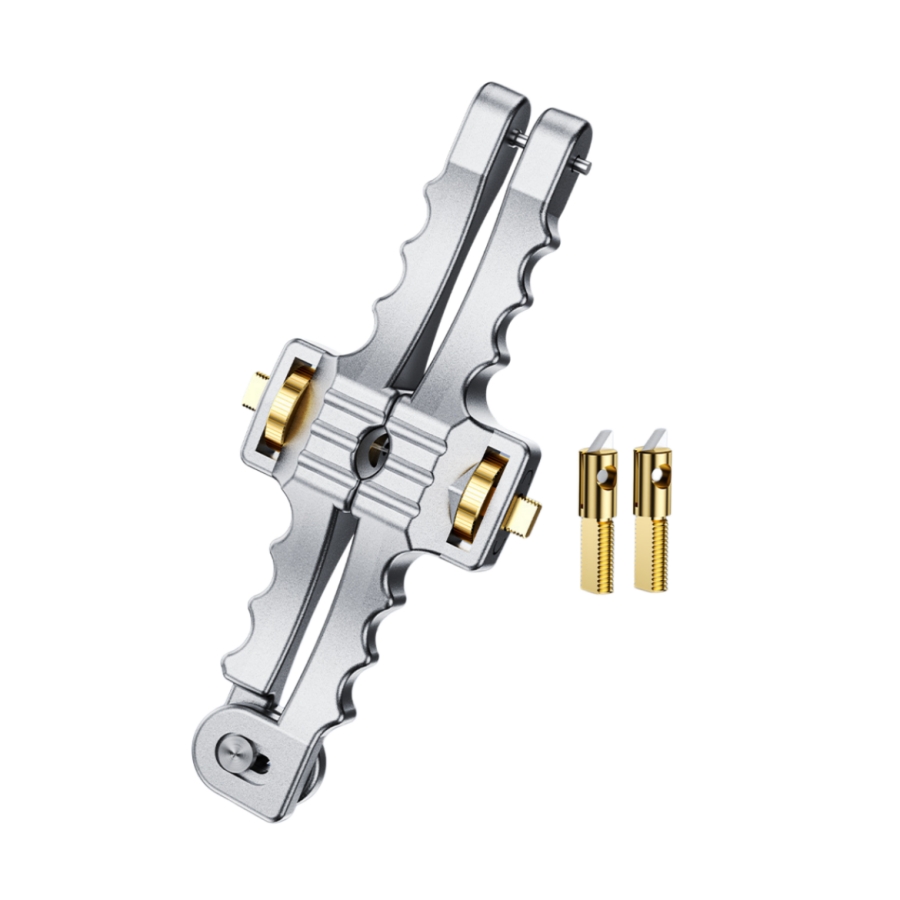

Crafted from high-grade aluminum alloy with an electroplated surface, this stripper boasts excellent corrosion resistance, easy cleaning and an exquisite appearance. It is applicable for ring stripping of optical cables with a diameter of 4~28mm. Equipped with sharp blades featuring adjustable cutting depth and spare blades for replacement, it adopts an ergonomic handle to deliver a comfortable grip and effortless operation.

This longitudinal cable stripper is made of high-quality aluminum alloy with anti-rust surface treatment. Designed for longitudinal stripping of optical cables with a diameter of 10~25mm, it adopts sharp blades with adjustable cutter height to precisely control the cutting depth. The ergonomic non-slip handle saves labor and enables effortless operation.

This cable stripper is designed for MDU applications, suitable for slitting the outer sheath of 8.5~14mm distribution cables and extracting individual loose tube fibers. The main body is made of premium aluminum alloy for high strength and durability, while the blade is crafted from 65Mn steel, featuring high hardness, sharp cutting performance and efficient sheath stripping. An economical version with ABS injection molded body is also available at half the price, delivering cost-effective performance.

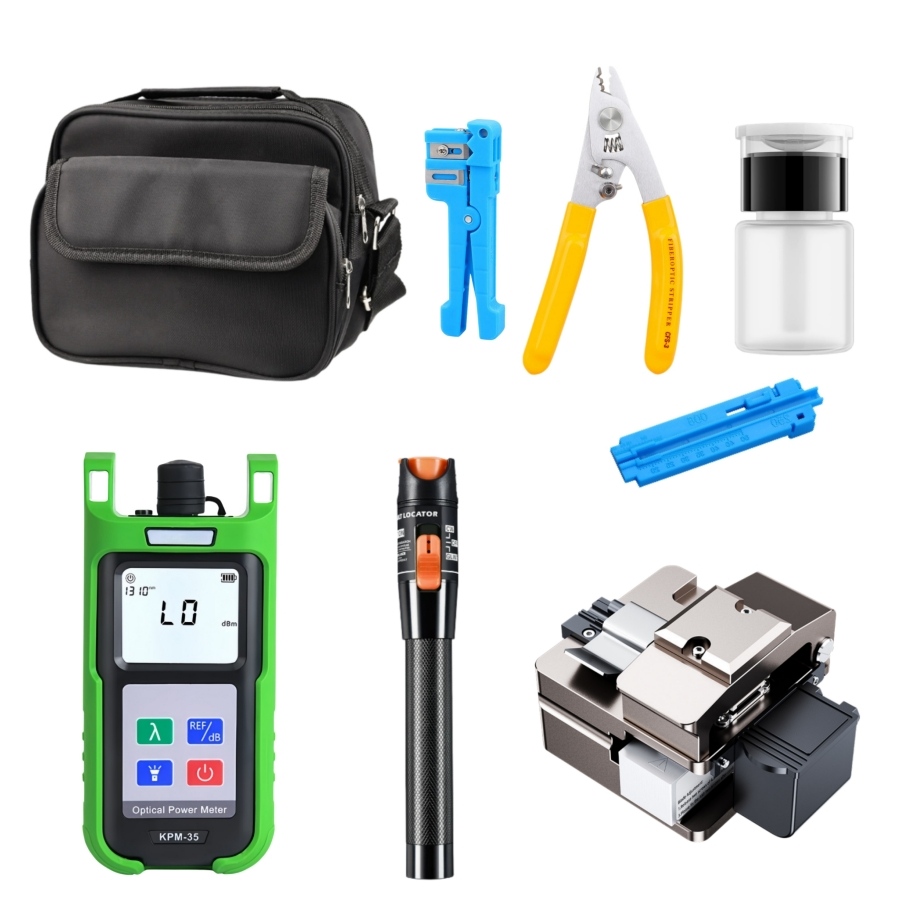

This tool kit is specially designed for on-site processing of drop cables in FTTH projects, covering cable stripping, cleaving, pre-termination and connectivity quality testing.

The cable slit and ring tool is available with 3 models, suitable for cable 0~3.2mm, 3.2~5.6mm, 4.8~7.9mm.

The three-hole stripper is made of stainless steel and used to strip the outer sheath of 2.0/3.0mm optical cables, 0.9mm loose tubes and 0.25mm coating layers.

The high precision cleaver is suitable for 0.25mm bare fibers, 0.9mm pigtail and 2.0/3.0mm optical cables, with cutting angle≤90±0.5°, the blade service life is up to 58,000 cleaves.

The high performance optical power meter supports calibrated wavelengths of 850/980/1300/1310/1490/1550/1625nm, with a testing range of -70~+6dB and ±0.2dB accuracy.

The visual fault locator operates at 650nm with 10mw optical power, offering a detection distance of over 3 kilometers. The cable measurement tool features adjustable positioning lengths (20~50mm for cleaving, 10~30mm for coating stripping).

The kit is also equipped with a 60ml press-type alcohol bottle and a heavy-duty nylon fabric carrying bag(24*11*18cm) of 3 layer.

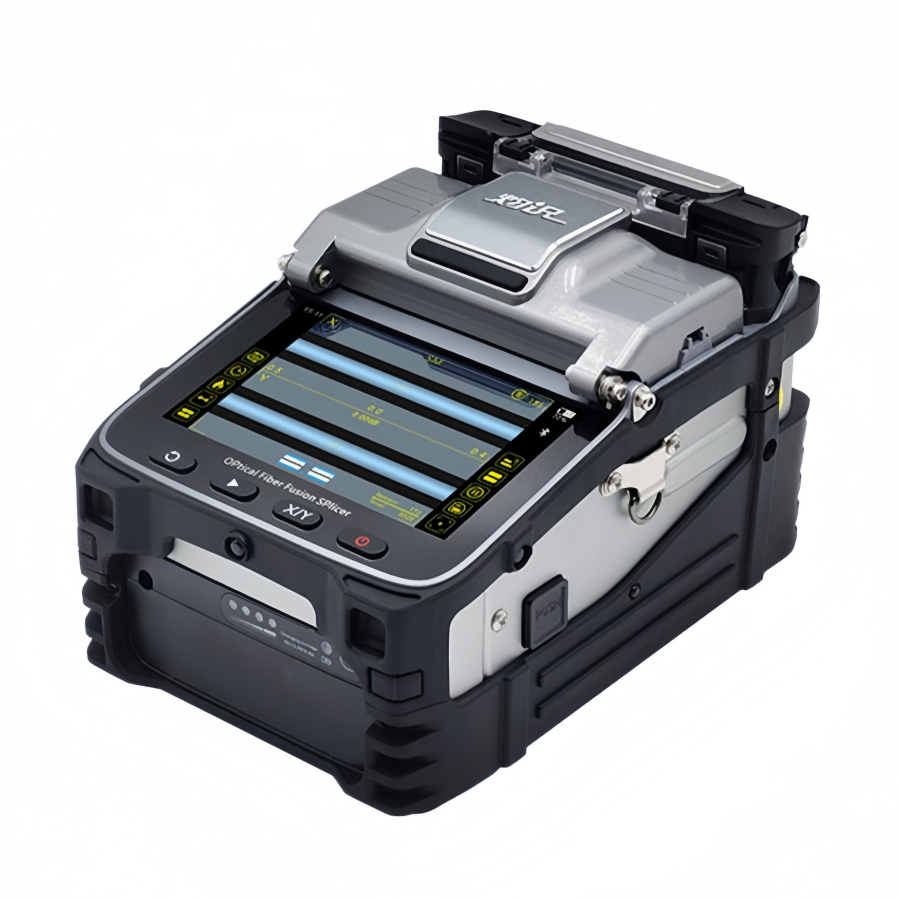

This fusion splicer features an aviation-grade metal body with an exquisite and compact appearance. Adopting six-motor core alignment technology, it achieves a high alignment accuracy of 0.2μm, making it ideal for FTTH deployment and trunk fiber splicing projects within 20 kilometers. Equipped with an industrial-grade CPU, it delivers rapid response performance. Its 5-inch high-definition display with 800*480 resolution ensures intuitive and simple operation. The splicer also maintains stable and outstanding performance in harsh environments including plateaus, extreme cold and deserts. It comes with a durable compact toolbox and a matching stool for seated operation.

It supports splicing of various optical fibers, including SMF/G.652, MMF/G.651, DSF/G.653, G.654, NZ-DSF/G.655 and BIF/G.657. The typical splicing loss is 0.02dB for SMF, 0.01dB for MMF, and 0.04dB for DSF/NZ-DSF. It completes splicing in 8 seconds and heating in 18 seconds. Built with a 7800mAh lithium battery, it supports 260 consecutive splicing and heating cycles. The device can store 1000 groups of data locally, with unlimited data storage on remote servers. Additionally, it supports Bluetooth 4.2 wireless connection with a 2.4GHz working frequency band and a maximum transmission distance of 60 meters.

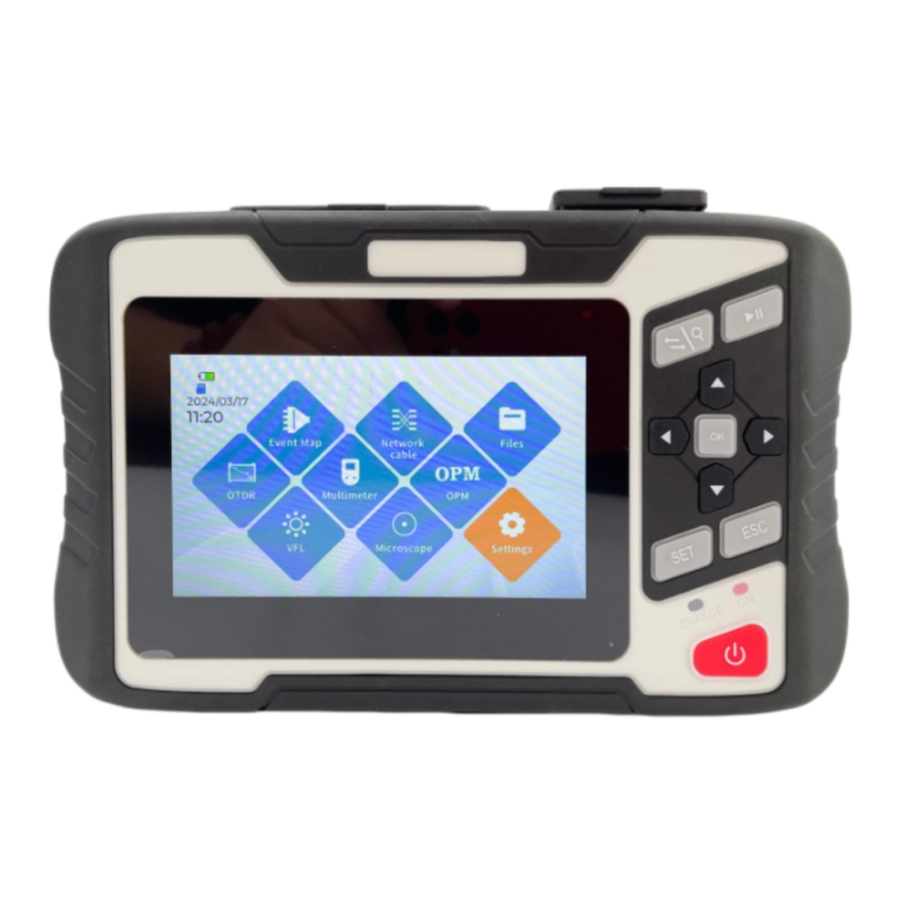

This OTDR is dedicated to FTTH broadband installation, maintenance and fault detection. It features a compact design with a 4.3-inch high-definition LCD screen, supporting both touch control and physical buttons for simple and intuitive operation. Built-in Bluetooth enables control via mobile APP.

It integrates multiple functions including intelligent diagnosis, optical power meter, visual fault locator and light source, and also supports RJ45 cable continuity test and network cable tracing within 300 meters.

It offers an event dead zone of 1.5m, attenuation dead zone of 8m and a maximum test distance of 60km, equipped with SC/UPC and FC/UPC adapters. Two models of 1310/1550nm are available of dynamic range 26/24dB and 30/28dB. Four models of single-wavelength in-service testing are optional with 1550/1610/1625/1650nm. The device can store 200,000 curves of data locally.

The optical power meter covers calibrated wavelengths of 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm, with a measurement range of -70~+6dBm.

The 650nm visual fault locator delivers 10mw optical power with a detection distance over 3km.

The light source matches the same wavelengths as the OTDR with output power ≥ -5dBm.

A 5000mAh built-in lithium battery provides over 6 hours of continuous working time and dual battery configuration of 11 hours is optional.

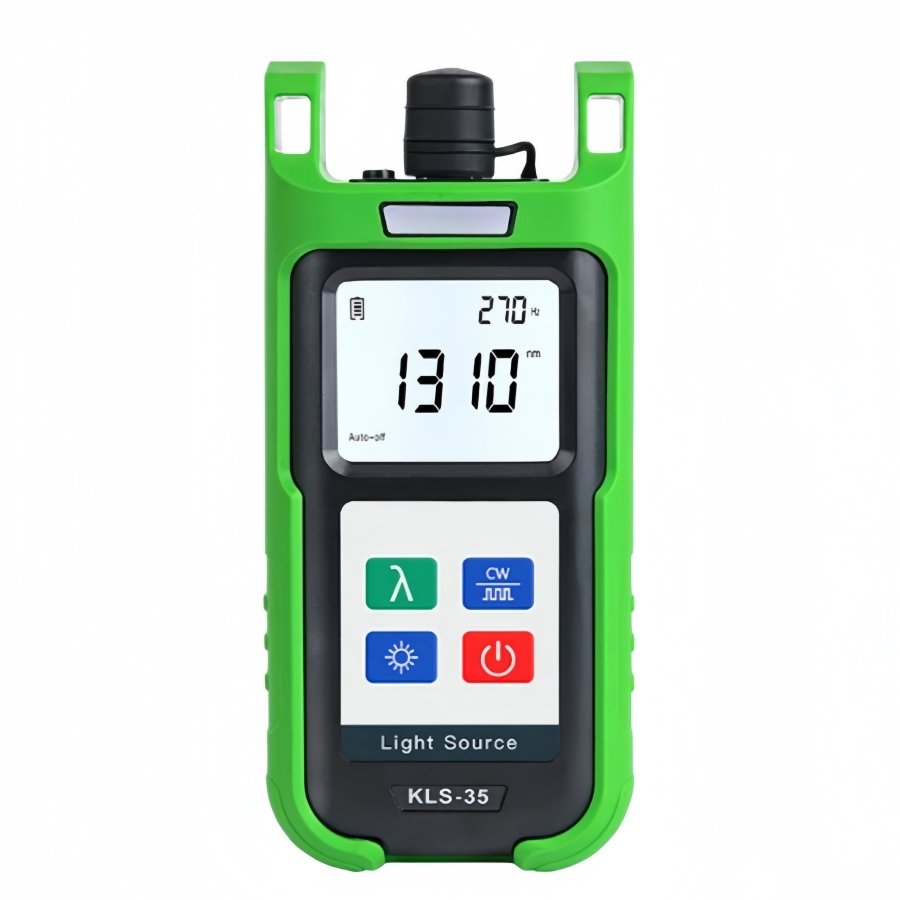

This optical light source features an ergonomic design for comfortable one-hand holding. It supports wavelengths of 850/1300/1310/1550nm and is compatible with SC and FC connectors, providing a stable optical output power of ≥-5dBm. Matched with an optical power meter, it is widely applied to test the connection quality of inactive ODN networks and arbitrary link sections in access networks during FTTH construction and maintenance.
