OVERVIEW
This multi-stage cascading fiber access solution adopts the 1¡Á9 asymmetric PLC splitter as the core component, with two optional splitting ratios of 30/70 and 15/85. Matched with 10-port fiber access terminal pre-installed with waterproof adapters (IP65 / IP67 rated) and single-ended or double-ended pre-terminated ADSS cable, it forms a modular, splice-free and easily deployed outdoor fiber access system.
Breaking through the pain points of traditional uniform splitters, such as high cascading loss, limited coverage radius and insufficient power budget for multi-level deployment, this solution supports up to 4-stage cascading. It is perfectly suitable for distributed fiber access with scattered service points, meeting dual requirements of terminal user access and long-distance link cascading. All products deliver telecom-grade performance and reliable protection against harsh outdoor conditions.
FEATURE
Breaking through the wiring limitations of traditional centralized splitting, it adopts a step-by-step splitting and along-the-line access architecture. There is no need to lay separate trunk optical cables for scattered users; a single trunk optical cable can cover dozens of points along the line through multi-stage cascading, significantly reducing the cost of optical cable procurement and the amount of wiring construction.
The entire link of fiber access terminal, adapters and pre-terminated cable adopts a waterproof and dustproof design, which can adapt to a wide temperature range of -40¡æ ~ +85¡æ. It is resistant to salt spray, aging and water immersion, perfectly coping with various harsh outdoor environments and ensuring strong reliability for long-term operation.
All series of products are factory pre-terminated, eliminating the need for on-site splicing operations. The system can be activated only by completing plug-in and fixation, improving construction efficiency by more than 80%, and greatly reducing outdoor construction difficulty, labor costs and failure probability.

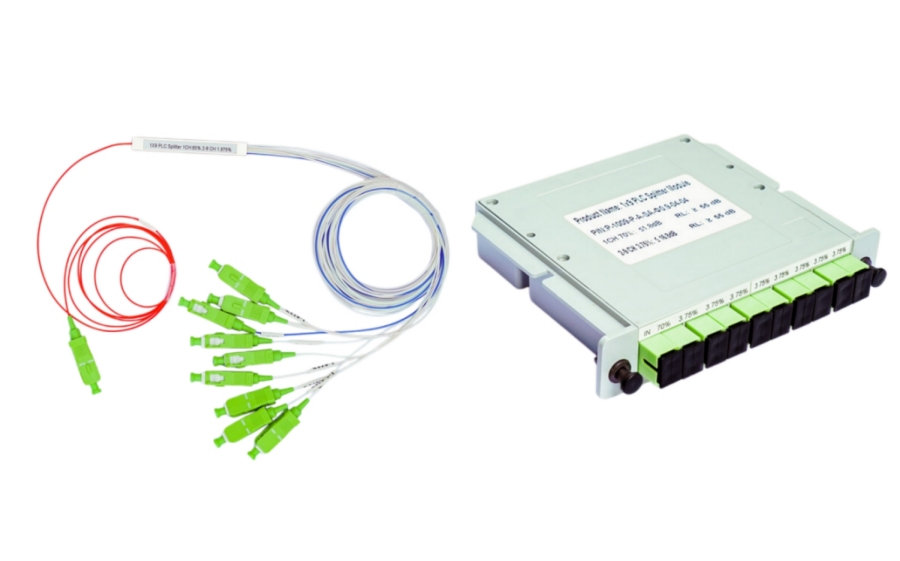

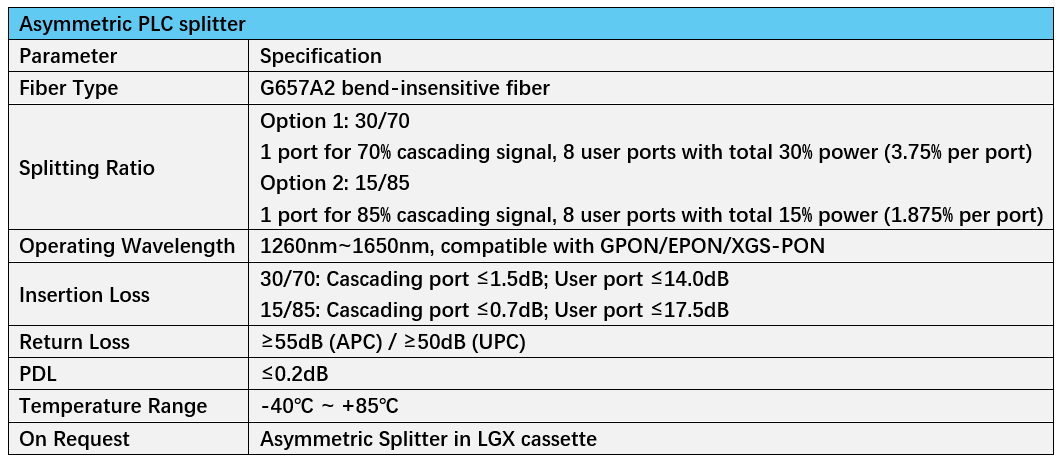

Asymmetric Splitter

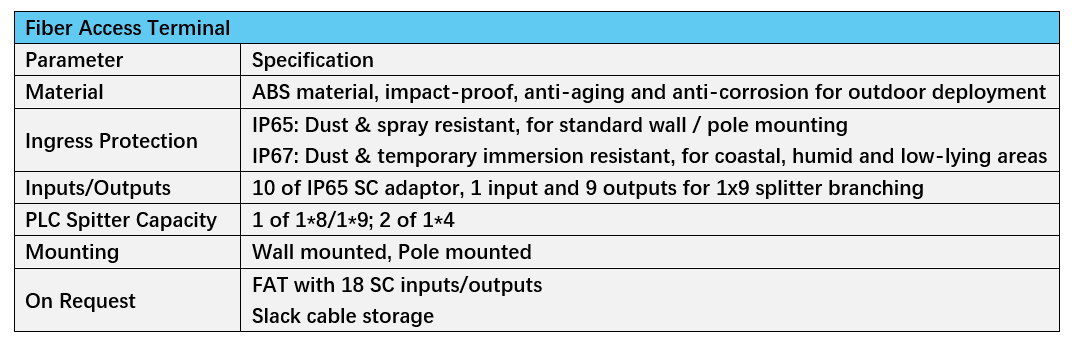

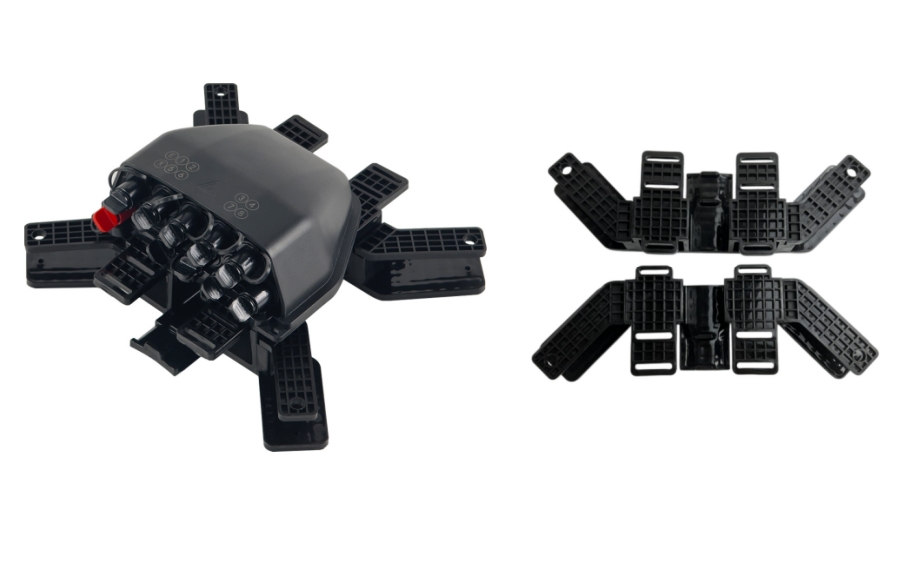

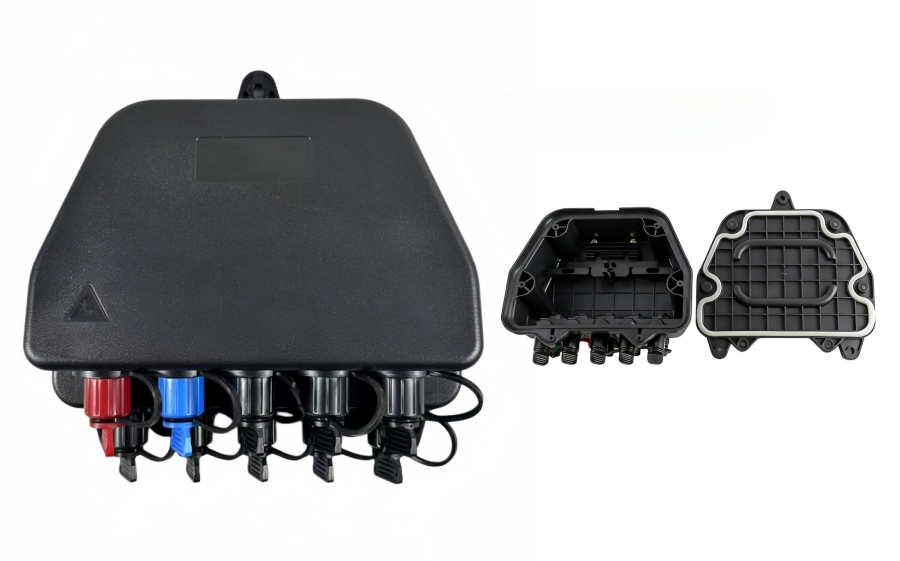

Fiber Access Terminal

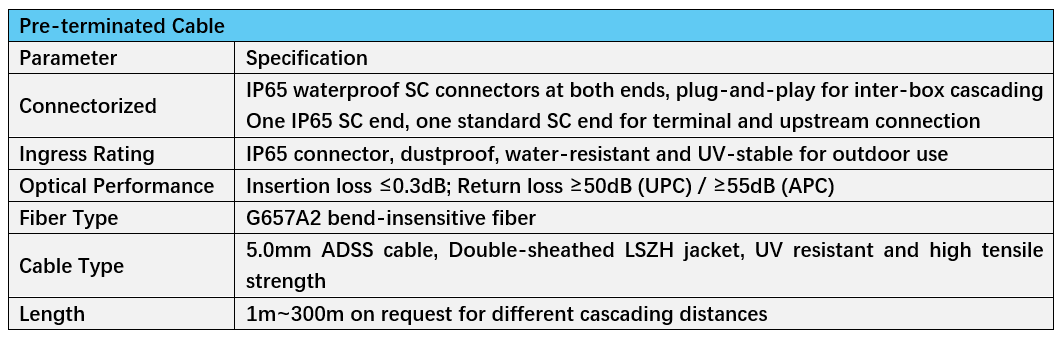

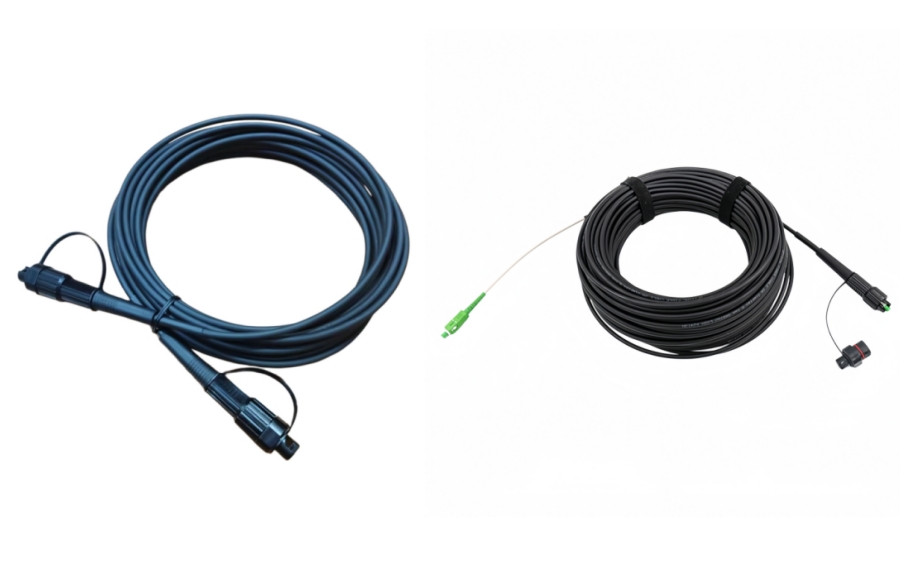

Pre-terminated Cable
