Product Overview

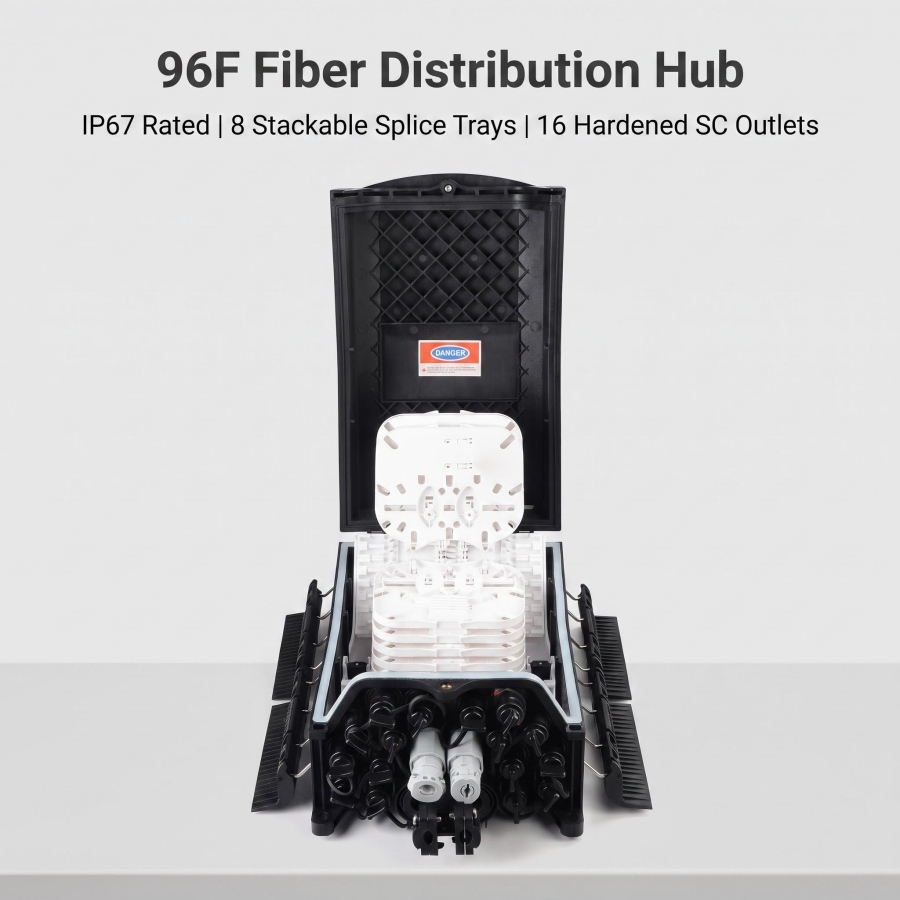

This 96-core outdoor fiber distribution hub is an IP67-rated sealed fiber enclosure designed for FTTH, 5G and outdoor passive optical networks. It supports up to 96 fibers for fusion splicing, equipped with 16 hardened SC waterproof pre-connected outlets. Adopts stackable splice tray design for neat fiber routing and fiber protection. Robust sealed housing adapts to wall-mount, pole-mount deployment scenarios.
Equipped with 1 feeder cable entry with integrated strain relief (for uncut feeder cable) and 2 distribution cable outlets. Widely used for outdoor fiber access, roadside optical nodes, residential area fiber distribution and outdoor data transmission links.
Key Features
-Max capacity: 96 fibers for fusion splicing, fitted with 16 hardened SC waterproof pre-connected ports
-Cable port layout: 1 feeder cable entry with strain relief (supports uncut feeder cable routing), 2 distribution cable outlets
-IP67 waterproof & dustproof sealed structure, suitable for all outdoor environments
-8 pieces stackable plastic splice trays, convenient for fiber management and maintenance
-Reinforced UV-stabilized engineering plastic housing, impact resistance, anti-aging
-Flexible installation: support pole mounting and wall mounting accessories
-Optimized internal routing space, strictly control fiber minimum bend radius
- Designed and tested in accordance with Telcordia GR-20 environmental criteria, IEC 61300 test procedures; RoHS 2.0 compliant.
Mechanical Specifications
Overall size: 400mm*210mm*140mm
Max Splicing Capacity: 96 fibers
Pre-connected Port: 16 ¡Á Hardened SC ports
Splice Tray Quantity: 8 stackable trays
Cable Ports:
1 ¡Á Feeder cable entry (with strain relief, compatible with uncut feeder cable)
2 ¡Á Distribution cable outlets
Protection Class: IP67
Housing Material: UV-stabilized reinforced engineering plastic
Installation Method: Pole mount / Wall mount
Environmental Specifications
Operating Temperature: -40 ¡æ ~ +70 ¡æ
Storage Temperature: -40 ¡æ ~ +85 ¡æ
Ingress Protection: IP67
UV Resistance: Suitable for long-term outdoor exposure
Typical Applications
FTTH outdoor fiber access nodes
5G base station outdoor fiber distribution
Residential community & park optical network deployment
Highway, intelligent monitoring outdoor fiber junction point
Outdoor passive optical distribution network
Order & Packaging
Single unit packed in independent carton
Bulk shipment packed in standard export outer cartons
