XHT-A01 · FTTH / FTTR ACCESS NETWORKS

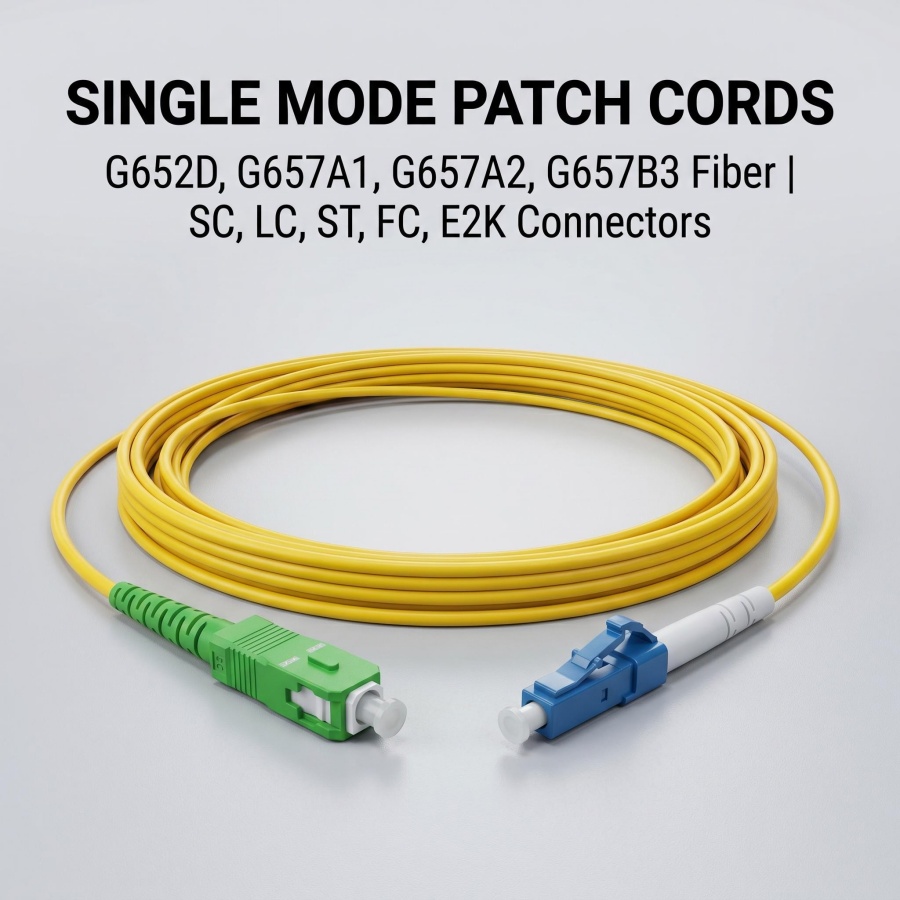

Single-Mode Fiber Patch Cords (OS2)
G.652.D / G.657.A1 in stock · G.657.A2 / G.657.B3 on request · from 1 pc
Factory-terminated single-mode jumpers for FTTH distribution frames, splitters, ONT drops and indoor terminations — pick the exact fiber, jacket, connector and label your project needs, without buying more than the job requires.
At a Glance
Fiber: G.652.D & G.657.A1 in stock G.657.A2 & G.657.B3 on request
Diameter: 2.0 mm / 3.0 mm ｜ Jacket: PVC / LSZH
Color: Yellow standard (single-mode); other colors on request
Connector: SC / LC / ST / FC in stock E2K on request; UPC / APC (8°); simplex / duplex
Length: Any length; common 0.5 / 1 / 1.5 / 2 / 3 / 5 / 10 m
Insertion-loss grade: Standard ≤0.3 dB max; Low-loss ≤0.2 dB max (custom)
MOQ & lead time: Standard options from 1 pc, 3–7 days; custom MOQ & lead time on request
Where It Fits — FTTH Use Cases
This SKU serves FTTH / FTTR access. For data centers, industrial / outdoor and long pre-terminated runs, see Related Products below.
Cabinet / MDU patching
Inside distribution and floor boxes between ODF and splitter ports; tight coil space → A1/A2, 2.0 mm.
Splitter port feed
PLC splitter to distribution, high return loss for PON/CATV → SC/APC (green).
ONT / ONU indoor drop
To the ONU and wall outlet, small bends expected → A1/A2/B3, SC/APC or LC.
OLT / equipment side
Active equipment and test reference links → LC/UPC or SC/UPC (blue).
RF-video / CATV overlay
Cable TV overlay, anti-reflection, high return loss → APC (8°).
Legacy ST/FC & E2K networks
ST/FC common in older plants and some LatAm carriers; E2K for specified European networks (custom).
Build Your Cord — 8 Selection Steps
Step 1 · Fiber Type
▪ G.652.D in stock — standard single-mode, best value for straight, normal-radius runs and ODF/equipment patching.
▪ G.657.A1 in stock — bend-improved (~10 mm min bend), fully G.652-compatible; the safe everyday FTTH default when some coiling is expected.
▪ G.657.A2 on request — ~7.5 mm min bend, for tighter cabinet / MDU coiling.
▪ G.657.B3 on request — ~5 mm min bend, ultra-bend for FTTR / invisible and crowded boxes, short indoor reach.
▸ Not sure? G.657.A1 covers most FTTH patching. Specify A2/B3 only where the bend is genuinely tight — we won't upsell a fiber you don't need.

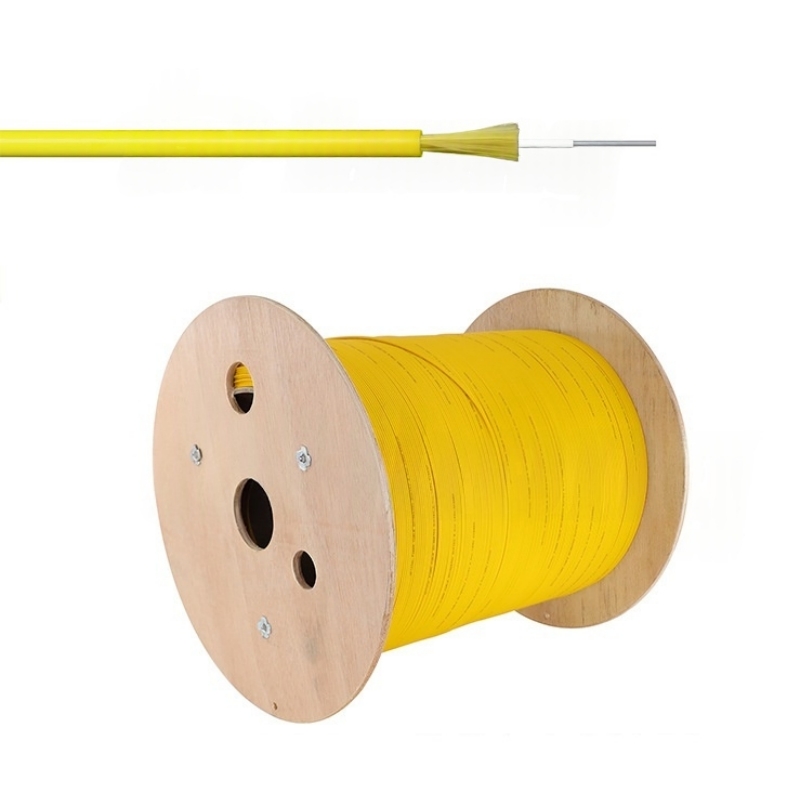

Step 2 · Cable Diameter
▪ 2.0 mm — compact and flexible, preferred inside boxes / high density.
▪ 3.0 mm — sturdier, easier to handle, longer patches and transition to outdoor.
Step 3 · Jacket Material
▪ Jacket material — PVC or LSZH — is chosen to match your project specification and local fire rule.
Step 4 · Color
▪ Yellow (TIA-598 single-mode) in stock. Other colors on request for project color-coding or private label.
Step 5 · Connector / Polish / Mode

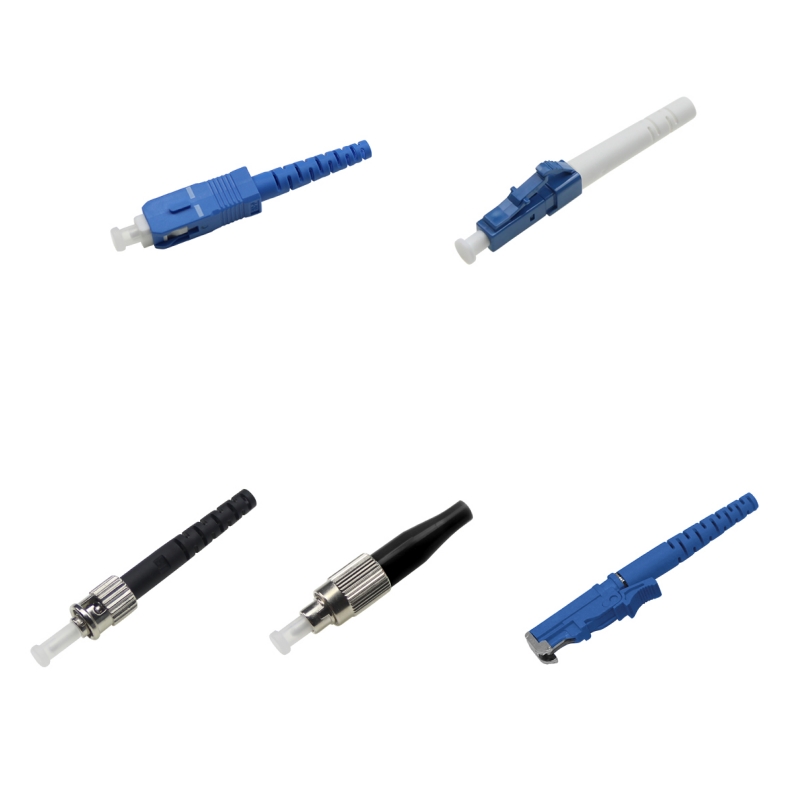

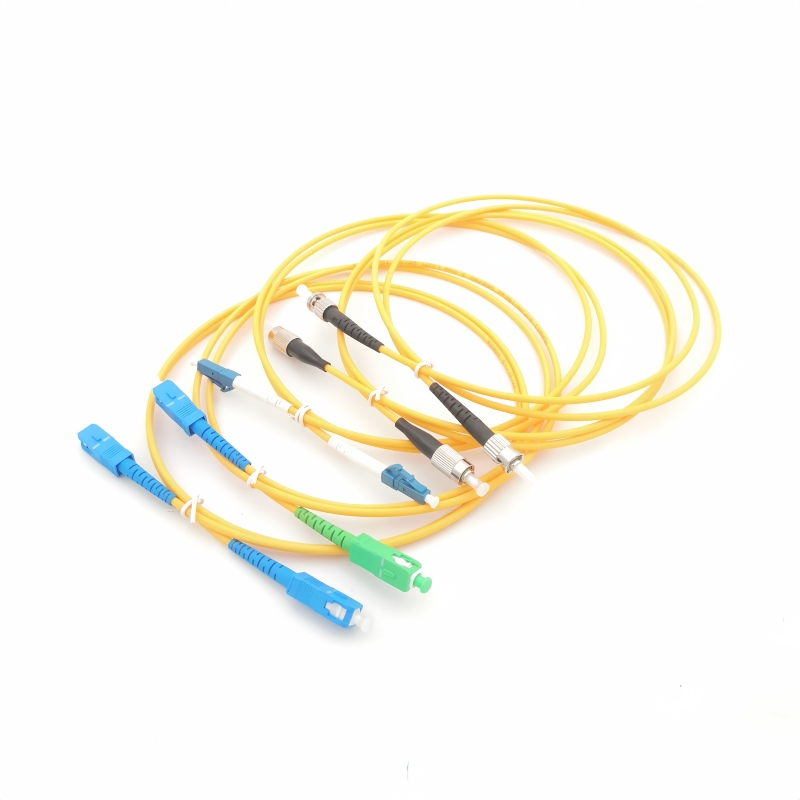

▪ SC (FTTH default) / LC (compact, equipment side) / ST (bayonet legacy) / FC (thread, instrument & legacy) in stock; E2K (shuttered, premium European) on request.

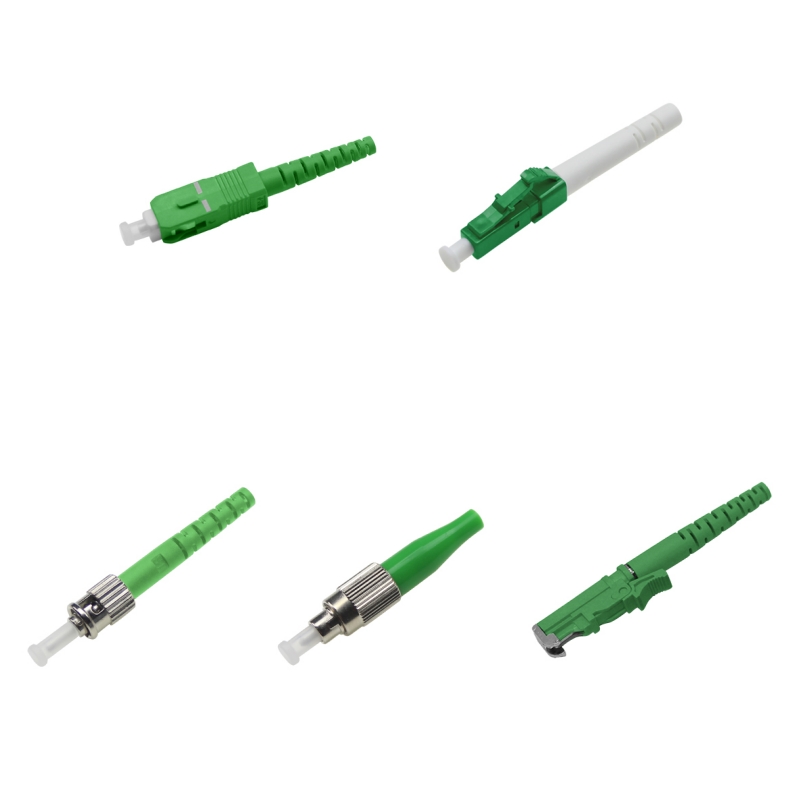

▪ UPC (blue) vs APC (green, 8°): PON feeder / distribution and any RF overlay → APC; active data ports → UPC. Always keep both ends the same — never mate APC with UPC.
▪ Simplex / duplex available.
Step 6 · Length
▪ 0.5 / 1 / 1.5 / 2 / 3 / 5 / 10 m in stock; any length custom. Choose the actual in-box run to avoid excess coiling.
Step 7 · Insertion-Loss Grade
▪ Standard ≤0.3 dB max in stock — ample margin for FTTH, best value.
▪ Low-loss ≤0.2 dB max on request — only when many connectors cascade, the link budget is tight, or XGS-PON runs long.
Step 8 · Label & Packaging private label on request
▪ Standard labels and packaging are supplied within the regular lead time.
▪ Custom labels and packaging — logo, serial, QR code, custom individual bags — are handled as a custom service, MOQ and lead time agreed on request.
Recommended FTTH Configurations
1. Cabinet / MDU patching (most common): G.657.A1 · 2.0 mm · LSZH/PVC · SC/APC · simplex · 1–2 m · standard grade.
2. ONU drop / outlet termination: G.657.A1 (A2 when tight) · 2.0/3.0 mm · LSZH · SC/APC · 3 m · standard grade.
3. OLT / equipment & test: G.652.D · 2.0 mm · LSZH · LC/UPC or SC/UPC · 1–3 m.
4. Ultra-tight / FTTR bend: G.657.B3 (custom) · 2.0 mm · LSZH · SC/APC · custom length · low-loss optional.
5. EU E2K / long cascade low-loss: E2K (custom) + low-loss ≤0.2 dB.
Technical Specifications
| Parameter | Value / Options |
| Fiber mode | Single-mode OS2 |
| Fiber | G.652.D / G.657.A1 in stock; G.657.A2 / G.657.B3 on request |
| Cable diameter | 2.0 mm / 3.0 mm |
| Jacket | PVC / LSZH |
| Color | Yellow standard; custom on request |
| Connector | SC / LC / ST / FC in stock; E2K custom; UPC / APC; simplex / duplex |
| Insertion loss | Standard max ≤0.3 dB; low-loss max ≤0.2 dB |
| Return loss | UPC ≥50 dB; APC ≥60 dB |
| Repeatability / interchangeability | Repeatability ≤0.1 dB; interchangeability ≤0.2 dB; durability ≥1000 cycles |
| Ferrule | Zirconia ceramic |
| Operating temperature | −20 to +70 °C (for outdoor / rugged use see the double-jacket cord) |
| Standards | IEC 61300-3-4, RoHS |
Quality You Can Verify
▪ End-face clean and inspected.
▪ Zirconia ferrule, controlled epoxy cure and strain-relief boot.
▪ Standard, non-OEM components interoperable with standard adapters.
Ordering, MOQ & Service
▪ Standard options: from 1 pc, 3–7 days; sample first, then volume.
▪ Custom configurations (A2/B3 fiber, E2K, custom color, low-loss grade, private label): MOQ and lead time quoted on request.
▪ Mixed connectors / lengths / colors in one shipment are welcome for project roll-outs; reply within 24 h.
▪ Replacement for transit damage; long-term consumable and repeat-order supply.
Part number: XHT-A01-[D/A1/A2/B3]-[STD/LL]-[2.0/3.0]-[PVC/LSZH]-[connector]-[length]
Examples:
XHT-A01-A1-STD-2.0-LSZH-SCAPC-03M = G.657.A1 / standard loss / 2.0 mm / LSZH / SC-APC / 3 m
XHT-A01-D-STD-3.0-PVC-LCUPC-02M = G.652.D / standard loss / 3.0 mm / PVC / LC-UPC / 2 m
XHT-A01-B3-LL-2.0-LSZH-SCAPC-CUSTOM = G.657.B3 / low loss / 2.0 mm / LSZH / SC-APC / custom length
Related Products
This SKU focuses on FTTH. Choose the right product for other scenarios.
▪ Enterprise-grade LC patch cords (standard / low / ultra-low loss, LSZH/OFNR/OFNP) for server rooms → XHT-D05
▪ LC Uniboot cords (reversible polarity / push-pull, high density) → XHT-D06
▪ Double-jacket cords (industrial, repeated flex, wide temp) → XHT-D09
▪ Pre-terminated FTTH drop cables (outdoor flat / self-supporting round, standard or hardened connector, long length) → XHT-A06
▪ Pigtails (single & 12-color bunched for ODN termination) → XHT-A02
FAQ
Q1. G.652.D vs G.657.A1/A2/B3 — which do I actually need?
For normal FTTH patching with some coiling, A1 is the safe stock default and stays fully G.652-compatible. Move to A2 (7.5 mm) or B3 (5 mm) only where the box forces a tight loop; B3 is mainly ultra-compact indoor/FTTR. Straight, normal-radius runs are fine on G.652.D and cost less.
Q2. APC or UPC?
PON feeder/distribution and any RF/CATV overlay → APC (green, return loss ≥60 dB). Active equipment/data ports specifying UPC → UPC (blue). Never mate APC with UPC; the loss is severe.
Q3. Is ≤0.3 dB good enough, or pay for ≤0.2 dB?
A single FTTH link is well served by ≤0.3 dB max (IEC/GR-326). Choose ≤0.2 dB low-loss only when many connectors cascade, the link budget is tight, or XGS-PON runs long. We will not push low-loss you do not need.
Q4. 2.0 mm or 3.0 mm?
2.0 mm for dense in-box patching; 3.0 mm for a sturdier feel, easier handling or a longer / transition run.
Q6. MOQ, lead time — and can I use my own label?
Standard options from 1 pc in 3–7 days. Custom fiber (A2/B3), E2K, custom color, low-loss and private labelling are quoted on request. We can print your P/N, logo, serial or QR code.
Q7. Can I mix connectors and lengths in one order?
Yes. Mixed configurations are normal for project roll-outs and are welcome in a single shipment.
Values are typical / max per IEC 61300-3-4; production data is governed by the per-shipment factory test report. Standard, non-OEM components interoperate with standard adapters. This page serves FTTH/FTTR access; for data-center, industrial/outdoor and long pre-terminated runs see the related SKUs above.
