Pre-Terminated FTTH Drop Cables

Time：2026/9/17 20:38:48 Views：20

XHT-A06 · FTTH / FTTR ACCESS NETWORKS

Pre-Terminated FTTH Access Drop Cables

Flat self-supporting drop & round self-supporting drop · factory-terminated, hardened or standard SC · from 1 pc

Factory-terminated drop assemblies for aerial and facade FTTH runs - plug straight into a hardened MST / terminal on one end and an SC/APC ONT (or splice closure) on the other, with no field splicing or polishing. Two cable constructions and three hardened interface systems, matched to the terminal standard used in your network.

At a Glance

Two cable types: 2.0 x 5.0 mm flat self-supporting drop · 5.0 mm single-fiber round self-supporting drop (mini-ADSS style)
Fiber: G.657.A1 & G.657.A2 standard; G.657.B3 on request
Jacket: flat drop LSZH · round drop double LSZH (UV-black, mini-ADSS)
Hardened interface: Mini-SC-compatible · OptiTap-compatible · 3-in-1 universal (OptiTap / Mini-SC / Furukawa Slim compatible) - IP67 mated
End builds: hardened to SC/APC · hardened to bare-fiber stub; round drop also SC/APC to SC/APC; hardened-to-hardened on request
MOQ & lead time: from 1 pc in 10 / 20 / 30 m standard lengths, ~5-10 days; other lengths and FC / LC / wall-through pushable connectors on request

Two Cable Constructions

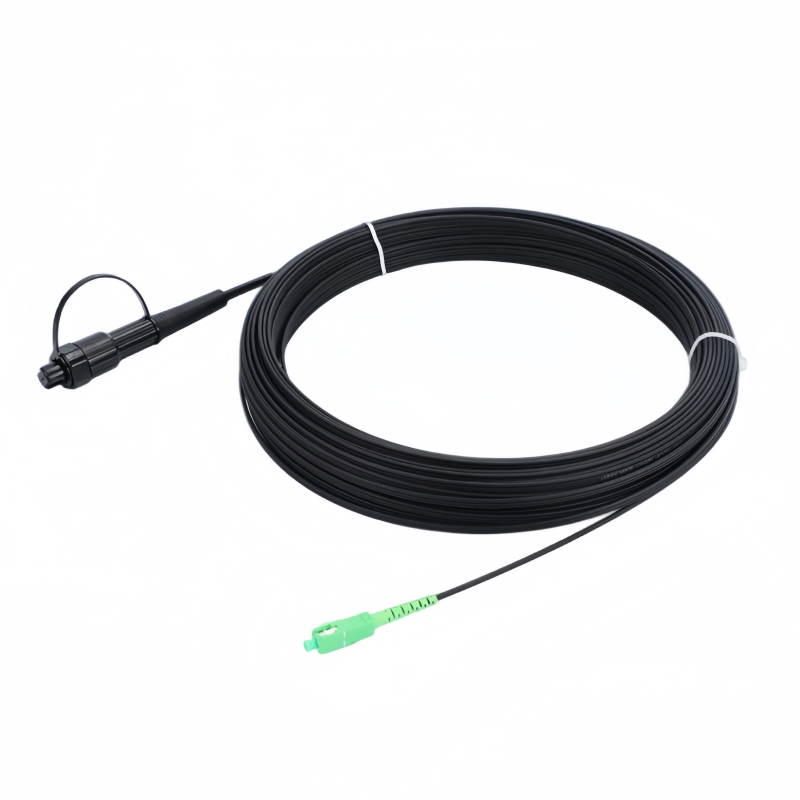

Type 1 · 2.0 x 5.0 mm Flat Self-Supporting Drop

2.0 x 5.0 mm flat self-supporting FTTH drop cable

▪ Construction: compact flat self-supporting drop with strength member for aerial lashing / clamping; G.657 bend-insensitive fiber.
▪ Jacket: LSZH.
▪ Hardened builds (this page focuses on the hardened increment):
– F1-A: hardened connector one end + standard SC/APC at the premises end (ONT / outlet).
– F1-B: hardened connector one end + bare-fiber stub (pigtail) for fusion splicing inside a closure / terminal.
▪ Where it fits: aerial MST / NAP-to-home runs in North-American-style hardened networks and growing hardened deployments in Latin America.

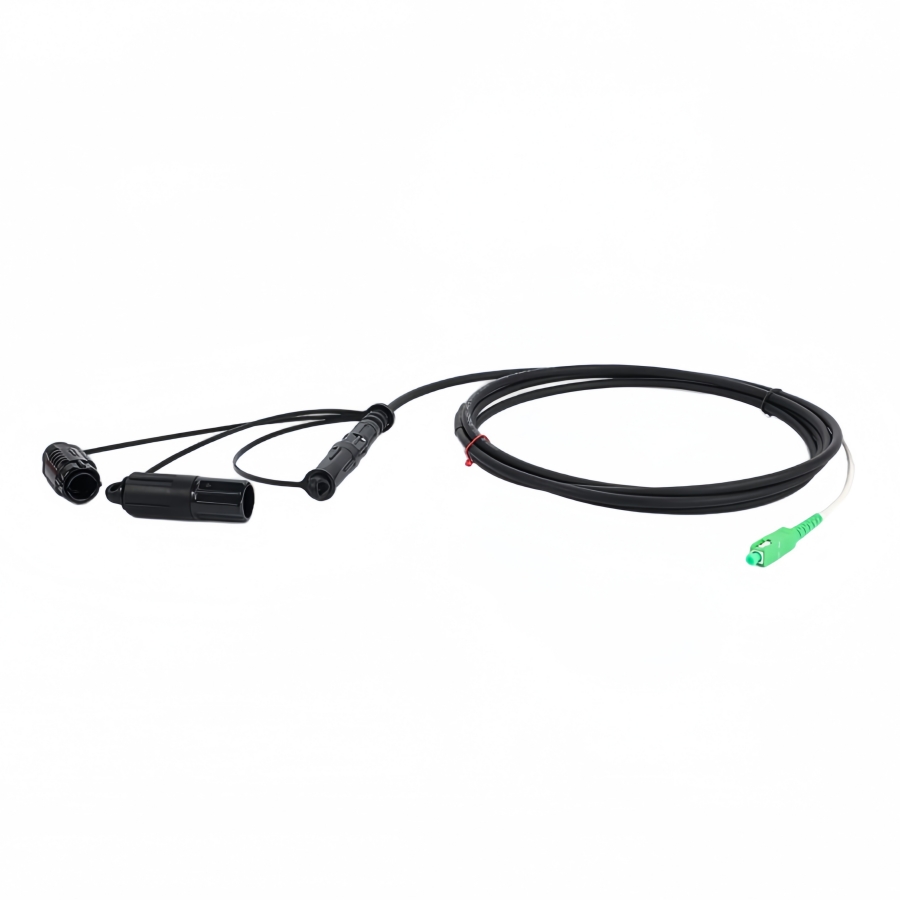

Type 2 · 5.0 mm Single-Fiber Round Self-Supporting Drop (Mini-ADSS Style)

5.0 mm round all-dielectric self-supporting FTTH drop cable

▪ Construction: compact round all-dielectric drop with aramid (Kevlar) strength members - no metal, mini-ADSS style for aerial / facade routing.
▪ Jacket: double LSZH, UV-black (mini-ADSS style).
▪ Builds:
– R-A: SC/APC both ends - the Southern-Europe aerial / facade standard (PLP-style), factory set to route length.
– R-B: hardened connector one end + standard SC/APC at the premises end.
▪ Where it fits: Southern-European facade and aerial last-drop, and projects preferring a small round all-dielectric cable over flat drop.

Choose the Hardened Interface

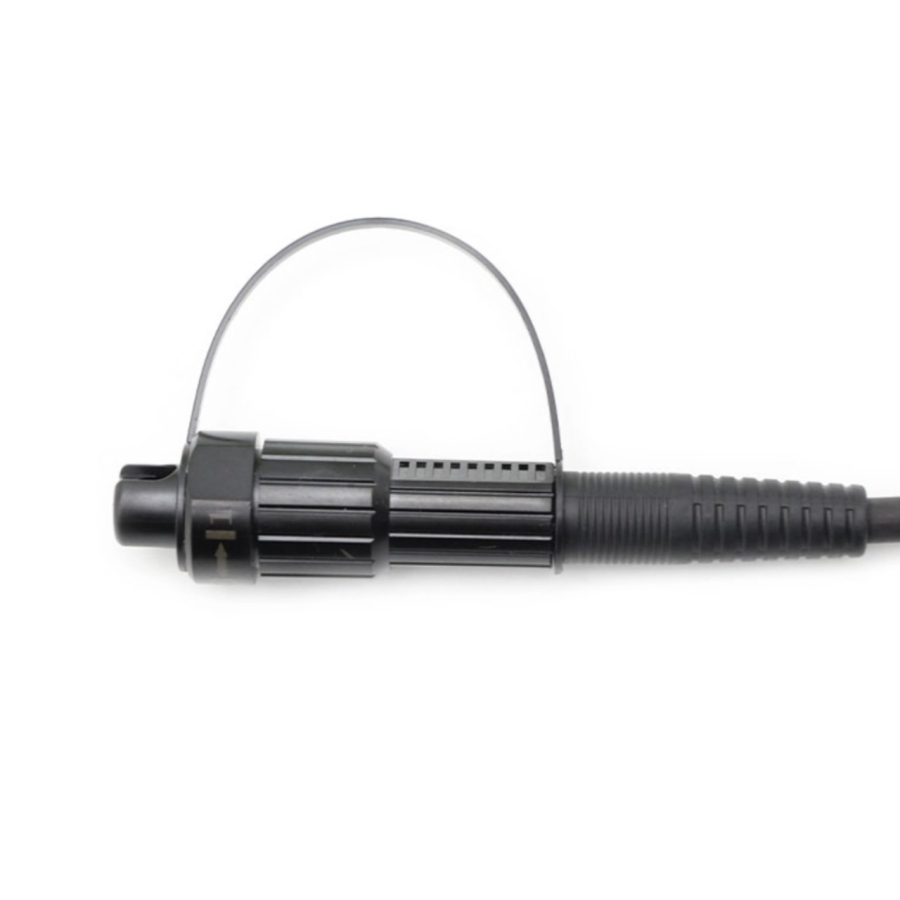

Mini-SC-compatible

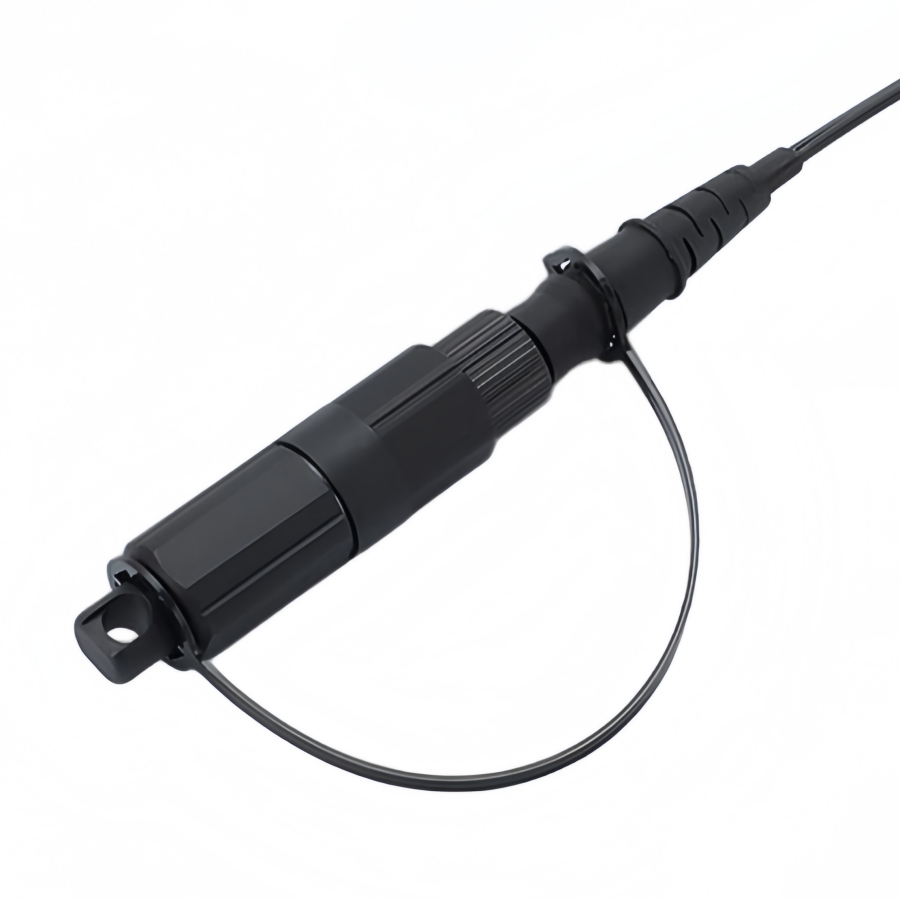

OptiTap-compatible

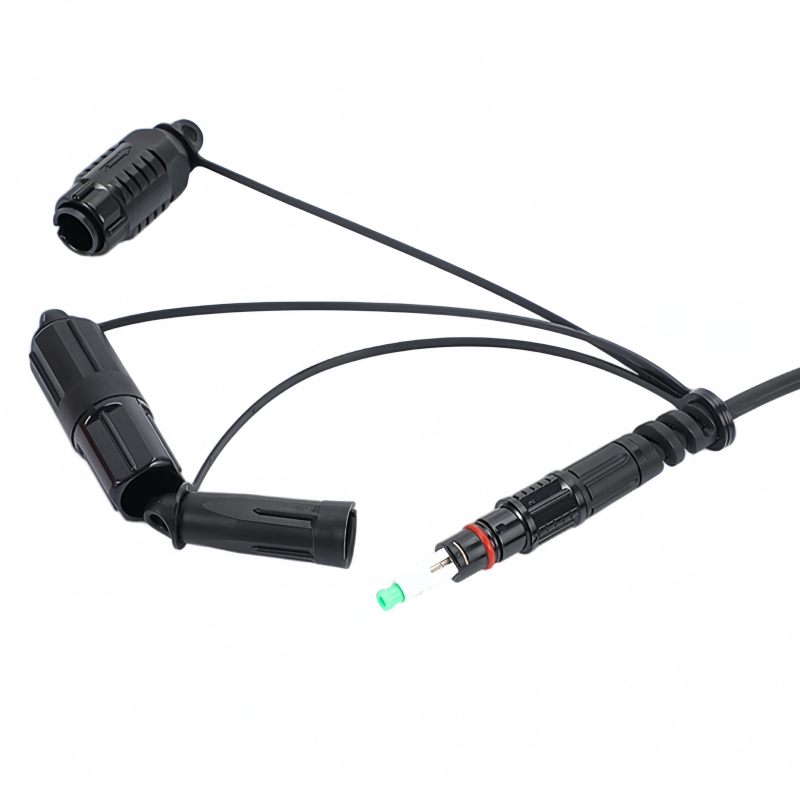

3-in-1 universal

Hardened interface	Compatible terminal system	Typical region
Mini-SC-compatible	Huawei FastConnect / Mini-SC hardened ports	Asia / global
OptiTap-compatible	Corning OptiTap® hardened ports / MST	North America / global
3-in-1 universal	Interchangeable housing adapts to OptiTap / Mini-SC / Furukawa Slim	Latin America / mixed-vendor fleets

Please confirm the hardened interface standard used on the terminals / MST in your network before ordering; the 3-in-1 universal suits mixed-vendor roll-outs, while a single dedicated interface gives the most precise fit.

Build Your Drop - Selection Steps

Step 1 · Cable: flat self-supporting drop for standard aerial clamping (Type 1), or 5.0 mm round all-dielectric mini-ADSS for facade / all-dielectric routing (Type 2).
Step 2 · Fiber: G.657.A1 / A2 standard; G.657.B3 on request for very tight storage in terminals.
Step 3 · Hardened interface: Mini-SC / OptiTap / 3-in-1 - match the table above to your region and terminal.
Step 4 · End build: hardened to SC/APC (F1-A / R-B), hardened to stub (F1-B), or SC/APC to SC/APC (R-A only). Hardened-to-hardened on request.
Step 5 · Length: standard 10 / 20 / 30 m per assembly, factory-terminated; other lengths are cut to order.
Step 6 · Extra connectors & cable-only: FC / LC connectors and wall-through pushable connectors are made to order. Bare cable by the drum, without connectors, is also available on request.
Step 7 · Label & packaging: standard labeling and packaging at normal lead time; custom labels, custom bags or carton marking are a custom service with MOQ and lead time agreed on request.

Optical & Environmental Performance

Parameter	Value
Insertion loss (per connector)	<=0.3 dB max
Return loss	UPC >=50 dB min · APC >=60 dB min
Hardened sealing (mated)	IP67
Fiber	G.657.A1 / A2 standard; B3 on request
Ferrule	Zirconia ceramic, factory polished
Operating temperature	-40 to +75 °C

Ordering, MOQ & Lead Time

▪ Standard end builds (hardened to SC/APC, hardened to stub, round SC/APC to SC/APC): from 1 pc in 10 / 20 / 30 m lengths, ~5-10 days; other lengths agreed on request.
▪ FC / LC connectors, wall-through pushable connectors, G.657.B3 and hardened-to-hardened are made to order: MOQ and lead time agreed on request; a sample can be supplied first.
▪ Bare cable by the drum (no connectors) is available on request.
▪ Mixed lengths / interfaces in one shipment are normal for project roll-outs; reply within 24 h.

    Part number: XHT-A06-[CABLE]-[ENDS]-[INTERFACE]-[FIBER]-[LENGTH]

    CABLE: F1 = flat 2.0x5.0 · RD = round 5.0 mini-ADSS

    ENDS: HSC = hardened to SC/APC · HSTUB = hardened to stub · SCSC = SC/APC both ends (round only)

    INTERFACE: MSC = Mini-SC compatible · OT = OptiTap compatible · U3 = 3-in-1 (n/a for SCSC)

    Examples:

    XHT-A06-F1-HSC-OT-A2-100M = flat, OptiTap-compatible to SC/APC, G.657.A2, 100 m

    XHT-A06-F1-HSTUB-MSC-A1-050M = flat, Mini-SC-compatible to stub, G.657.A1, 50 m

    XHT-A06-RD-SCSC-A2-080M = round, SC/APC both ends, G.657.A2, 80 m

    XHT-A06-RD-HSC-U3-A2-120M = round, 3-in-1 hardened to SC/APC, G.657.A2, 120 m
