Outdoor Fiber Distribution Boxes (FAT / NAP / CTO)
8 field-proven enclosures ¡¤ 8 / 16 / 24 / 48 fibers ¡¤ IP65 standard & IP67 reinforced ¡¤ wall or pole ¡¤ from 10 pcs
Outdoor optical distribution points for feeder / distribution cable entry, splitting, splicing and drop termination. Each model is a distinct enclosure - different body, dimensions and internal layout - built for a specific mounting position, cable route and capacity. Adapters, PLC splitters and wall / pole mounting hardware can be configured to order.
At a Glance - Common to All 8 Models
Function: feeder / distribution entry, PLC splitting, splicing, storage and SC drop termination in one enclosure
Configured to order: SC/APC or SC/UPC adapters, cassette / box / mini-steel PLC splitters, wall or pole mounting hardware
Cable entry: PG grommets, mid-span (cut-through) ports or un-cut through ports, plus numbered drop outlets
Bend radius: internal routing is designed to keep fiber bend radius at or above 30 mm throughout
MOQ & lead time: from 10 pcs (A07-07 from 4 pcs); about 5-15 days depending on quantity and configuration; samples can be arranged
Color: standard black / beige (light grey on selected models); project colors on request

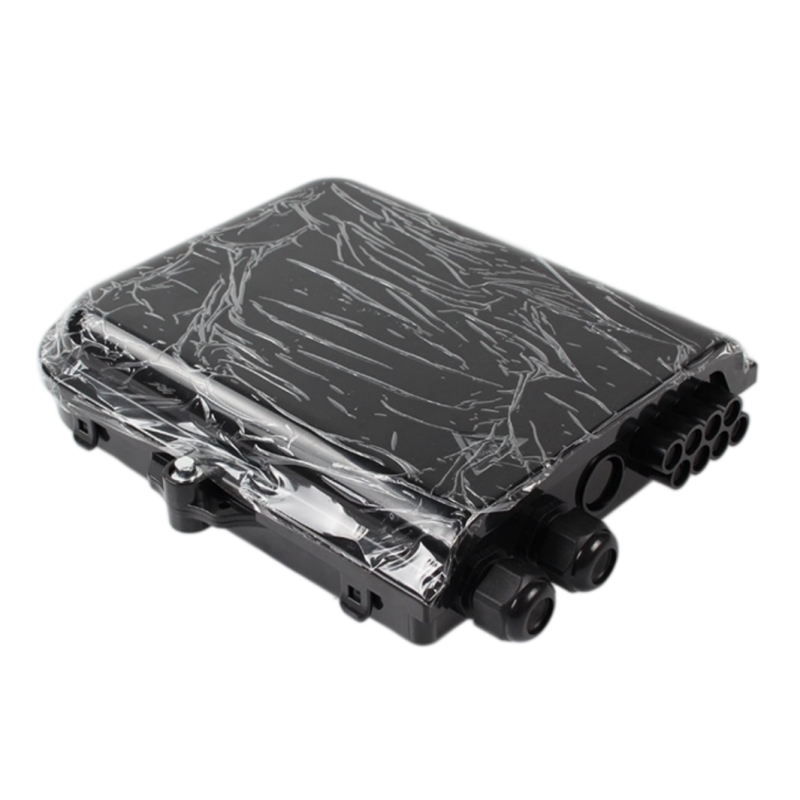

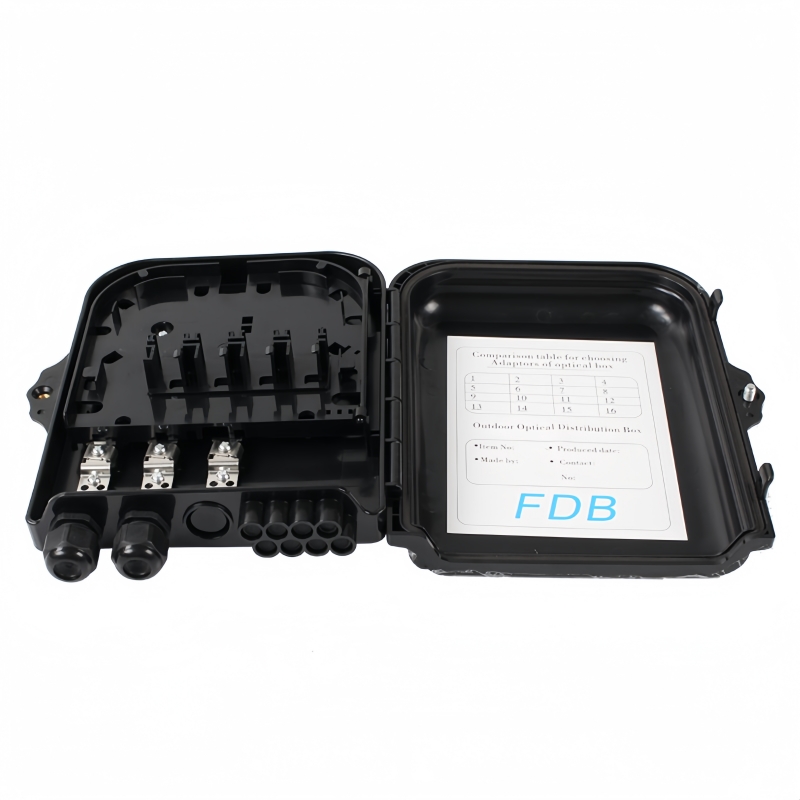

XHT-A07-01 ¡¤ 8-Fiber Compact Box, IP65 (Entry-Level)
Small, low-cost last-tap box for up to 8 homes - compact footprint and project colors for flexible, budget coverage of small MDUs and short drops.
| Material / rating | ABS ¡¤ IP65 |
| Dimensions (H¡ÁW¡ÁD) | 220 ¡Á 200 ¡Á 50 mm |
| Mounting / color | Wall / pole ¡¤ black, beige; red / yellow / blue on request |
| Port config A | 2 PG grommets (feeder / distribution) + 8 drop outlets |
| Port config B | 3 mid-span cut-through ports (feeder / distribution) + 8 drop outlets |
| Module A | 8-fiber splicing + 8-port SC adaptor panel |
| Module B | 1 ¡Á LGX splitter cassette slot |
Best fit: small MDU / last tap, 8-home coverage, cost-sensitive roll-outs, color-coded networks.

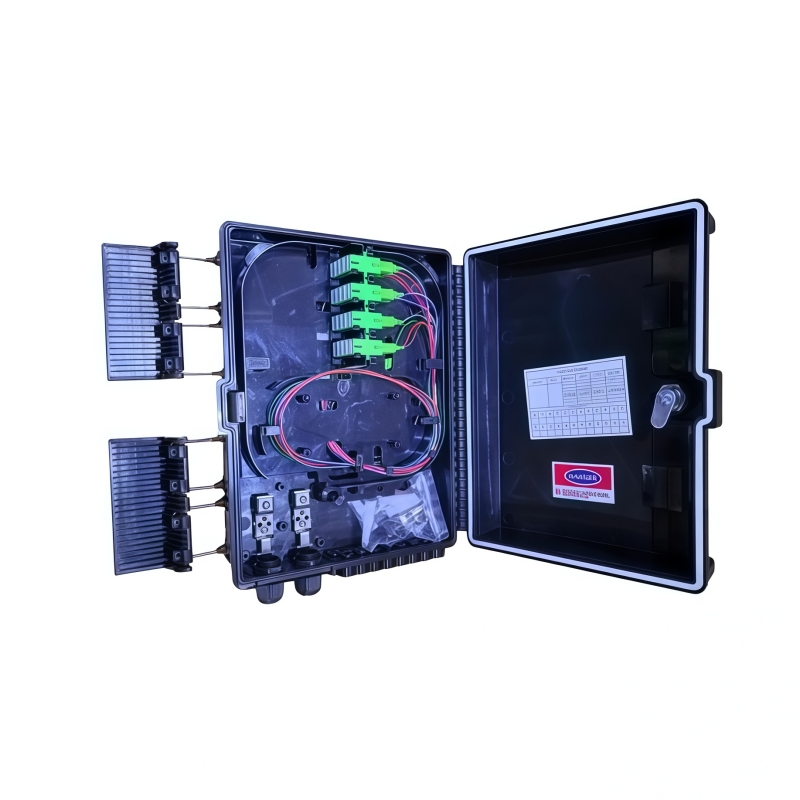

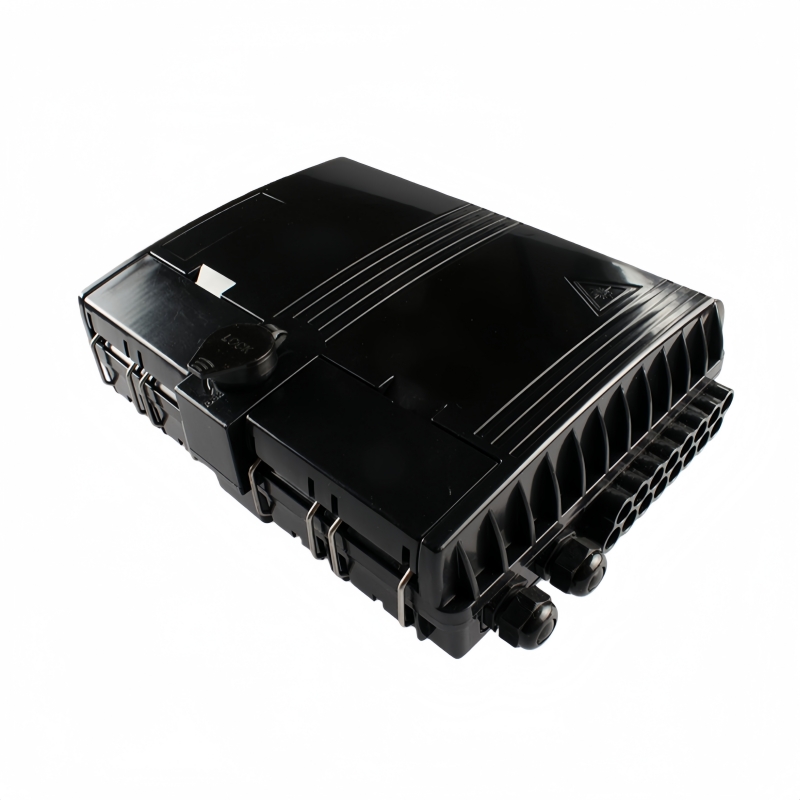

XHT-A07-02 ¡¤ 16-Fiber Box, IP65, Book-Opening (Side-Hinged Clamshell)
Side-hinged clamshell opens like a book: the lid swings sideways, so it needs side clearance rather than clearance above the box - a practical fit for pole / aerial and high positions where an eave, beam or another enclosure limits overhead space.
| Material / rating | ABS ¡¤ IP65 |
| Dimensions (H¡ÁW¡ÁD) | 300 ¡Á 245 ¡Á 100 mm |
| Mounting / color | Wall / pole ¡¤ black, beige; red / yellow / blue / green on request |
| Port config A | 2 PG grommets + 16 drop outlets |
| Port config B | 2 mid-span cut-through ports + 16 drop outlets |
| Module A | 16-fiber splicing + 16-port SC adaptor panel |
| Module B | 2 ¡Á LGX splitter cassette slots (dual-layer) |
Best fit: aerial / pole and high-mount positions where overhead space is limited (side-opening lid); color-coded projects.

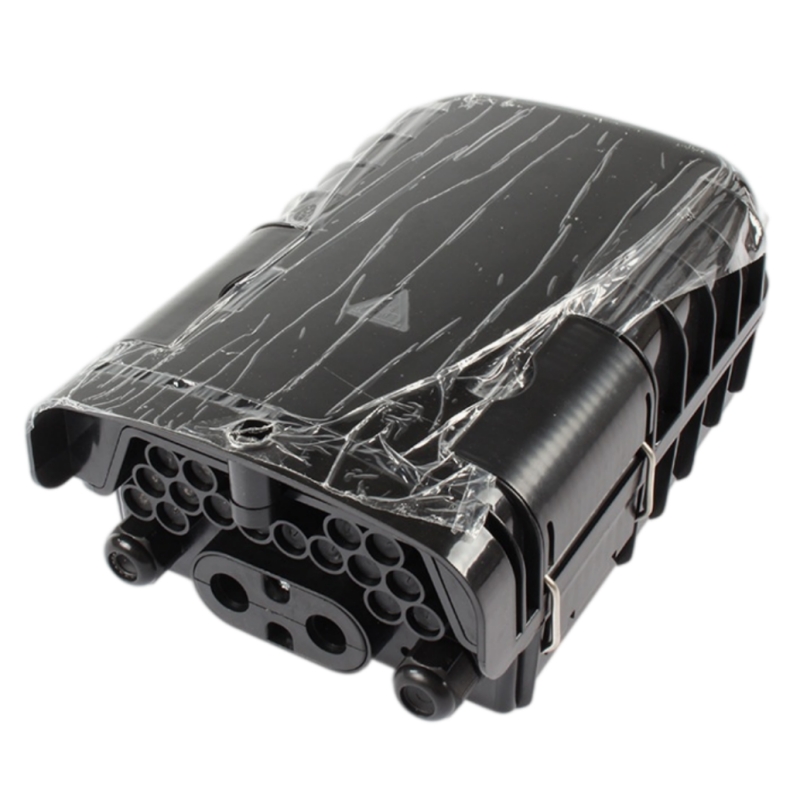

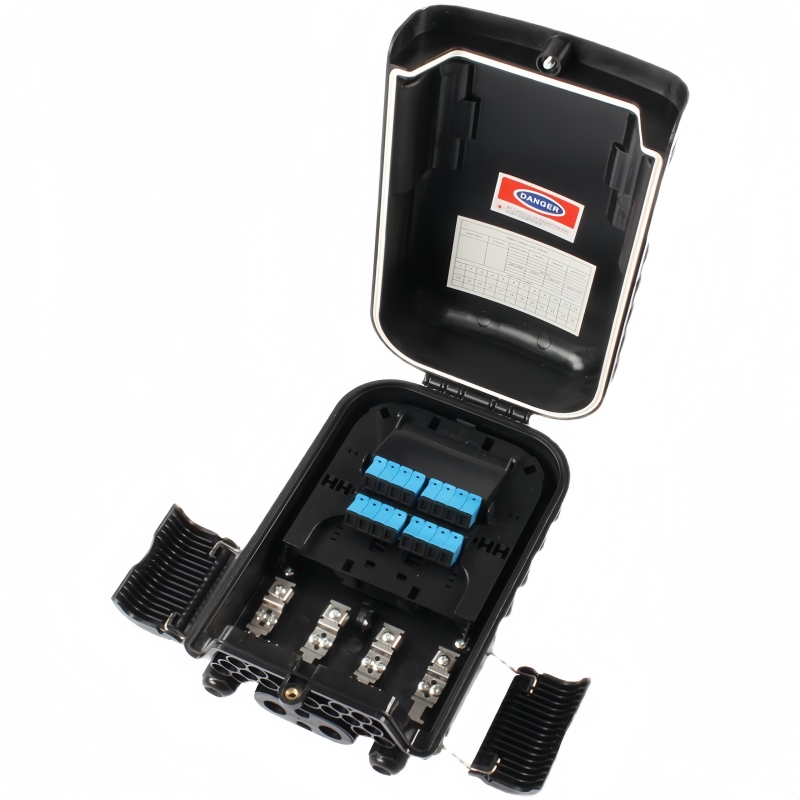

XHT-A07-03 ¡¤ 16-Fiber Box, IP65, Top-Hinged Lid (Compact, Un-Cut Through Port)
Compact top-hinged box for wall and MDU landing positions with clear overhead access; the lid opens upward for front access. An un-cut through port lets the feeder pass without cutting, supporting cascaded / daisy-chained distribution.
| Material / rating | ABS ¡¤ IP65 |
| Dimensions (H¡ÁW¡ÁD) | 285 ¡Á 190 ¡Á 100 mm |
| Mounting / color | Wall / pole ¡¤ black, beige |
| Ports | 1 un-cut through port (feeder) + 2 PG grommets (distribution) + 16 drop outlets |
| Module A | 16-fiber splicing + 16-port SC adaptor panel |
| Module B | 2 ¡Á LGX splitter cassette slots (dual-layer) |
Best fit: wall / façade / MDU face-on mounting, cascaded mid-span routes, compact and easy top-open access.

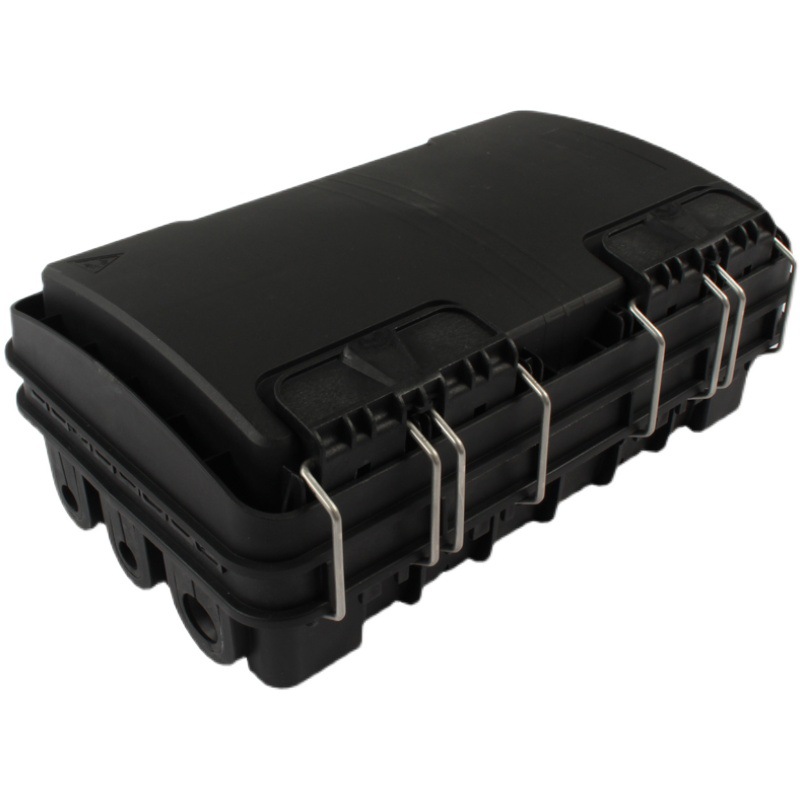

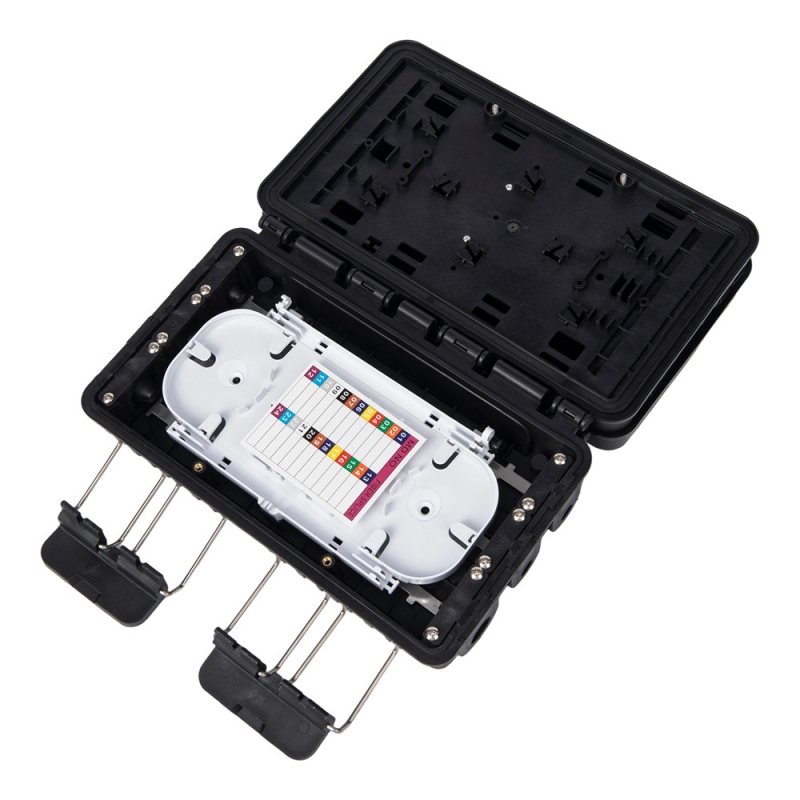

XHT-A07-04 ¡¤ 16-Fiber Reinforced Box, PP+GF, IP67 (Exposed Aerial)
Glass-fiber-reinforced PP housing with IP67 sealing. The reinforced housing adds rigidity and impact resistance for exposed aerial / pole locations. Six mid-span ports split across both ends serve multiple cable routes, with separate two-layer splice and patch zones.
| Material / rating | PP + glass fiber ¡¤ IP67 ¡¤ higher rigidity & impact resistance |
| Dimensions (H¡ÁW¡ÁD) | 285 ¡Á 175 ¡Á 110 mm |
| Mounting / color | Aerial / pole ¡¤ black |
| Ports | 6 mid-span cut-through ports across both ends (feeder / distribution), left & right cable routing |
| Capacity | up to 24-fiber splicing + 16 SC terminations; splice and patch zones on two independent layers |
Best fit: exposed aerial routes in demanding climate, multi-direction mid-span branching with left & right exits.

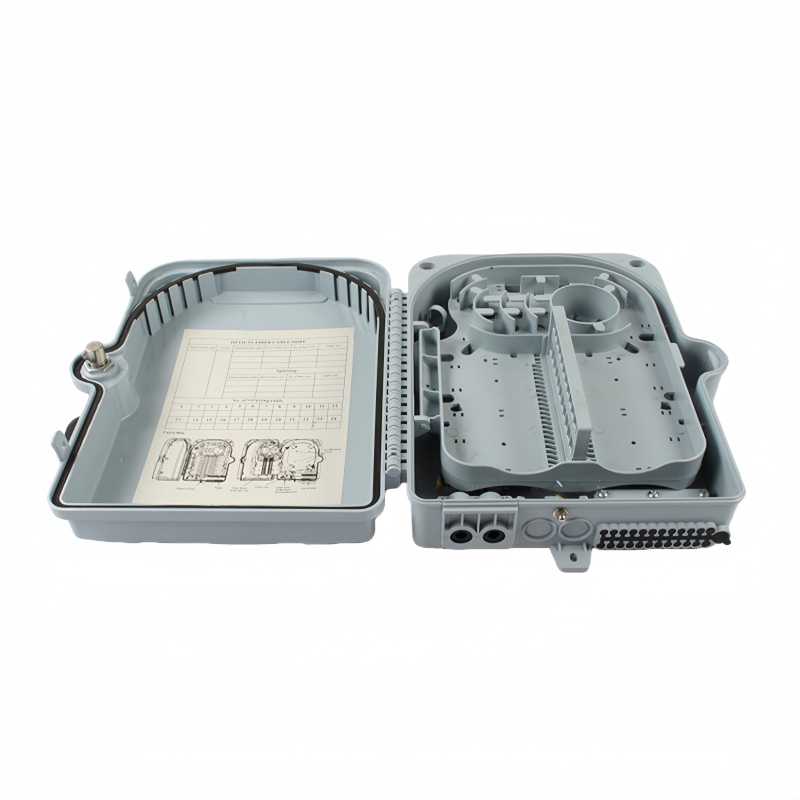

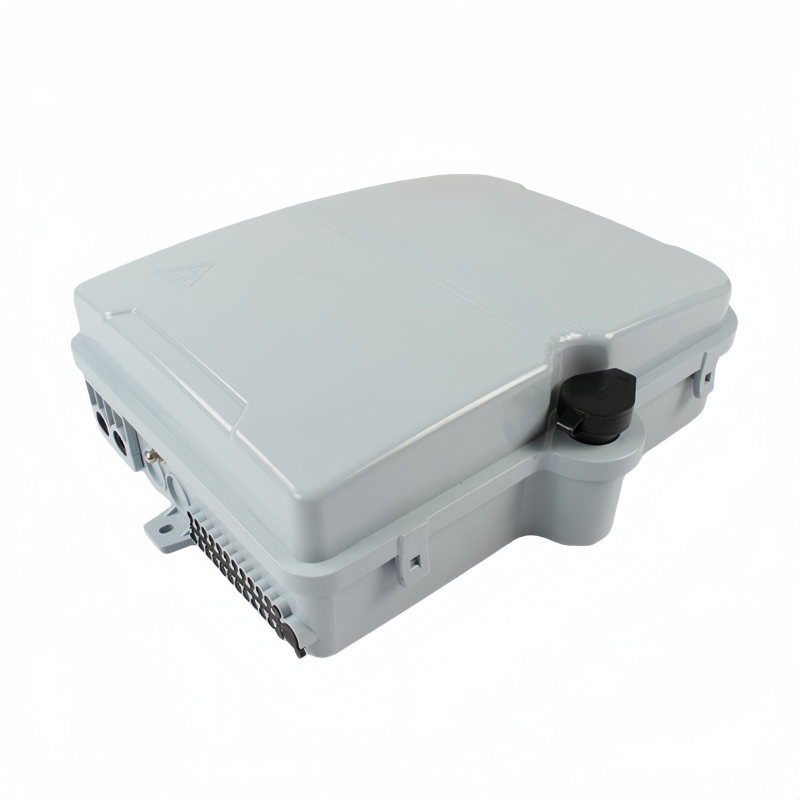

XHT-A07-05 ¡¤ 24-Fiber Box, IP65, Side-Hinged (High-Value)
Cost-effective 24-drop capacity in a side-hinged enclosure - more homes passed per box than the 16-fiber range, for high-volume aerial and pole coverage.
| Material / rating | ABS ¡¤ IP65 |
| Dimensions (H¡ÁW¡ÁD) | 330 ¡Á 275 ¡Á 100 mm |
| Mounting / color | Wall / pole ¡¤ light grey |
| Ports | 2 mid-span cut-through ports (feeder / distribution) + 24 drop outlets |
| Module | 24-fiber splicing + 24-port SC adaptor panel |
Best fit: value-driven 24-drop coverage for denser aerial / pole distribution and larger MDUs.

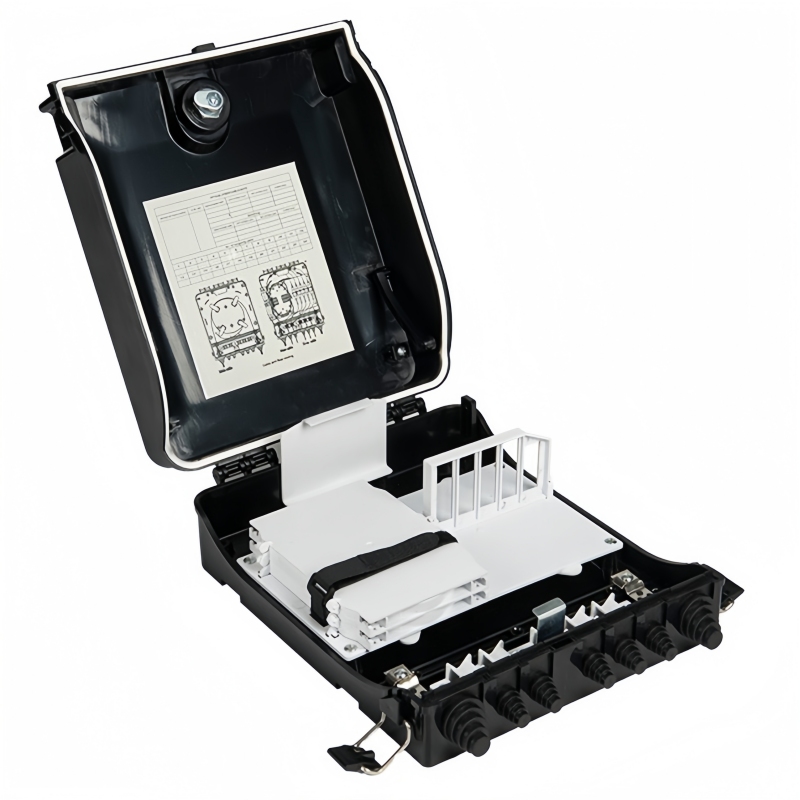

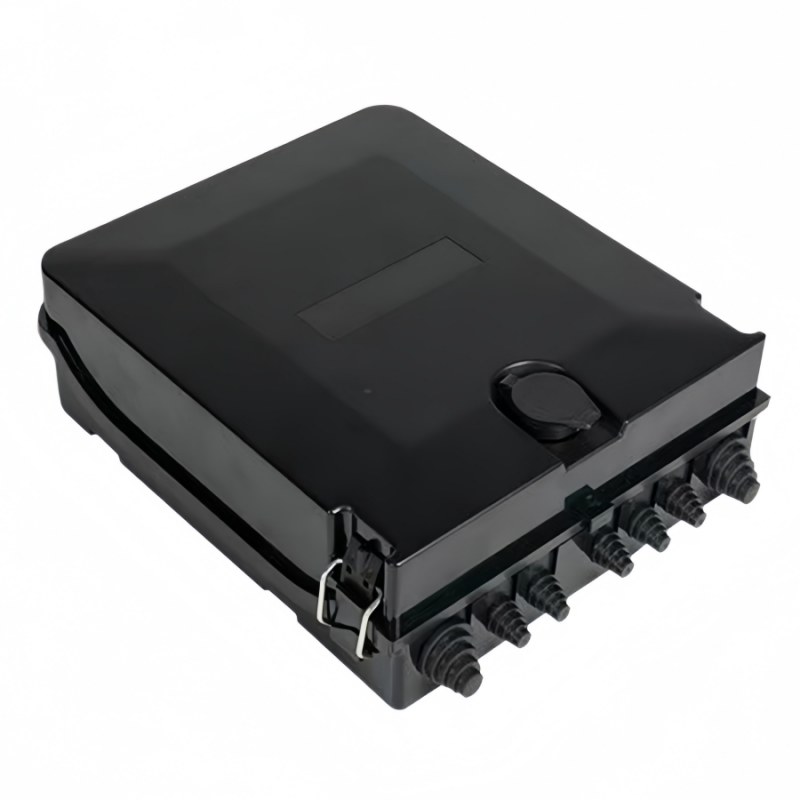

XHT-A07-06 ¡¤ 24-Fiber Box, IP65, Top-Hinged, Removable Panel & Stepped Grommets
The installer-friendly model: the whole splice-and-adaptor panel removes for bench splicing, and seven stepped rubber grommets (2 large + 5 small) seal mixed cable diameters without extra glands - flexible routing for rich access schemes.
| Material / rating | ABS ¡¤ IP65 |
| Dimensions (H¡ÁW¡ÁD) | 313.5 ¡Á 247.5 ¡Á 95.5 mm |
| Mounting / color | Wall / pole ¡¤ black |
| Ports | 7 stepped rubber grommets (2 large + 5 small) for feeder / distribution / drop, mixed diameters |
| Capacity | up to 48-fiber splicing + 24 SC terminations; complete functional panel removable |
Best fit: installation crews preferring bench splicing, mixed cable diameters, flexible routing and high access capacity in one box.

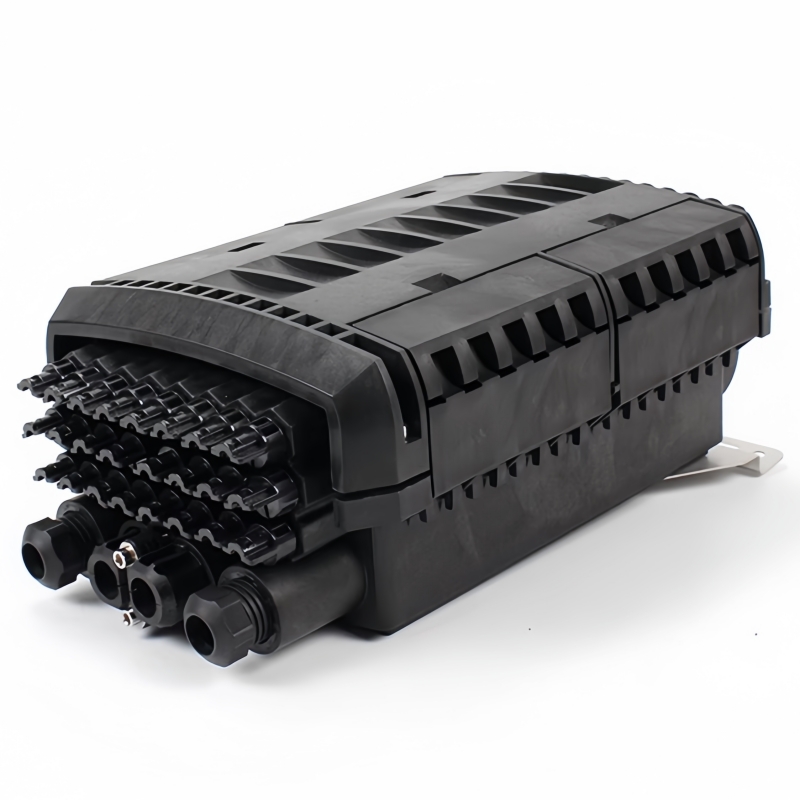

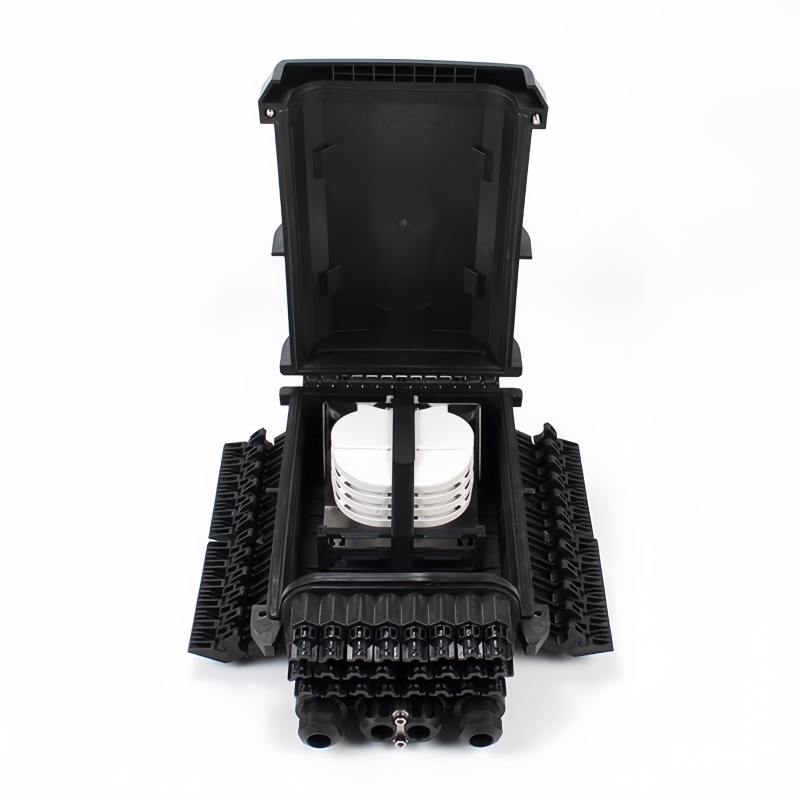

XHT-A07-07 ¡¤ 24-Termination Reinforced Box, ABS+GF, IP67, 48-Fiber Splice
Large glass-fiber-reinforced ABS enclosure with IP67 sealing and 48-fiber splice capacity behind 24 terminations - headroom for higher split ratios and future expansion in exposed locations.
| Material / rating | ABS + glass fiber ¡¤ IP67 ¡¤ higher rigidity & impact resistance |
| Dimensions (H¡ÁW¡ÁD) | 420 ¡Á 240 ¡Á 170 mm |
| Mounting / color | Wall / pole (aerial) ¡¤ black |
| Ports | 1 un-cut through port (feeder) + 2 PG grommets (distribution) + 24 drop outlets |
| Capacity | up to 48-fiber splicing + 24 SC terminations |
| MOQ | 4 pcs (other models from 10 pcs) |
Best fit: exposed distribution / MDU aggregation needing larger patch and splice capacity with room to grow the split ratio.

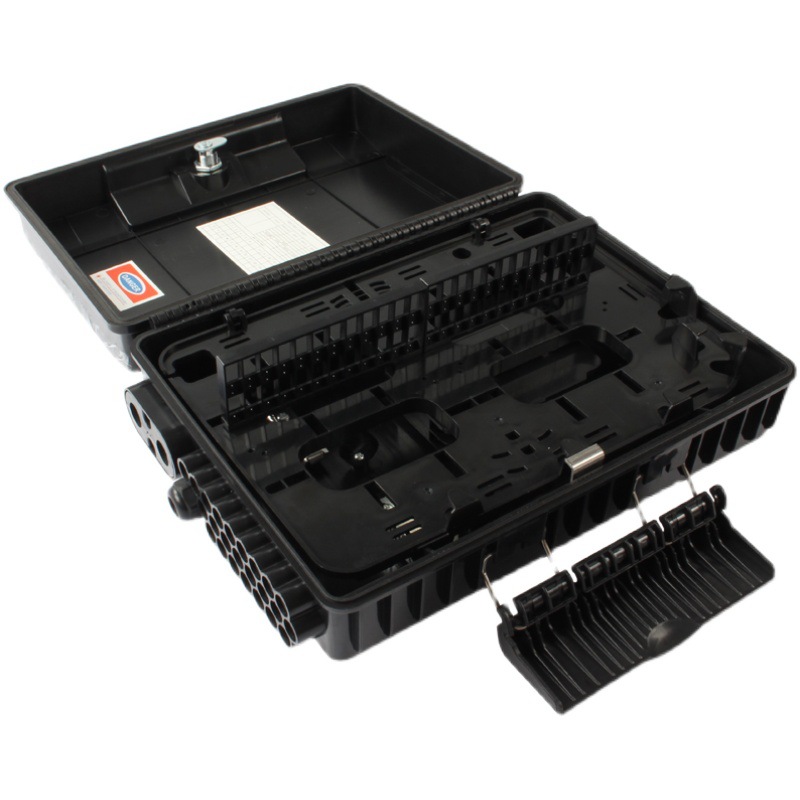

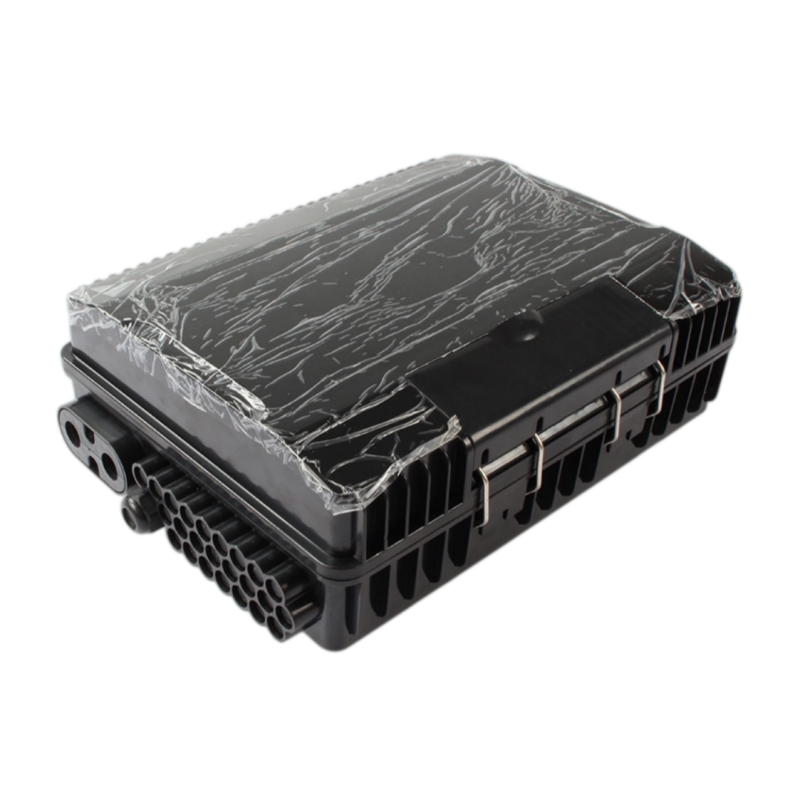

XHT-A07-08 ¡¤ 48-Fiber Box, IP65, Adaptor Panel or 4¡ÁLGX
Highest-capacity distribution point: choose a 48-port SC adaptor panel for P2P / high-density termination, or four LGX cassette slots for plug-in splitters - cover more subscribers from one box.
| Material / rating | ABS ¡¤ IP65 |
| Dimensions (H¡ÁW¡ÁD) | 355 ¡Á 270 ¡Á 120 mm |
| Mounting / color | Wall / pole ¡¤ black |
| Ports | 1 un-cut through port (feeder) + 1 PG grommet (distribution) + 24 drop outlets |
| Module A | up to 48-fiber splicing + 48-port SC adaptor panel |
| Module B | up to 48-fiber splicing + 4 ¡Á LGX splitter cassette slots |
Best fit: covering more homes from one point - P2P termination or large split-ratio aggregation (up to four 1¡Á8 LGX cassettes or one 1¡Á32 splitter).
Range Comparison
| Model |
Fibers / ports |
Material / IP |
Opening |
Splitter option |
Best fit |
| A07-01 | 8 | ABS / IP65 | standard | 1 LGX | small / last tap, low cost |
| A07-02 | 16 | ABS / IP65 | book / side | 2 LGX | aerial / pole, limited overhead space |
| A07-03 | 16 | ABS / IP65 | top-hinged | 2 LGX | wall / MDU, un-cut cascade |
| A07-04 | 16 term / 24 splice | PP+GF / IP67 | aerial, L&R | splice+patch | exposed aerial, multi-route |
| A07-05 | 24 | ABS / IP65 | side-hinged | SC panel | value 24-drop coverage |
| A07-06 | 24 term / 48 splice | ABS / IP65 | top, removable panel | SC + grommets | bench splicing, mixed cables |
| A07-07 | 24 term / 48 splice | ABS+GF / IP67 | large body | SC panel | exposed, high-capacity aggregation |
| A07-08 | 48 | ABS / IP65 | standard | 48 SC or 4 LGX | max homes per box |
How to Choose
By capacity: 8 homes → A07-01 ¡¤ 16 homes → A07-02/03/04 ¡¤ 24 drops → A07-05/06/07 ¡¤ 48 / large split → A07-08.
By environment: standard outdoor exposure → IP65 ABS models; exposed aerial / higher mechanical load → glass-fiber IP67 models (A07-04 / A07-07).
By mounting & access: wall / façade / MDU face-on → top-hinged (A07-03/06); pole / aerial / overhead with no top clearance → book / side-hinged (A07-02/05).
By architecture: plug-in LGX splitters → models with LGX slots; removable bench-work panel & mixed cable diameters → A07-06; cascaded mid-span → models with un-cut through ports.
Configuration, MOQ & Lead Time
▪ Boxes can ship empty or fitted with SC/APC (or SC/UPC) adapters, cassette / box / mini-steel PLC splitters, pigtails and wall / pole mounting hardware.
▪ MOQ from 10 pcs (A07-07 from 4 pcs); reference lead time about 5-15 days depending on quantity and configuration; a sample can be arranged before volume order.
▪ Project colors and custom port / module configurations quoted on request; mixed models in one shipment are normal for project roll-outs; reply within 24 h.
Related Products
▪ Pre-terminated / hardened MST terminals for hardened-connector networks ¡ú XHT-A08
▪ PLC splitters (1¡ÁN / asymmetric / 2¡ÁN, box / cassette / LGX) ¡ú XHT-A03 / A11 / A12
▪ Pre-terminated access drop cables (standard / hardened connector) ¡ú XHT-A06
▪ Indoor / MDU distribution boxes and fiber terminal panels ¡ú XHT-A14 / A15
This page covers non-hardened outdoor fiber distribution boxes (FAT / NAP / CTO). For hardened pre-terminated multi-port terminals with OptiTap / Mini-SC compatible interfaces, see XHT-A08. Dimensions and port layouts are per the production model; confirm the exact configuration and color on the order.
