Pre-Connectorized Access Terminal

Time：2026/9/20 16:16:42 Views：145

XHT-A08 · FTTH / FTTR ACCESS NETWORKS

Pre-connectorized Hardened Access Terminals (MST / NAP)

3 field-proven models · 8 / 10 / 16 hardened SC/APC ports · Mini-SC-compatible · IP65 · splitters factory-loaded to plan

Factory-terminated, environmentally sealed multiport terminals for plug-and-play FTTH drops. The range covers two deployment styles in one family: a compact sealed splitter / tap terminal that needs no field splicing, and larger splice-capable distribution terminals that combine an un-cut express feeder with on-site splicing, splitting and hardened plug-and-play drops. Hardened ports accept Mini-SC-compatible hardened SC/APC connectors; wall or pole mounting.

At a Glance - Common to All 3 Models

Hardened ports: Mini-SC-compatible hardened SC/APC adapters, factory-terminated and sealed for outside-plant drops
Two architectures: sealed splitter / tap terminal with no field splicing (A08-01) → splice-capable distribution / hub terminals with an un-cut express feeder (A08-02 / A08-03)
Factory-loaded splitters: PLC splitters pre-installed to your access plan; empty or loaded units on request
Mounting: wall or pole; the A08-01 can also take an optional rear slack-storage bracket
Enclosure rating: IP65 for aerial, pole and wall positions; hardened ports stay sealed when mated or capped
MOQ & lead time: A08-01 from 10 pcs, A08-02 / A08-03 from 6 pcs; reference lead time about 5-15 days depending on quantity and configuration; samples can be arranged

XHT-A08-01 · 10-Port Sealed Splitter / Tap Terminal, IP65 (No Field Splicing)

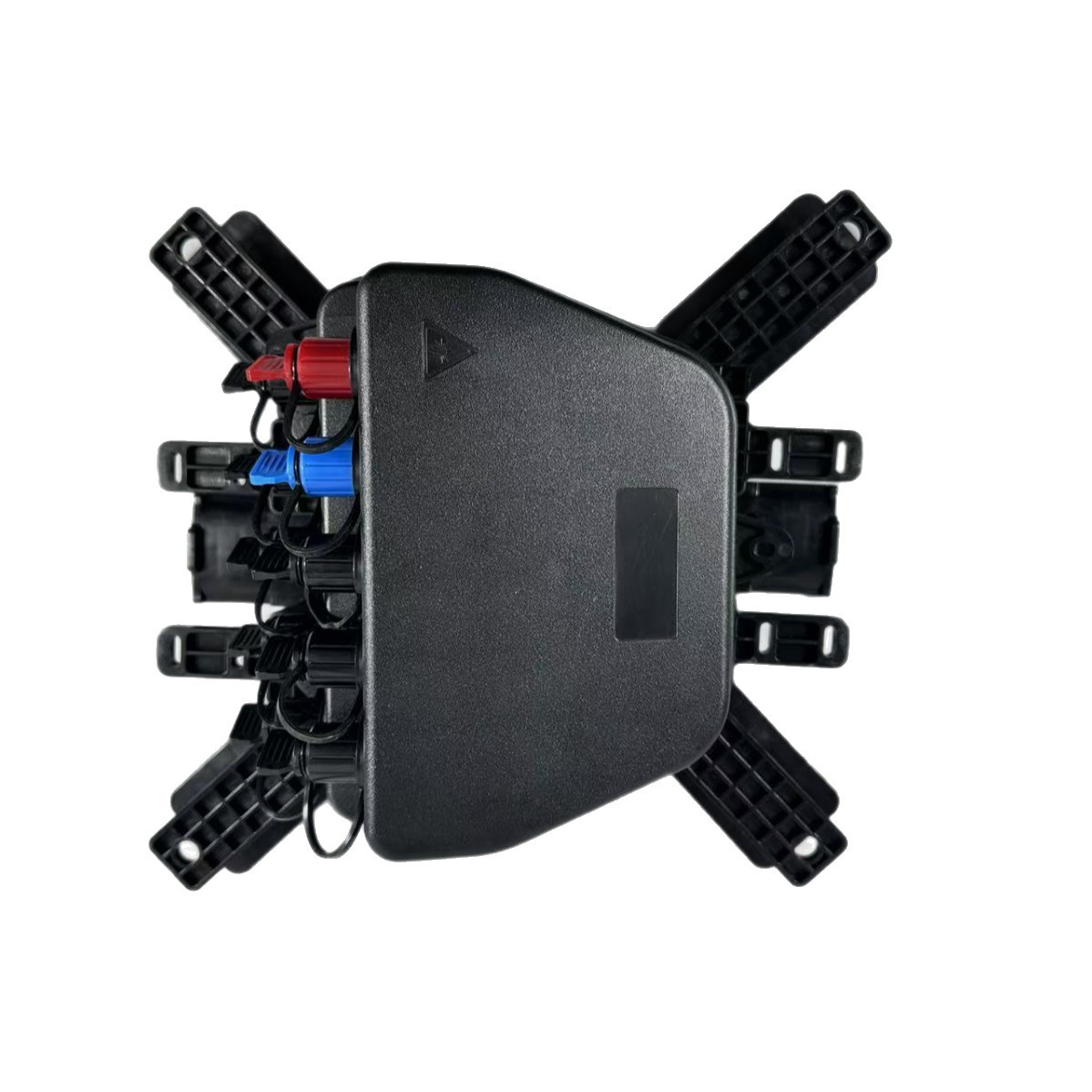

XHT-A08-01 sealed terminal exterior, hardened ports and mounting wings

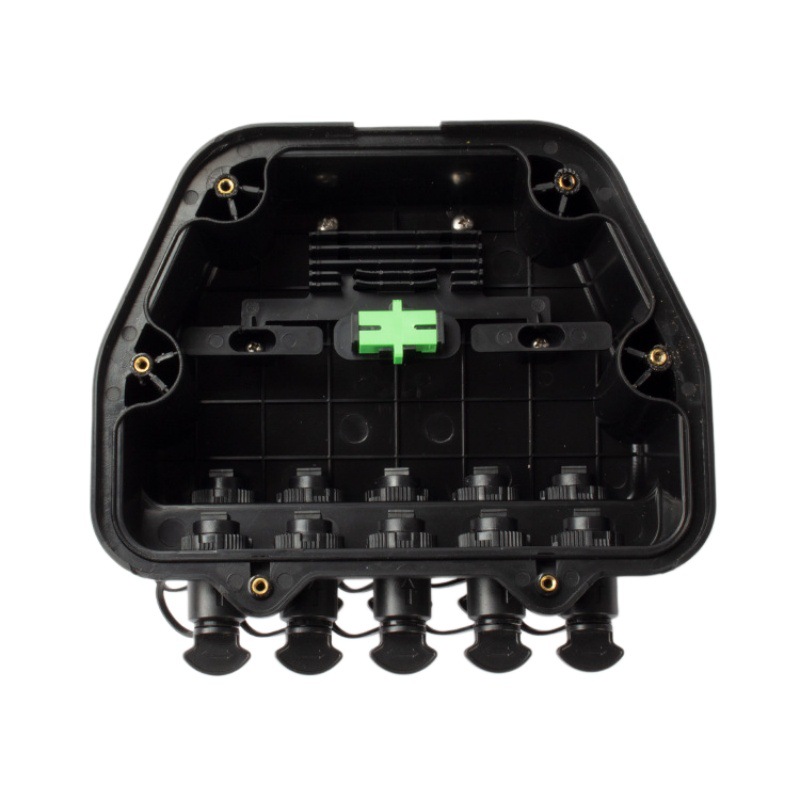

XHT-A08-01 open, compact factory routing with splitter holders and hardened adapters

Compact, factory-sealed terminal for the fastest possible deployment: hardened drops plug in with no field splicing. The ten hardened ports are used as eight subscriber drops plus two feeder / cascade ports, so the same enclosure supports a single 1×8 split, a dual 1×4 feed, or a cascaded 1×9 70/30 tap chain.

Material / rating	ABS · IP65
Dimensions (H×W×D)	210 × 180 × 90 mm
Hardened ports	10 × Mini-SC-compatible hardened SC/APC = 8 subscriber drop ports + 2 feeder / cascade ports
Internal layout	2 splitter holders + 2 splice-protector holders; compact factory routing (no large splice trays)
Pre-load option A	2 × 1×4 splitters → 2 distribution feeds serving 8 drops
Pre-load option B	1 × 1×8 splitter → 1 distribution feed serving 8 drops
Pre-load option C	1 × 1×9 asymmetric 70/30 tap → cascaded tap chain (see below)
Mounting	Wall / pole; optional rear slack-storage bracket
Field work	No field splicing required; plug-and-play hardened drops
MOQ / lead time	from 10 pcs · reference about 5-15 days · samples can be arranged

Best fit: greenfield and rural / low-density builds, fast roll-outs and crews working without a splicer - sealed, plug-and-play coverage with splitters and tap chains pre-configured at the factory.

How the 70/30 cascaded tap chain works (option C)
• A 1×9 asymmetric (70/30) tap splitter uses one port as the express / cascade output carrying about 70% of the power onward, while the eight drop ports share the tapped ~30%.
• Up to 3 transition (tap / through) terminals are daisy-chained on one distribution fiber, finished by 1 ending terminal fitted with a standard 1×8 splitter (full split, no express).
• One distribution fiber can then serve up to 32 subscribers (4 terminals × 8), deferring feeder fiber and letting terminals be activated as homes are passed.

XHT-A08-02 · 8-Port Splice Distribution Terminal, IP65 (Express Feeder + Splicing)

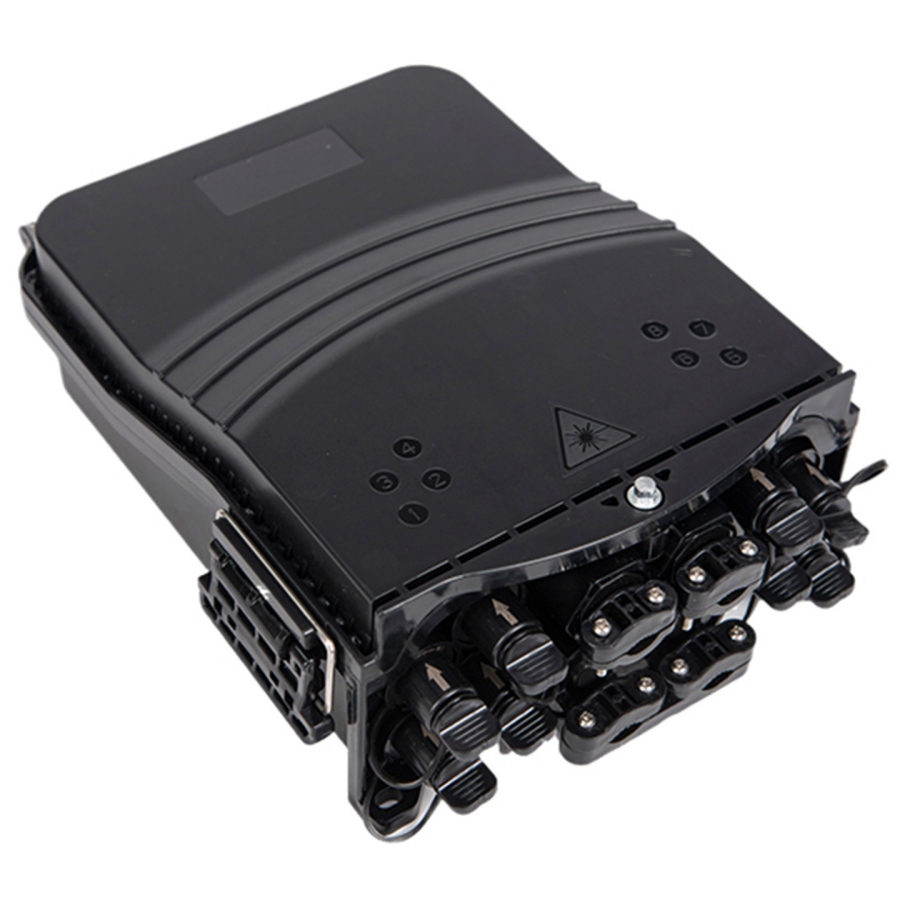

XHT-A08-02 exterior, eight hardened drop ports and numbered lid

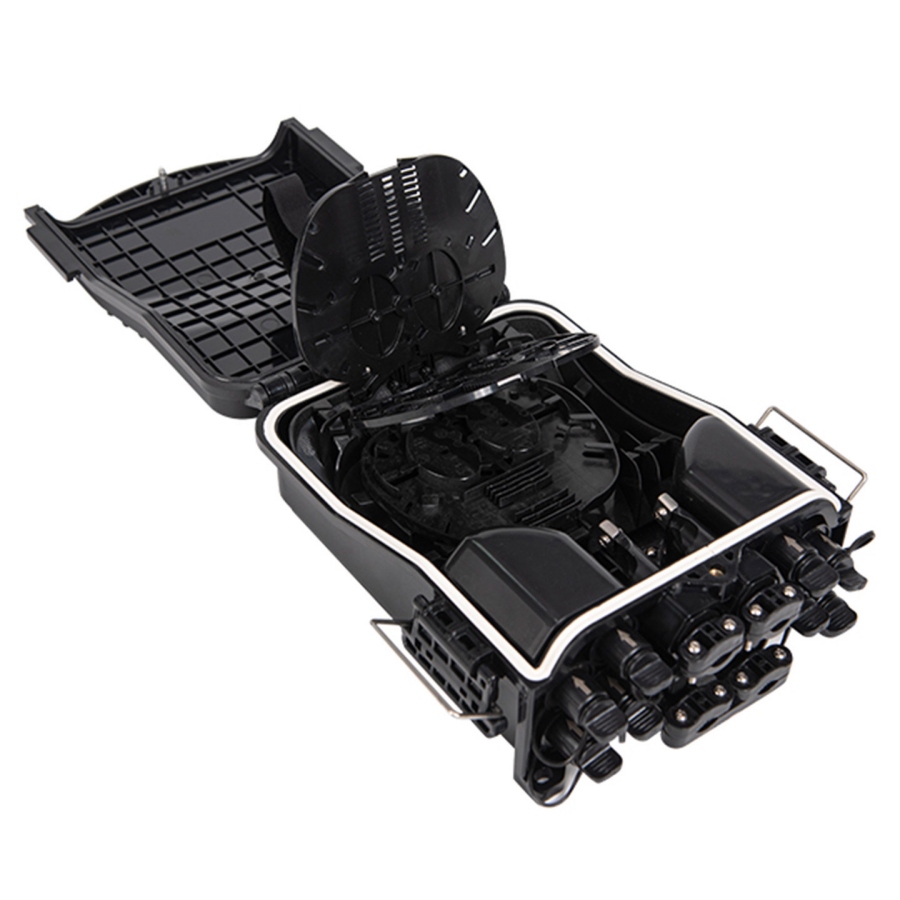

XHT-A08-02 open, three stacked splice trays and hardened adapters

The flexible hybrid: an un-cut through port lets the feeder pass on a mid-span (window-cut) without breaking the express fibers, while three splice trays give real on-site splicing and splitting capacity - and subscribers still connect with plug-and-play hardened drops. Two quick-release latches make repeated access easy.

Material / rating	PC+ABS · IP65
Dimensions (H×W×D)	299 × 202 × 98 mm
Cable ports	1 un-cut through port (feeder express) + 2 distribution cable ports + 8 hardened SC/APC drop ports
Splice capacity	3 trays: 2 trays × 12 fibers + 1 tray with 2 splitter holders and 4-fiber splicing (about 28 fibers total)
Access	2 quick-release latches for easy opening and re-entry
Mounting	Wall / pole
MOQ / lead time	from 6 pcs · reference about 5-15 days · samples can be arranged

Best fit: routes that are not fully known in advance, phased / staged build-outs and mid-density positions - mid-span express access with on-site splicing flexibility, finished by plug-and-play hardened drops.

XHT-A08-03 · 16-Port Distribution Hub Terminal, IP65 (High-Capacity Aggregation)

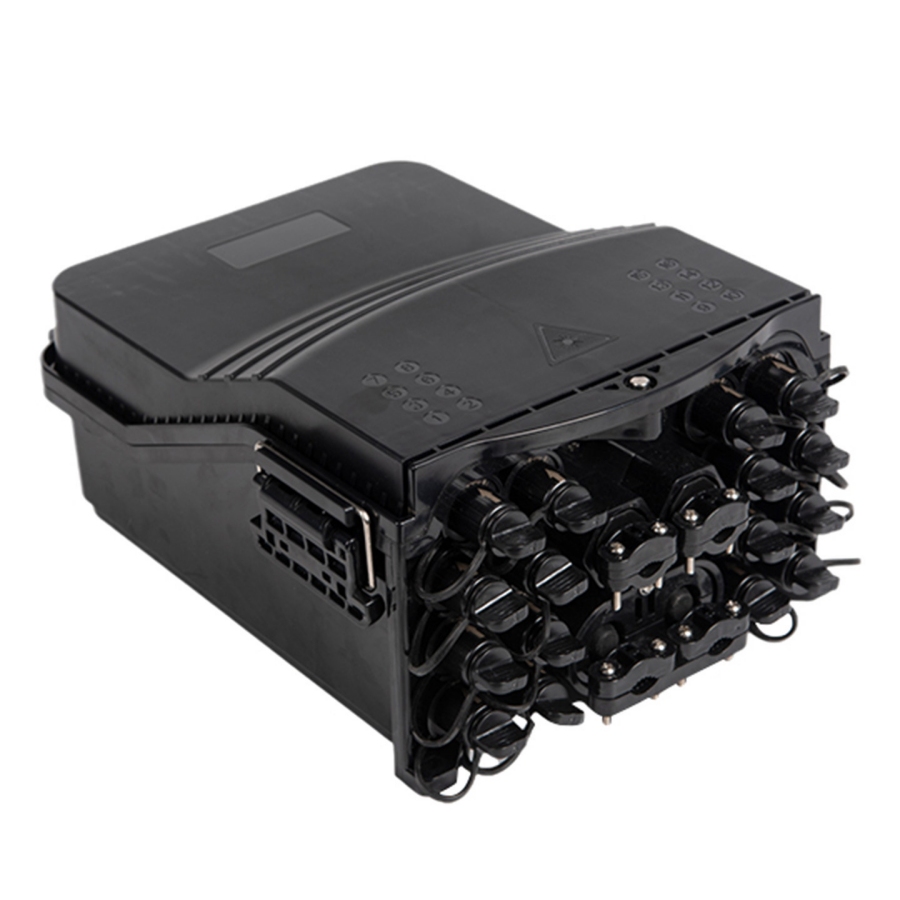

XHT-A08-03 exterior, sixteen hardened drop ports in two rows and numbered lid

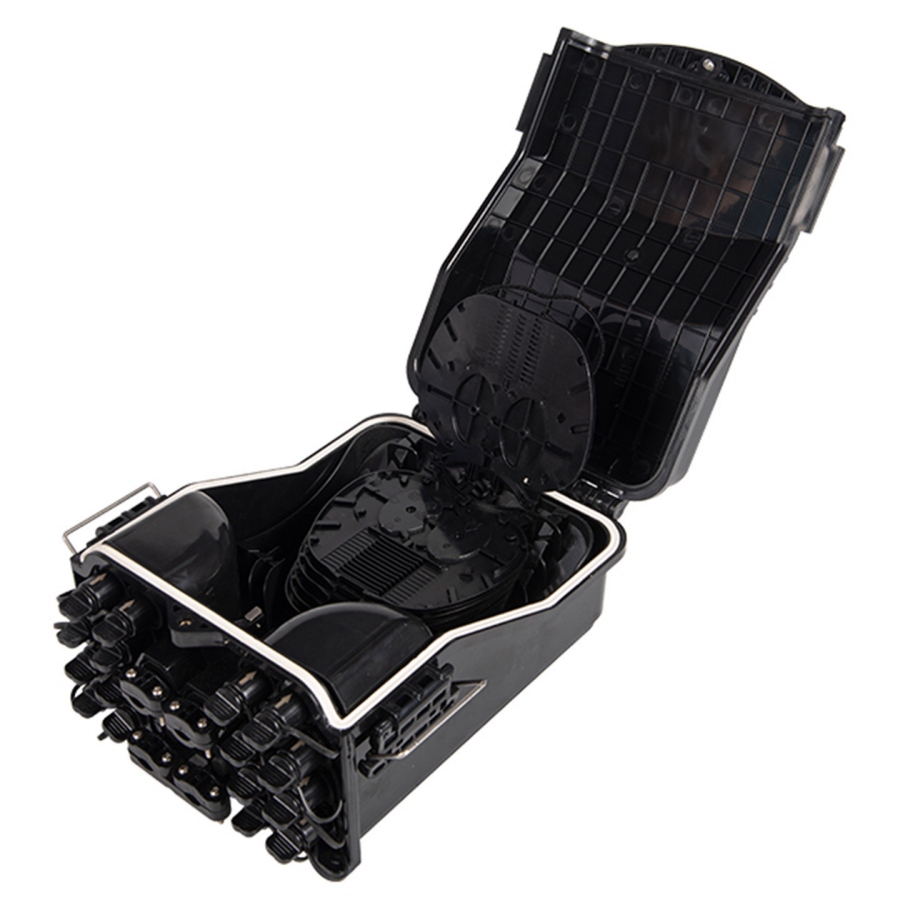

XHT-A08-03 open, seven stacked splice trays for high-density aggregation

The consolidation point of the range: sixteen hardened drops behind about 76 fibers of splice storage, with an un-cut express feeder and two distribution ports. It acts as a small distribution hub for a larger MDU, a building cluster or a primary-split point, while keeping subscriber connection plug-and-play.

Material / rating	PC+ABS · IP65
Dimensions (H×W×D)	319 × 215 × 133 mm
Cable ports	1 un-cut through port (feeder express) + 2 distribution cable ports + 16 hardened SC/APC drop ports
Splice capacity	7 trays: 6 trays × 12 fibers + 1 tray with 2 splitter holders and 4-fiber splicing (about 76 fibers total)
Access	2 quick-release latches for easy opening and re-entry
Mounting	Wall / pole
MOQ / lead time	from 6 pcs · reference about 5-15 days · samples can be arranged

Best fit: distribution / consolidation hub for larger MDUs and building clusters - primary split (1×16 / 1×32) or P2P mass termination, with express pass-through and room for future subscribers.

Range Comparison

Model	Hardened drops	Material / IP	Express / splice	Splitter pre-load	Best fit
A08-01	8 + 2 feeder / cascade (10 ports)	ABS / IP65	sealed, no field splicing	2×1×4 / 1×8 / 1×9 70/30 tap	fastest greenfield / rural, tap chain
A08-02	8	PC+ABS / IP65	un-cut express + ~28-fiber splice	splitter holders, factory or field	mid-span, phased / flexible build
A08-03	16	PC+ABS / IP65	un-cut express + ~76-fiber splice	primary split / P2P hub	MDU / cluster distribution hub

How to Choose

Want zero field splicing and the fastest install? → A08-01 sealed terminal, splitters and tap chains loaded at the factory; crews only plug in hardened drops.
Need to tap a live feeder mid-span and splice on site? → A08-02 (8 drops) with the un-cut through port and splice trays.
Serving a larger MDU / cluster from one point? → A08-03 (16 drops) as the distribution hub.
Building a low-fiber tap chain? → A08-01 with 1×9 70/30 taps (3 transition + 1 ending terminal, up to 32 subscribers per distribution fiber).

Configuration, MOQ & Lead Time

• Terminals can ship empty or factory-loaded with PLC splitters (1×N, asymmetric 70/30 tap) to your access plan.
• MOQ: A08-01 from 10 pcs, A08-02 / A08-03 from 6 pcs; reference lead time about 5-15 days depending on quantity and configuration (splitters factory-loaded to plan). A sample can be arranged before volume order.
• Mixed models in one shipment are normal for project roll-outs; wall / pole hardware and the A08-01 rear slack bracket can be supplied together; reply within 24 h.
