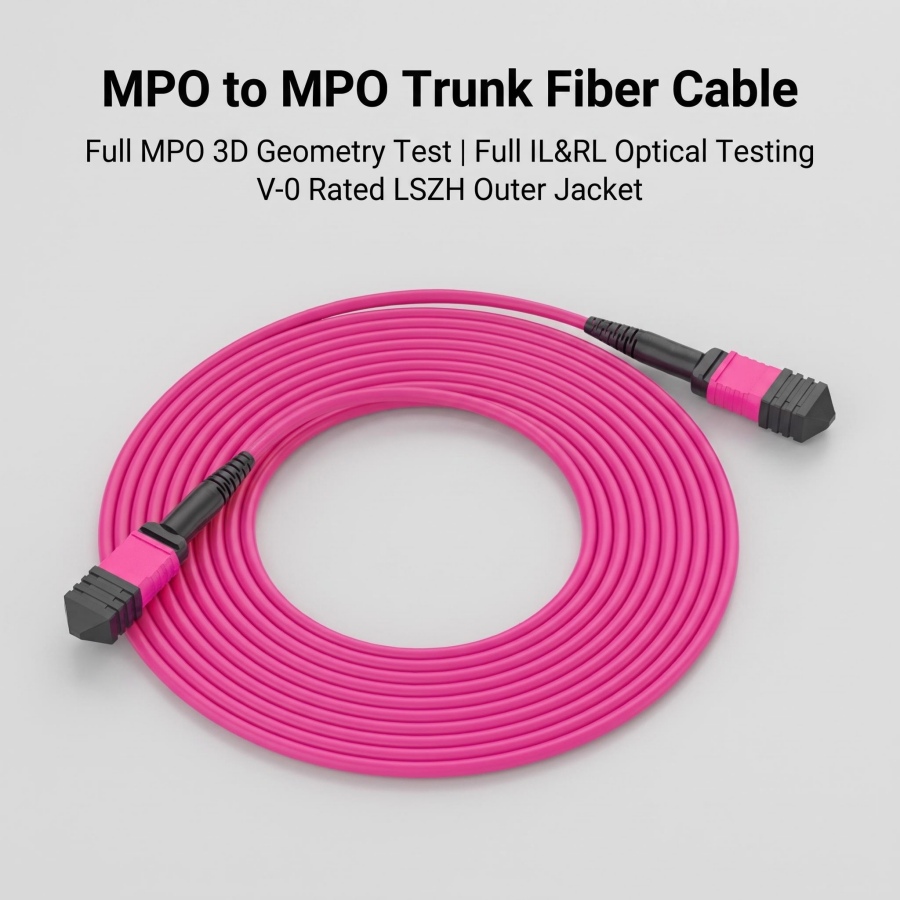

MPO-MPO Pre-connectorized Trunk Cables
Built for the high-density backbone.
Low-loss ≤0.35 dB · 12-fiber MPO as standard · OS2 / OM3 / OM4 · built to length · 100% 3D geometry + IL/RL tested
Made to order for SME server rooms and edge sites: send us the transceiver rate, run length and rack layout, and we terminate the right MPO backbone to size — low-loss, 100% tested and supplied with a per-assembly report. Standard MPO per IEC 61754-7.
At a Glance
Connector: 12-fiber MPO standard (IEC 61754-7 / TIA-604-5); 8 / 16-fiber on request
Fiber: OS2, OM3, OM4 standard (OM4 default for 100G); OM5 on request
Insertion loss: low-loss ≤0.35 dB max, 100% 3D-screened (default); standard grade on request
End face: PC (multimode); APC 8° (single-mode), UPC on request
Polarity / gender: Type B (key-up / key-up), female default; Type A / male on request; Type C not offered
Jacket: LSZH default; OFNR riser / OFNP plenum on request · colors: yellow (OS2), aqua (OM3), magenta (OM4), lime green (OM5)
Length & fittings: built to exact length; pulling eye / mesh grip, breakout tubing and port numbering on request
MOQ / lead time: made to order, MOQ 2 pcs, standard build about 7 days; on-request and volume orders quoted per project
Choose by Transceiver
| Application |
Fibers used |
MPO connector |
| 40G / 100G BASE-SR4 | 8 (4 Tx / 4 Rx) | MPO-8 (on request) or MPO-12 using 8 |
| 12 duplex LC channels via cassette | 12 | MPO-12 (standard) |
| 200G / 400G SR8 | 16 (8 Tx / 8 Rx) | MPO-16 (on request) |
Not sure? Send the transceiver model or channel plan and we confirm connector, fiber and polarity.
Technical Specifications
| Connector / interface | MPO per IEC 61754-7 / TIA-604-5; 12 fibers standard, 8 / 16 on request |
| Fiber | OS2 single-mode; OM3 / OM4 50/125 multimode; OM5 on request |
| Insertion loss (max) | low-loss ≤0.35 dB per mated pair; standard grade on request |
| Return loss (min) | MM PC ≥20 dB; SM UPC ≥50 dB; SM APC ≥60 dB |
| End face / polish | PC (multimode); UPC / APC 8° (single-mode) |
| Polarity / gender | Type B default; Type A on request; Type C not offered; female standard, male on request |
| Jacket / flame rating | LSZH default; OFNR riser; OFNP plenum on request |
| Durability | ≥500 mating cycles |
| Operating temperature | -10 to +70 °C (indoor / riser / plenum grades) |
| Inspection / test standards | 3D end-face geometry IEC 61300-3-30; visual inspection IEC 61300-3-35; attenuation per IEC 61300-3-4; return loss per IEC 61300-3-6 |
Quality You Can Verify
• Low-loss builds are 100% 3D-screened — fiber height, radius of curvature and apex offset measured on every ferrule (IEC 61300-3-30), because ≤0.35 dB is achieved by geometry selection, not by label.
• Every end face is inspected and cleaned to IEC 61300-3-35, then sealed with dust caps.
• Attenuation & return loss are measured per IEC 61300-3-4 / -3-6; each assembly ships with a serial-numbered report and a per-fiber polarity map, so trunks, cassettes and harnesses line up on first patch.
• Standard-grade builds (on request) are 100% end-face inspected and IL/RL tested; 3D geometry provided on sample or on request.
FAQ
Q1. Do you stock these?
No — length follows the rack layout, so trunks are made to order (MOQ 2 pcs), about 7 days for the standard build; on-request items and volume orders are quoted per project.
Q2. 8, 12 or 16-fiber — which?
Follow the optics (see the table above): SR4 uses 8, cassettes use 12, SR8 uses 16. MPO-12 is the standard; send the transceiver model and we confirm.
Q3. Do I need low-loss or standard grade?
Default to low-loss where several connectors cascade or speed is 100G+. Standard grade is fine only for short, simple channels with ample budget — tell us the link budget and we will not over-specify.
Q4. OM3, OM4 or OS2?
OM4 for 100G multimode (about 100 m); OM3 for shorter runs or existing plants; OS2 APC for single-mode / longer backbones. OM5 (SWDM) on request.
Q5. LSZH, OFNR or OFNP?
LSZH by default for European / indoor cabling; OFNR for riser / telecom rooms; OFNP in plenum air-handling spaces (North America).
Q6. New switches use SR4 ports but our plant is 12-fiber.
Use a conversion harness (e.g. 2× MPO-12 to 3× MPO-8) under XHT-D02, not a trunk.
Q7. Can we use our own labels?
Yes — private labels, port numbering, color bands and custom packaging are on request; the test report and polarity map are included as standard.
Ordering & Service
• Made to order, MOQ 2 pcs, standard 12-fiber OM3 / OM4 / OS2 low-loss build about 7 days; on-request configurations and volume orders agreed per project.
• To quote, send: transceiver / rate · length · fiber · jacket rating · polarity / gender · label needs — we return a complete BOM; a pre-production sample can be arranged; reply within 24 h.
• Mixed lengths, fiber types and jacket ratings in one shipment are normal for a rack build; trunks, harnesses, cassettes and panels can be supplied as one matched set.
Focus note: We specialize in the 12-fiber low-loss backbone for SME rooms and edge sites rather than cataloguing hyperscale configurations; larger / higher-count builds are quoted per project. Specify the transceiver and channel so we do not over- or under-specify.
Related Products
• MPO fan-out & conversion harnesses (MPO-to-LC; MPO-12 to SR4 conversion) → XHT-D02
• Mini / small-diameter fan-out assemblies for tight routing → XHT-D03
• Armored fan-out / trunk assemblies → XHT-D04
• High-density patch enclosures & MPO cassettes → XHT-D07 / XHT-D11
• Enterprise LC duplex and LC Uniboot patch cords → XHT-D05 / XHT-D06
MPO is the IEC 61754-7 / TIA-604-5 interface. Performance values are per the standards stated; measured values for each assembly are on its serial-numbered test record. Fiber count, fiber type, polarity, gender, jacket rating and length are confirmed on the order.
