At a Glance

Type: MPO-to-LC fan-out standard; MPO-to-MPO conversion on request
MPO end: 12-fiber standard; 8 / 16 on request · female (unpinned), Type B default; male / Type A on request
LC end: LC duplex standard; LC simplex and LC Uniboot on request
Fiber: OS2, OM3, OM4 standard (OM4 default for 100G); OM5 on request
Insertion loss: MPO ≤0.35 dB (100% 3D) + LC ≤0.2 dB low-loss default; standard grade on request
Jacket / color: LSZH default, OFNR / OFNP on request · yellow (OS2), aqua (OM3), magenta (OM4), lime (OM5)
MOQ / lead: made to order, MOQ 2 pcs, standard build about 7 days

Choose by Transceiver

Application	Fibers	Harness
40G / 100G SR4 → 4×10G / 25G	8 (4T / 4R)	MPO-8 → 4× LC duplex
12 duplex LC channels / cassette plant	12	MPO-12 → 6× LC duplex (standard)
200G / 400G SR8 → 8×25G / 50G	16 (8T / 8R)	MPO-16 → 8× LC duplex (on request)
Base-12 plant → 3× SR4 ports	24 = 3×8	2× MPO-12 → 3× MPO-8 conversion (on request)

Send the transceiver model or channel plan and we confirm fiber count, gender, polarity and the LC leg mapping.

Harness Range

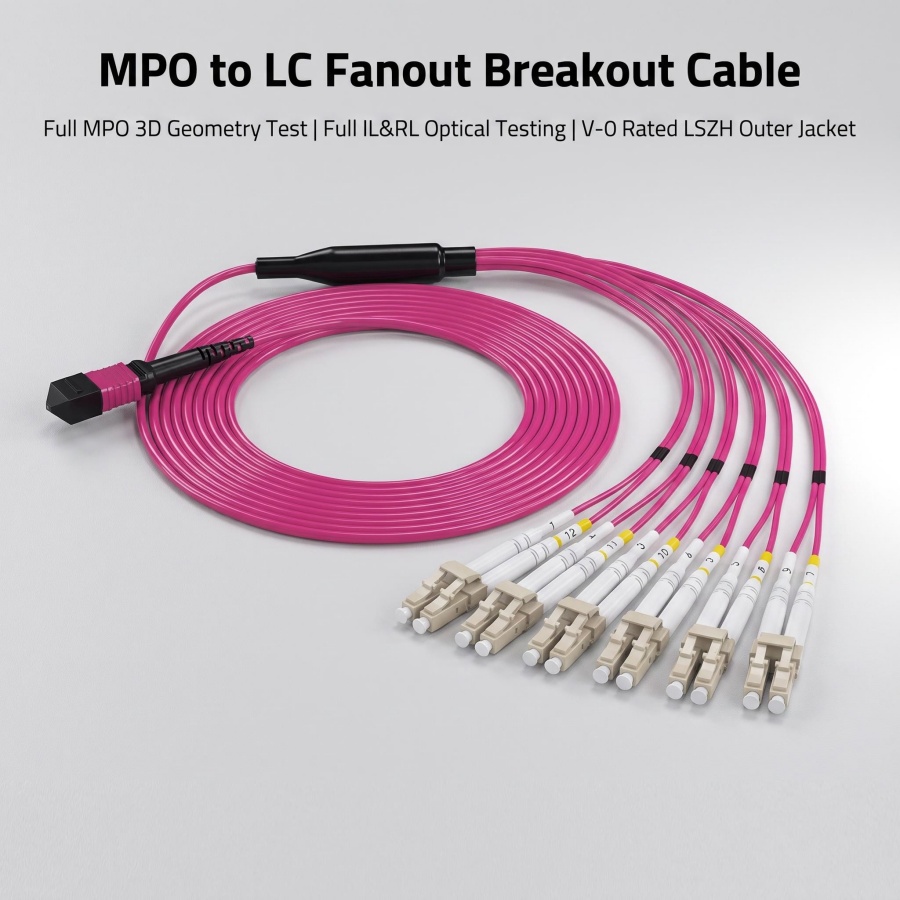

• XHT-D02-F12 · MPO-12 → 6× LC duplex — standard anchor for cassette plants and 12 duplex channels.
• XHT-D02-F08 · MPO-8 → 4× LC duplex — SR4 switch breakout to 10G / 25G servers; the most-used SME / edge build.
• XHT-D02-F16 · MPO-16 → 8× LC duplex — 200G / 400G SR8 breakout, on request.
• XHT-D02-C128 · 2× MPO-12 → 3× MPO-8 — reuses a Base-12 backbone (24 fibers) on three Base-8 SR4 ports; built to order, polarity and fiber map confirmed and supplied.
• Other conversion maps are quoted per project, not catalogued.
• Duplex standard · LC simplex on request for splice / panel termination, BiDi, PON / CATV and test ports · LC Uniboot on request → XHT-D06.

Polarity & Gender

• Gender: MPO end is female (unpinned) by default — transceiver ports and male cassette modules are pinned. Order a male end only when the mating port is female.
• Polarity: Type B (key-up / key-up) default for direct transceiver breakout. Type A made on request only to match an installed Method-A cassette plant. Type C not offered.
• Fine adjustment: the duplex clip, or the Uniboot option, flips the two LC positions on site. If unsure, send the transceiver model or channel plan.

Technical Specifications

MPO interface	MPO per IEC 61754-7 / TIA-604-5; 12 fibers standard, 8 / 16 on request
MPO insertion loss (max)	low-loss ≤0.35 dB, 100% 3D-screened; standard ≤0.6 dB (MM) / ≤0.75 dB (SM) on request
MPO return loss (min)	MM PC ≥20 dB; SM UPC ≥50 dB; SM APC ≥60 dB
LC interface	LC per IEC 61754-20; duplex standard, simplex / Uniboot on request
LC insertion loss (max)	low-loss ≤0.2 dB; standard ≤0.3 dB on request
LC return loss (min)	MM ≥30 dB; SM UPC ≥50 dB; APC ≥60 dB
End face / polish	PC (multimode); UPC / APC 8° (single-mode)
Fiber	OS2; OM3 / OM4 50/125; OM5 on request
Jacket / flame rating	LSZH default; OFNR riser; OFNP plenum on request
Branch legs	2.0 mm buffered standard; 0.9 mm tight-buffer on request; fan-out boot; leg length 0.5 m standard, other lengths and numbering on request
Durability	≥500 mating cycles
Operating temperature	-10 to +70 °C
Inspection / test standards	3D end-face geometry IEC 61300-3-30; visual inspection IEC 61300-3-35; attenuation per IEC 61300-3-4; return loss per IEC 61300-3-6

Quality You Can Verify

• Low-loss MPO ferrules are 100% 3D-screened (fiber height, radius, apex) per ferrule; LC legs are selected to ≤0.2 dB.
• End faces inspected and cleaned per IEC 61300-3-35 and sealed with dust caps; attenuation and return loss measured per IEC 61300-3-4 / -3-6.
• Each assembly ships with a serial-numbered report and a per-fiber polarity / channel map; conversion harnesses include the Base-12→Base-8 cross-reference.
• Standard-grade builds (on request) are 100% end-face inspected and IL/RL tested; 3D geometry on sample or request.

FAQ

Q1. Fan-out harness or cassette? Direct breakout where the optic supports it → harness, no cassette. Structured, scalable patching with MACs → cassette + MPO trunk (XHT-D01 / XHT-D07).

Q2. Male or female MPO end? Transceiver ports and male cassette modules are pinned, so the harness is female. Order male only into a female mating port.

Q3. Which polarity? Type B for direct transceiver breakout (default); Type A only to match a Method-A cassette plant. The duplex clip or Uniboot can flip a pair on site.

Q4. 8, 12 or 16-fiber? Follow the optics (table above); send the transceiver model and we confirm.

Q5. Stock and MOQ? Made to order, MOQ 2 pcs, about 7 days; on-request and volume orders quoted per project.

Ordering & Service

• Made to order, MOQ 2 pcs, standard build about 7 days; on-request configurations and volume orders agreed per project.
• To quote, send: transceiver / rate · fan-out (8 / 12 / 16) · LC duplex / simplex · fiber · jacket · MPO gender / polarity · leg length · labels. We return a complete BOM and channel map; pre-production sample on request; reply within 24 h.
• Harnesses can be supplied as one matched set with MPO trunks, cassettes and patch panels for a rack build.

Focus note: We specialize in 8 / 12-fiber MPO-to-LC fan-out for SME and edge switch breakout, plus the common Base-12→Base-8 (2×MPO-12 → 3×MPO-8) migration as a made-to-order harness. 16-fiber is on request. MPO-24, Base-8→Base-4, large bundled assemblies and hyperscale conversion matrices are project-specific and not catalogued. Gender, polarity and the fiber map are confirmed before build.

Related Products

• MPO-MPO pre-connectorized trunk cables → XHT-D01
• Mini / small-diameter fan-out assemblies for tight routing → XHT-D03
• Armored fan-out / trunk assemblies → XHT-D04
• LC Uniboot and enterprise LC duplex patch cords → XHT-D05 / XHT-D06
• High-density patch enclosures & MPO cassettes → XHT-D07 / XHT-D11

MPO is IEC 61754-7 / TIA-604-5; LC is IEC 61754-20. Measured values for each assembly are on its serial-numbered test record. Fiber count, gender, polarity, fiber map, jacket rating and leg lengths are confirmed on the order.
