At a Glance

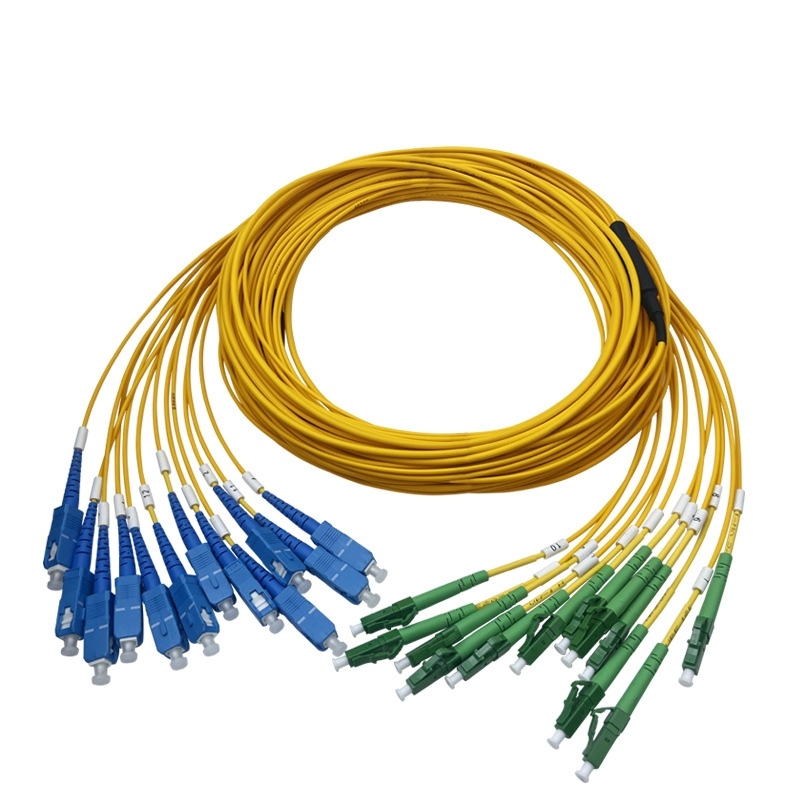

Type: tight-buffered multifiber mini breakout, factory pre-terminated at both ends (no MPO)
Fiber count: 8 to 24 fibers
Fiber: single-mode G.652.D / G.657.A1 standard; G.657.A2 / B3 on request · multimode OM1–OM5 on request

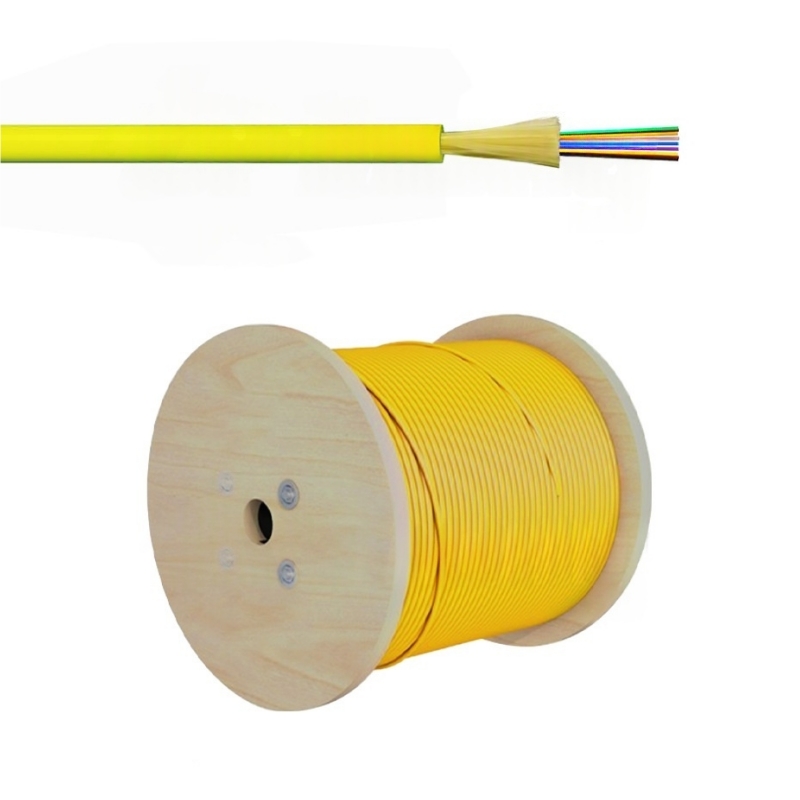

Main cable: fixed 3.0 mm mini tight-buffered breakout
Jacket / color: PVC standard; LSZH on request · single-mode yellow standard; multimode TIA-598 colors and other colors on request
Breakout legs: 2.0 mm standard; 0.9 / 1.6 mm on request · equal-length or stepped (staggered)
Connectors: LC / SC / ST / FC standard; E2K on request · UPC / APC
Insertion loss: standard ≤0.30 dB max per connector; low-loss ≤0.20 dB max on request
MOQ / lead: standard builds MOQ 2 pcs, about 7–10 days; custom configurations and volume orders agreed on request

Configuration Options

• Breakout leg diameter — 2.0 mm standard, sturdier and easier to handle for direct patching and longer legs; 0.9 / 1.6 mm on request for tighter, higher-density routing inside trays and panels.
• Leg arrangement — equal-length for same-side terminations and standard patch fields; stepped (staggered) where connectors land at different port rows or across floors, so each leg reaches its port with no excess slack.
• Leg numbering & labeling — legs are bundled and numbered to your port schedule; color-coded boots and custom labels / tags on request.
• Ends — connectors at both ends as standard; one end unterminated (bare fan-out for in-box splicing) can be quoted on request.
• Overall and breakout lengths are built to your drawing; pulling eye, furcation tubing and reel packaging on request.

Typical Applications

• Data-center multi-fiber trunking and cabinet cross-connection where individual LC / SC ports are preferred over an MPO cassette.
• Building indoor structured cabling and riser / vertical floor distribution.
• ODN distribution-box convergence and branch wiring to termination panels.
• Enterprise networks, low-voltage (ELV) systems and large integrated cabling projects.
• Boundary: for a QSFP parallel-port breakout (MPO one end, LC the other) use XHT-D02; for armored or outdoor routing see XHT-D04.

Technical Specifications

Optical
Test wavelength	single-mode 1310 / 1550 nm; multimode 850 nm (multimode builds on request)
Insertion loss (max)	standard ≤0.30 dB per connector; low-loss ≤0.20 dB on request
Return loss (min)	UPC ≥50 dB; APC ≥60 dB; multimode ≥30 dB
Durability	ΔIL ≤0.2 dB after 500 mating cycles
Cable & mechanical
Fiber	9/125 µm single-mode; 50/125 µm and 62.5/125 µm multimode
Main cable	3.0 mm mini tight-buffered breakout; PVC jacket standard, LSZH on request
Min. bend radius	10 mm static / 20 mm dynamic for G.657 bend-insensitive fiber (7.5 mm for G.657.A2); standard G.652.D and standard multimode follow the cable design (larger radius)
Operating temperature	-20 to +70 °C (indoor assembly)
Storage temperature	-40 to +85 °C
Test / compliance	tested per applicable IEC 61300 methods (attenuation IEC 61300-3-4; return loss IEC 61300-3-6; end-face cleanliness / defect inspection IEC 61300-3-35); RoHS compliant

Quality You Can Verify

• Factory-terminated under controlled epoxy, cure and polish process — consistent end-face finish versus field splicing.
• Every connector insertion- and return-loss tested; end faces inspected for cleanliness and defects per IEC 61300-3-35, then cleaned and sealed with dust caps.
• Legs are numbered and the fan-out matches your port schedule; a per-assembly test record is available on request.
• Standard, non-OEM connectors interoperate with standard adapters and panels.

FAQ

Q1. Mini breakout (D03) or MPO fan-out harness (D02)? D03 has no MPO — both ends are individual LC / SC / ST / FC connectors for indoor trunk, riser and ODN termination without a cassette. D02 has an MPO at one end for a QSFP parallel-port breakout.

Q2. Single-mode or multimode? This breakout is built mainly in single-mode: G.652.D and G.657.A1 are standard, G.657.A2 / B3 on request. Multimode OM1–OM5 is available on request for legacy or LC-based indoor trunks; for high-density multimode data-center links the MPO trunks / harnesses (XHT-D01 / D02) are the standard choice.

Q3. How do I choose the legs? 2.0 mm legs are standard for direct patching; 0.9 / 1.6 mm are on request for dense in-tray routing. Pick equal-length legs for same-side patch fields, stepped (staggered) legs where connectors land at different port rows or floors.

Q4. MOQ, lead time and custom builds? Standard builds: MOQ 2 pcs, about 7–10 days. LSZH, 0.9 / 1.6 mm legs, multimode, custom fiber / color / length / label, low-loss grade and volume orders are quoted on request; a pre-production sample can be arranged.

Ordering & Service

• Standard builds: MOQ 2 pcs, about 7–10 days; custom builds (LSZH, 0.9 / 1.6 mm legs, multimode, custom fiber / color / length / label, low-loss grade) and volume orders agreed on request; reply within 24 h.
• To quote, send: fiber · fiber count · overall length · jacket (PVC standard / LSZH on request) · color · breakout leg OD (2.0 mm standard / 0.9 / 1.6 on request) · equal or stepped + leg lengths · connector / polish · labels / packaging.
• Packaging: plastic bag or winding reel; custom labels, port numbering and color bands on request; pulling eye / furcation tubing on request.
• Can be supplied as one matched set with patch enclosures, MPO cassettes and patch cords for a rack or floor build.

Focus note: We specialize in the 8–24 fiber, 3.0 mm mini breakout for indoor and ODN termination that replaces field splicing, with flexible leg and connector options. Armored, outdoor and higher-count bundled assemblies are quoted per project rather than catalogued.

Related Products

• MPO fan-out & conversion harnesses (parallel-port breakout) → XHT-D02
• MPO-MPO pre-connectorized trunk cables → XHT-D01
• Armored fan-out / trunk assemblies → XHT-D04
• Enterprise LC duplex and LC Uniboot patch cords → XHT-D05 / XHT-D06
• High-density patch enclosures & cassettes → XHT-D07 / XHT-D11

Assemblies tested per applicable IEC 61300 methods and RoHS compliant. Measured values for each assembly are on its test record. Fiber, count, jacket, breakout sizes and arrangement, connectors and lengths are confirmed on the order.
