Technical Specification
|
Product type |
Adhesive Flat Cable Clamp |
|
Material |
PA66 |
|
Flame retardant rating |
94V-2, 94V-0 |
|
Mounting type |
Double sided adhesive tape |
Ordering Information
|
Model |
Dimension A (mm) |
Dimension B (mm) |
Dimension C (mm) |
Dimension D (mm) |
|
FC-15 |
17.0 |
6.2 |
30.5 |
15.8 |
|
FC-20 |
22.0 |
35.8 |
||
|
FC-25 |
27.5 |
41.2 |
||
|
FC-30 |
32.0 |
7.5 |
45.8 |
18.6 |
|
FC-40 |
40.5 |
53.3 |
||
|
FC-50 |
64.5 |
77.5 |

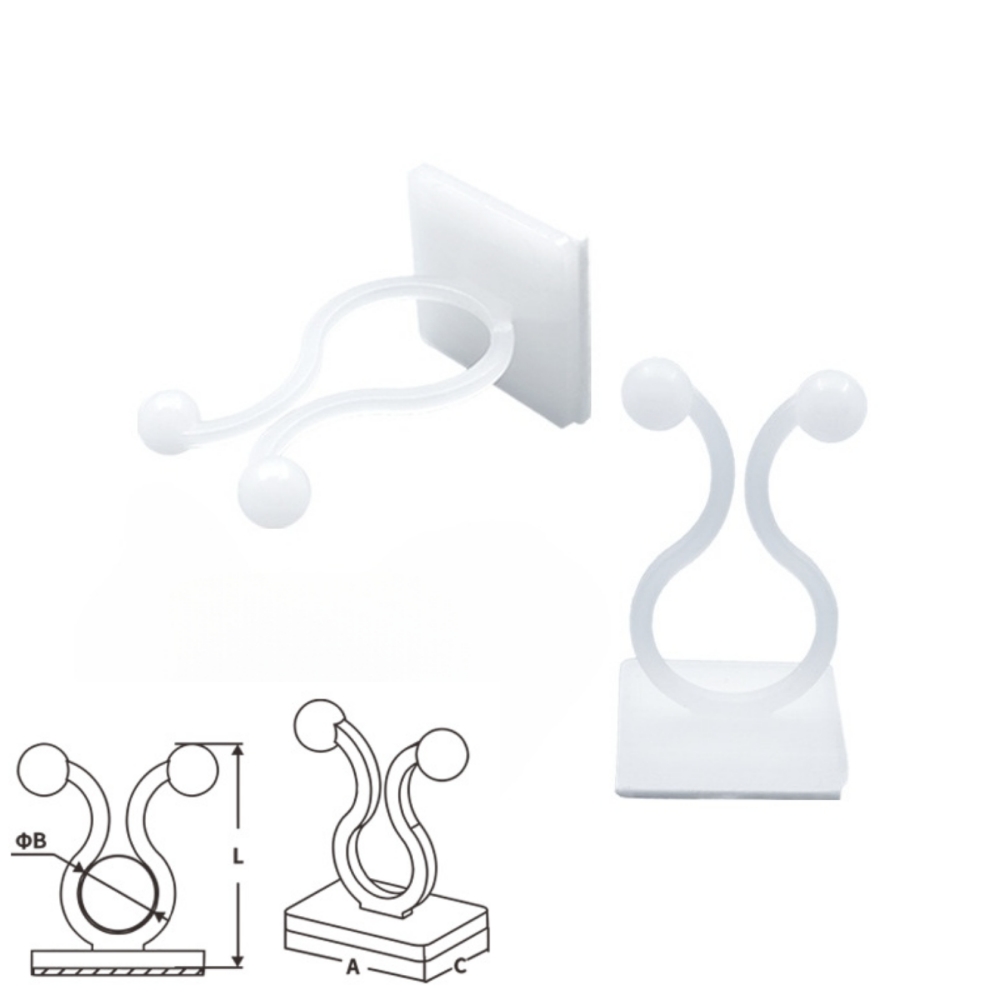

Technical Specification
|
Product type |
Adhesive Ring Cable Clamp |
|
Material |
PA66 |
|
Flame retardant rating |
94V-2, 94V-0 |
|
Mounting type |
Double sided adhesive tape |
Ordering Information
|
Model |
Dimension A (mm) |
Dimension B (mm) |
Dimension C (mm) |
Dimension L (mm) |
|
KL-1 |
20.2 |
14.0 |
20.2 |
35.0 |
|
KL-2 |
20.2 |
8.1 |
13.9 |
25.7 |
|
KL-3 |
21.1 |
10.0 |
19.0 |
27.9 |
|
KL-5 |
20.1 |
7.4 |
13.0 |
21.4 |
|
KL-6 |
25.1 |
17.0 |
13.0 |
37.0 |
|
KL-7 |
25.0 |
20.0 |
13.0 |
39.0 |
