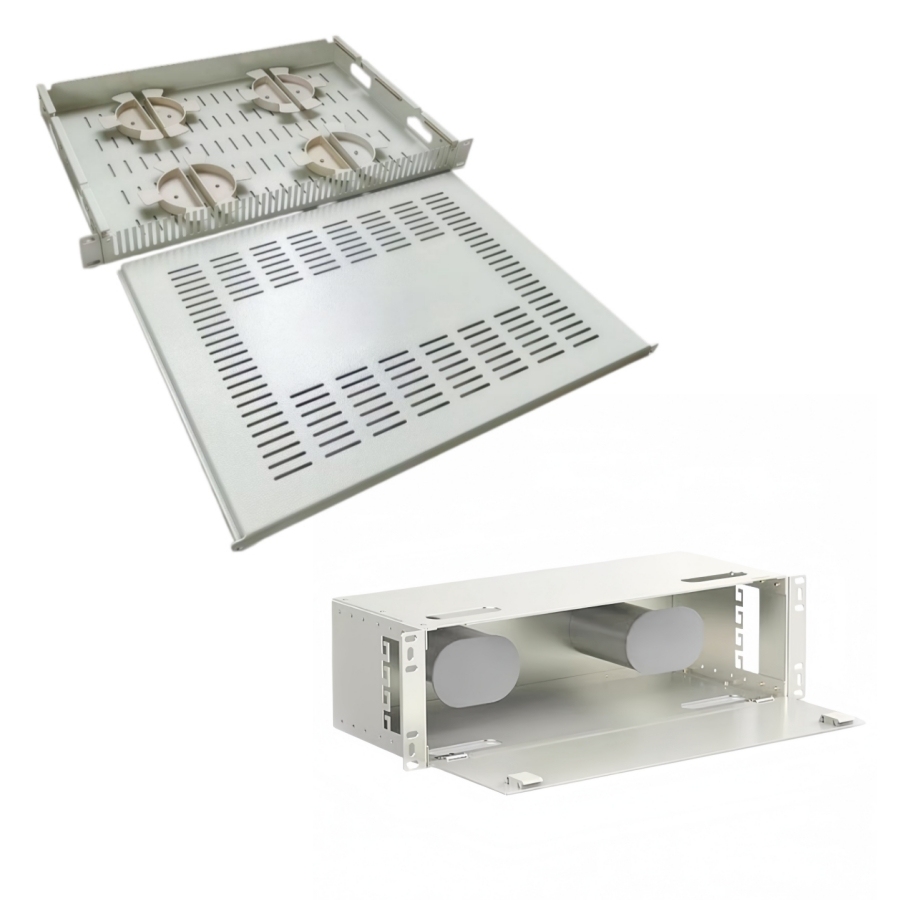

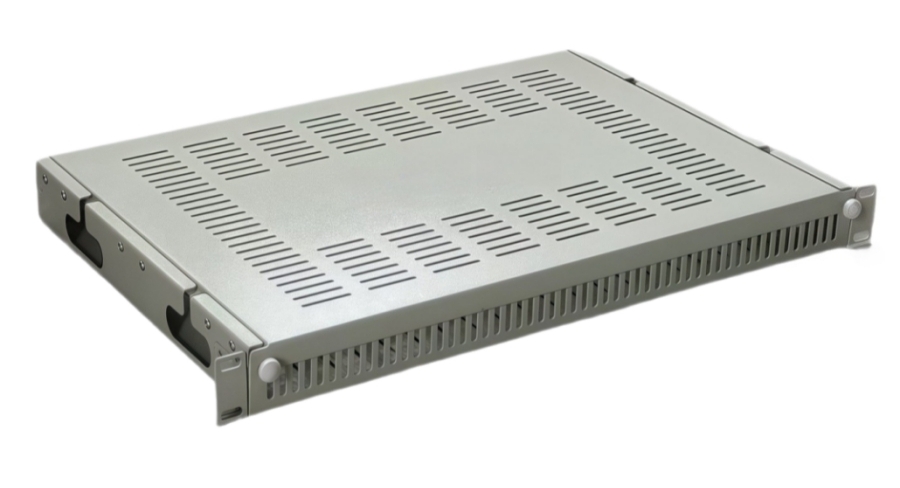

The 1U Fiber Optic Storage Patch Panel is a standardized auxiliary device for fiber optic communication and data center cabling. Adopting 19-inch 1U rack-mounted installation, it integrates fiber storage, sorting, distribution and protection. With a compact structure and easy installation, it standardizes wiring, reduces fiber loss and ensures stable transmission. Made of 1.0mm high-quality cold-rolled steel with a gray sprayed surface, it allows flexible configuration of winding areas and disc heights, widely used in communication computer rooms, data centers and weak current rooms.

Application

This product is mainly used for fiber optic cable storage, sorting and connection in communication systems, with specific application scenarios as follows:

Data center computer rooms: Centralized fiber storage and distribution for standardized cabling and easy maintenance/expansion;

Fiber optic communication rooms: Adapt to ODF frames for orderly fiber storage and transfer;

Weak current rooms: Organize building comprehensive cabling terminal fibers to avoid clutter and damage;

Features

Standard Installation: 19-inch 1U rack-mounted design, in line with international standards, saving installation space;

High-quality Material: 1.0mm thick cold-rolled steel shell, tough, anti-deformation and high load-bearing;

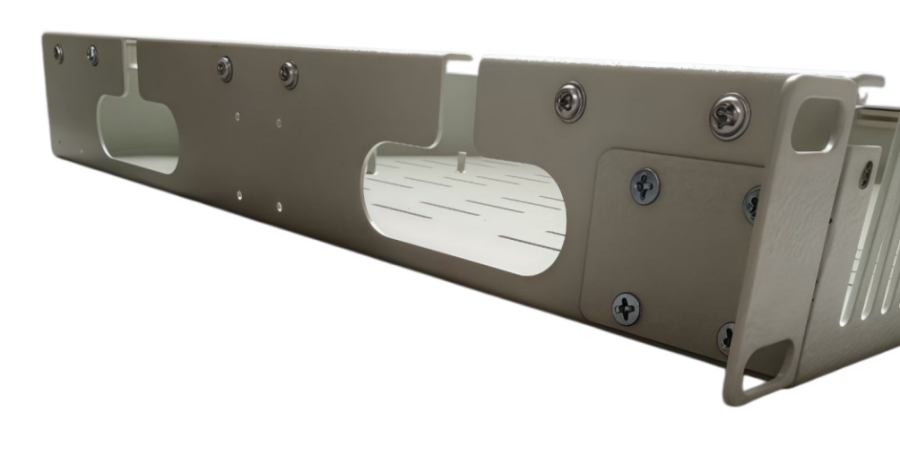

Flexible Wire Inlet: 2 inlet holes on both sides for multi-directional wiring, avoiding fiber damage;

Easy Maintenance: Detachable top cover for convenient fiber sorting, maintenance and expansion;

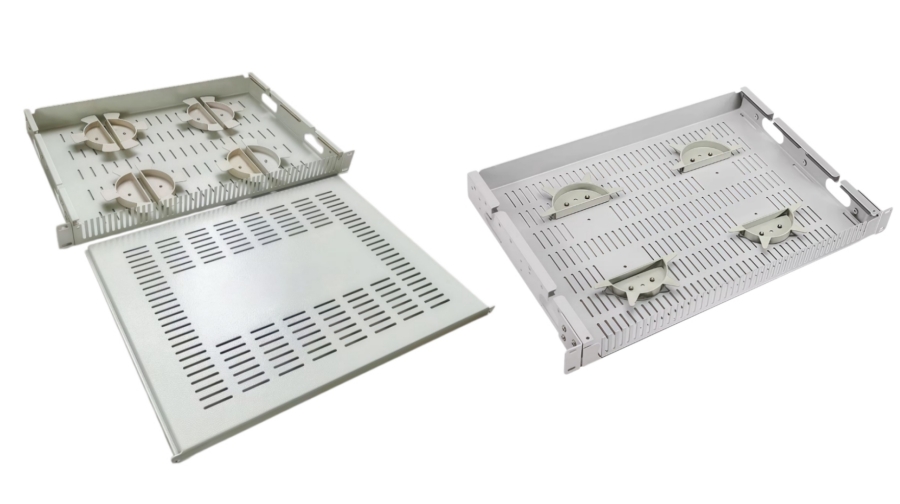

Customizable Winding: Optional 2/4 winding areas and two disc heights to meet different needs;

Comprehensive Protection: Organizes fibers to prevent bending, with sealed dust-proof shell for longer service life;

Easy Operation: Simple structure, no complex tools required for installation and maintenance.

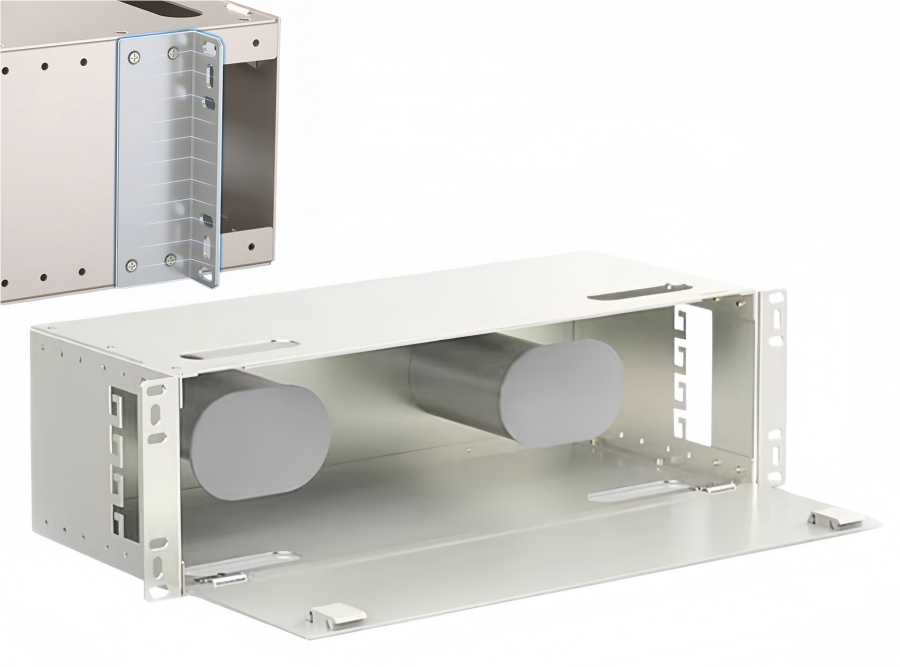

The 19-inch standard 3U fiber optic storage patch panel is designed for storing, arranging and protecting redundant optical fibers in optical communication networks, ensuring standardized cabinet wiring and stable optical link. Made of 1.0mm cold-rolled steel (1.2mm optional) with gray-white spraying, it measures 430×180×132mm, fits 19-inch racks, and is equipped with adjustable hanging lugs, winding posts and convenient wire entry for various fiber storage needs.

Application

Widely used in optical communication wiring, its core applicable fields are:

Data center: Stores redundant fibers for easy maintenance and high-density wiring;

Operator room/base station: Adapts to standard cabinets for large-scale fiber management;

Building weak current project: Stores redundant household and inter-building optical cables for various constructions.

Feature

Durable: 1.0mm cold-rolled steel (1.2mm optional), high strength, good shielding; gray-white electrostatic spraying, moisture-proof and corrosion-resistant;

High adaptability: 19-inch 3U standard (430×180×132mm), directly mountable to standard cabinets without modification;

Easy wiring: 1 wire entry hole on each side, 2 hollow holes (heat dissipation + threading) top/bottom; 2 plastic winding posts prevent bending; snap-on front cover for tool-free maintenance;

Flexible installation: Adjustable hanging lugs fit different cabinet depths, supporting rack-mounted installation;

Reliable: Complies with optical communication standards, stable structure, ensures stable transmission for single-mode/multi-mode fibers.
