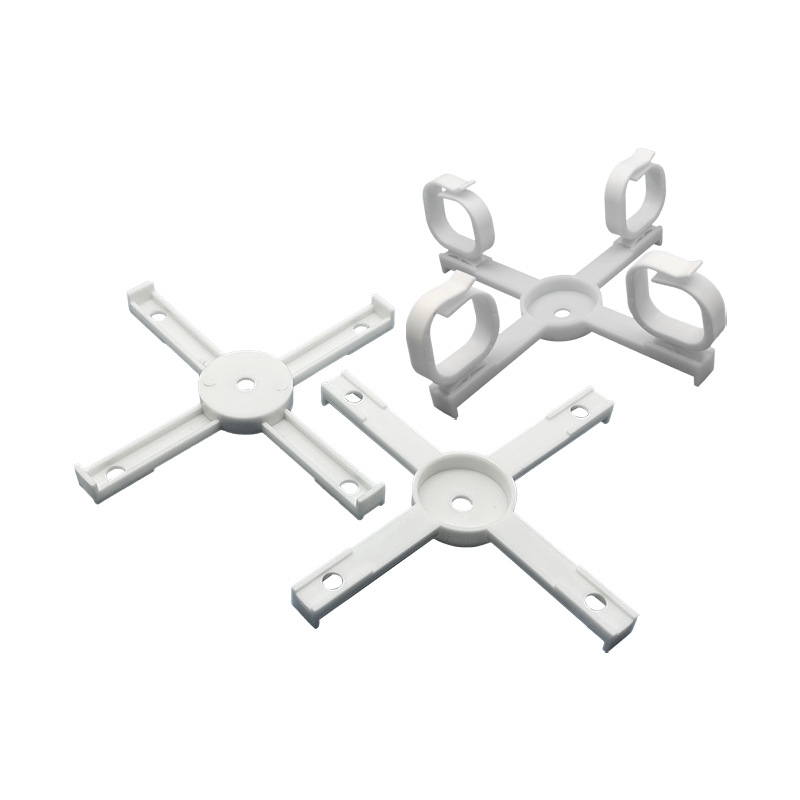

Technical Specification
|
Product type |
Cross Flow Duct Ring |
|
Material |
PA66 |
|
Flame retardant rating |
94V-2; 94V-0 |
|
Mounting type |
Adhesive tape; Screw |

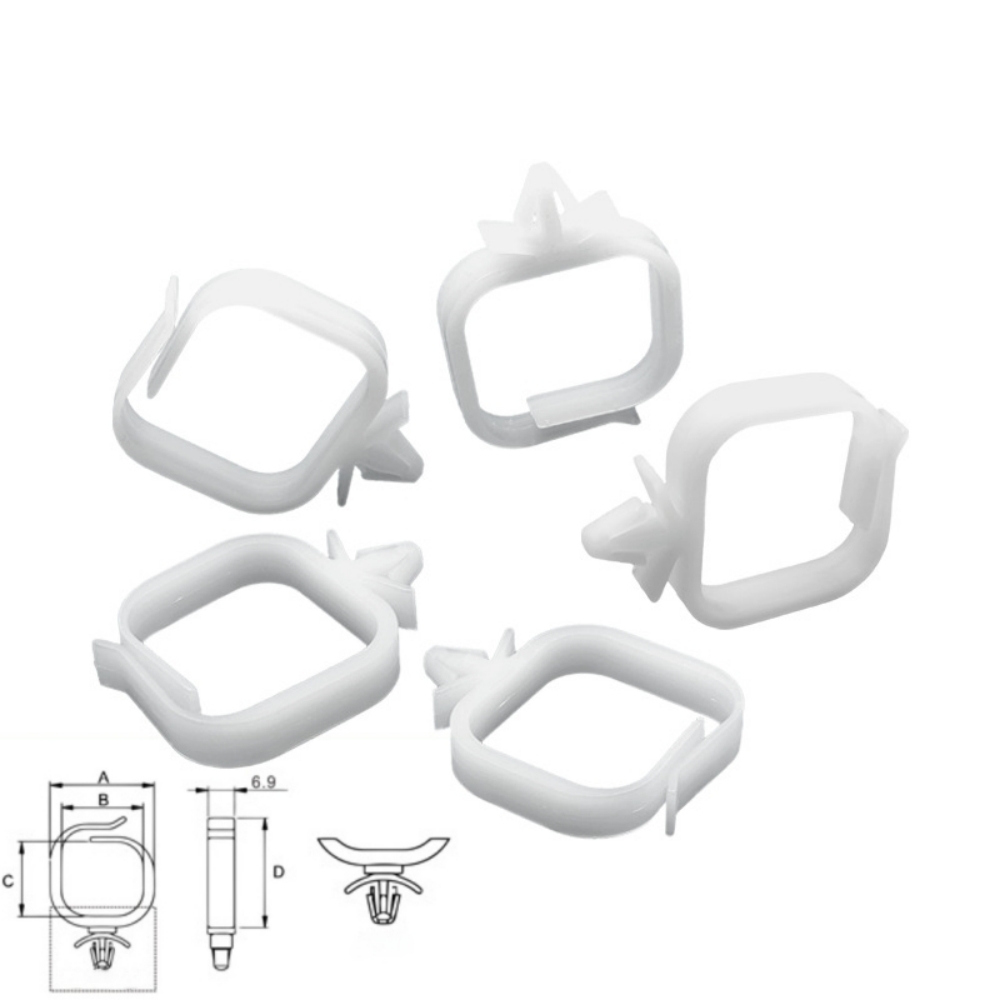

Technical Specification
|
Product type |
Cable Management Ring |
|
Material |
PA66 |
|
Flame retardant rating |
94V-2; 94V-0 |
|
Mounting type |
Plug-in |
Ordering Information
|
Dimension A (mm) |
Dimension B (mm) |
Dimension C (mm) |
Dimension D (mm) |
Mounting Hole (mm) |
Thickness (mm) |
|
26.8 |
21.2 |
19 |
28.2 |
4.75 |
0.8~2 |
|
34.3 |
28.7 |
25.1 |
34.4 |

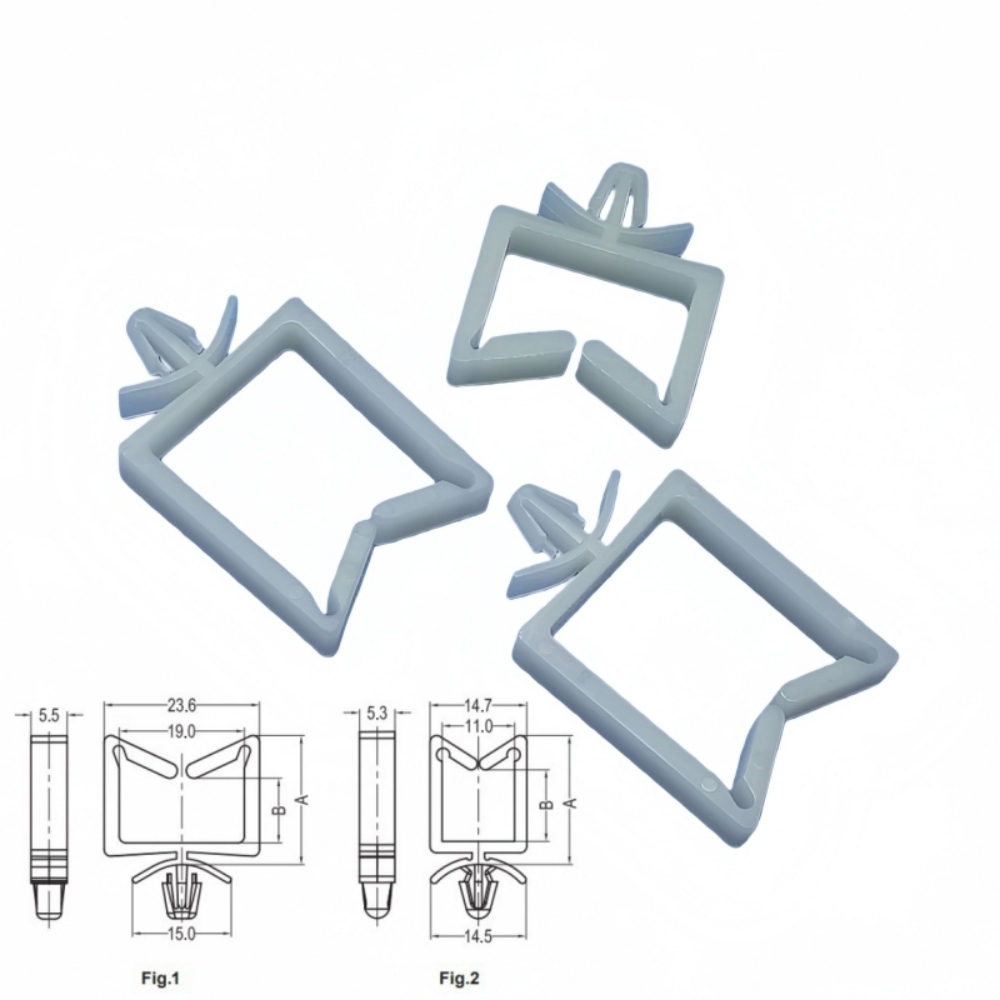

Technical Specification
|
Product type |
Wiring Saddle |
|
Material |
PA66 |
|
Flame retardant rating |
94V-2; 94V-0 |
|
Mounting type |
Plug-in |
Ordering Information
|
Model |
Dimension A (mm) |
Dimension B (mm) |
Mounting Hole (mm) |
Thickness (mm) |
|
Fig.1 |
19.6 |
9.8 |
4.75 |
1.2~2.0 |
|
28.4 |
18.6 |
|||
|
Fig.2 |
26.9 |
18.2 |
0.8~2.0 |
|
|
26.9 |
26.1 |
