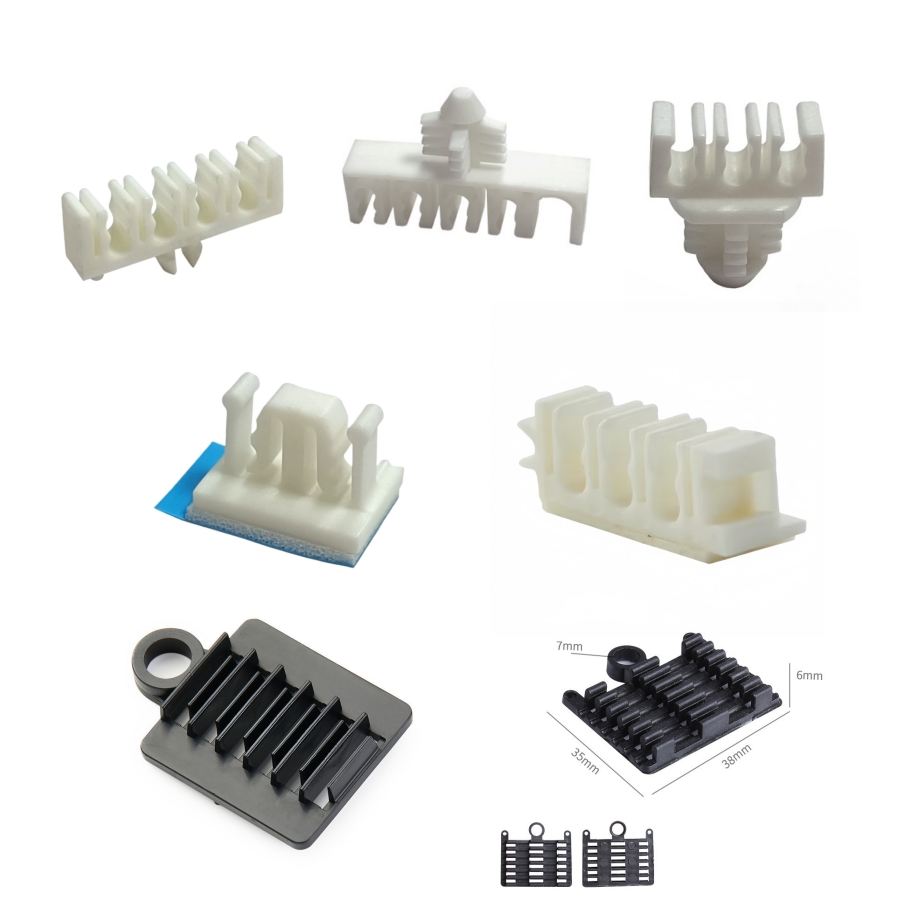

Technical Specification
|

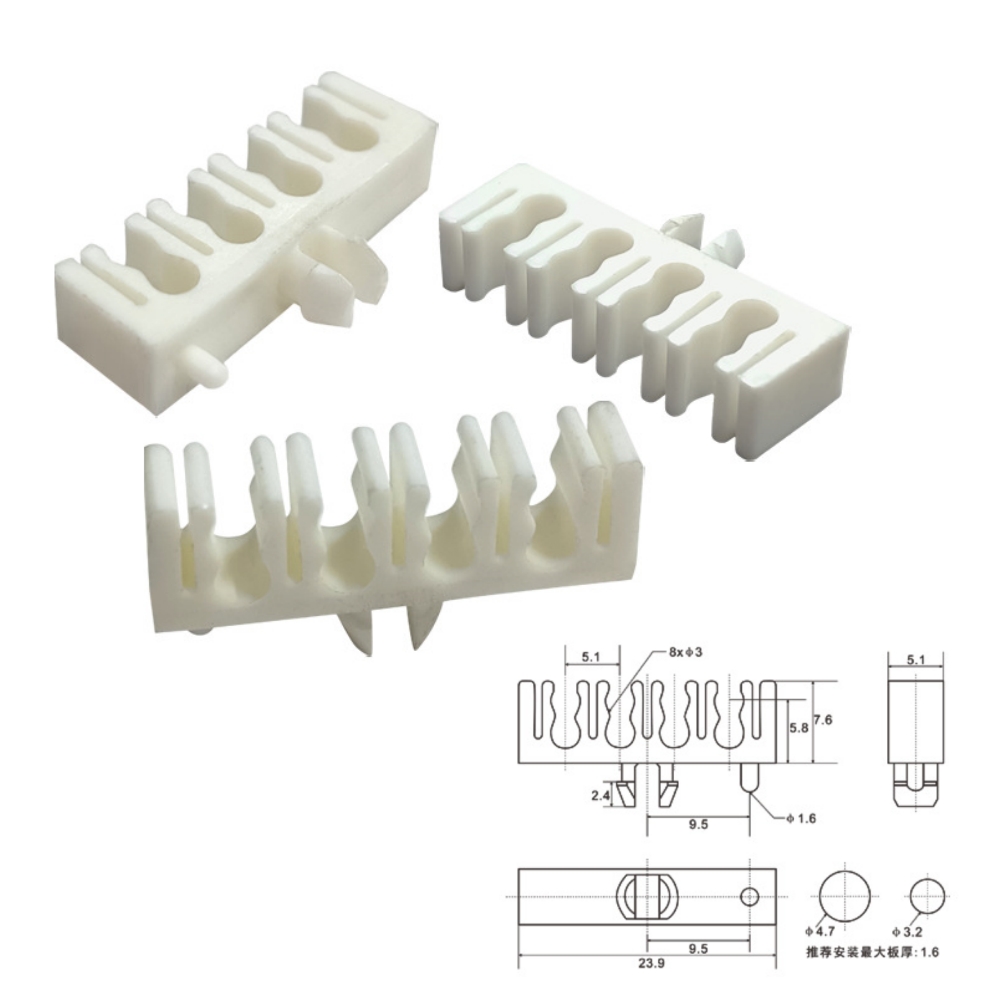

Product type |
4-Slot Fiber Clip |
|
Application |
Eight 3mm cables |
|
Material |
PA66 |
|
Flame retardant rating |
94V-0 |
|
Mounting type |
Plug-in, mounting hole 4.7mm, panel thickness 1.6mm max |

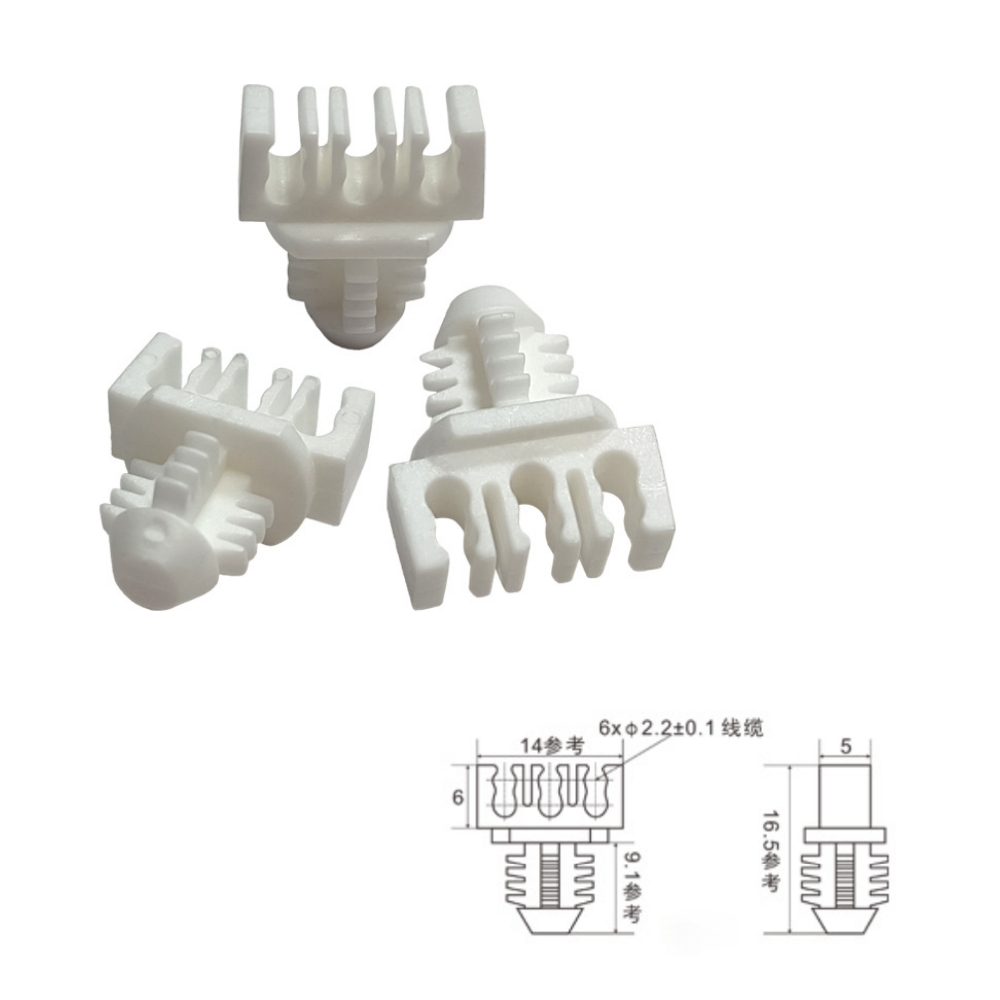

Technical Specification
|
Product type |
3-Slot Fiber Clip |
|
Application |
Six 2.2mm cables |
|
Material |
PA66 |
|
Flame retardant rating |
94V-0 |
|
Mounting type |
Plug-in, mounting hole 7.92mm, panel thickness 6.35mm min. |

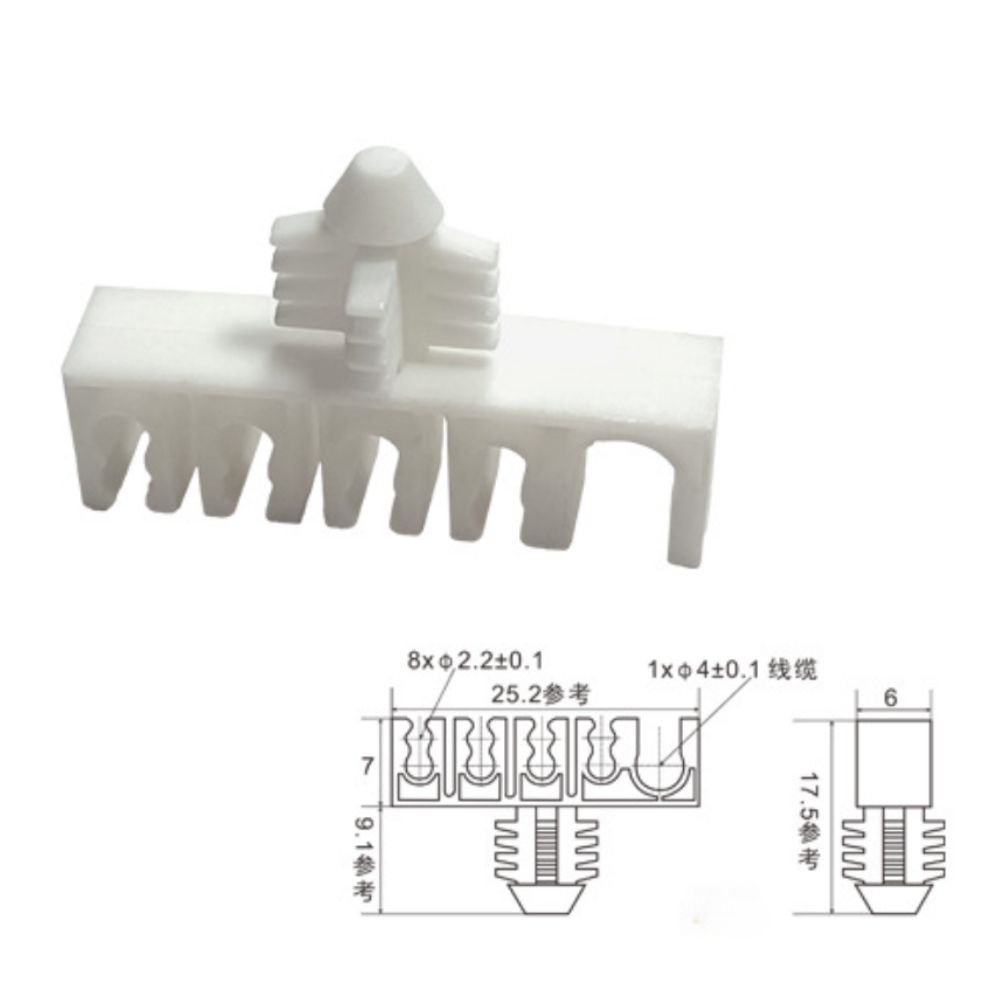

Technical Specification
|
Product type |
5-Slot Fiber Clip |
|
Application |
Eight 2.2mm cables, One 4mm cable |
|
Material |
PA66 |
|
Flame retardant rating |
94V-0 |
|
Mounting type |
Plug-in, mounting hole 7.92mm, panel thickness 6.35mm min. |

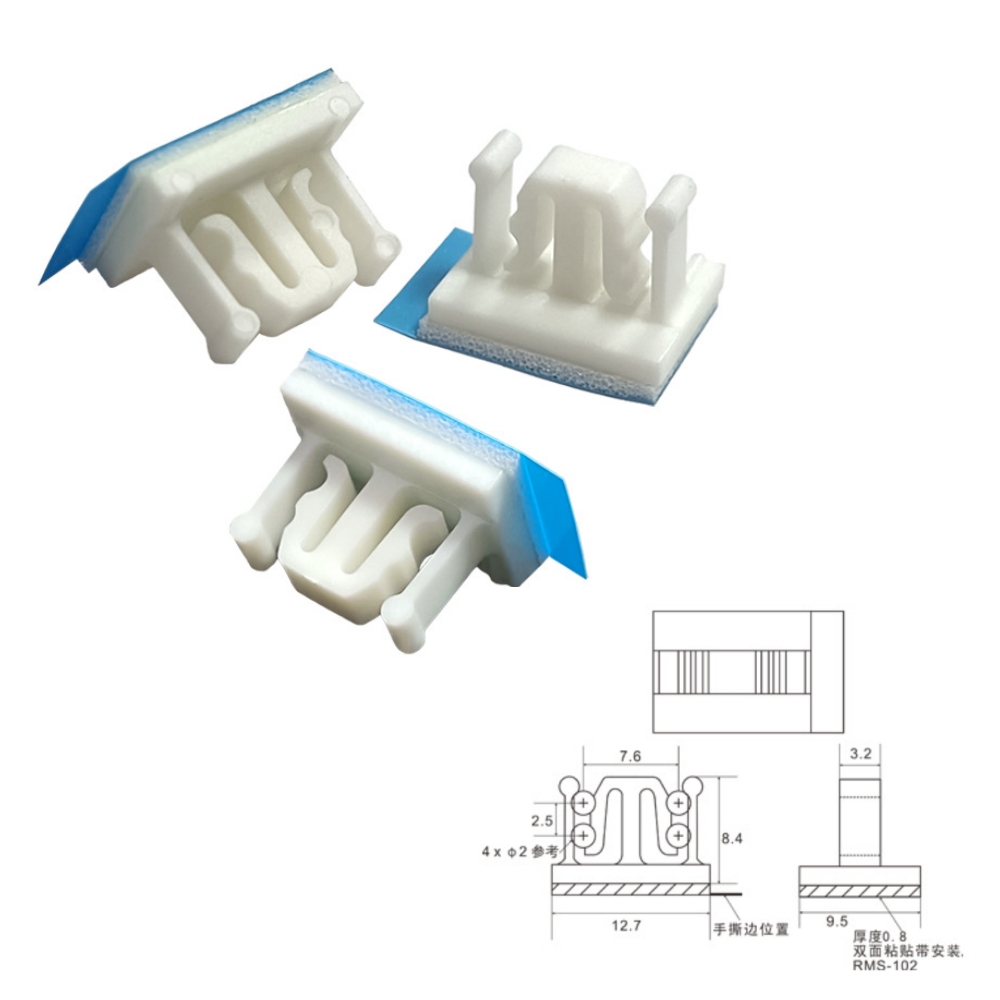

Technical Specification
|
Product type |
Adhesive 2-Slot Fiber Clip |
|
Application |
Four 2.2mm cables |
|
Material |
PA66 |
|
Flame retardant rating |
94V-0 |
|
Mounting type |
Double sided adhesive tape |

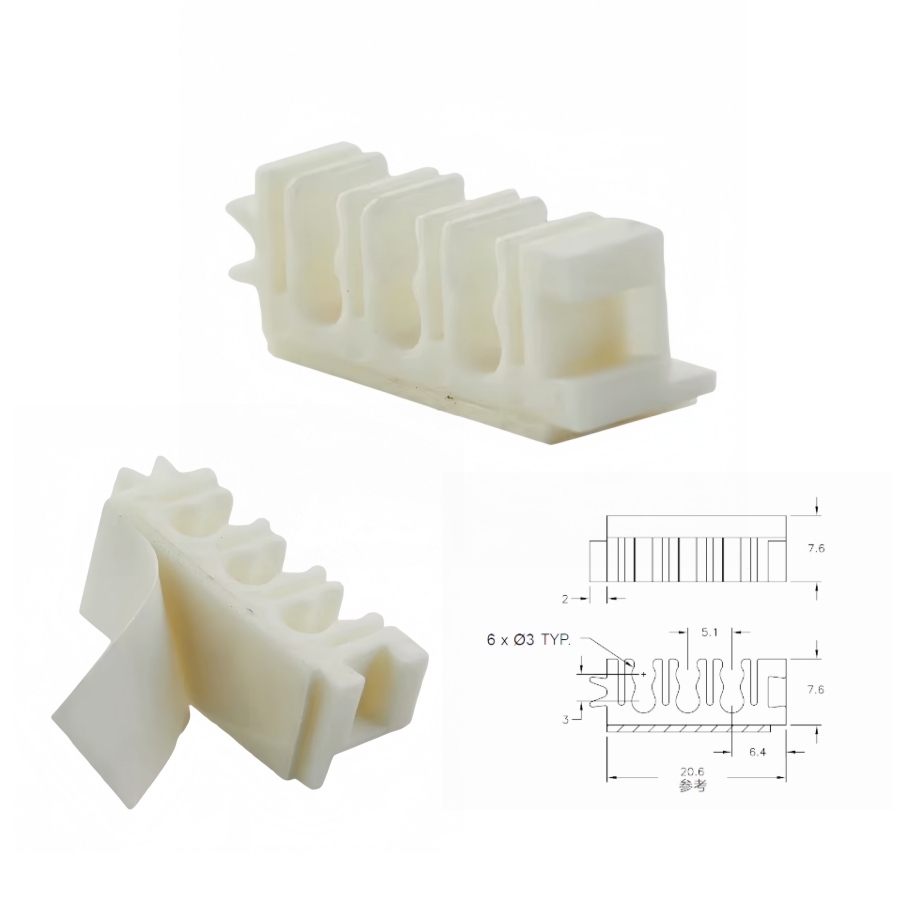

Technical Specification
|
Product type |
Adhesive 3-Slot Fiber Clip |
|
Application |
Six 3.0mm cables |
|
Material |
PA66 |
|
Flame retardant rating |
94V-0 |
|
Mounting type |
Double sided adhesive tape |

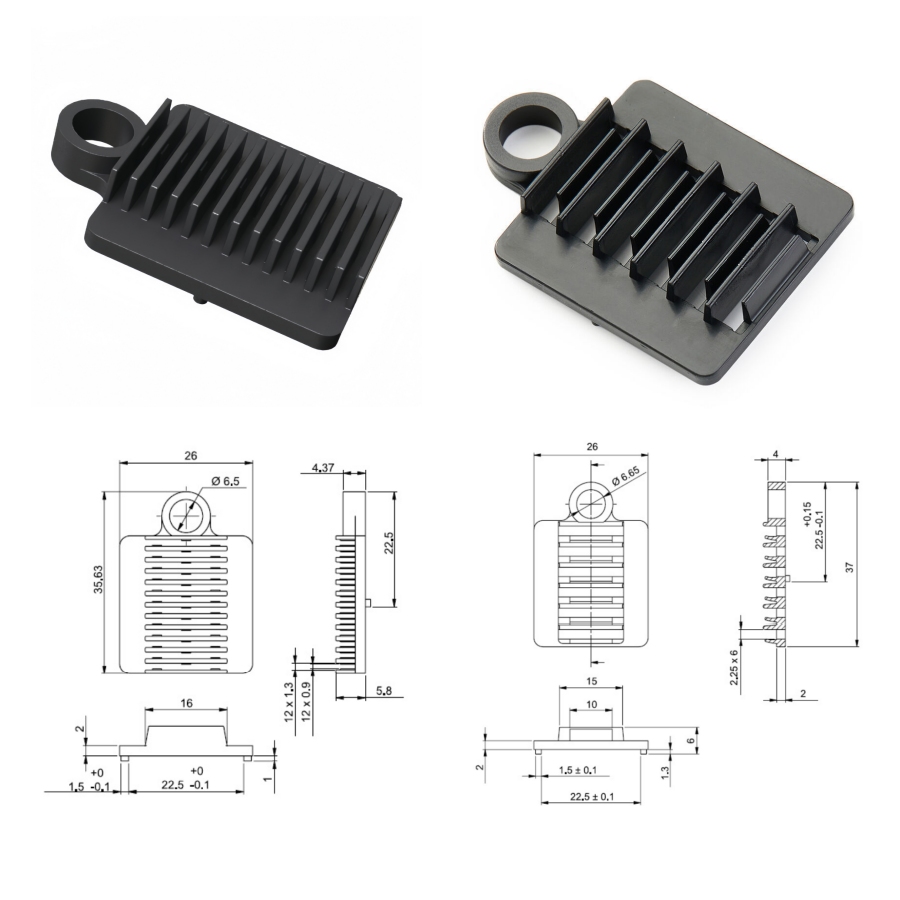

The fiber splice holder is made of PA66 94V-2 (94V-0 optional). It can be mounted on 6.5/6.65mm diameter studs, with two configurations for different needs.
One holds six 3.0mm fiber splicing protectors, the other twelve 0.9mm fiber cables. High-quality material and rational structure ensure reliable fixation for fiber splicing protection tubes and stable, safe fiber optic connections.

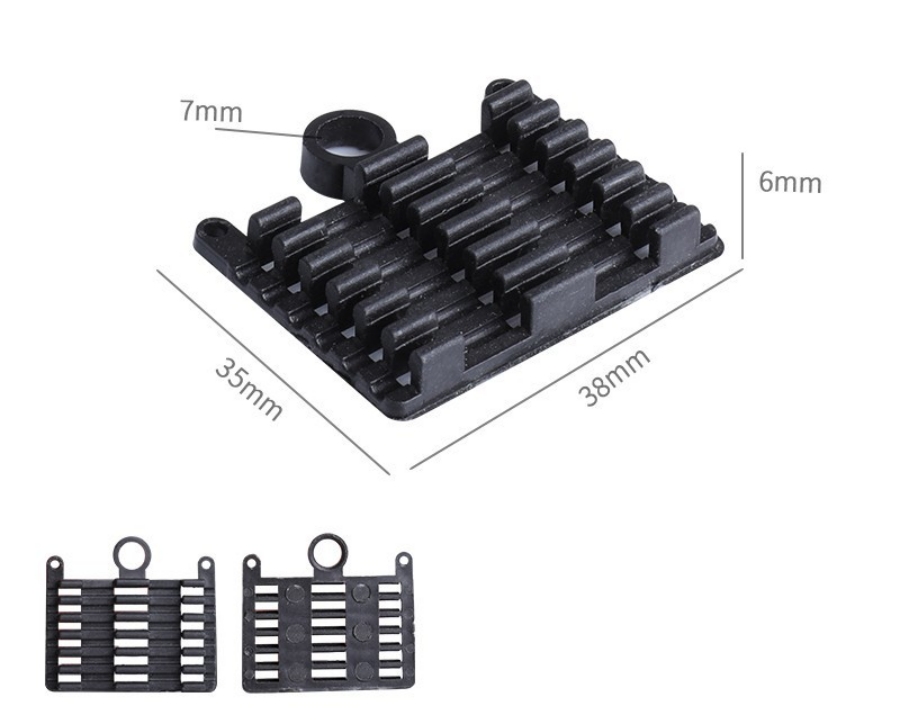

Made of durable nylon material, this fiber optic splice holder is designed to mount on a 7mm diameter protruding stud. It can securely hold up to 6 fiber optic splice protection sleeves after fusion splicing, providing neat and reliable storage and protection for optical fiber splices.
