Product Overview

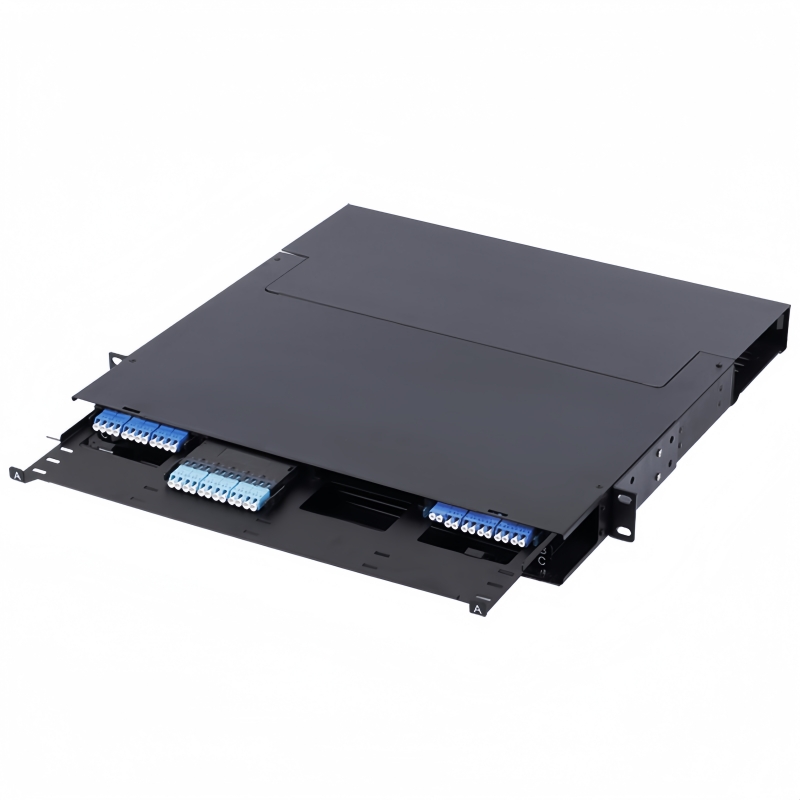

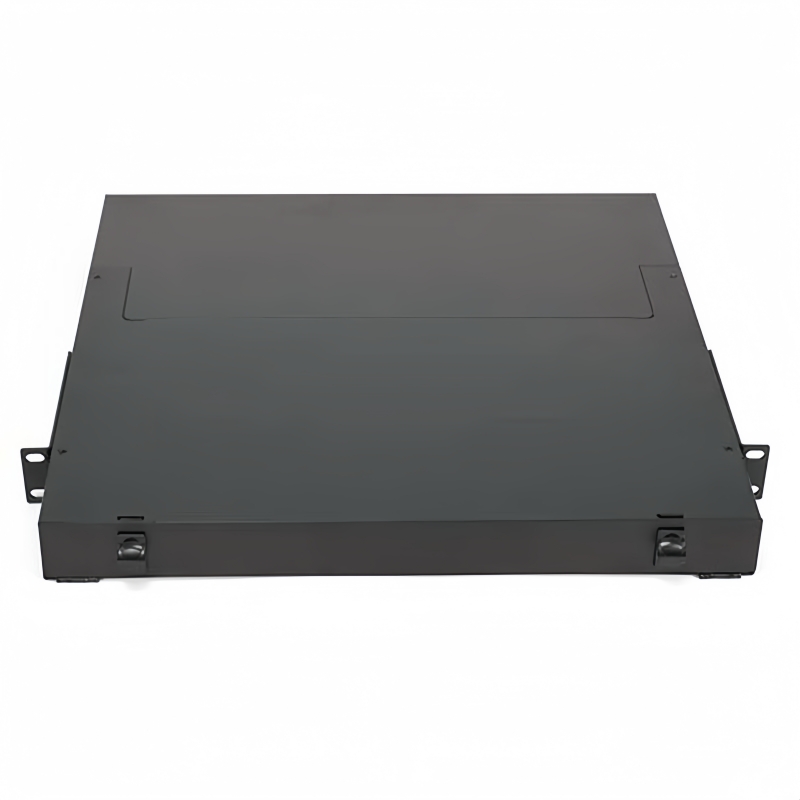

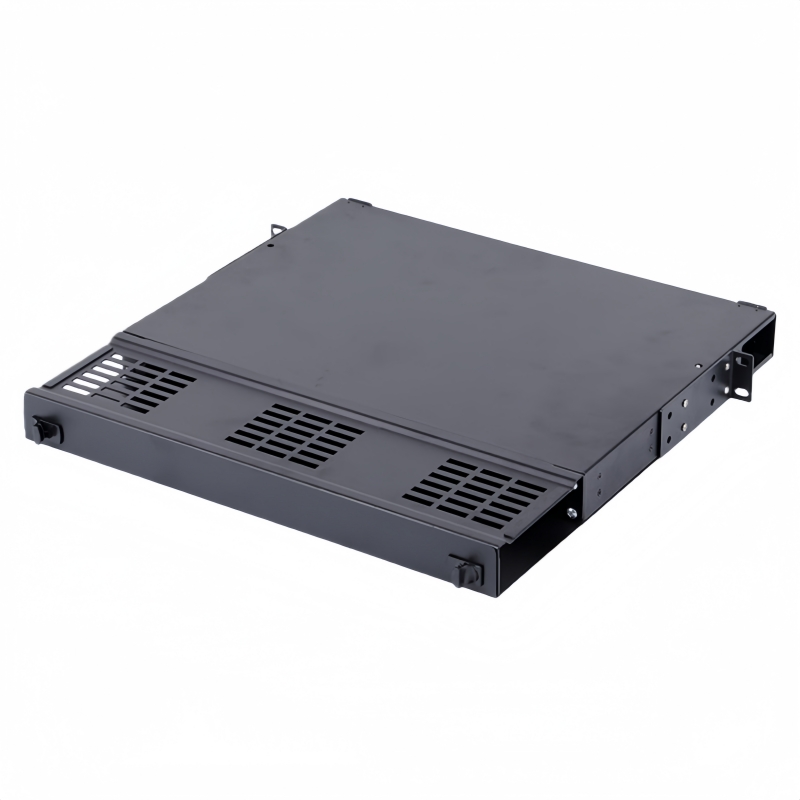

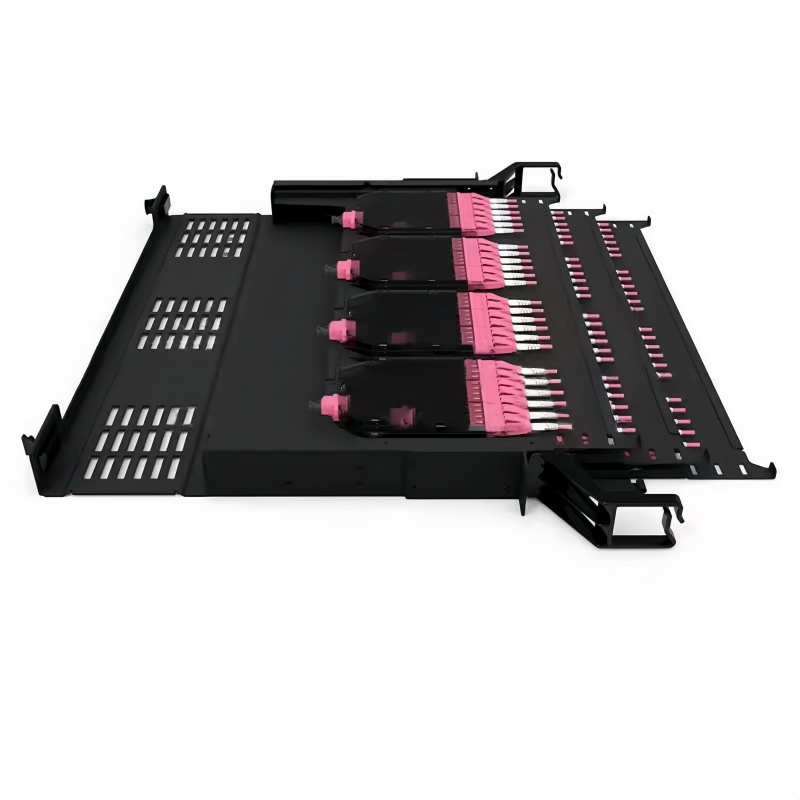

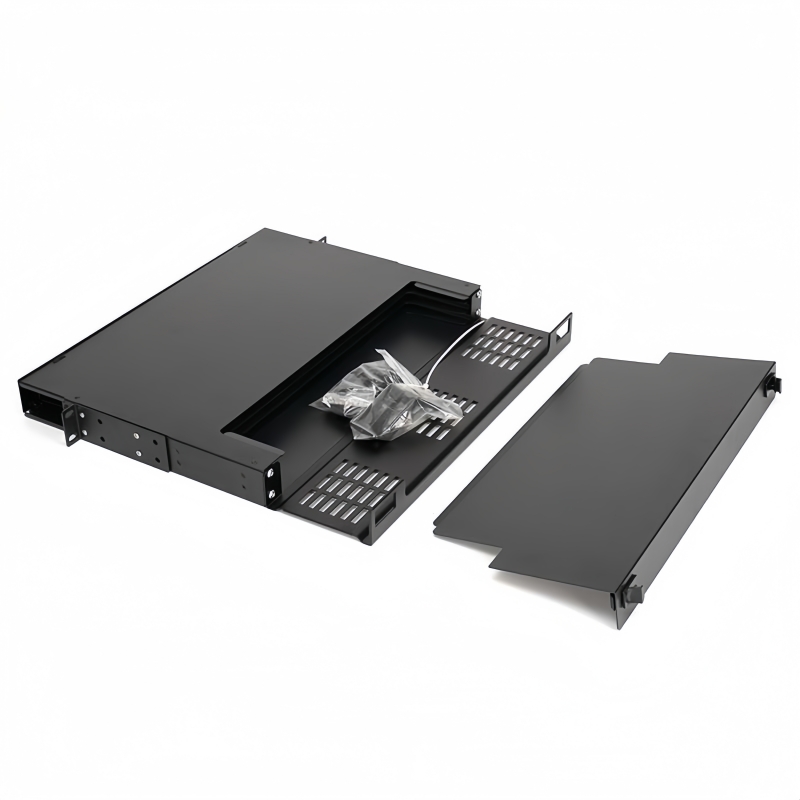

Slide-out UHD MPO-LC patch panel is a 19-inch rack-mount ultra-high density fiber distribution solution tailored for 400G/800G data center interconnection. The series covers 1U, 2U and 4U chassis options, with the 1U version supporting maximum 144 fibers. It adopts modular MPO-LC cassette architecture to realize flexible capacity expansion and on-site adjustment. Equipped with precision slide rail structure, the drawer can be fully pulled out, simplifying cassette installation, cable routing inspection and routine maintenance. Pre-installed MPO-LC cassettes support OS2 single-mode, OM3, OM4, OM5 multimode fiber variants. Optimized internal fiber channels guarantee controlled minimum bend radius to safeguard optical transmission links. Widely deployed in high-density data center spine-leaf networks, cloud computer rooms and high-speed parallel optical transmission systems.
Key Features
Multiple rack height options: 1U / 2U / 4U available; 1U chassis maximum capacity up to 144 fibers
Modular cassette architecture, flexible capacity scaling, convenient for on-site upgrade and replacement
Slide-out drawer fitted with heavy-duty slide rails, easy access for field wiring and maintenance
Standard 19-inch form factor, compatible with all mainstream industry server cabinets
Optimized internal routing channels, effectively maintain fiber minimum bend radius and prevent excessive attenuation
Chassis constructed from cold-rolled steel plate with electrostatic black powder coating, anti-corrosion and durable
Pre-installed MPO-LC breakout cassettes optional: OS2, OM3, OM4, OM5 fiber grades available
Supports 12-core MPO-LC cassettes, diverse key polarity configurations optional
Reasonable cable inlet layout for orderly management of MPO trunk cables and LC patch cords
Compliant with IEC 61300 and RoHS 2.0 standards
Mechanical Specifications
Product Name: Slide-out UHD MPO-LC Patch Panel
Overall Size: 483(W) ¡Á 365(D) ¡Á 44.45(H) mm
Available Rack Unit: 1U / 2U / 4U
Max Capacity (1U): 144 Fibers
Structure: Slide-out drawer with metal slide rails
Architecture: Modular cassette system
Supported Cassette: 12-core MPO-LC breakout cassette
Fiber Option for Pre-installed Cassette: OS2, OM3, OM4, OM5
Material: Cold-rolled steel plate
Surface Finish: Electrostatic powder coating (black)
Installation: Standard 19¡± rack mounting
Environmental Specifications
Operating Temperature: -40 ¡æ ~ +70 ¡æ
Storage Temperature: -40 ¡æ ~ +85 ¡æ
Typical Applications
High-density cloud data center 400G / 800G optical interconnection
Spine-leaf network architecture fiber distribution
HPC high-performance computing parallel optical link cabling
Large-scale enterprise computer room high-density optical cross-connection
Telecom IDC high-speed trunk optical distribution
Order & Packaging
Single unit packed with bubble bag and independent inner carton
Bulk shipment packed in standard export outer cartons
