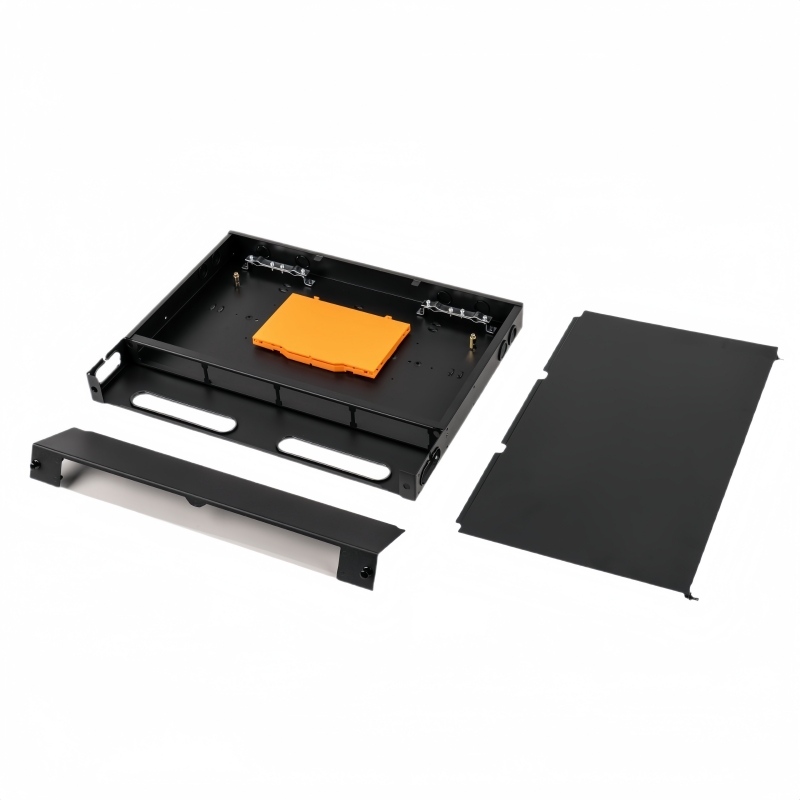

Part 1 · Rack-Mount Panel Enclosures

Part 2 · Adaptor Plates & MPO-LC Cassettes

Adaptor Plates — single-mode or multimode

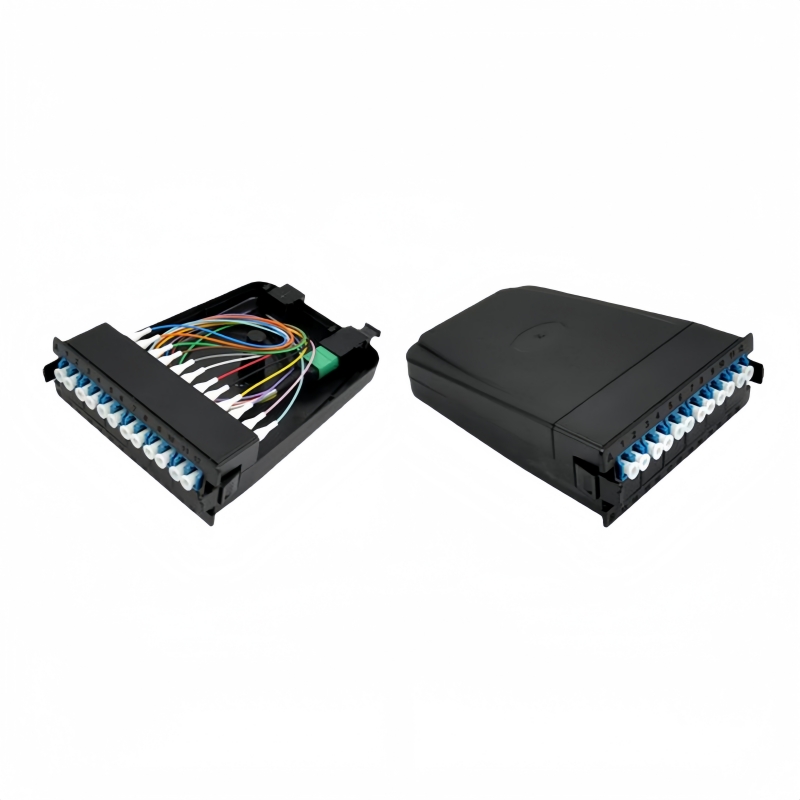

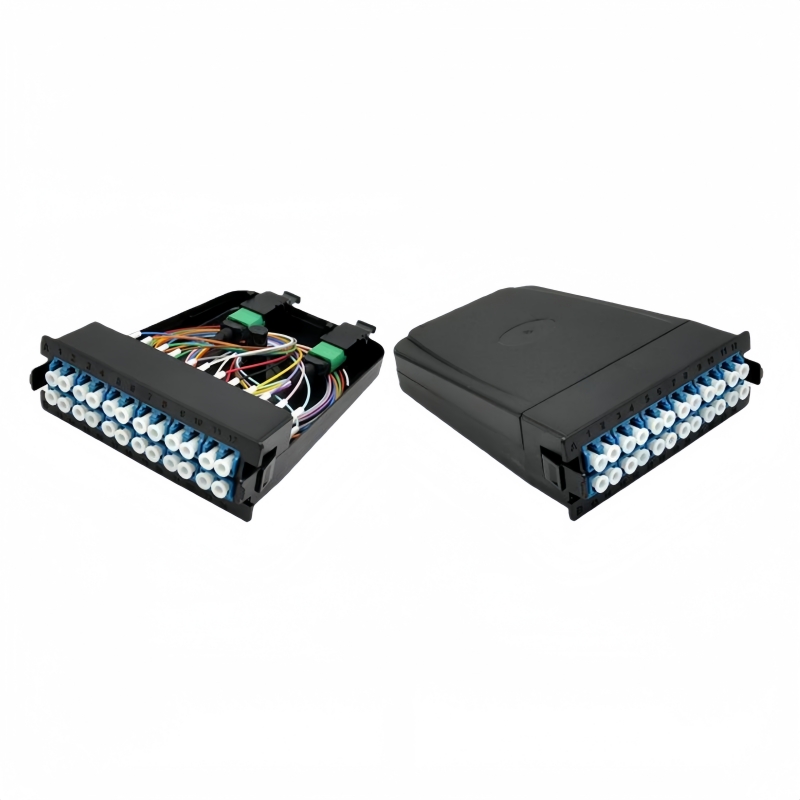

MPO-LC Cassettes — single-mode / OM3 / OM4

MPO-LC cassettes are standard in single-mode, OM3 and OM4, with OM5 on request; OM1 / OM2 are not available on cassettes.

At a Glance

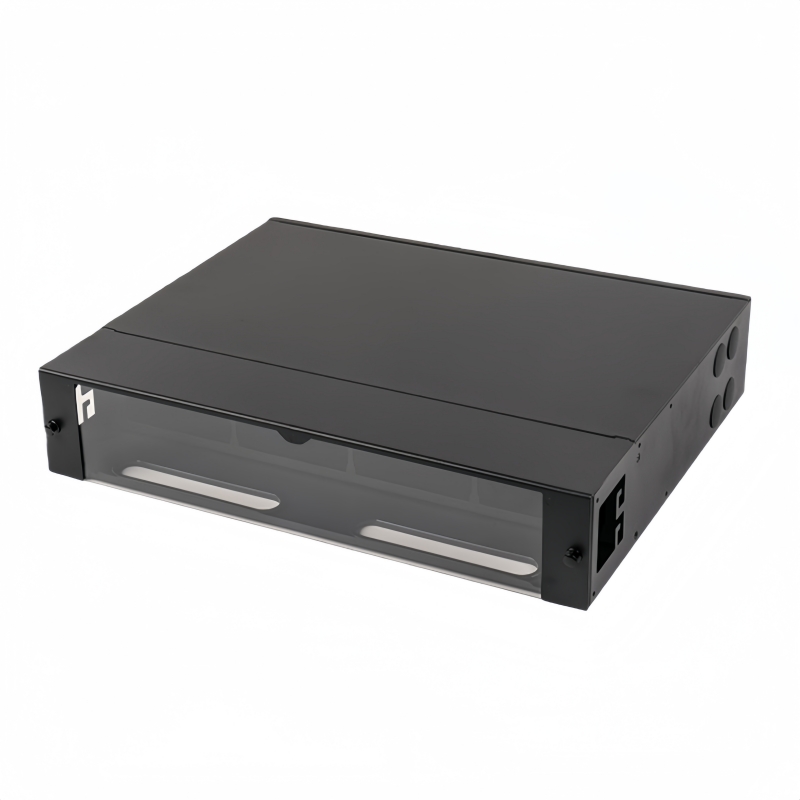

Type: fixed panel with removable cover, rack mount
Rack units: 1U / 2U / 3U, fits EIA-310 19″ racks (1U = 44.45 mm)
Construction: 1.1 mm cold-rolled steel, black powder coated
Max capacity: up to 96 LC fibers (1U); 2U / 3U add plates and splice storage
Front configuration: interchangeable adaptor plates (SC / LC / ST / FC) and MPO-LC cassettes
Pre-load: empty, with adaptors, or with adaptors and pigtails
MOQ / lead: panel MOQ 1, about 5 days; plates, cassettes and volume orders agreed on request

Configuration Options

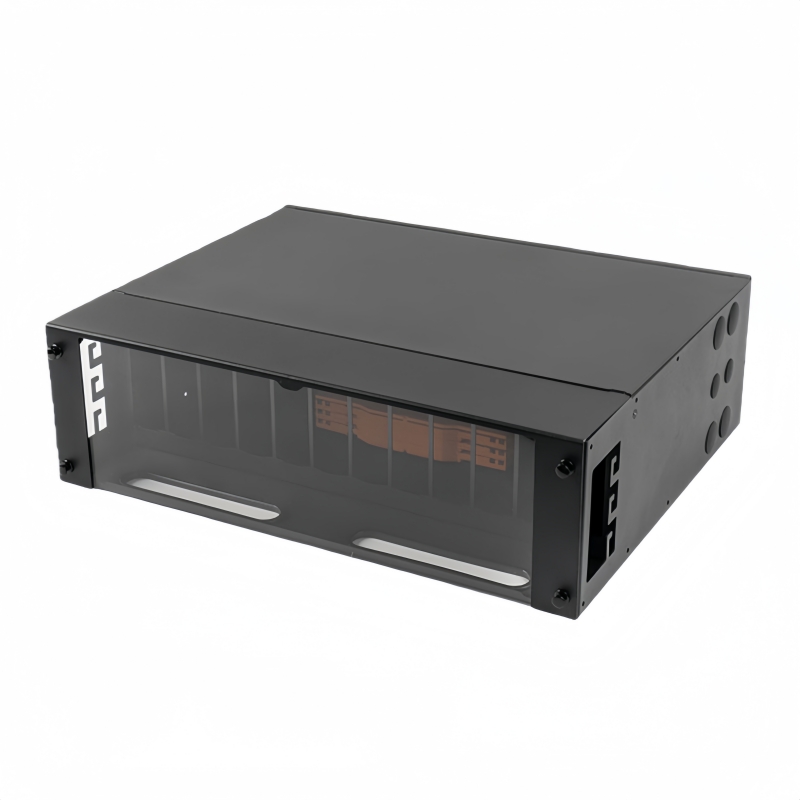

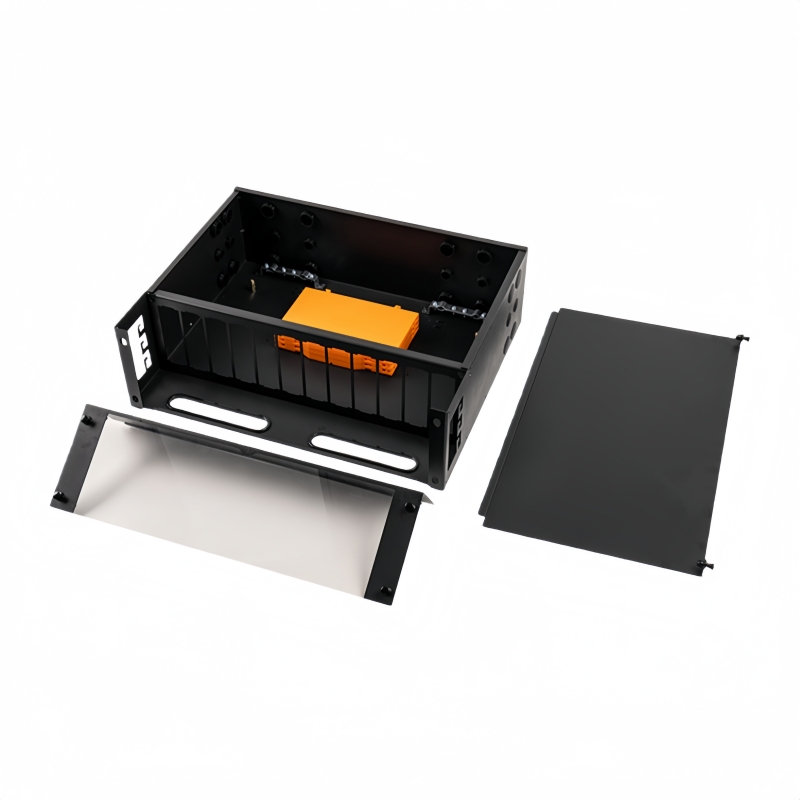

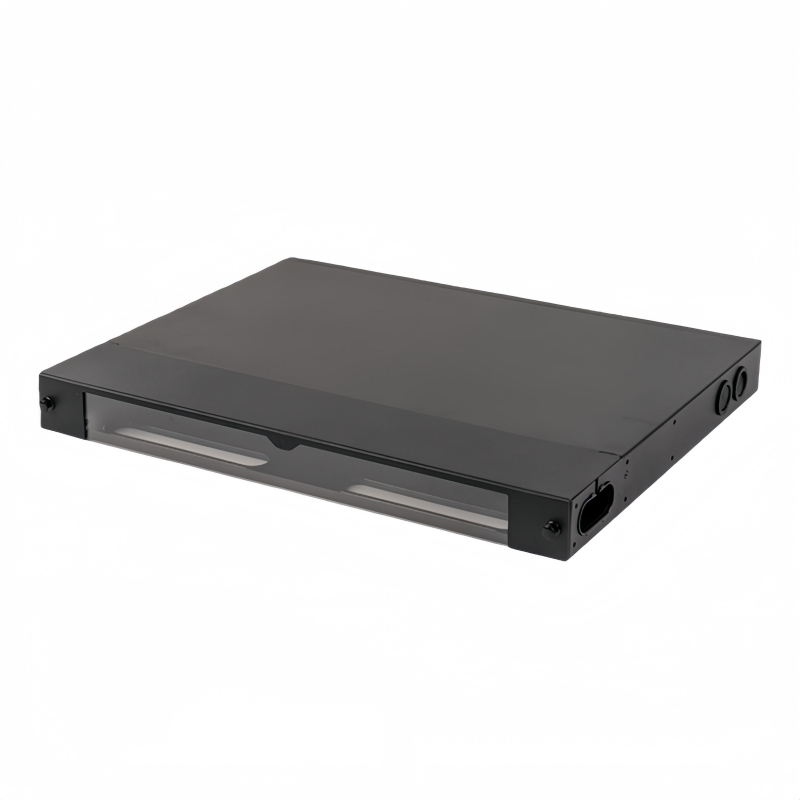

Step 1 · Rack unit — 1U for up to 96 LC fibers in the smallest footprint; 2U / 3U for more plates, splice storage and easier access.

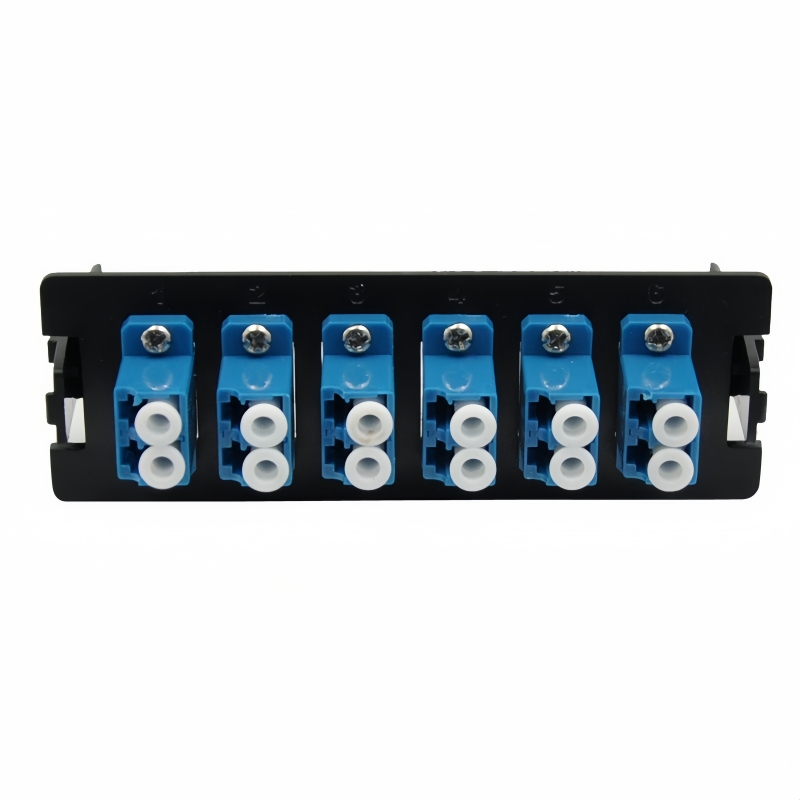

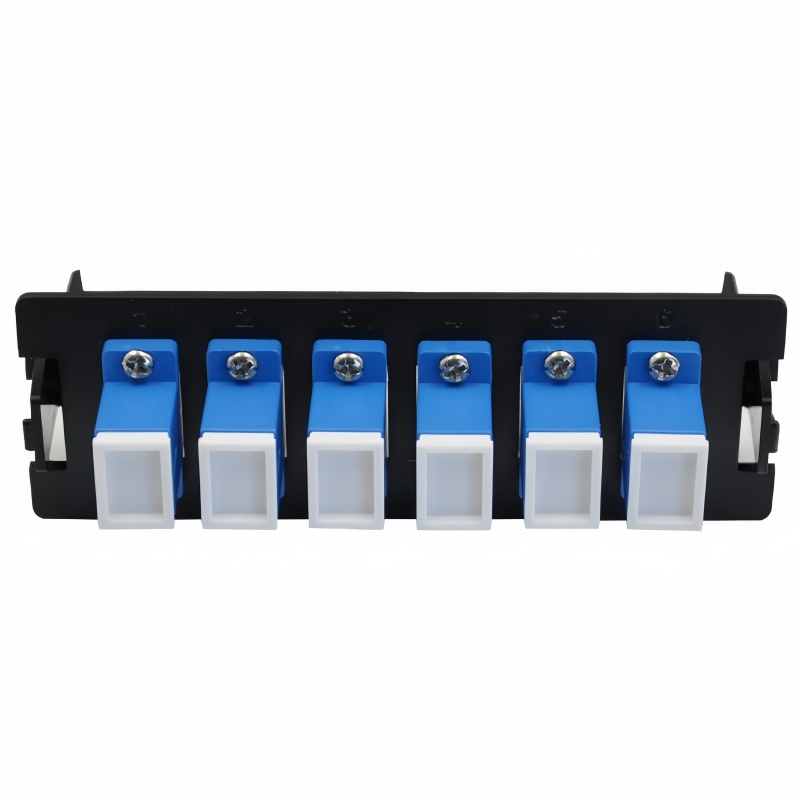

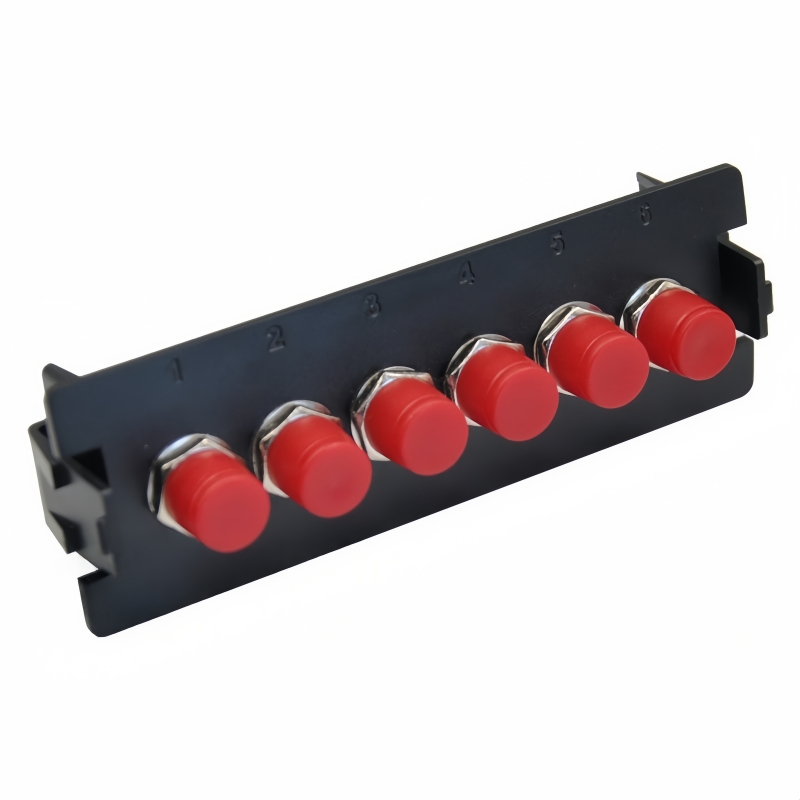

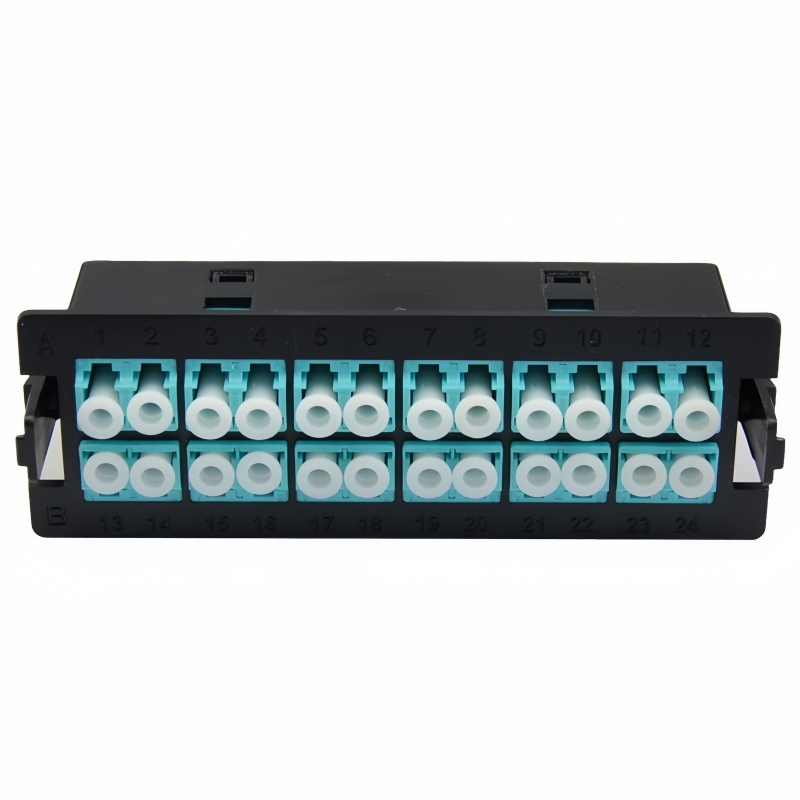

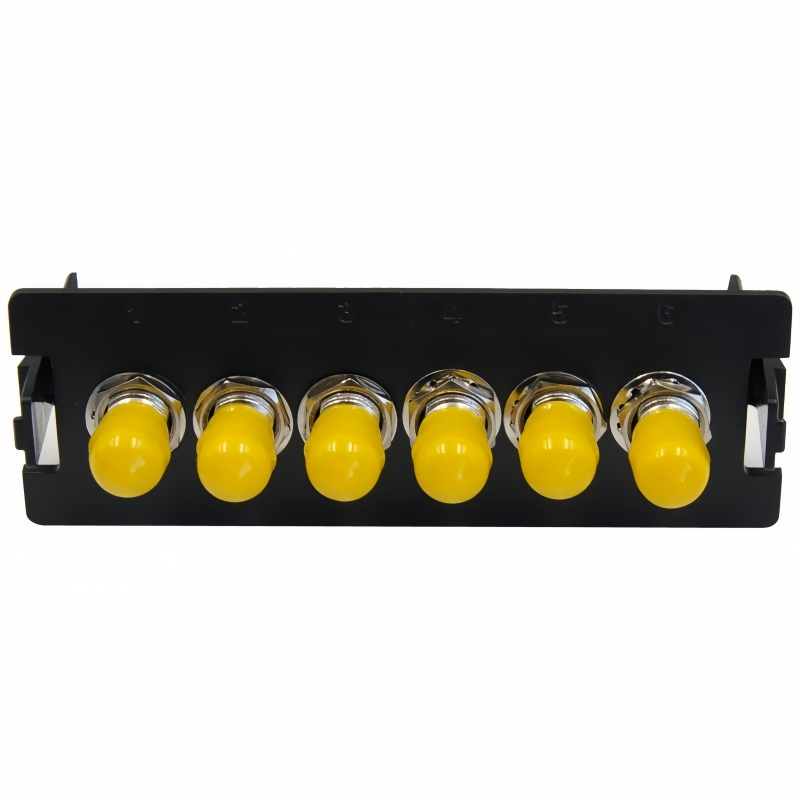

Step 2 · Front plates or cassettes — adaptor plates (6 SC / 12 LC / 24 LC / 6 ST / 6 FC) for direct terminations; MPO-LC cassettes (12 / 24-fiber) where an MPO backbone breaks out to duplex LC.
Step 3 · Polish — UPC / APC on adaptor plates; MPO-LC cassettes use LC UPC.
Step 4 · Fiber — G.652.D / G.657.A1 / OM1 / OM2 / OM3 / OM4 / OM5 on plates; cassettes standard in single-mode / OM3 / OM4, OM5 on request.
Step 5 · Pre-load — Empty (enclosure only), Adaptor (fitted), or Pigtail (adaptors plus pigtails, ready to splice).
Step 6 · Labels & packaging — each panel is packed in its own small carton, with multiple units consolidated into an export carton; labels and packaging can be customized on request.

Typical Applications

• Entrance facilities and equipment rooms — building cable entry and central patching.
• Telecommunications rooms and enterprise LAN distribution.
• Central-office / exchange ODF and CATV headend & hub patching.
• Data center, server-room and SAN cross-connect fields.
• Edge computing sites and FTTH aggregation nodes.
• Boundary: for compact wall / desktop / DIN-rail termination use XHT-D08; for MPO trunks and fan-out harnesses use XHT-D01 / XHT-D02; for patch cords use XHT-D05 / XHT-D06.

Technical Specifications

Product type	fixed patch panel with removable cover
Mounting	EIA-310 19″ rack / cabinet, 1U / 2U / 3U (44.45 mm per U)
Dimensions	483 × 305 mm × 1U / 2U / 3U
Construction	1.1 mm cold-rolled steel, black powder coated
Front	transparent dust shield, modular plates, label field
Cable management	front / rear routing platforms, tie-down points, bend-radius control, fiber storage

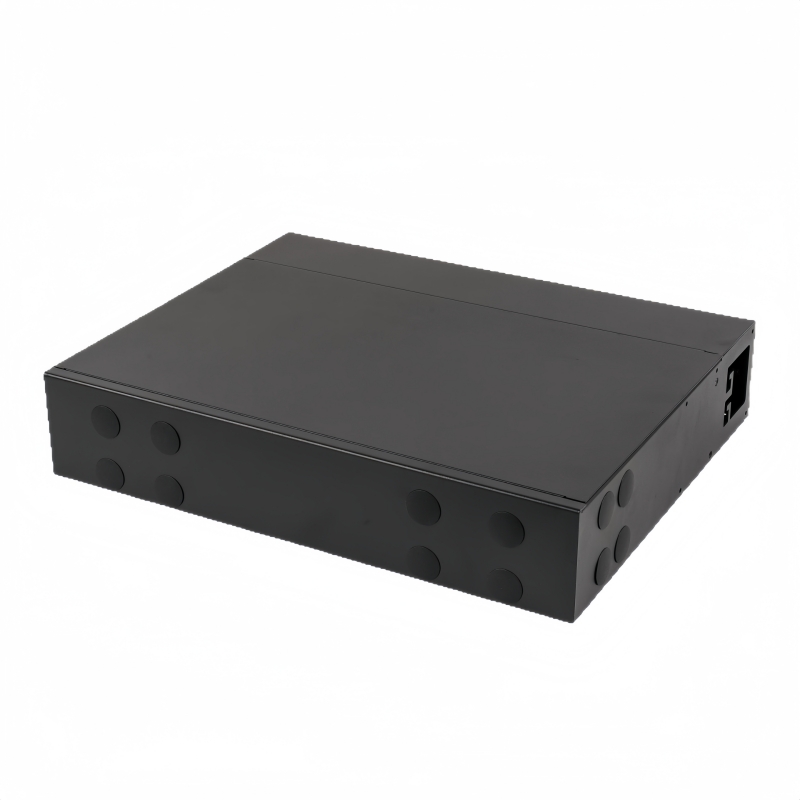

Cable entries	rear and side entries (4 rear / 4 side on 1U)
Adaptor type	SC, LC, ST, FC, MPO-LC
Fiber capacity (max)	up to 96 LC fibers (1U)
Splice tray	24 splices each, stackable
Standards / compliance	for structured cabling systems designed to TIA-568 / ISO/IEC 11801; EIA-310 rack fit; fitted adaptors / cassettes tested per applicable IEC 61300 methods; RoHS compliant

Quality You Can Verify

• Steel chassis formed from 1.1 mm sheet with a powder-coated finish and protected edges.
• Adaptor plates and cassettes fitted and aligned in their slots.
• Adaptors and cassettes tested per applicable IEC 61300 methods; end faces cleaned and sealed with dust caps.
• Pre-loaded pigtails routed on trays with bend-radius control, and the ordered configuration checked before packing.

FAQ

Q1. Which rack unit and how many fibers? A 1U holds up to 96 LC fibers with four 24-fiber LC plates; choose 2U or 3U for more plates and splice storage.

Q2. Adaptor plate or MPO-LC cassette? Plates for direct SC / LC / ST / FC terminations; cassettes where a multi-fiber MPO backbone must break out to duplex LC ports.

Q3. What do Empty / Adaptor / Pigtail mean? Empty ships the enclosure with standard accessories; Adaptor adds fitted adaptors; Pigtail adds adaptors and pigtails so the unit is ready to splice.

Q4. Which fiber for the MPO-LC cassette? Standard builds are single-mode, OM3 or OM4; OM5 can be supplied on request. OM1 and OM2 are not offered on cassettes but remain available on plates.

Q5. MOQ and lead time? Panels start at 1 piece in about 5 days; plates, cassettes, pre-loaded and volume orders are quoted on request, and a sample can be arranged.

Ordering & Service

• Part number: XHT-D07-[1U/2U/3U]-[plate]-[U/A]-[fiber]-[E/A/P]
• Example: XHT-D07-1U-12LC-U-2D-A = 1U, 12-fiber LC plate, UPC, G.652.D, with adaptors.
• Example: XHT-D07-2U-12MPO-U-M3-E = 2U, 12-fiber MPO-LC cassette, OM4, empty.
• Panel MOQ 1, about 5 days; plates, cassettes, pre-loaded and volume orders agreed on request; reply within 24 h.
• Can be supplied as one matched set with patch cords, pigtails, MPO trunks and cassettes for a rack or floor build.

Focus note: We specialize in modular 19″ fiber patch panels for enterprise server rooms and edge cabinets, with interchangeable plates, MPO-LC cassettes and pre-load options. Compact wall / desktop / DIN-rail termination sits under XHT-D08.

Related Products

• LC simplex / duplex patch cords → XHT-D05
• LC uniboot patch cords → XHT-D06
• Fiber pigtails for pre-loaded units → XHT-A02
• MPO trunks & fan-out harnesses → XHT-D01 / XHT-D02
• Compact metal terminal boxes → XHT-D08

Panels fit EIA-310 19″ racks and are intended for structured cabling per TIA-568 / ISO/IEC 11801. Fitted adaptors, cassettes, pigtails and labels are confirmed on the order. RoHS compliant.
