Product Overview
Slide-out fiber patch panel is standard 19-inch rack-mount fiber termination unit widely deployed in data centers, computer rooms and enterprise optical wiring systems. Constructed from 1.2mm cold-rolled steel plate with sturdy slide rail mechanism, the drawer can be pulled out fully for convenient splicing, termination and maintenance. It supports various adapter types including SC, LC, ST, FC and E2K. Multiple rack unit options (1U / 2U / 3U / 4U) are available. The 1U version standard supports 24 fibers, and maximum capacity reaches 96 fibers for LC high-density configuration. Reasonable internal cable management ensures proper fiber bend radius protection. Equipped with 4 cable entries on the rear panel for flexible cable routing.
Key Features
Housing material: 1.2mm cold-rolled steel sheet, durable electrostatic powder coated surface
Overall size: 483mm*350mm*1U
Slide-out drawer design with precision slide rails, easy access for field operation

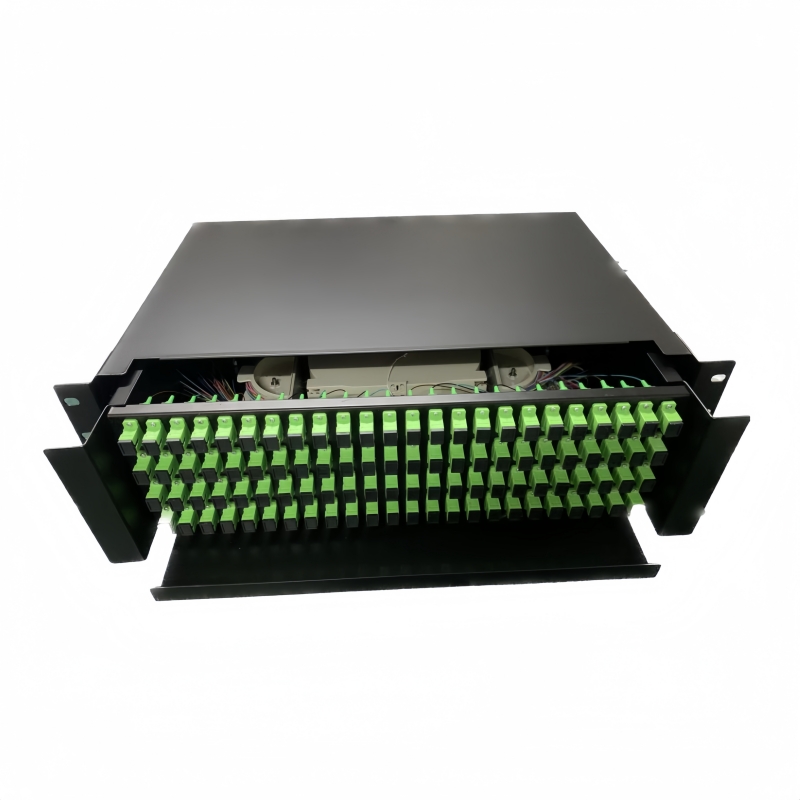

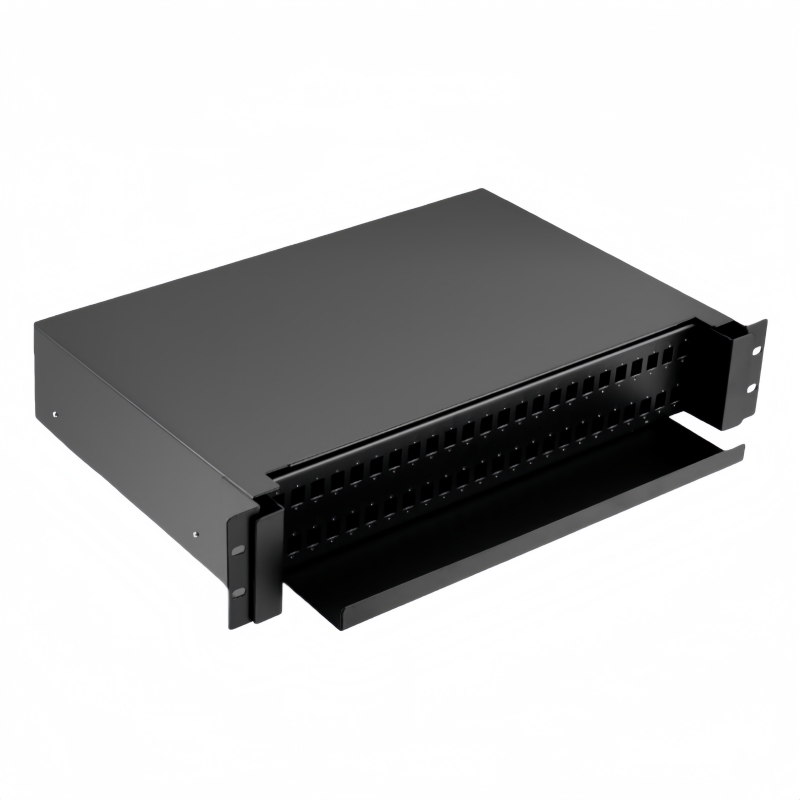

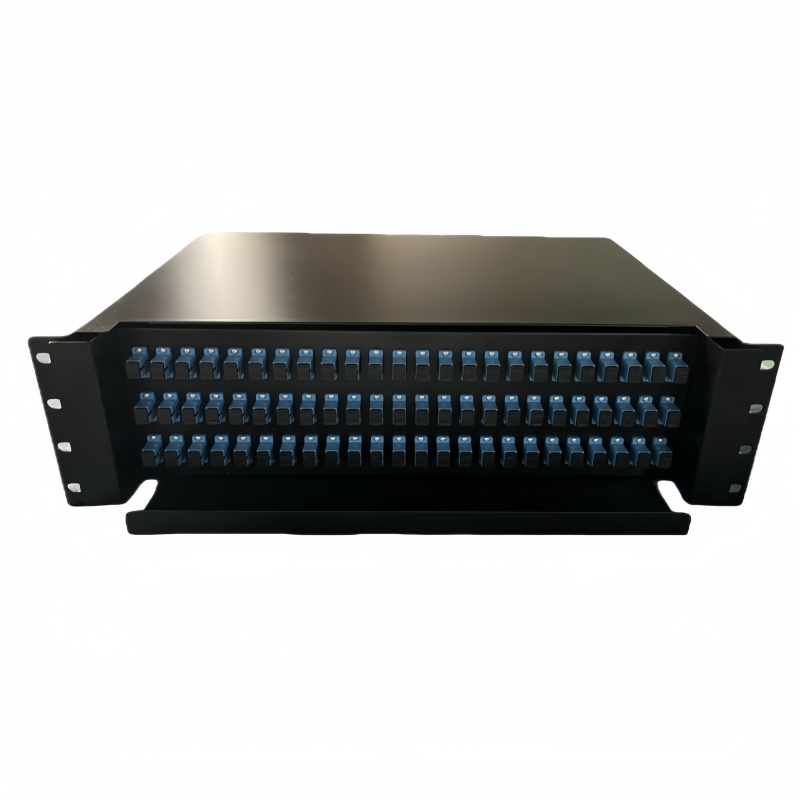

Rich rack height selection: 1U, 2U, 3U, 4U available for different capacity demands
Flexible port configuration: compatible with SC, LC, ST, FC, E2K fiber adapters

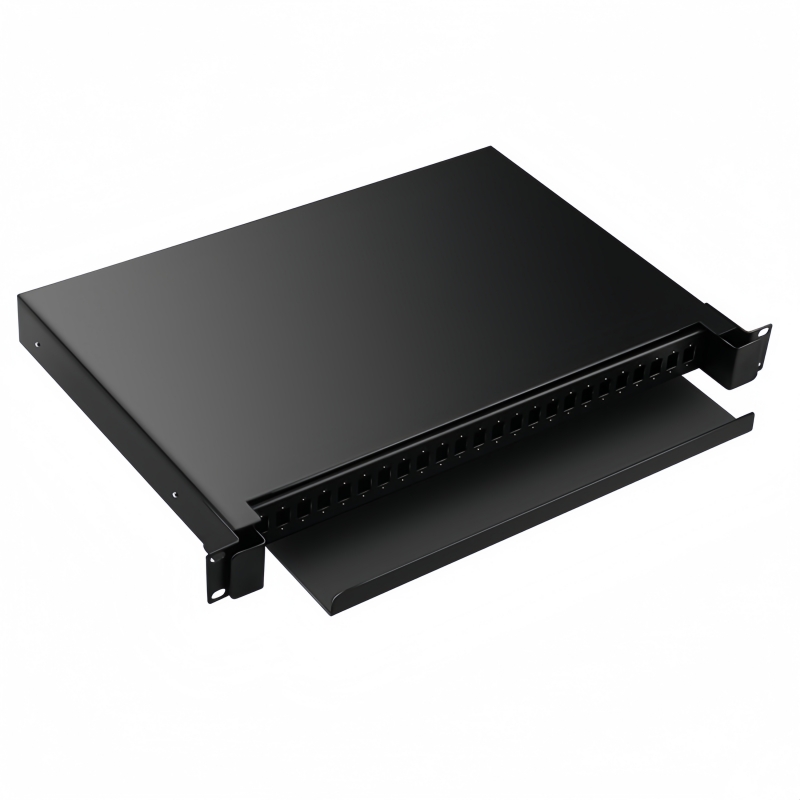

1U specification: standard for 24F; Max 96F (High-density LC)
Rear panel designed with 4 cable entries, flexible inlet arrangement for incoming cables

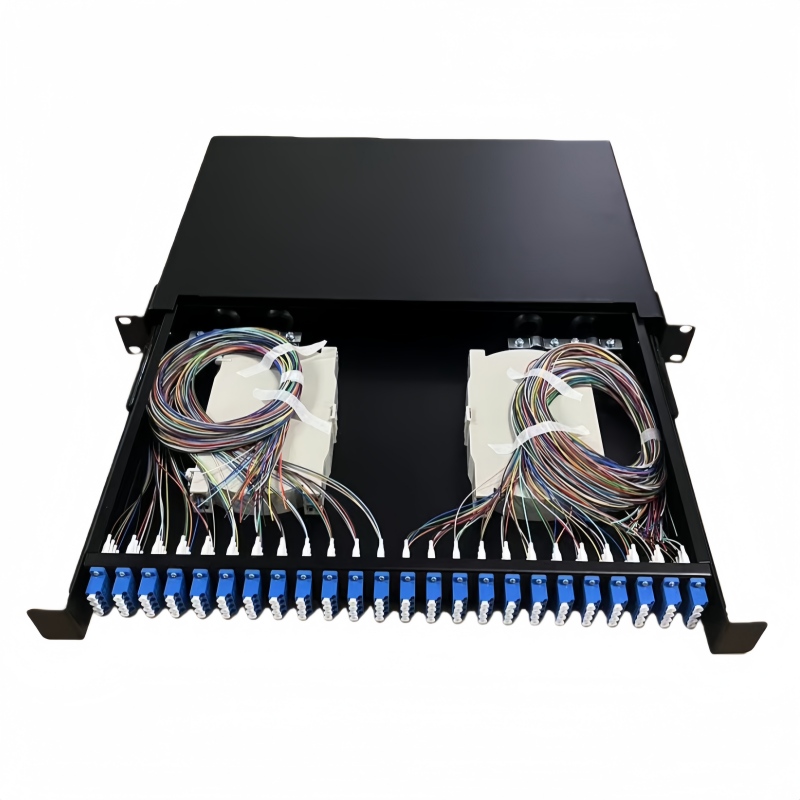

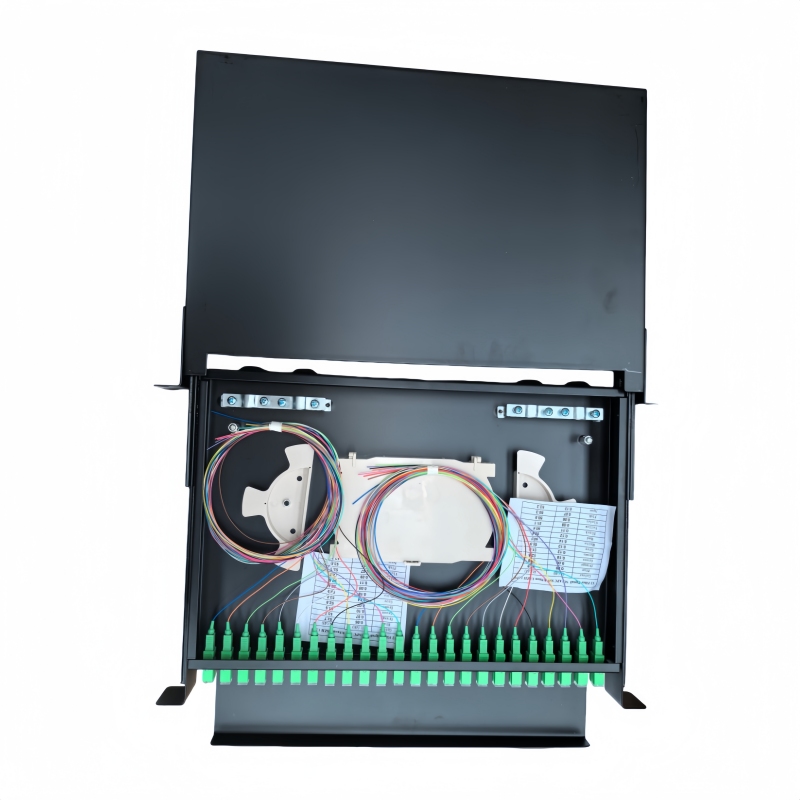

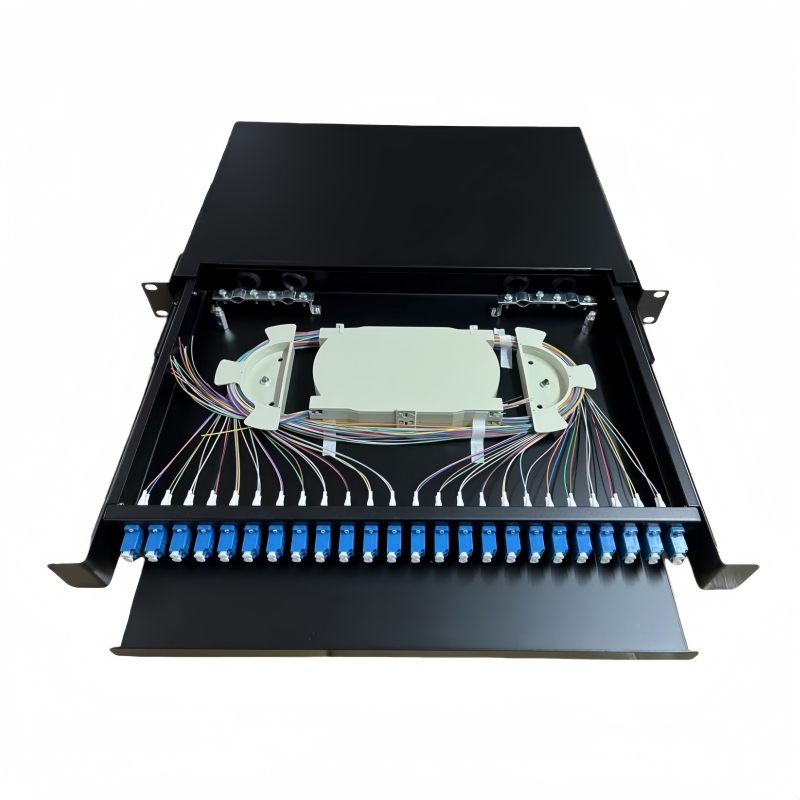

Integrated fiber splice tray and routing guides, protect fiber against excessive bending
Standard 19-inch width, directly fits standard server racks and cabinets
Compliant with IEC 61300 and RoHS 2.0 standard
Environmental Specifications
Operating Temperature: -40 ¡æ ~ +70 ¡æ
Storage Temperature: -40 ¡æ ~ +85 ¡æ
Typical Applications
Data center optical distribution and high-density cabinet wiring
Telecom central office and enterprise computer room fiber termination
Security monitoring network, intelligent building weak current system
Campus and industrial park integrated optical cabling
Order & Packaging
Single unit packed with bubble bag and inner carton
Bulk cargo loaded into standard export cartons
Custom capacity, adapter layout, pigtail type, logo printing and surface color supported
