Product Overview

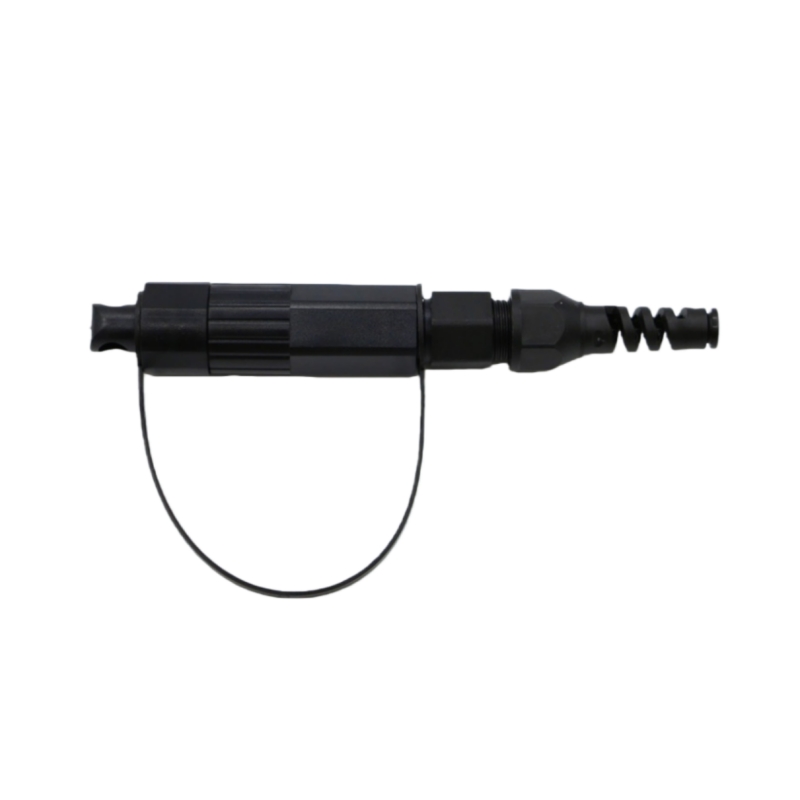

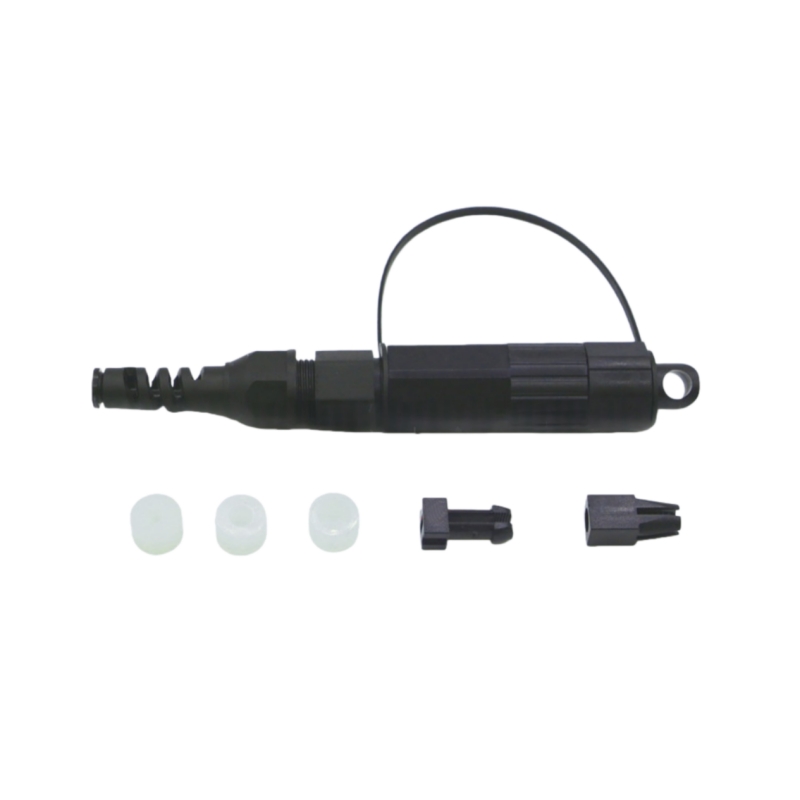

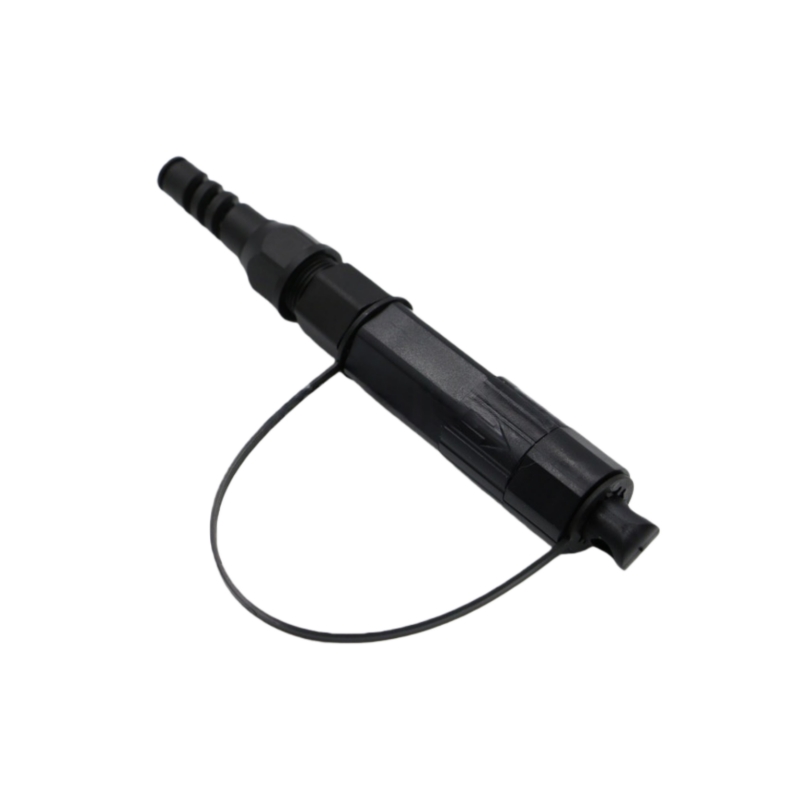

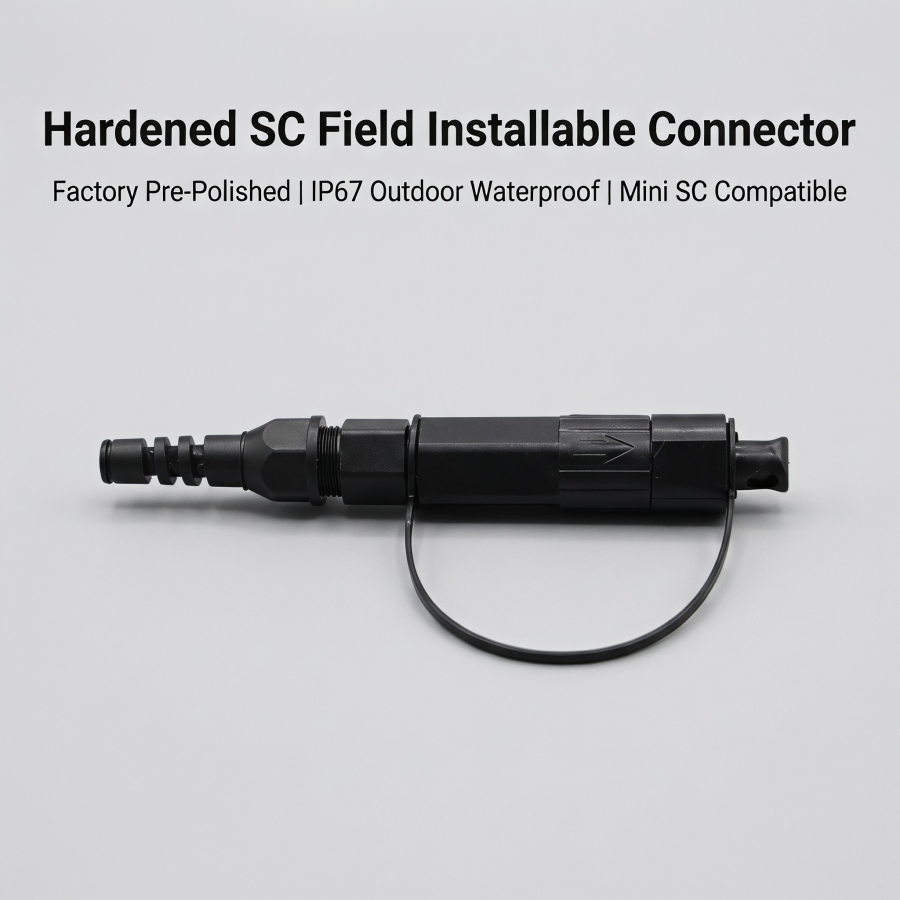

The IP67 Hardened SC Field Installable Connector is a ruggedized outdoor fiber termination solution specially designed for FTTX aerial wiring, pole-mounted distribution and harsh outdoor network environments. Adopting a professional factory pre-polished ferrule structure, it requires no on-site polishing, no glue and no fusion splicing equipment. Only basic fiber hand tools are needed to complete quick field assembly. Equipped with integrated sealing structure and UV-resistant rugged housing, the connector achieves full IP67 dustproof and waterproof performance. It is mechanically compatible with Mini SC hardened adapters, supporting both flat drop cables and multiple specifications of round optical cables, featuring stable outdoor transmission and excellent environmental adaptability.

Key Features

- Fiber Type: Single-mode G.652D, G.657A1, G.657A2, G.657B3

- End Face Type: UPC / APC optional

- Compatible Cable: 2.0×1.6mm, 2.0×3.0mm flat FTTH drop cable; Φ2.0mm, Φ3.0mm, Φ5.0mm round fiber cable

- Protection Grade: IP67 ingress protection

- Factory pre-polished end face design, eliminates complicated on-site polishing procedures

- Integrated sealing structure, good waterproof, dustproof and anti-aging performance

- High-strength UV-resistant engineering plastic housing, suitable for long-term outdoor exposure

- High structural stability and tensile resistance, anti-vibration and anti-loosening during outdoor use

- Fully compliant with IEC 61300 and RoHS 2.0 environmental standards

Optical Specifications

- Test Wavelength: 1310nm & 1550nm (Single-mode)

- Maximum Insertion Loss: ≤0.50dB

- Return Loss: ≥50dB (UPC); ≥55dB (APC)

- Mating Durability: ≤0.2dB IL variation after 500 mating cycles

Mechanical & Environmental Specifications

- Fiber Specification: 9/125μm Single-mode fiber

- Tensile Resistance: ≥30N (sustained for 2 minutes)

- Operating Temperature: -20°C ~ +75°C

- Storage Temperature: -40°C ~ +85°C

Typical Applications

- Outdoor FTTH aerial wiring, pole-mounted optical distribution points

- Roadside optical terminal boxes, outdoor FTTX remote node deployment

- Outdoor monitoring network, industrial outdoor weak current engineering

- Outdoor fiber link renovation, debugging and emergency maintenance

Order & Packaging Standard

- Standard Package: 1 pcs per individual plastic bag

- Custom product labels and packaging solutions are available on request
