XHT-A03 ﹞ FTTH / FTTR ACCESS NETWORKS

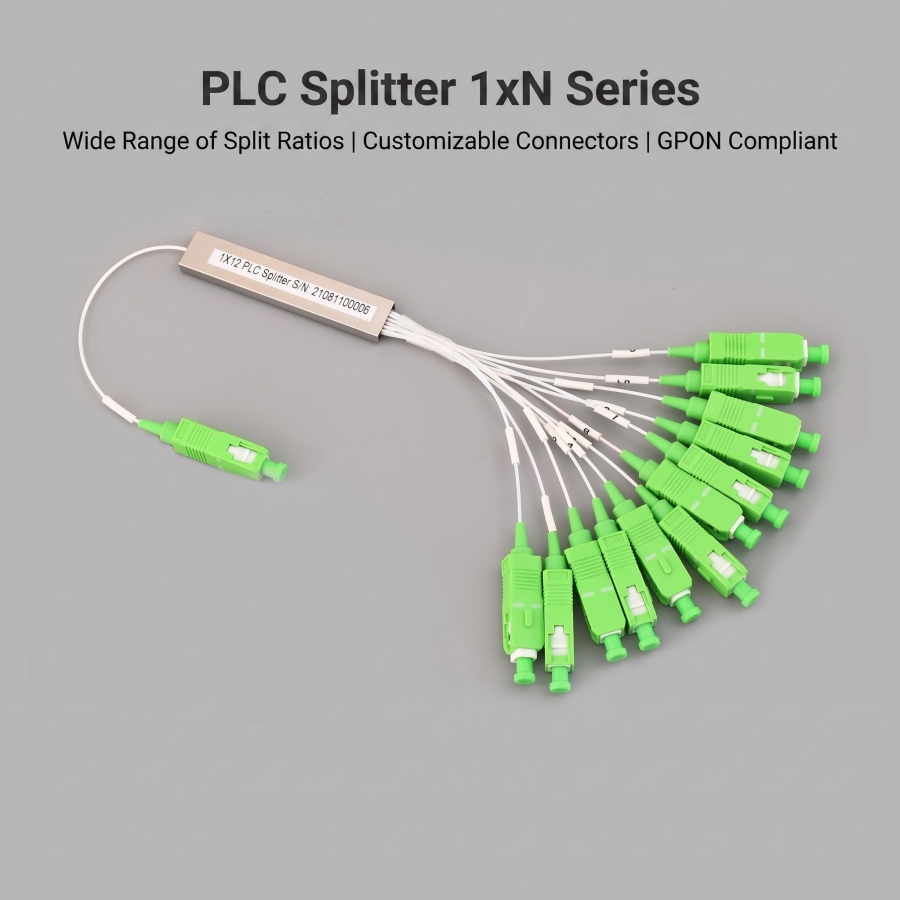

PLC Splitters 〞 1xN (OS2, Broadband)
1x2 / 4 / 8 / 16 / 32 standard ﹞ 1x64 on stock move ﹞ six packages from bare tube to 19" rack
Planar lightwave circuit splitters for PON splitting in cabinets, wall boxes, ODFs and central offices. Choose the split ratio and package that fits the enclosure 〞 with stock lead times on the mainstream ratios.
At a Glance
Split ratio: 1x2 / 4 / 8 / 16 / 32 standard, 7 days 1x64 50 pcs, ~12 days 1x3 / 6 / 12 / 24 / 128 on request
Packages: mini steel tube ﹞ ABS cassette ﹞ LGX cassette ﹞ 19" rack mount ﹞ mini ABS cassette & mini aluminum box (custom)
Connector: SC / LC / FC in stock E2K on request; UPC / APC polish (SC/APC is the FTTH default)
Wavelength: 1260每1650 nm broadband (1310 / 1490 / 1550)
MOQ & lead time: mainstream ratios from 10 pcs in ~7 days; 1x64 from 50 pcs in ~12 days; custom ratios / packages quoted on request
Six Packages 〞 Match to Your Enclosure

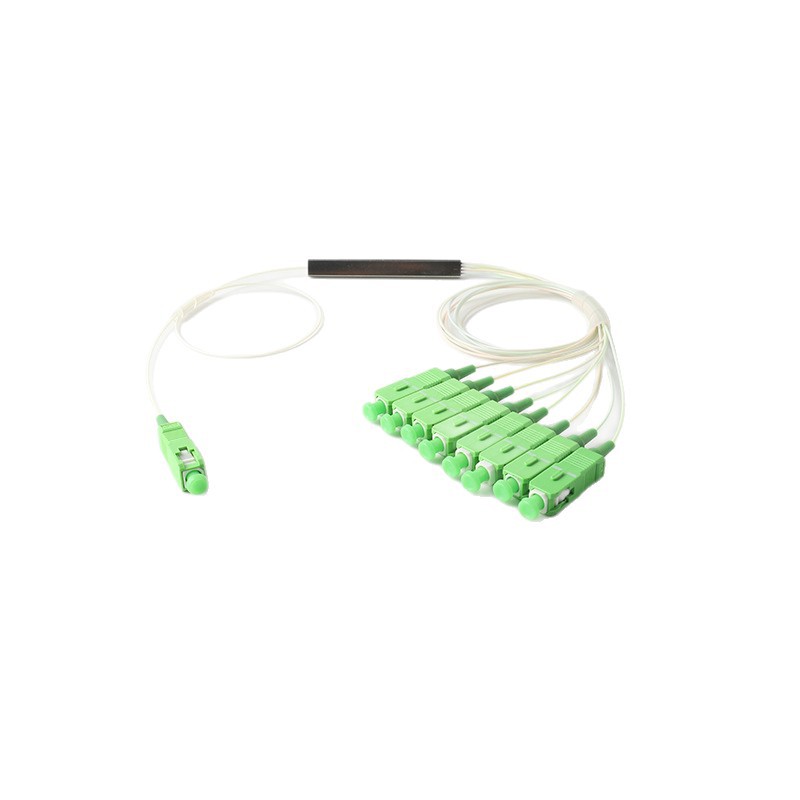

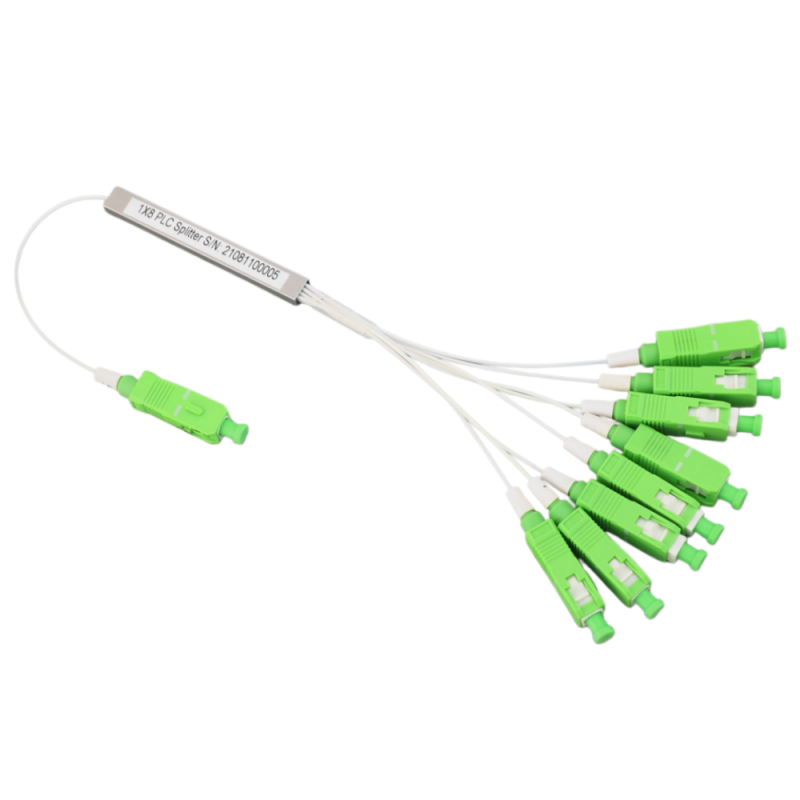

1 ﹞ Mini Steel Tube (Bare)
▪ Where it goes: inside splice trays, wall boxes and MDUs 〞 the smallest, lowest-cost form.
▪ Split ratio: 1x2 / 4 / 8 / 16 / 32 / 64 standard; 1x3 / 6 / 12 / 24 / 128 on request.
▪ Fiber / cable: 0.9 mm tight buffer standard, 1 m; white or color-coded jacket; bare-fiber version on request.
▪ Connector: SC / LC / FC; E2K on request. UPC / APC polish.
▪ MOQ / lead time: SC connector, 1x2每32 from 10 pcs, ~7 days; LC / FC from 20 pcs, ~10 days. 1x64 from 50 pcs, ~12 days; E2K and custom ratios quoted on request.

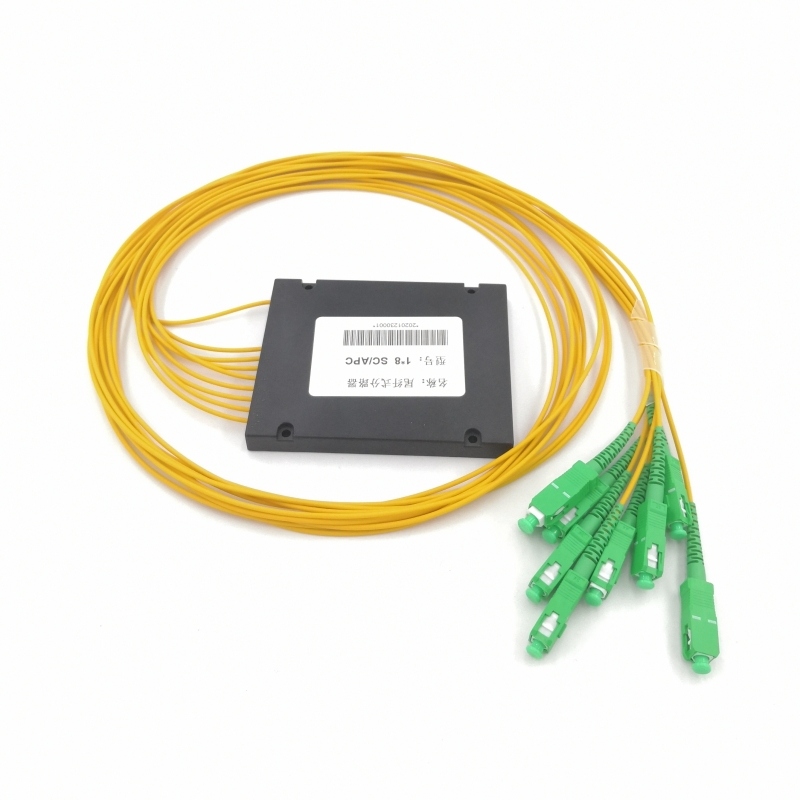

2 ﹞ ABS Cassette (100 x 80 x 10 mm)
▪ Where it goes: plug-in cassette for wall boxes and MDUs.
▪ Split ratio: 1x2 / 4 / 8 / 16 / 32 / 64 standard; 1x3 / 6 / 12 / 24 / 128 on request.
▪ Cable: 2.0 mm, 1 m default, yellow jacket (other colors on request); 0.9 mm on request.
▪ Connector: SC / LC / FC; E2K on request. UPC / APC polish.
▪ MOQ / lead time: SC connector, 1x2每32 from 10 pcs, ~7 days; LC / FC from 20 pcs, ~10 days. 1x64 from 50 pcs, ~12 days; E2K and custom quoted on request.

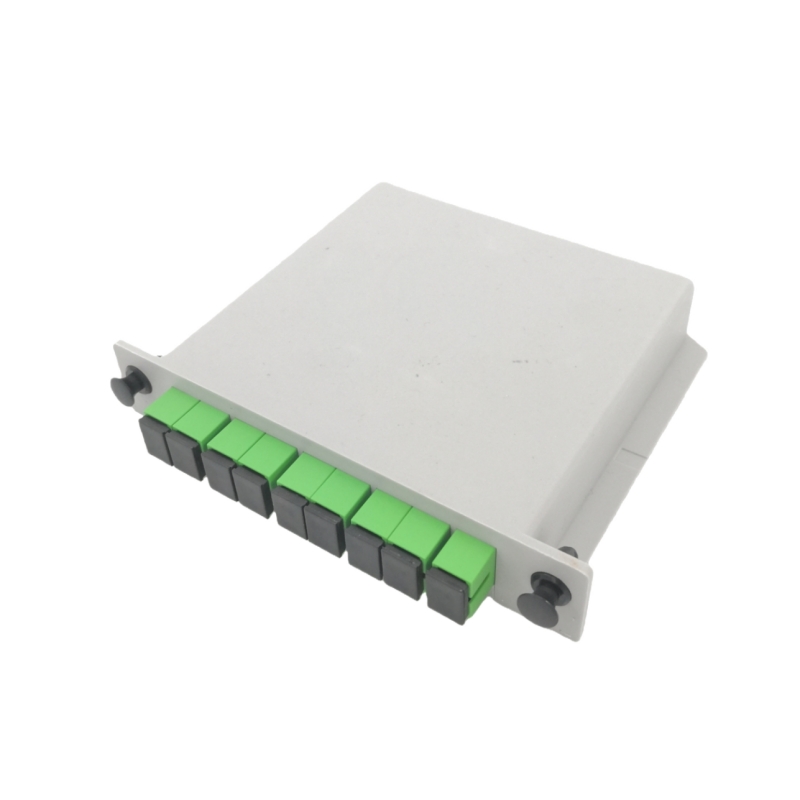

3 ﹞ LGX Cassette
▪ Where it goes: 19" ODF and rack patching. 1x32 available as single-width or dual-width LGX.
▪ Split ratio: 1x2 / 4 / 8 / 16 / 32 / 64 standard. Custom: 1x3 / 6 / 12 / 24, or 3x1x2 + 2x1x4 combinations.
▪ Connector: SC/UPC, SC/APC standard; FC on request. 1x2 / 4 / 8 / 16 available as stubbed input (2.0 mm cable), terminated or unterminated as needed.
▪ MOQ / lead time: 1x2每32 from 10 pcs, ~7 days; 1x64 from 50 pcs, ~12 days; stubbed style from 50 pcs, ~7 days; custom quoted on request.

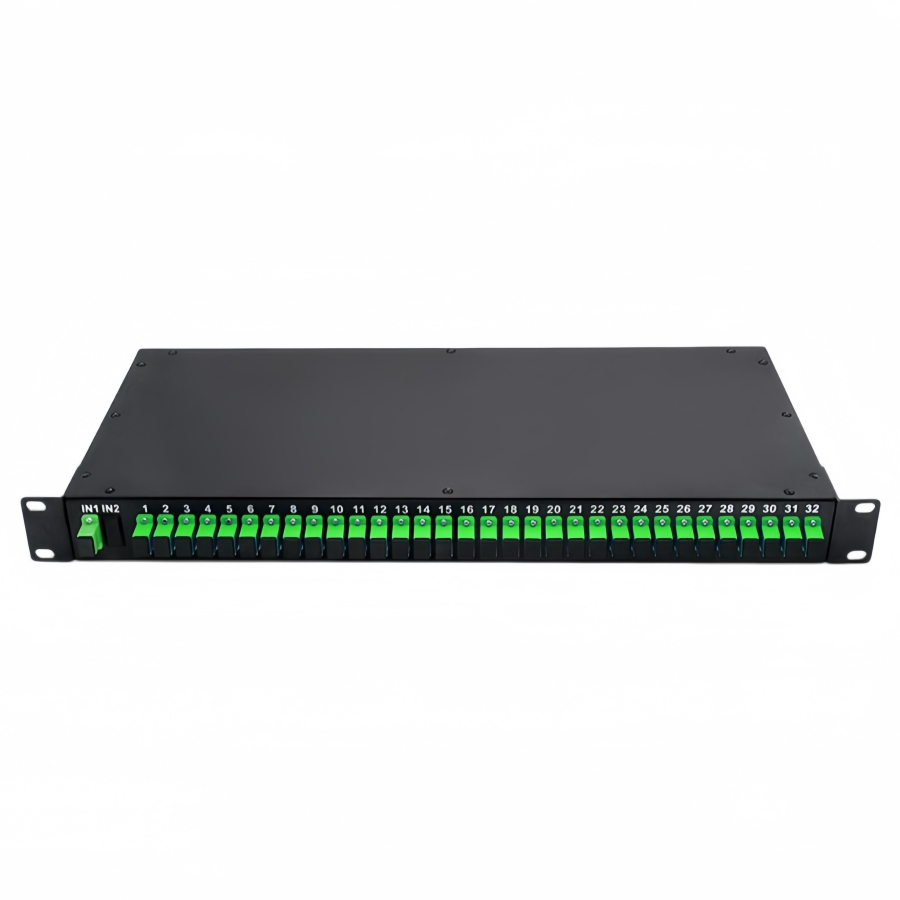

4 ﹞ 19" Rack Mount
▪ Where it goes: central office / headend and large distribution frames.
▪ Split ratio: 1x2 / 4 / 8 / 16 / 32 / 64.
▪ Connector: SC/UPC, SC/APC standard; FC on request. Pull-out drawer or rotating fan-out type on request.
▪ MOQ / lead time: from 1 pc, ~3 days; custom quoted on request.

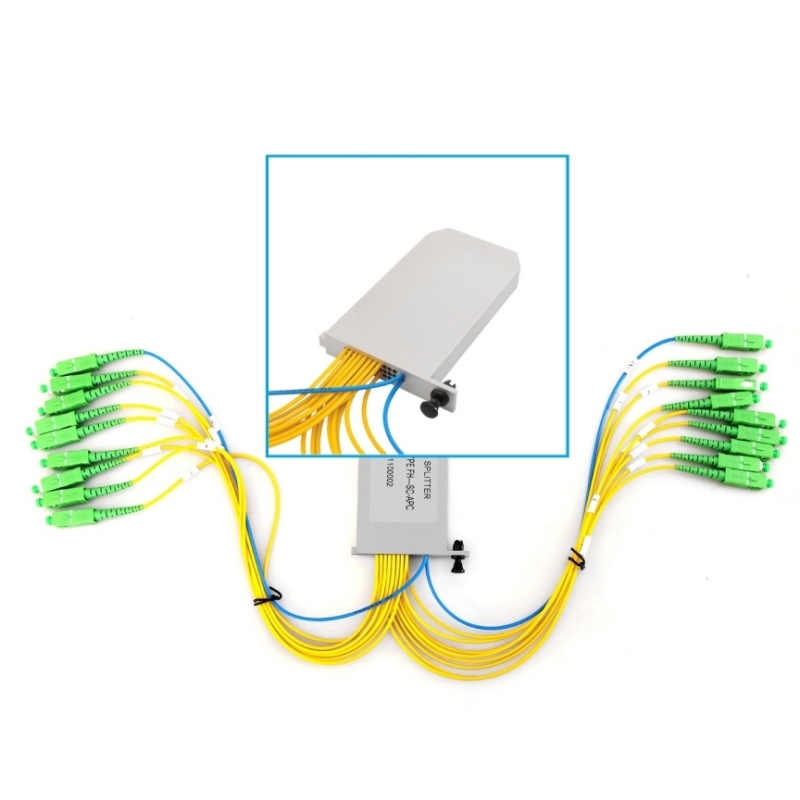

5 ﹞ Mini Aluminum Box custom
▪ Aluminum housing 100 x 68.8 x 12.5 mm.
▪ Split ratio: 1x8 / 1x16 / 1x32, or 2x(1x8).
▪ 2.0 mm yellow jacket, length and connector on request.

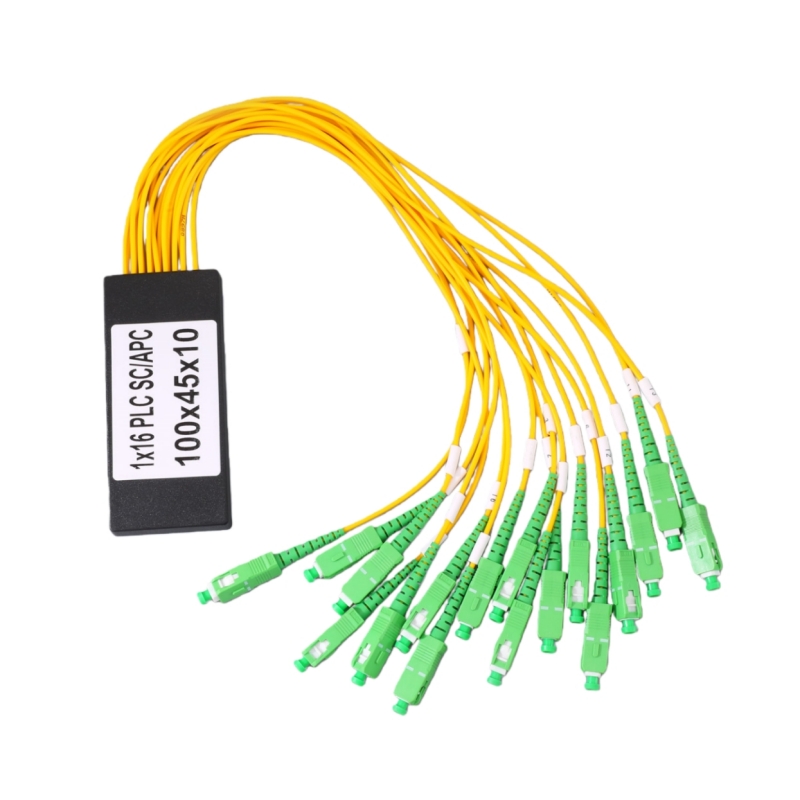

6 ﹞ Mini ABS Cassette custom
▪ Compact cassette 100 x 45 x 10 mm.
▪ Split ratio: 1x8 / 1x16.
▪ 0.9 mm or 2.0 mm yellow jacket; length and connector on request.
Core Optical Performance
| Parameter |
1x2 |
1x3 |
1x4 |
1x6 |
1x8 |
1x12 |
1x16 |
1x24 |
1x32 |
1x64 |
1x128 |
| Operating wavelength (nm) |
1260每1650 |
| Max insertion loss (dB) |
4.1 |
6.3 |
7.4 |
9.5 |
10.5 |
12.6 |
13.9 |
16.2 |
17.0 |
20.5 |
24.6 |
| Max uniformity (dB) |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
1.0 |
1.2 |
1.4 |
1.5 |
2.0 |
2.5 |
| Max PDL (dB) |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.4 |
0.5 |
| Min return loss (dB) |
55 |
| Min directivity (dB) |
55 |
Note: if fitted with connectors, add ~0.3 dB insertion loss per connector. Operating temperature −40 to +85 ∼C; RoHS.
Ordering, MOQ & Lead Time
▪ Standard ratios 1x2每32: from 10 pcs, ~7 days.
▪ 1x64: from 50 pcs, ~12 days (deeper split for XGS-PON; longer as chip yield / test, not a price gate).
▪ 19" rack mount: from 1 pc, ~3 days.
▪ Custom (1x3/6/12/24/128, dual-width, pull-out / rotating drawer, mini aluminum / mini ABS): MOQ and lead time agreed on request.
Part number: XHT-A03-[PACKAGE]-[RATIO]-[CABLE OD]-[CONNECTOR]-[POLISH]-[LENGTH]
Examples:
XHT-A03-TUBE-1X32-0.9-SC-APC-1M = mini steel tube / 1x32 / 0.9 mm / SC-APC / 1 m
XHT-A03-ABS-1X16-2.0-SC-APC-1M = ABS cassette / 1x16 / 2.0 mm / SC-APC / 1 m
XHT-A03-LGX-1X64-2.0-SC-APC-1M = LGX cassette / 1x64 / SC-APC / 1 m
Related Products
▪ Single-mode patch cords (patching on both sides of the splitter) ↙ XHT-A01
▪ Pigtails for splice-tray termination ↙ XHT-A02
▪ Outdoor / indoor distribution boxes and pre-terminated access terminals ↙ XHT-A07 / XHT-A14
▪ Pre-terminated FTTH drop cables ↙ XHT-A06
FAQ
Q1. Which package do I choose?
Mini steel tube or ABS cassette for wall boxes and MDUs; LGX for 19" ODF patching; 19" rack for the central office. Tell us the enclosure and we will match the package.
Q2. 1x32 or 1x64?
1x32 is the mainstream GPON split. Move to 1x64 where XGS-PON link budget allows and you need more subscribers per OLT port 〞 stocked in ~12 days from 50 pcs.
Q3. SC/APC or UPC?
SC/APC is the FTTH default for PON splitters (green, high return loss). Keep polish consistent on both sides; never mate APC with UPC.
Q4. E2K connectors?
SC/APC and LC cover almost all FTTH and ODF needs. E2K is uncommon on splitters and is made on request only when your network specifically calls for it.
Values are typical / max per IEC 61300-3-4 and Telcordia GR-1209 / GR-1221; production data governed by the per-shipment factory test report. Standard, non-OEM components interoperate with standard adapters. This page covers 1xN splitters; see the asymmetric split, boxes and drop-cable SKUs for the rest of the ODN.
