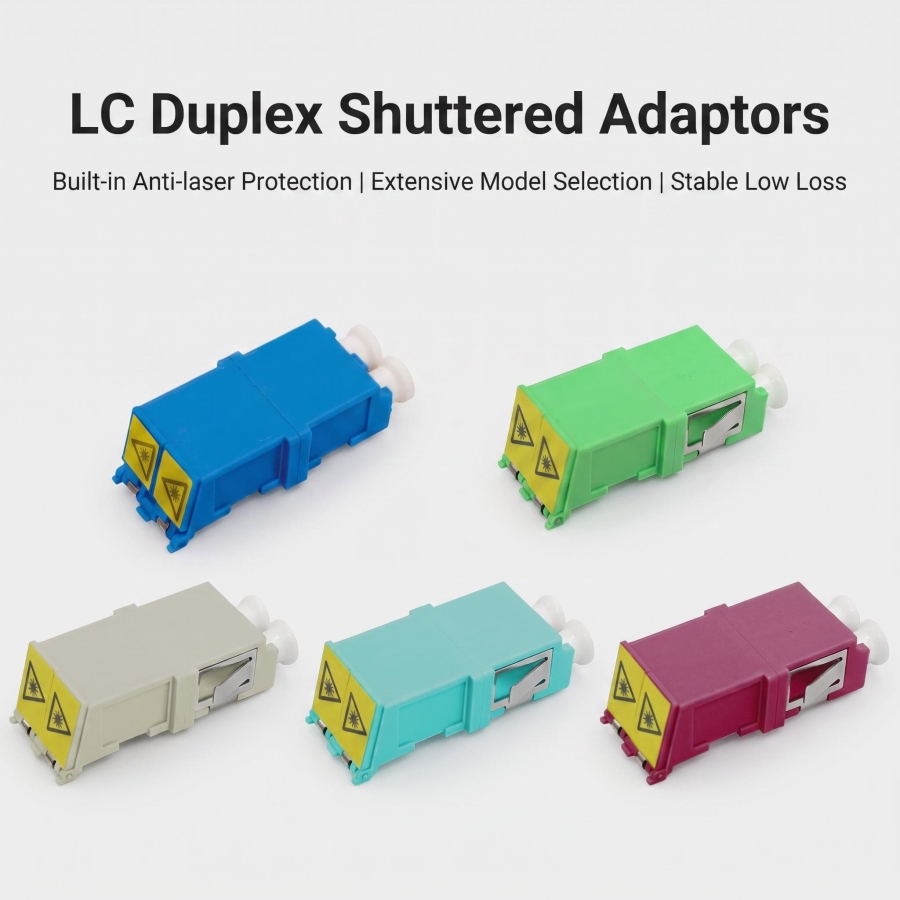

Product Overview
LC duplex anti-laser shutter adapter is a professional safety-type optical coupling component, specially designed for high-speed optical communication systems with laser transmission protection requirements. It provides two mainstream shutter structures for flexible selection: external flip shutter and internal flip shutter. The built-in automatic shutter can effectively block laser leakage when the optical fiber is unplugged, avoiding eye injury and equipment laser radiation damage, while isolating dust to protect ceramic sleeve and fiber endface. Adopts standard LC duplex installation size, fully compatible with patch panels, ODF boxes and all standard optical distribution equipment. Widely applied in data centers, operator computer rooms, industrial communication and safety-standard optical wiring projects.
Key Features
-Professional anti-laser protection design, block laser leakage to ensure operation safety
-Diverse structural customization: external flip shutter and internal flip shutter optional

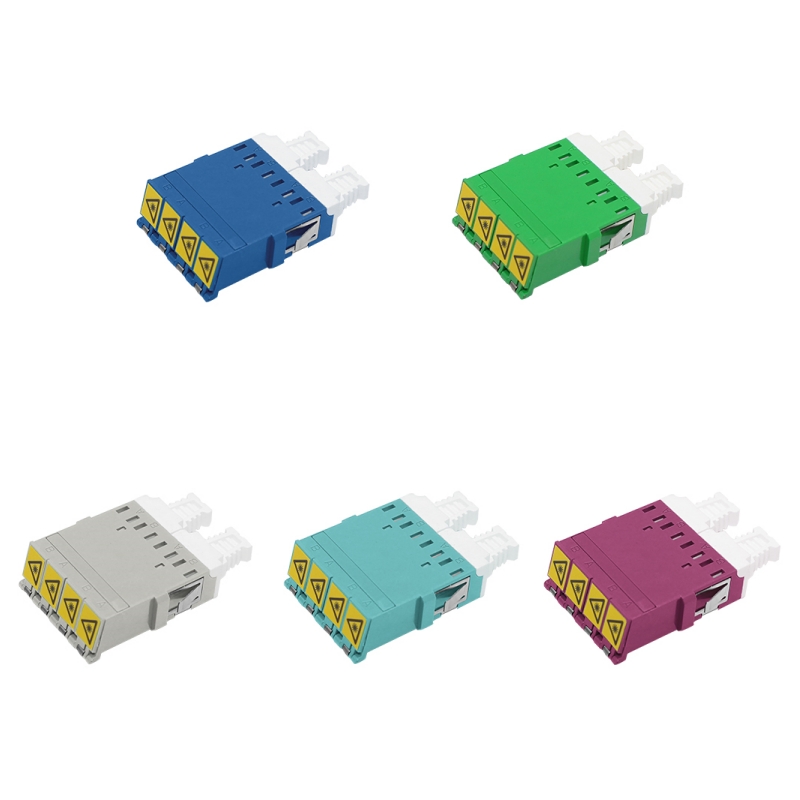

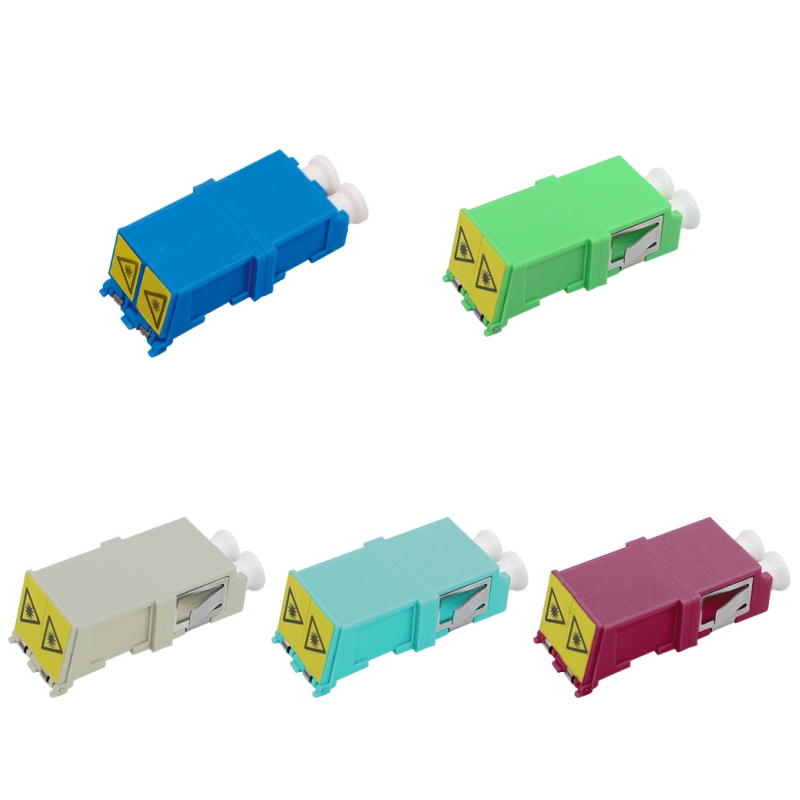

-External flip shutter type: no flange design, supports duplex and quadruple specifications

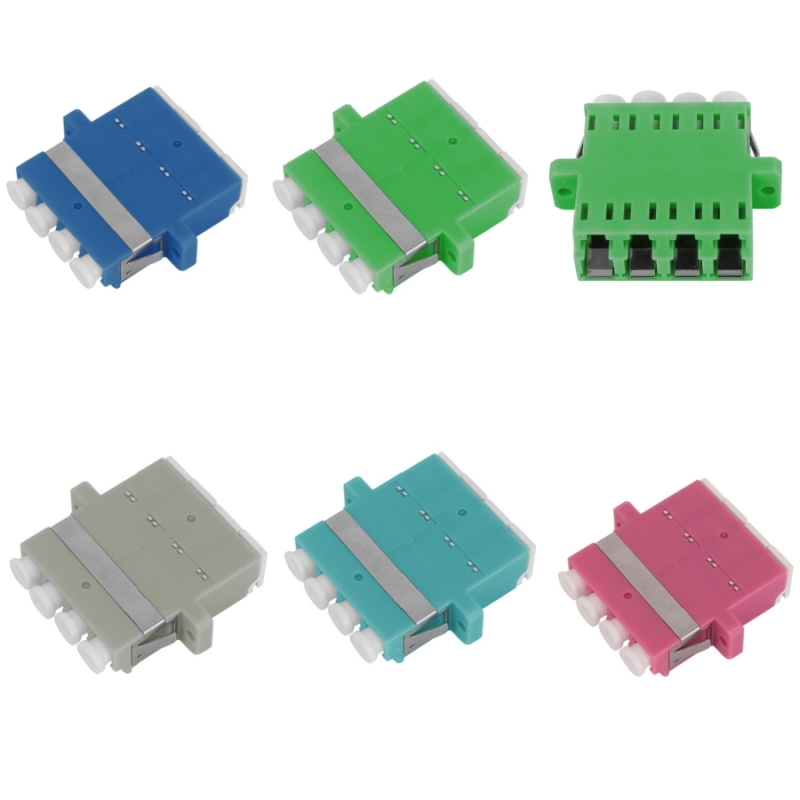

-Internal flip shutter type: with standard flange, supports quadruple specification
-High-precision ceramic alignment sleeve, ensuring accurate docking and stable transmission
-Ultra-low insertion loss, stable optical transmission performance without affecting system power budget
- High-strength engineering plastic housing, anti-aging and durable for long-term use
-Excellent interchangeability and repeatability, suitable for frequent plugging operations
-100% full optical performance inspection before shipment
-Compliant with IEC 61754 and RoHS 2.0 safety standards
Optical Specifications
-Operating Wavelength: 1270~1610 nm (Single-mode) / 850~1300 nm (Multimode)
-Max Insertion Loss: ¡Ü 0.2 dB
-Mating Durability & Interchangeability: ¡Ü 0.2 dB loss variation
Mechanical & Environmental Specifications

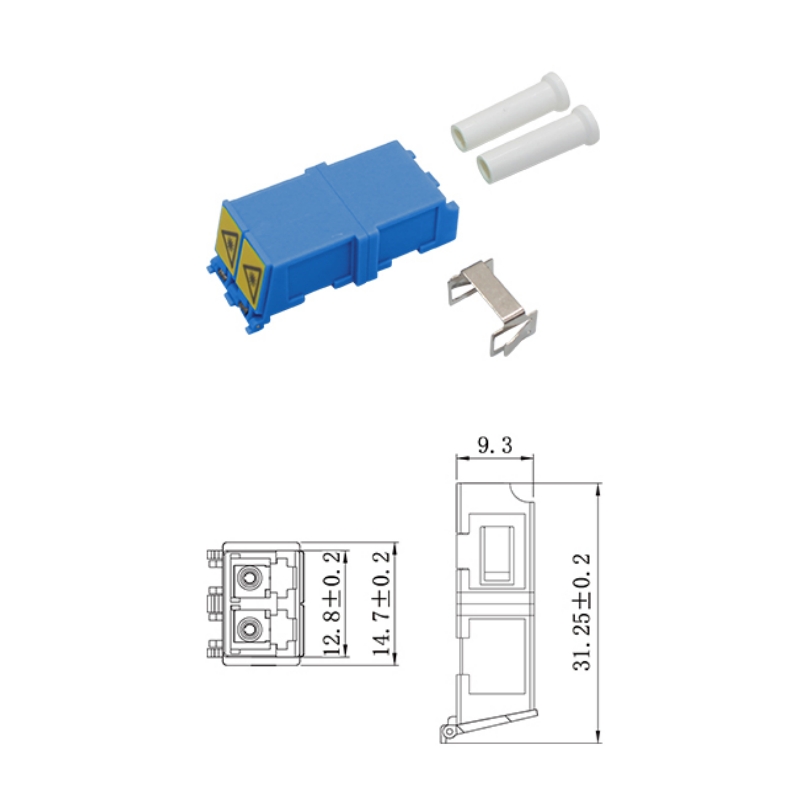

-Product Structure: LC Duplex with anti-laser automatic shutter
-Alignment Sleeve: High-precision ceramic sleeve
-Housing Material: High-strength engineering plastic
-Operating Temperature: -40 ¡æ ~ +85 ¡æ
-Storage Temperature: -40 ¡æ ~ +85 ¡æ
Typical Applications
-Data center high-density safe optical wiring
-Telecom central room and operator standard optical distribution system
-Industrial communication, safety monitoring optical link engineering
-Enterprise computer room and intelligent building weak current wiring
-ODF cabinet, fiber patch panel and terminal box supporting installation
Order & Packaging
-Standard blister tray packaging, 25 pcs / 50 pcs per tray for neat storage and transportation
-Bulk products packed in standard export cartons for outer protection
