Application
Telecommunication network
FTTH-Fiber to the home
CATV-Cable television network
Connections between patch cords and pigtails
Feature
In accordance with international standards
Low insertion loss with high precision ceramic sleeve
Good repeatability

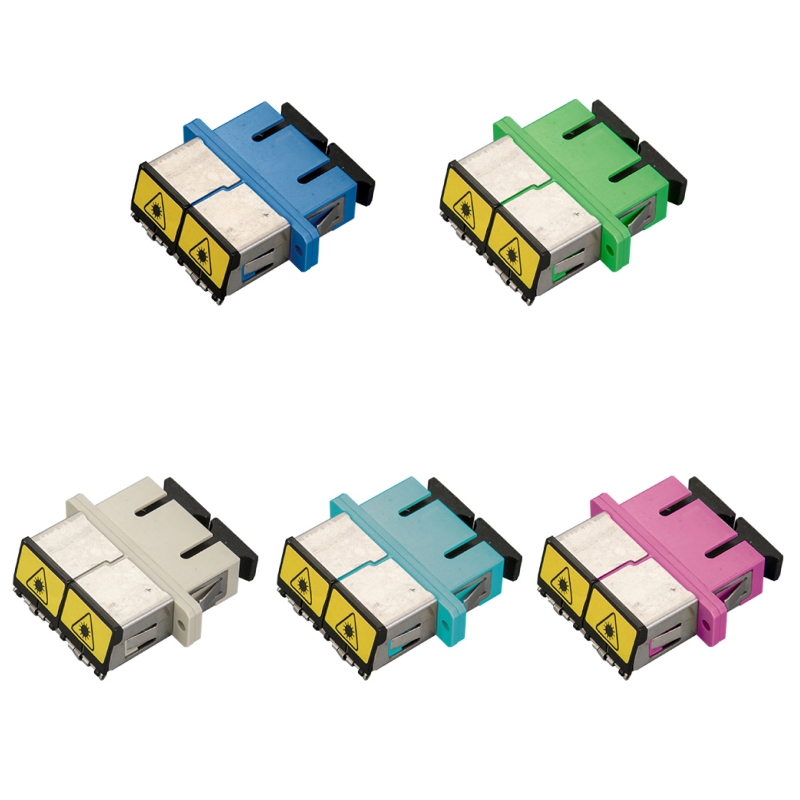

Simplex, duplex available
Available in blue, green, beige, aqua and purple colors

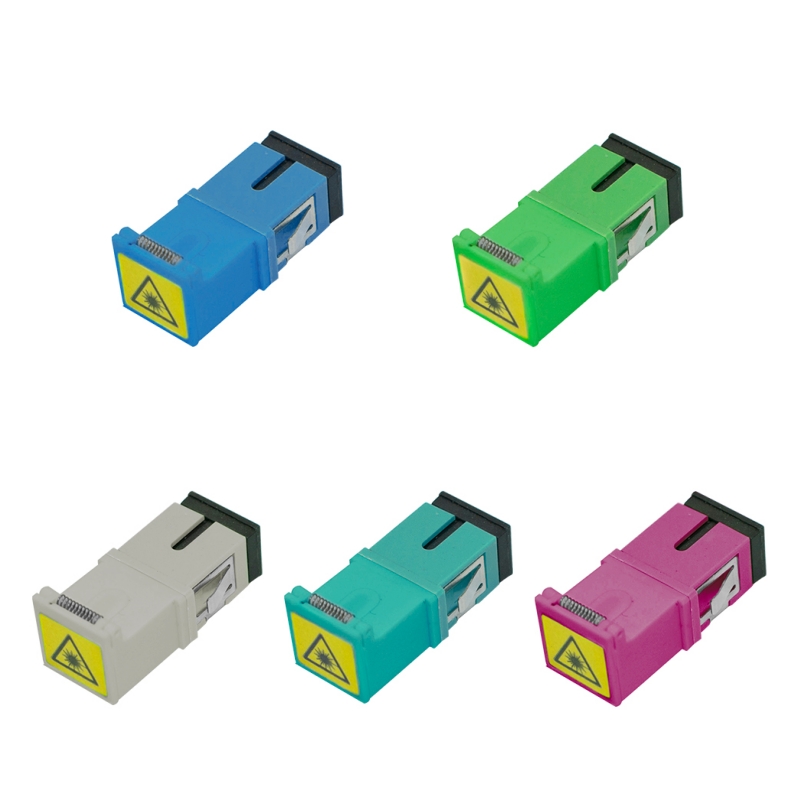

Available with or without flanges

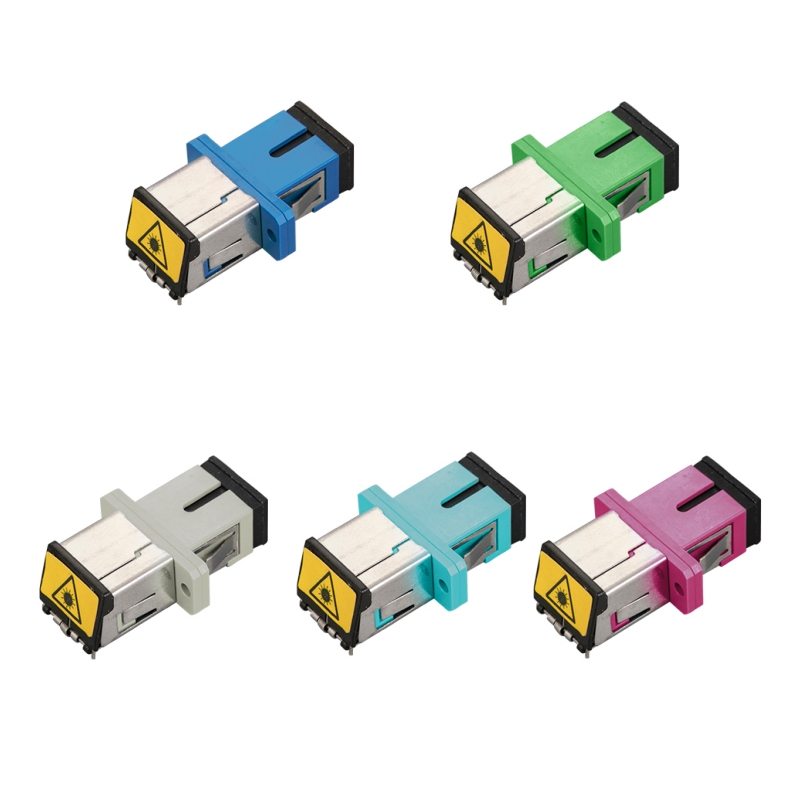

Available with metal or plastic housings
Technical Specification
|
Insertion Loss |
¡Ü0.2dB |
|
Alignment Sleeve |
Ceramics |
|
Mating Durability |
500 Times |
|
Operating Temperature |
-25~+70¡æ |
Ordering Information
|
A |
SX |
SM |
GRN |
P |
F |
||||||
|
Polish Type |
Capacity |
Fiber Mode |
Color |
Housing Type |
Mounting Type |
||||||
|
UPC APC |
U A |
Simplex Duplex |
SX DX |
Single-mode Multimode |
SM MM |
Blue Green Beige Aqua Purple |
BLU GRN BEG AQU PRL |
Metal Plastic |
M P |
Standard Flangeless |
S F |
