Application
Telecommunication network
FTTH-Fiber to the home
CATV-Cable television network
Connections between patch cords and pigtails
Feature
In accordance with international standards
Low insertion loss with high precision ceramic sleeve
Good repeatability

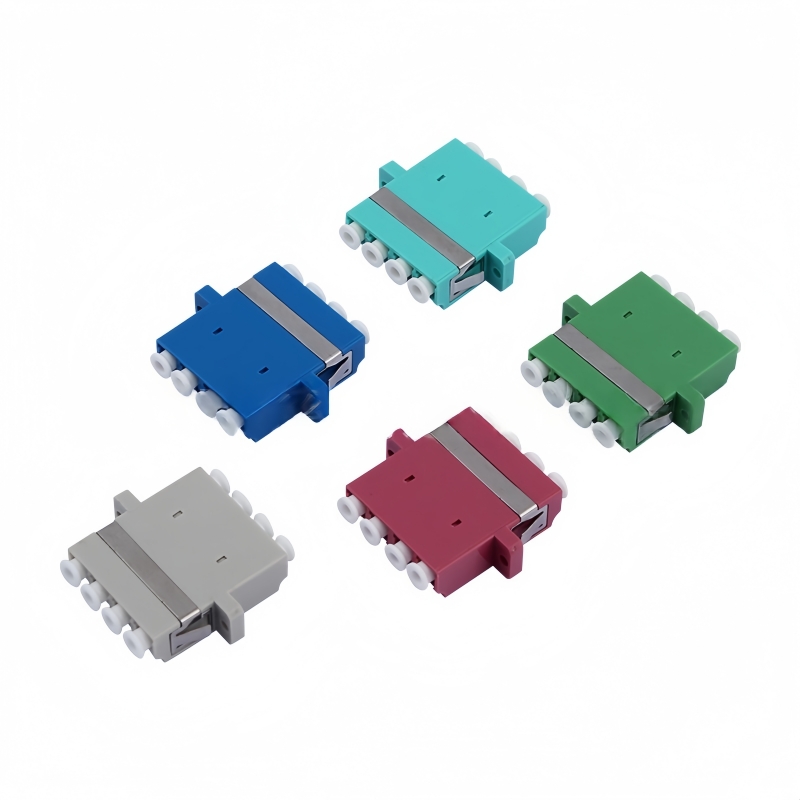

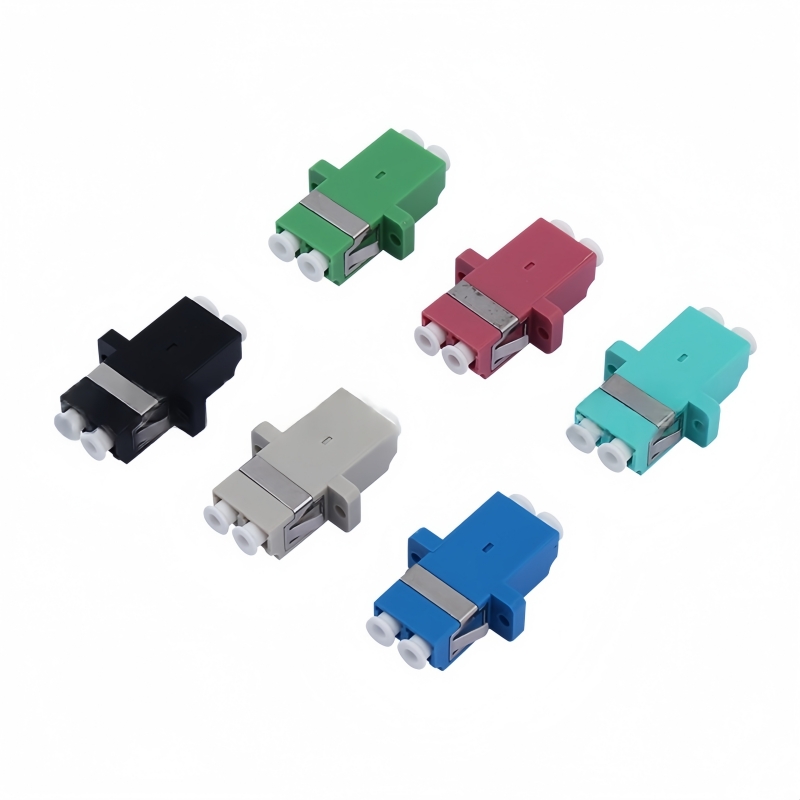

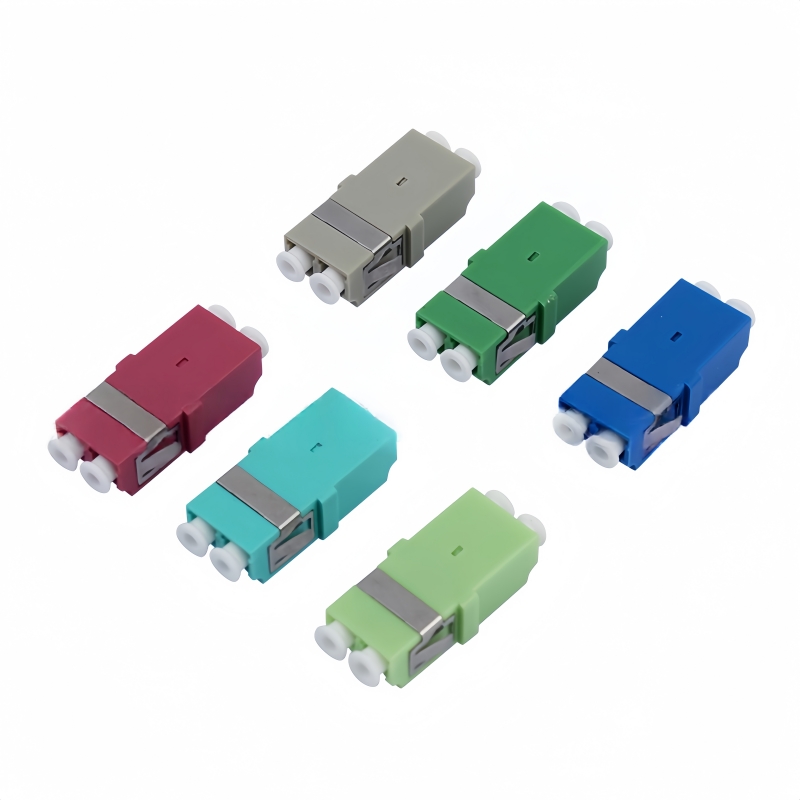

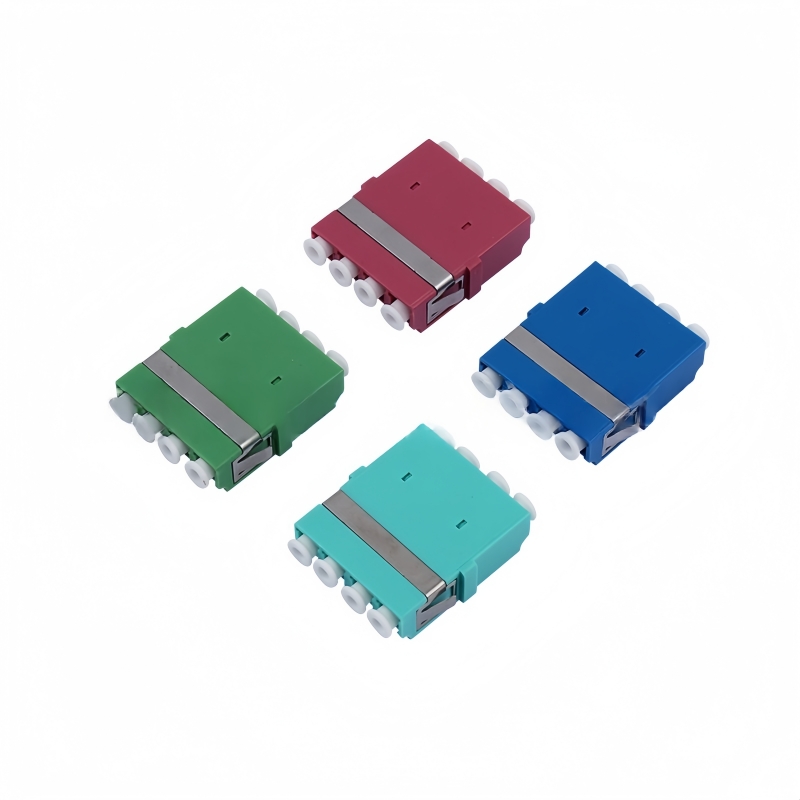

Simplex, duplex and quadplex available
Available in blue, green, beige, aqua, purple and black colors
Available with or without flanges
Technical Specification
|
Insertion Loss |
¡Ü0.2dB |
|
Body Material |
PBT |
|
Alignment Sleeve |
Ceramics |
|
Mating Durability |
500 Times |
|
Operating Temperature |
-25~+70¡æ |
Ordering Information
|
U |
DX |
SM |
BLU |
S |
|||||
|
Polish Type |
Capacity |
Fiber Mode |
Color |
Mounting Type |
|||||
|
UPC APC |
U A |
Simplex Duplex Quadplex |
SX DX QX |
Single-mode Multimode |
SM MM |
Blue Green Beige Aqua Purple Black |
BLU GRN BEG AQU PRL BLK |
Standard Flangeless |
S F |
