Application
Telecommunication networks
FTTH-Fiber to the home
CATV-Cable television network
Fusion spliced with fiber optic cable on one end
Feature
In accordance with international standards
Low insertion loss with precise zirconia ferrule
Good repeatability
Easy identification with 12 colors jacket
Fully custom-made with options on connectors, fiber mode and count, cable color and length
Technical Specification
|
Connector Insertion Loss |
¡Ü0.3dB |
|
Connector Return Loss |
¡Ý50db (UPC) ¡Ý60db (APC) ¡Ý30db (MM) |
|
Connector Durability |
1000 Times |
|
Wavelength |
850/1300nm, 1310/1550nm |
|
Tight Buffer Cable Color |
Blue, Orange, Green, Brown, Gray, White Red, Black, Yellow, Purple, Pink, Aqua |
|
Max Tensile Strength |
3N (Long Term) 6N (Short Term) |
|
Min. Bending Radius |
20D (Dynamic) 10D (Static) |
|
Operating Temperature |
-10~+70¡æ (14~158¨H) |
|

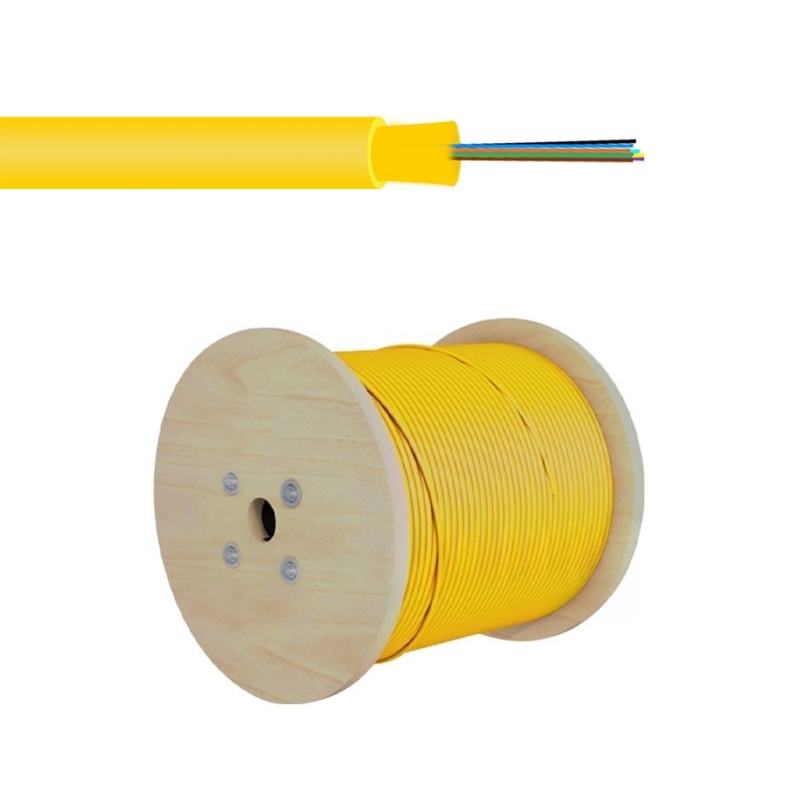

Trunk Cable |
|||||
|
Fiber Count |
4 Fibers |
8 Fibers |
12 Fibers |
16 Fibers |
24 Fibers |
|
Diameter |
5.0mm |
5.5mm |
6.2mm |
6.8mm |
8.5mm |
|
Tensile Strength |
80N 160N |
100N 200N |
200N 400N |
220N 440N |
220 440N |
|
Min. Bend Radius |
10D 20D |
10D 20D |
10D 20D |
10D 20D |
10D 20D |
Ordering Information
|
LCU |
S2 |
12 |
YEL |
V |
2 |
||||||
|
Connector |
Fiber Mode |
Fiber Capacity |
Main Cable Color |
Cable Diamer Outer Jacket |
Cable Length |
||||||
|
SC/UPC SC/APC LC/UPC LC/APC ST/UPC ST/APC FC/UPC FC/APC E2000/UPC E2000/APC |
SCU SCA LCU LCA STU STA FCU FCA E2U E2A |
G652D G657A1 G657A2 G657B3 OM1 OM2 OM3 OM4 OM5 |
S2 A1 A2 B3 M1 M2 M3 M4 M5 |
4 FO 8 FO 12 FO 16 FO 24 FO |
4 8 12 16 24 |
Yellow Orange Aqua Purple Green Blue White |
YEL BLU AQU PRL GRN BLU WHT |
PVC LSZH |
V H
|
1m 1.5m 2m 3m
|
1 1.5 2 3
|
