Application
Telecommunication networks
FTTH-Fiber to the home
CATV-Cable television network

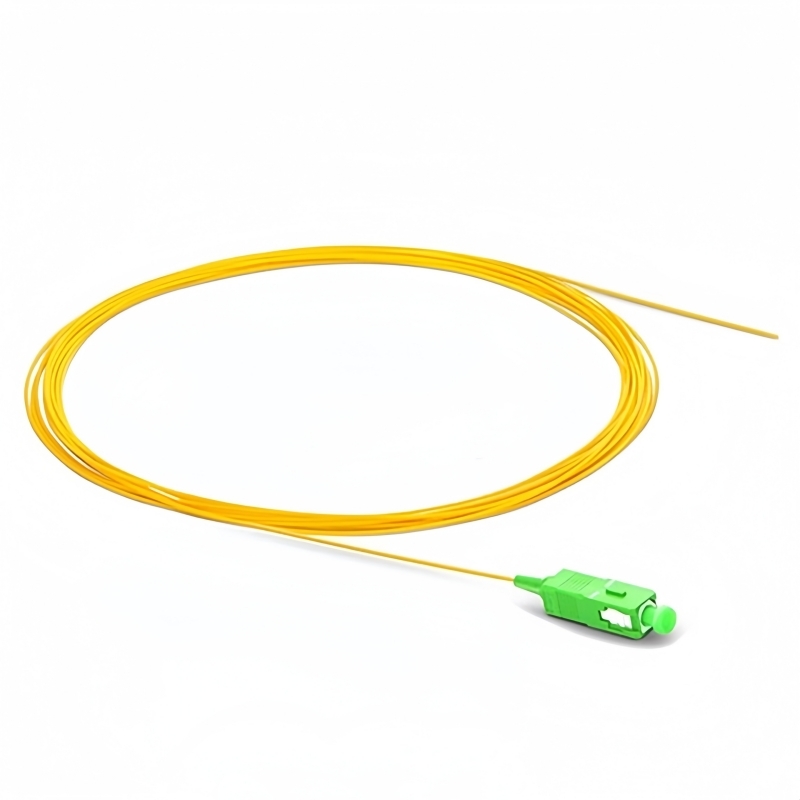

Fusion spliced with fiber optic cable on one end
Feature
In accordance with international standards
Low insertion loss with precise zirconia ferrule
Good repeatability
Fully custom-made with options on connectors, fiber mode, cable color and length
Technical Specification
|
Connector Insertion Loss |
¡Ü0.3dB |
|
Connector Return Loss |
¡Ý50db (UPC) ¡Ý60db (APC) ¡Ý30db (MM) |
|
Connector Durability |
1000 Times |
|
Wavelength |
850/1300nm, 1310/1550nm |
|
Cable Max Tensile Strength |
3N (Long Term) 6N (Short Term) |
|
Cable Min. Bending Radius |
20D (Dynamic) 10D (Static) |
|
Operating Temperature |
-10~+70¡æ (14~158¨H) |
Ordering Information
|
SCA |
S2 |
YEL |
V |
2 |
|||||
|
Connector |
Fiber Mode |
Cable Color |
Cable Diamer Outer Jacket |
Cable Length |
|||||
|

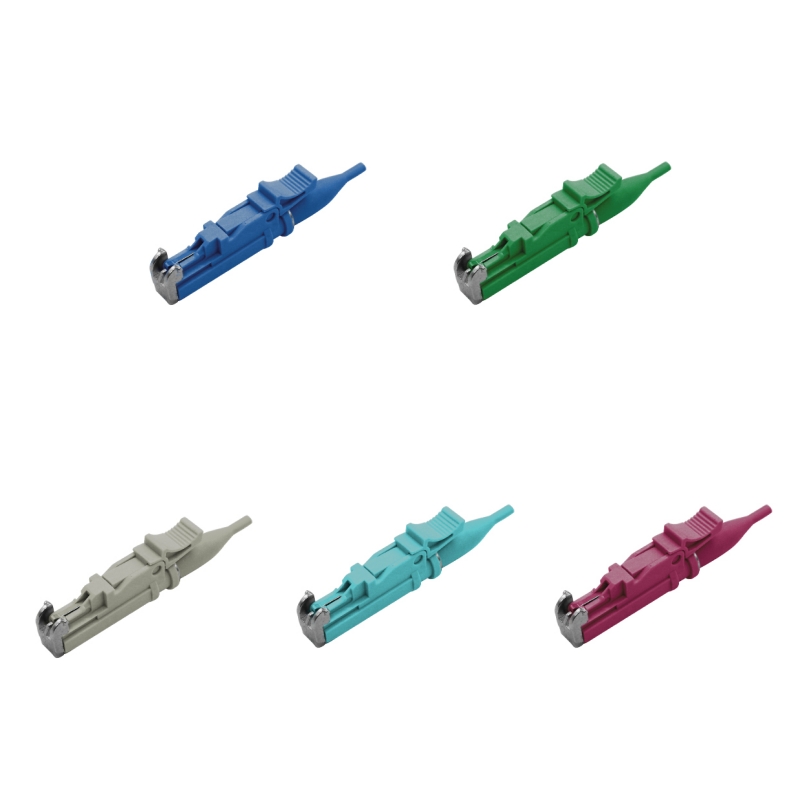

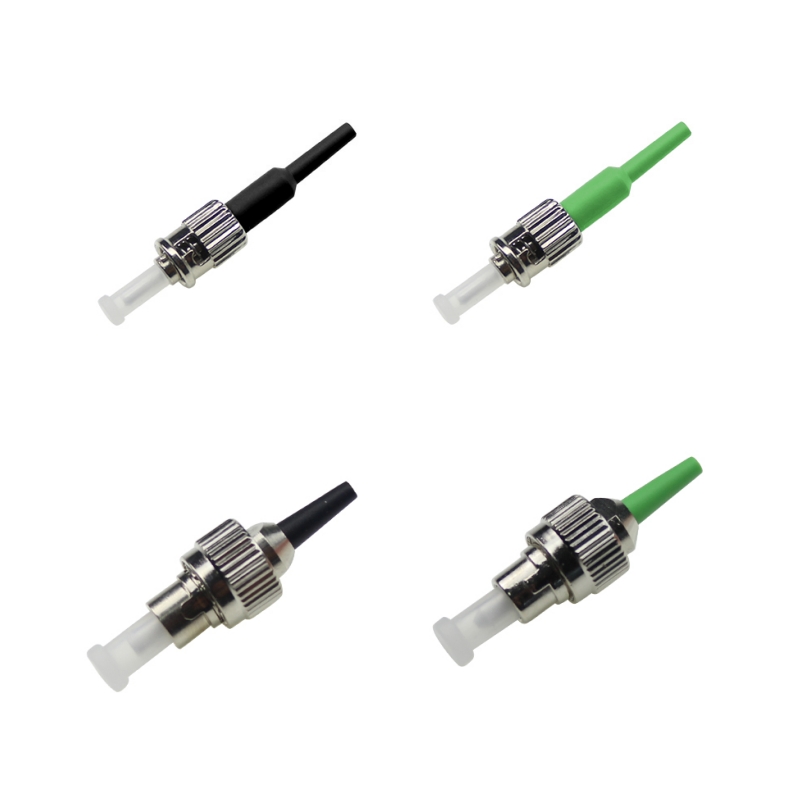

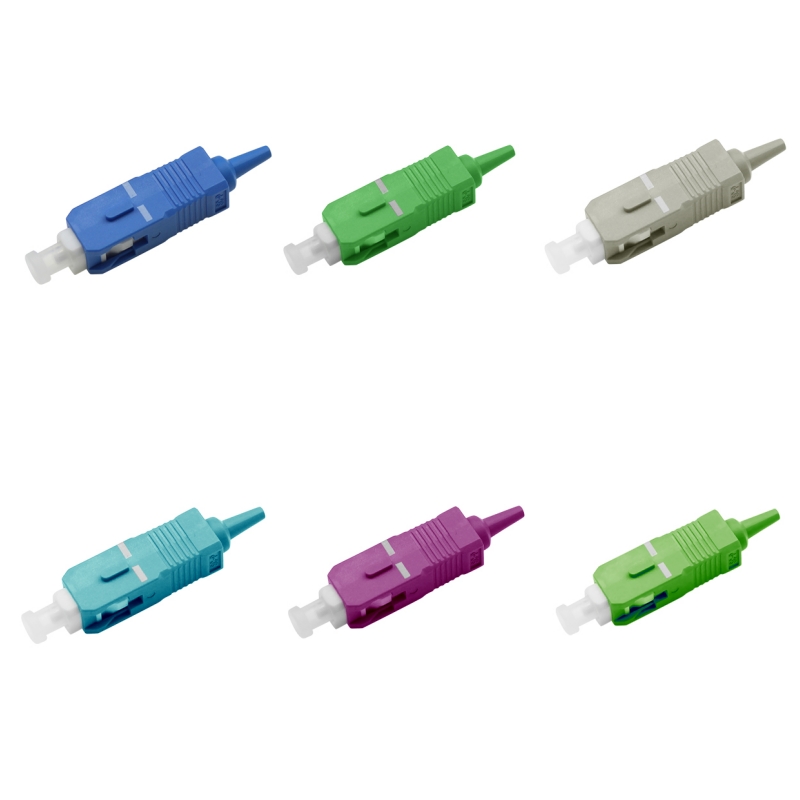

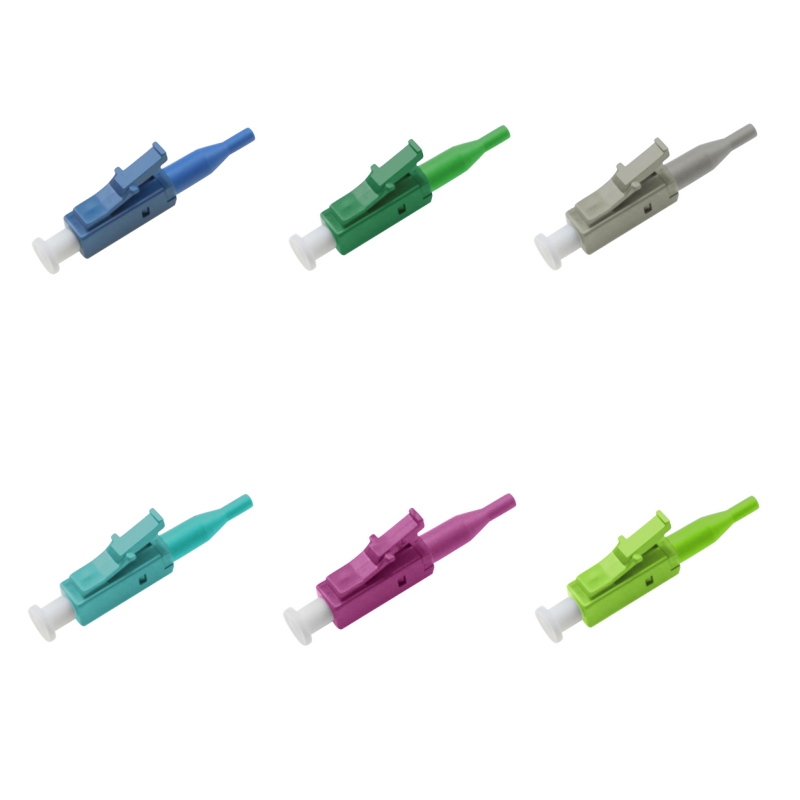

SC/UPC SC/APC LC/UPC LC/APC ST/UPC ST/APC FC/UPC FC/APC E2000/UPC E2000/APC |
SCU SCA LCU LCA STU STA FCU FCA E2U E2A |
G652D G657A1 G657A2 G657B3 OM1 OM2 OM3 OM4 OM5 |
S2 A1 A2 B3 M1 M2 M3 M4 M5 |
Yellow Orange Aqua Purple Green Blue White |
YEL BLU AQU PRL GRN BLU WHT |

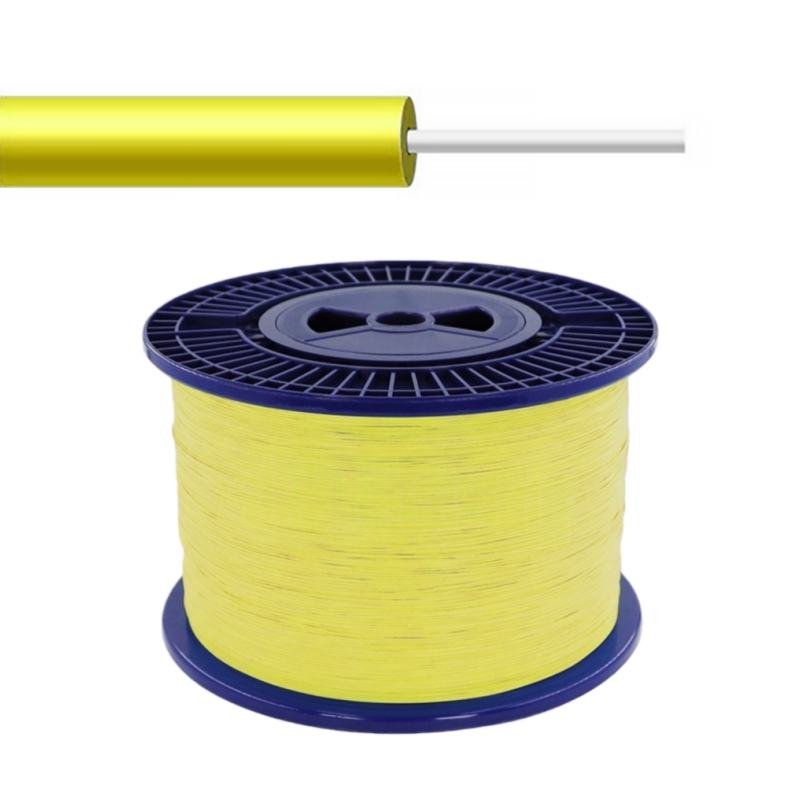

0.9mm PVC 0.9MM LSZH |
V
H
|
1m 1.5m 2m 3m
|
1 1.5 2 3
|
