Product Overview

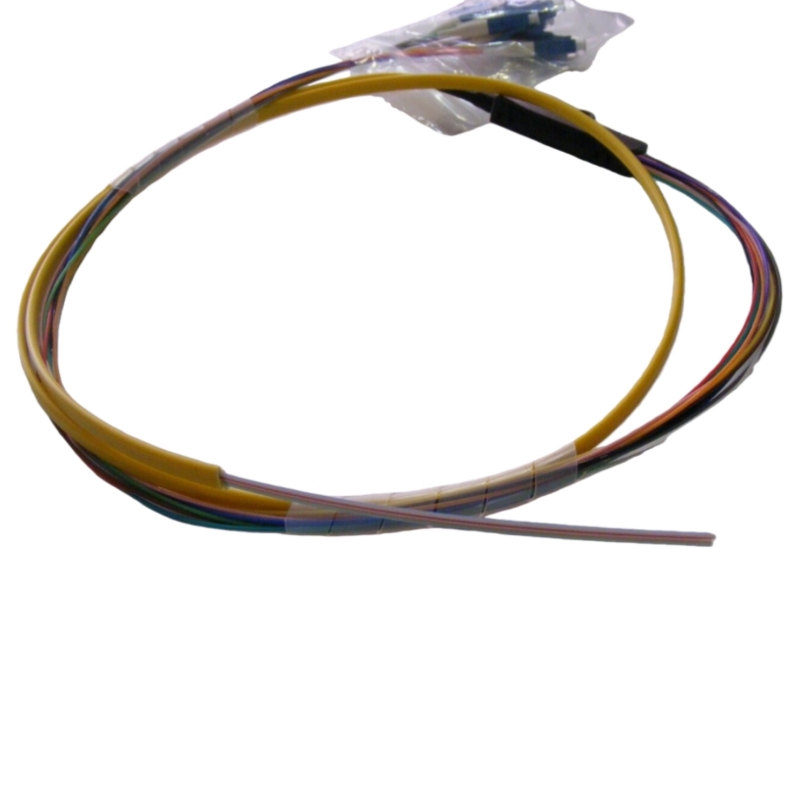

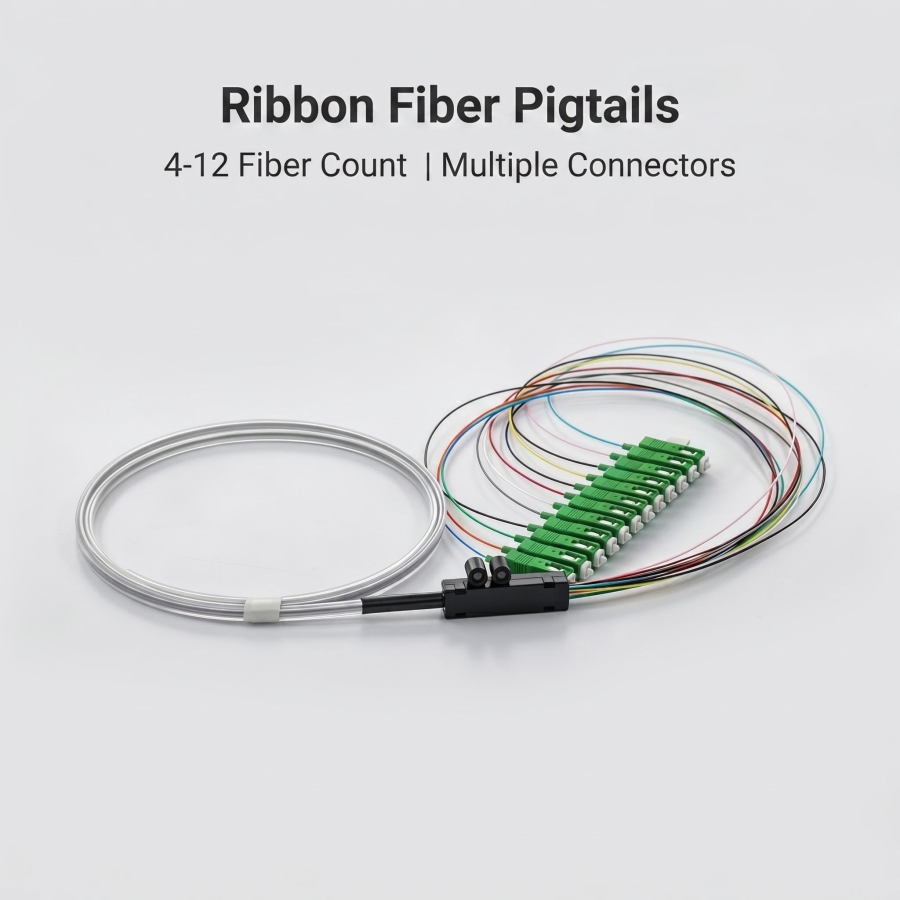

Ribbon fiber pigtails are high-density integrated single-ended termination cables designed for mass splicing and high-capacity fiber termination scenarios. Different from conventional bundled pigtails, fibers are arranged in flat ribbon structure, enabling fast mass fusion splicing, greatly improving construction efficiency and saving cabinet internal space. Adopting standard 12-color fiber sequence and high-precision polishing process, the pigtail features neat arrangement, ultra-low loss and stable transmission performance. Widely compatible with ODF cabinets, fiber distribution frames, trunk cable termination and large-scale ODN network projects.

Key Features

- Optional Fiber Core: Single-mode G.652D, G.657A1, G.657A2, G.657B3; Multi-mode OM1, OM2, OM3, OM4, OM5

- Standard 12-Color Sequence: Blue, Orange, Green, Brown, Gray, White, Red, Black, Yellow, Purple, Pink, Aqua

- Fiber Count: 4-core, 6-core, 8-core, 12-core optional standard ribbon structure

- Optional Connector: SC, LC, ST, FC, E2K (UPC / APC polishing optional)

- Flat ribbon integrated design, supports one-time mass fusion splicing, highly efficient for large core-count termination

- Standard color coding ensures clear fiber identification, easy wiring arrangement and later maintenance

- Low insertion loss, stable optical performance and excellent interchangeability

- 100% factory tested, compliant with IEC 61300 and RoHS 2.0 standards

Optical Specifications

- Test Wavelength: 1310nm & 1550nm (Single-mode); 850nm (Multi-mode)

- Insertion Loss: ≤0.30 dB (Max)

- Return Loss: ≥50 dB (UPC); ≥60 dB (APC); ≥30 dB (Multi-mode)

- Connector Durability: ≤0.2 dB IL variation after 500 mating cycles

Mechanical & Environmental Specifications

- Fiber Dimension: 9/125μm single-mode; 62.5/125μm (OM1), 50/125μm (OM2/OM3/OM4/OM5) multi-mode

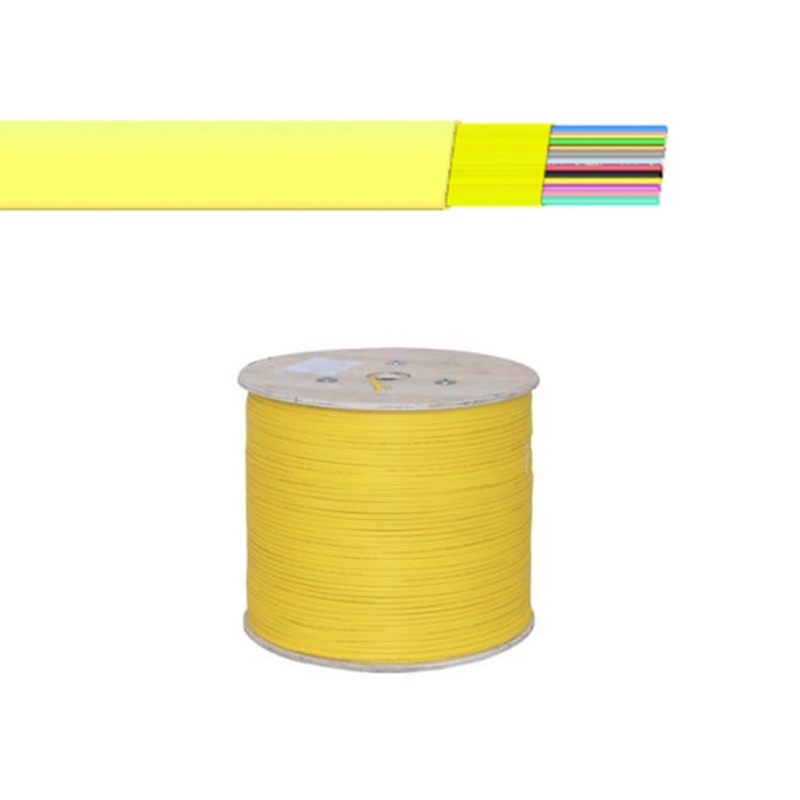

- Structure: Integrated flat ribbon fiber arrangement

- Operating Temperature: -40°C ~ +75°C

- Storage Temperature: -40°C ~ +85°C

- Minimum Bend Radius: 20mm (dynamic); 10mm (static for G.657 & OM3/OM4/OM5)

Typical Applications

- Large-capacity ODF cabinet main termination and trunk cable splicing

- Telecom room, computer room high-density fiber convergence wiring

- Campus, park and industrial large-scale ODN network construction

- Data center high-capacity fiber finishing and integrated termination

Order & Packaging

- Standard length: 1m, 1.5m, 2m, 3m; custom lengths acceptable

- Standard package: Each set packed with plastic bag; custom labeling available

- Fast lead time for standard and customized orders
