Flexible Configurations ¡¤ Low MOQ ¡¤ Fast Lead Time
Product Overview
This modular power distribution unit is designed for data centers, server rooms, industrial cabinets and telecom enclosures. Full customization is available for input connections, outlet types, functional modules and mechanical dimensions to deliver tailor-made power solutions without high tooling costs. Small-batch custom orders are acceptable with streamlined production workflows, enabling short lead times to match various project schedules.
Feature
Fully modular design: input cables, input plugs, outlet modules and functional modules are all configurable
Low minimum order quantity, supporting small-batch projects and prototype sampling
Short production lead time for standard customized models
1.6mm thick aluminum alloy housing for stable and long-term operation
Integrated thick copper busbars manufactured by hot pressure spot welding, featuring corrosion resistance, abrasion resistance, excellent conductivity and stable current & voltage output
Compliant with major global safety and EMC standards
Customizable Options
1. Input Side Customization
Input cable: customizable length, wire gauge (AWG / mm²), PVC or LSZH outer jacket
Input plug types: IEC 60309 industrial plugs, NEMA (North America), Schuko (EU), BS 1363 (UK), AS/NZS 3112 (Australia), hard-wired terminal blocks, etc.
2. Output Outlet Module Customization
Outlet types: IEC C13, IEC C19, IEC C39, NEMA 5-15R/5-20R, Schuko, BS universal sockets, multi-purpose universal outlets
Mixed outlet layouts supported (e.g. combined C13 and C19 ports)
Customizable outlet quantity and spacing to fit equipment layout
3. Functional Module Customization
Overload protection and independent circuit breakers for separate circuits
Class II Surge Protection Device (SPD)
Digital display for amperage, voltage and power monitoring
Power status indicator lights
RS485 remote monitoring function
4. Mechanical Customization

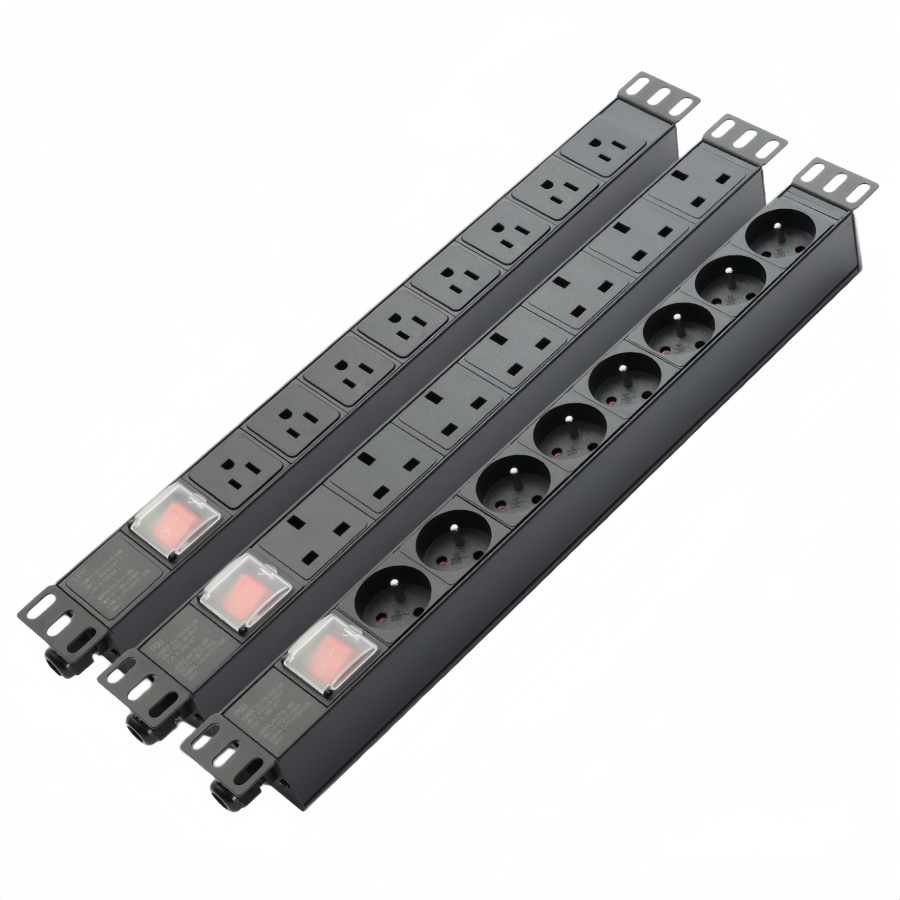

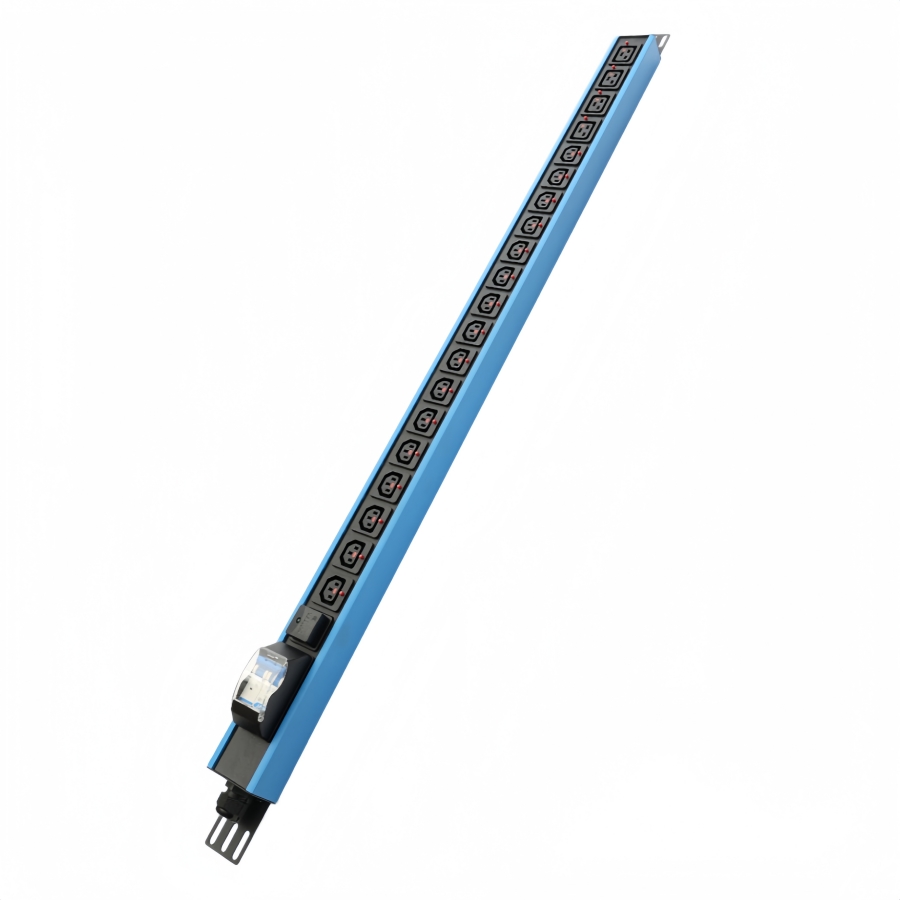

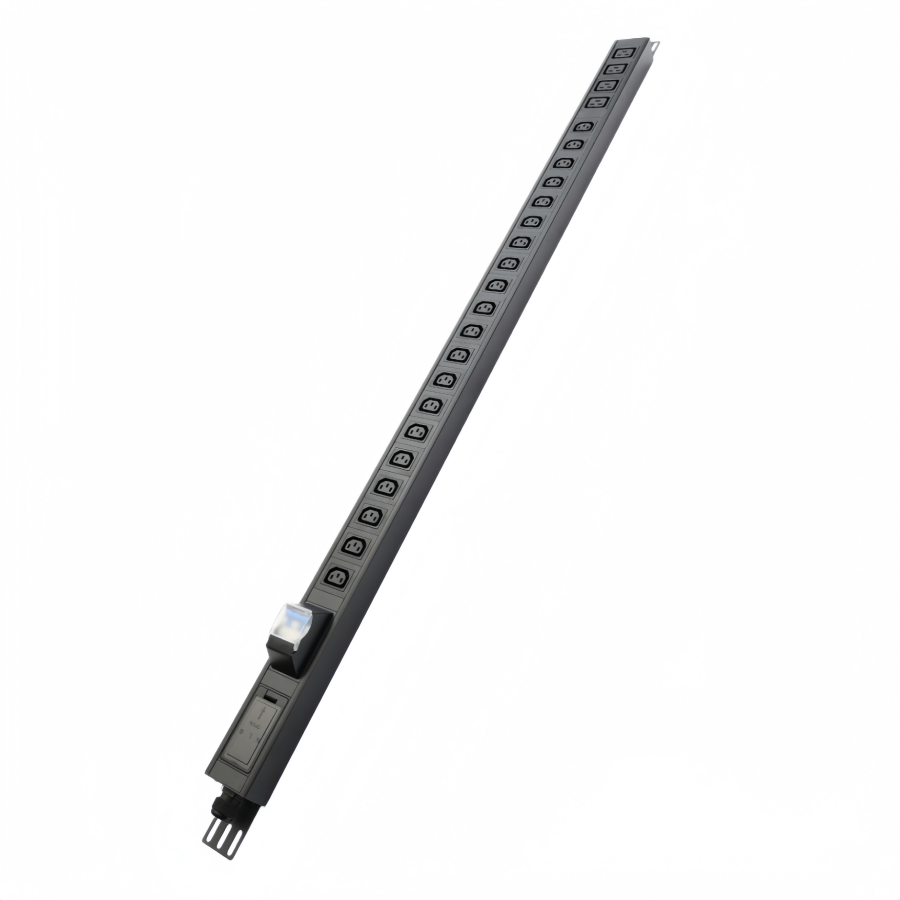

Form factor: horizontal rack-mount type, vertical rack-mount type
Housing color: standard black; custom RAL color codes available for bulk orders
Custom mounting brackets and cable management accessories
General Technical Specifications
Rated Voltage: 100¨C240V AC / 380¨C415V AC (customizable)
Rated Current: 10A / 16A / 32A (adjustable per configuration)
Housing Material: Aluminum alloy + flame-retardant ABS engineering plastic
Insulation Resistance: ¡Ý100 M¦¸
Dielectric Withstand Voltage: AC 2000V for 1 minute without breakdown
Operating Temperature: -10¡æ ~ +45¡æ
Ingress Protection Rating: IP20
Order & Packaging
MOQ: Small-batch custom orders are accepted
Lead Time: 5¨C10 working days for most standard customized models
Packaging: Standard export cartons with foam cushioning; custom labels and outer packaging available upon request
