Overview

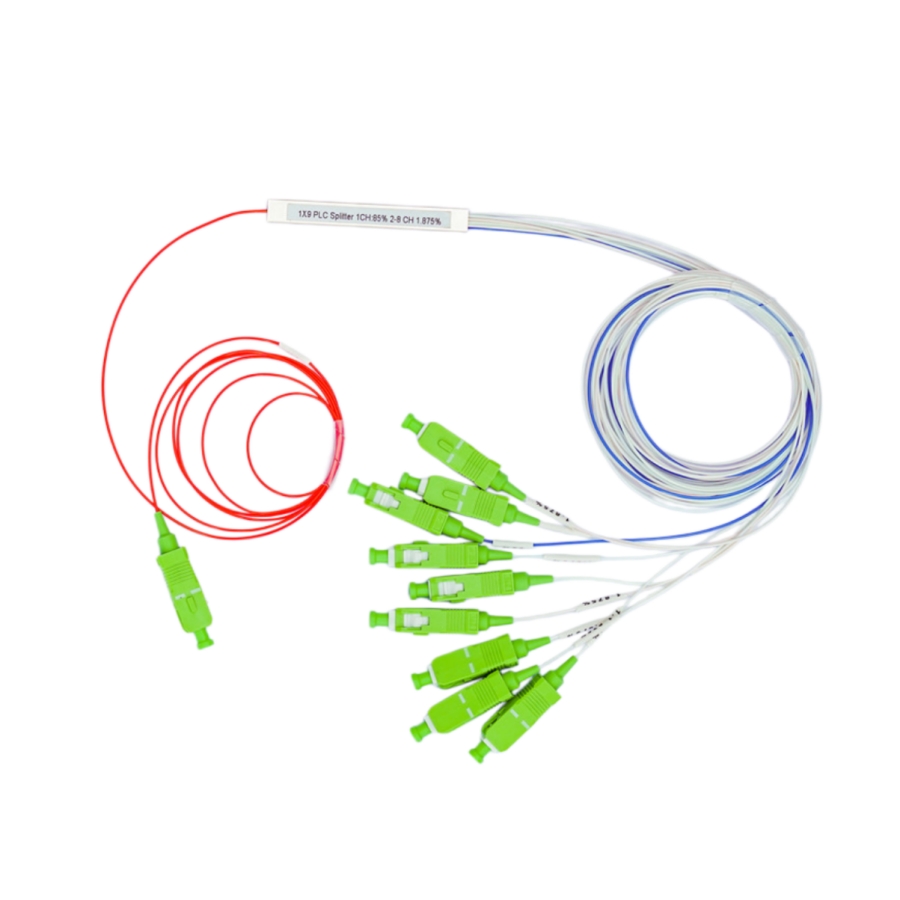

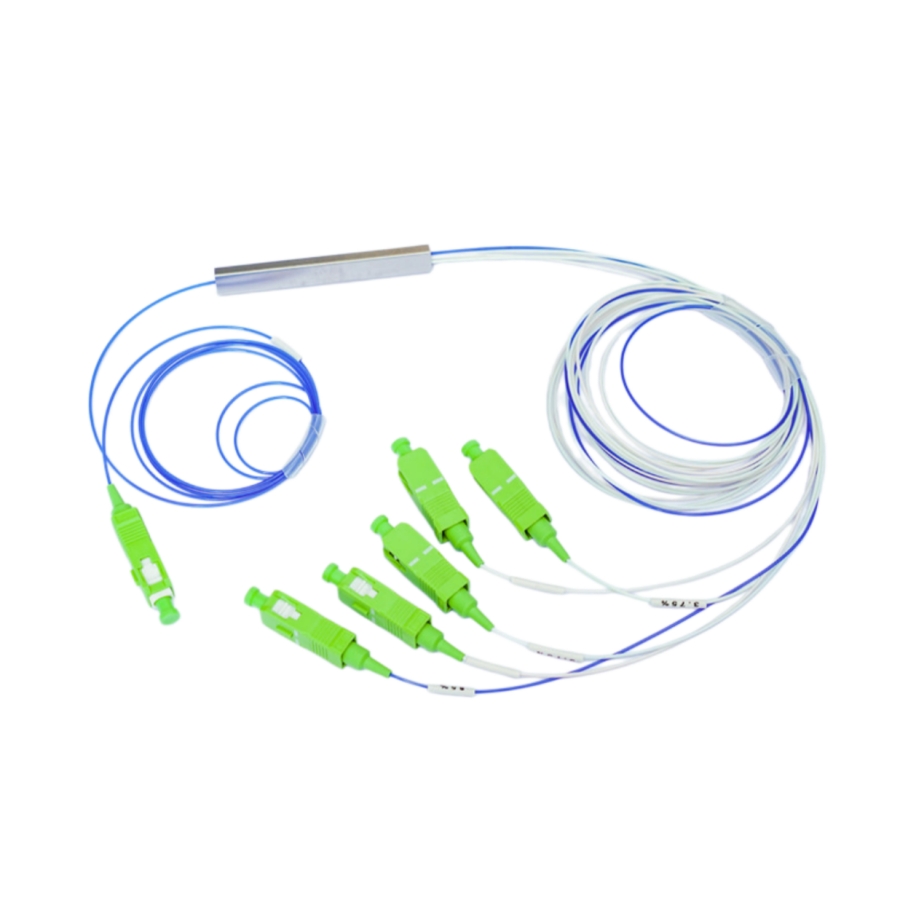

This asymmetric PLC splitter is engineered for cascaded FTTH and GPON aerial distribution networks. It adopts an unequal power split structure, featuring one low-loss throughput port for downstream cascading and multiple drop ports for subscriber connections. Housed in a compact mini module, it fits neatly into slim fiber distribution enclosures and enables plug-and-play field installation without on-site fusion splicing.
Applications
Cascaded aerial distribution networks for GPON / XGS-PON
Compact Fiber Distribution Boxes (FDB/FAT) and pole-mounted splice enclosures
Fiber access nodes for Multi-Dwelling Units (MDU)
Cascaded FTTx deployments in suburban and rural areas
Features
Optimized split ratio tailored for cascaded ODN architectures
Stable optical performance across the full 1260¨C1650nm operating band
Mini stainless steel tube package, ideal for high-density compact cabinets
Standard G.657A1 bend-insensitive single-mode fiber
Customizable split ratios, fiber lengths and connector types
Specifications
|
Parameter |
1x5 |
1x9 |
||||||
|
Splitting Ratio |
20/80 |
50/50 |
75/25 |
85/15 |
70/30 |
50/50 |
||
|
Fiber Core Type |
G657A1 |
|||||||
|
Operating Wavelength(nm) |
1260~1650 |
|||||||
|
Test Wavelength |
1310/1550nm |
|||||||
|
Insertion Loss(dB) |
CH1 |
8.6 |
4.3 |
2.5 |
1.8 |
2.2 |
3.9 |
|
|
CH2~5 |
8.6 |
10.9 |
15.2 |
15.7 |
|
|
||
|
CH2~9 |
|
|
|
|
16.3 |
14.4 |
||
|
Return Loss(dB) |
Min |
50 |
50 |
50 |
50 |
50 |
50 |
|
|
Directionality (dB) |
Min |
55 |
55 |
55 |
55 |
55 |
55 |
|
|
Uniformity (dB) |
Max |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
|
|
PDL(dB) |
Max |
0.4 |
0.4 |
0.4 |
0.4 |
0.3 |
0.3 |
|
|
Operating Temperature (¡æ) |
-40~85 |
|||||||
|
Storage Temperature (¡æ) |
-40~85 |
|||||||
|
Package Type |
60*7*4, stainless steel tube |
|||||||
|
Buffer Diameter |
0.9mm tight buffer fiber |
|||||||
|
Standard Fiber Length |
1m (custom lengths available) |
|||||||
|
Standard Connector |
SC/APC (SC/UPC / LC/APC optional) |
|||||||
Packaging
Standard packing: Each unit packed in an individual polybag
Custom packaging and labeling available upon request
