Applications
Telecommunication networks
Data centers
Ethernet networks, LAN, MAN, WAN
Cabinets and racks
Feature
In accordance with international standards
Horizontal or vertical mountable optional
Single phase, three phase available
Fully custom-made with various options for sockets, plug and function module
Technical Information
|
Shell |
T5 Aluminum alloy |
|
Power Input |
Left side, Right side, Upside, Downside |
|
Voltage |
230~250V; 230/380V(Three phase) |
|
Max. Current |
10A, 16A, 32A |
|

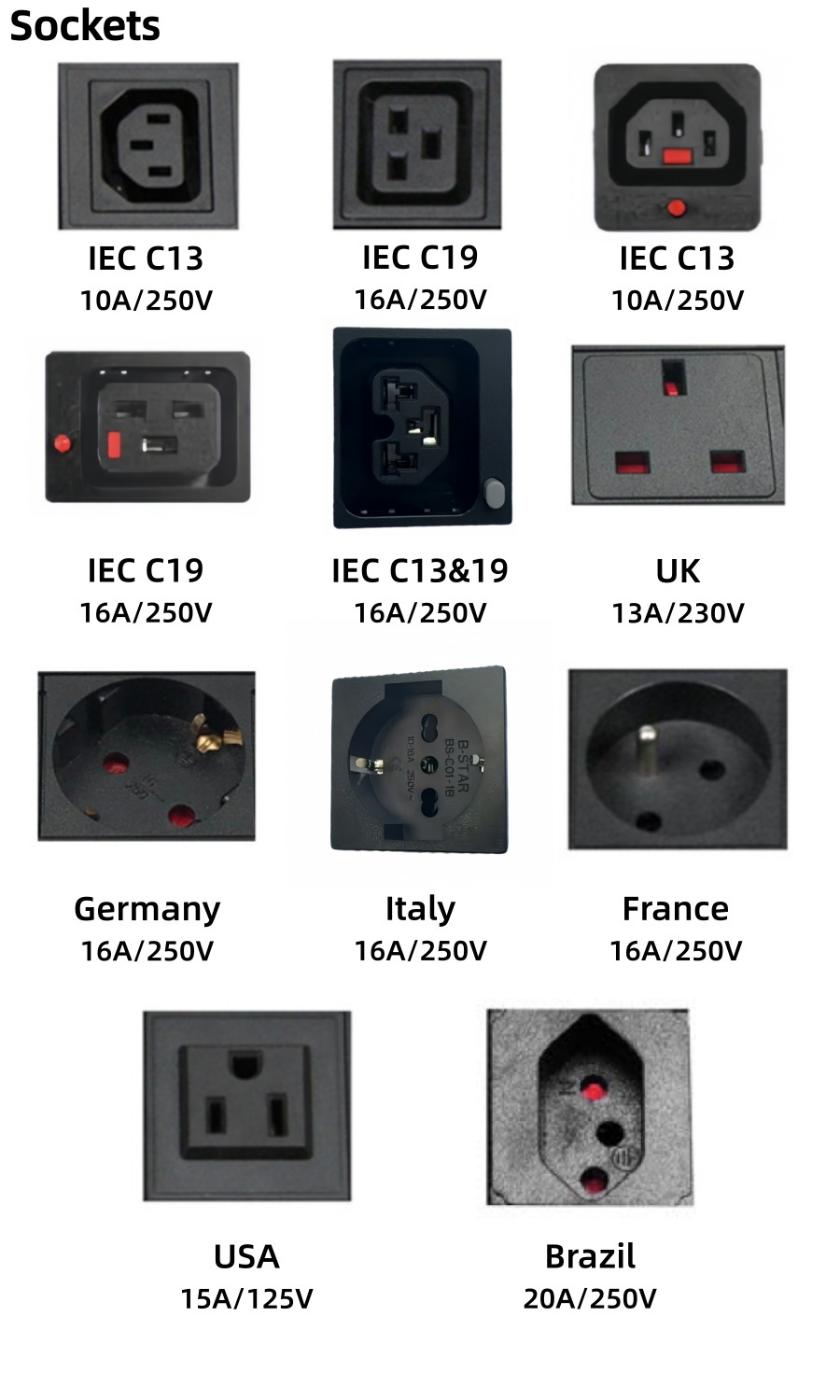

Sockets Options |
IEC series, UK, Germany, Italy, France, USA and Brazil socket |
|

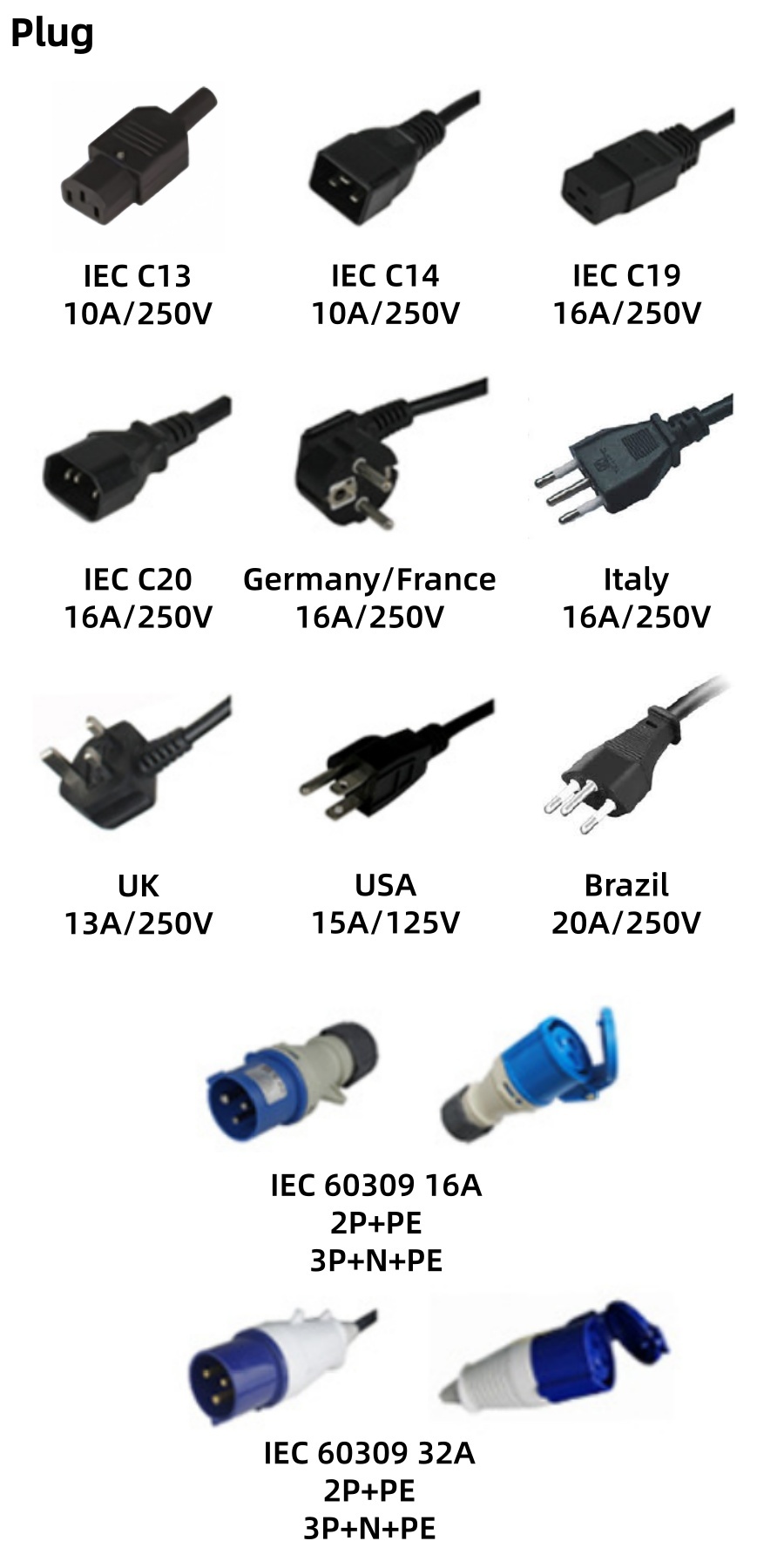

Plug Options |
IEC series, UK, Germany/France, Italy, USA and Brazil plug |
|

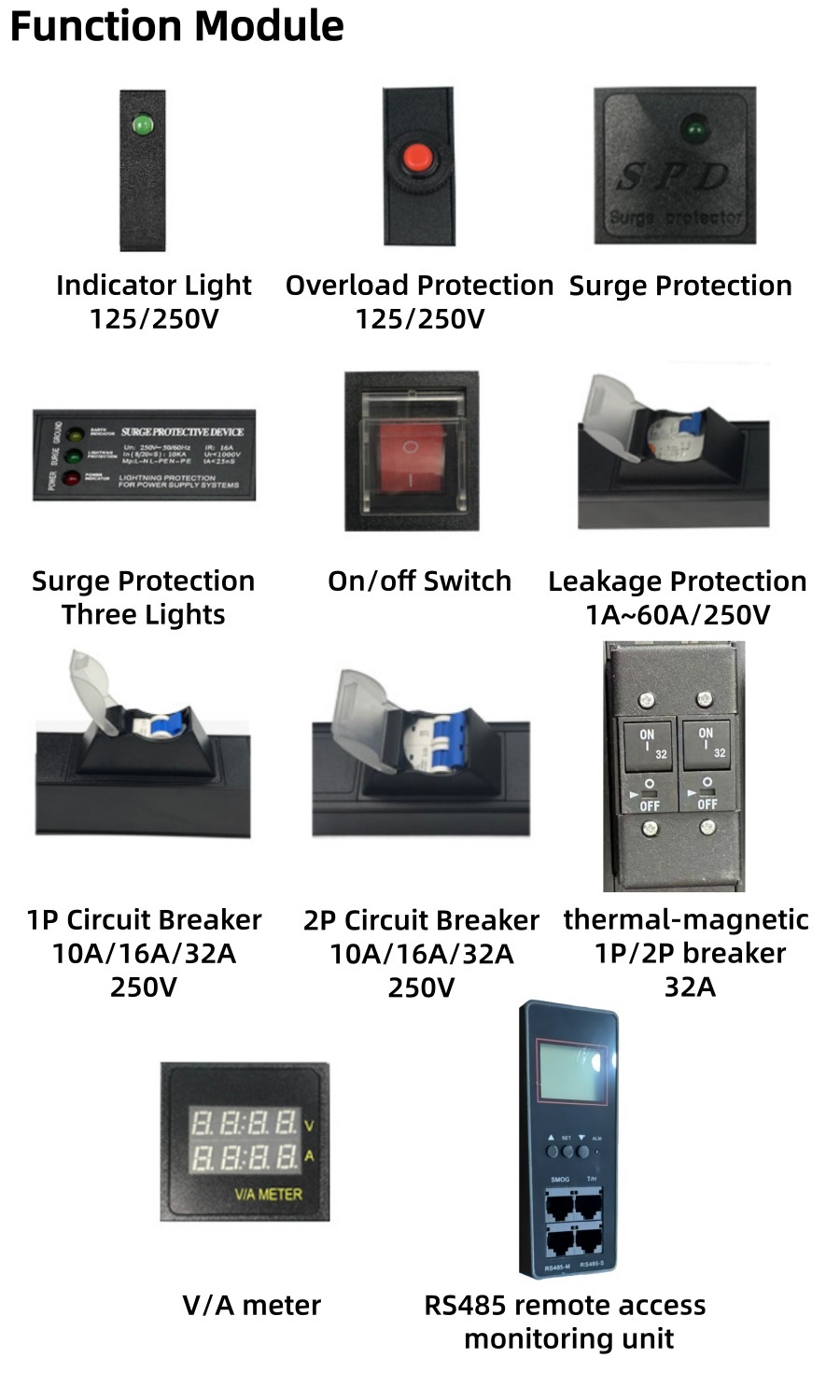

Protection Options |
Indicator light, Overload protection, SPD, On/off switch, Leakage protection, 1P/2P circuit breaker, 1P/2P thermal-magnetic breaker |
|
Monitoring Options |
V/A meter, RS485 remote access monitoring unit |
|
Power Cable |
1.5 mm², 2.5mm², 4mm², 6mm² |
