Application
Telecommunication networks
FTTH-fiber to the home
CATV-cable television network
Fiber distribution box and enclosure
Feature
In accordance with international standards

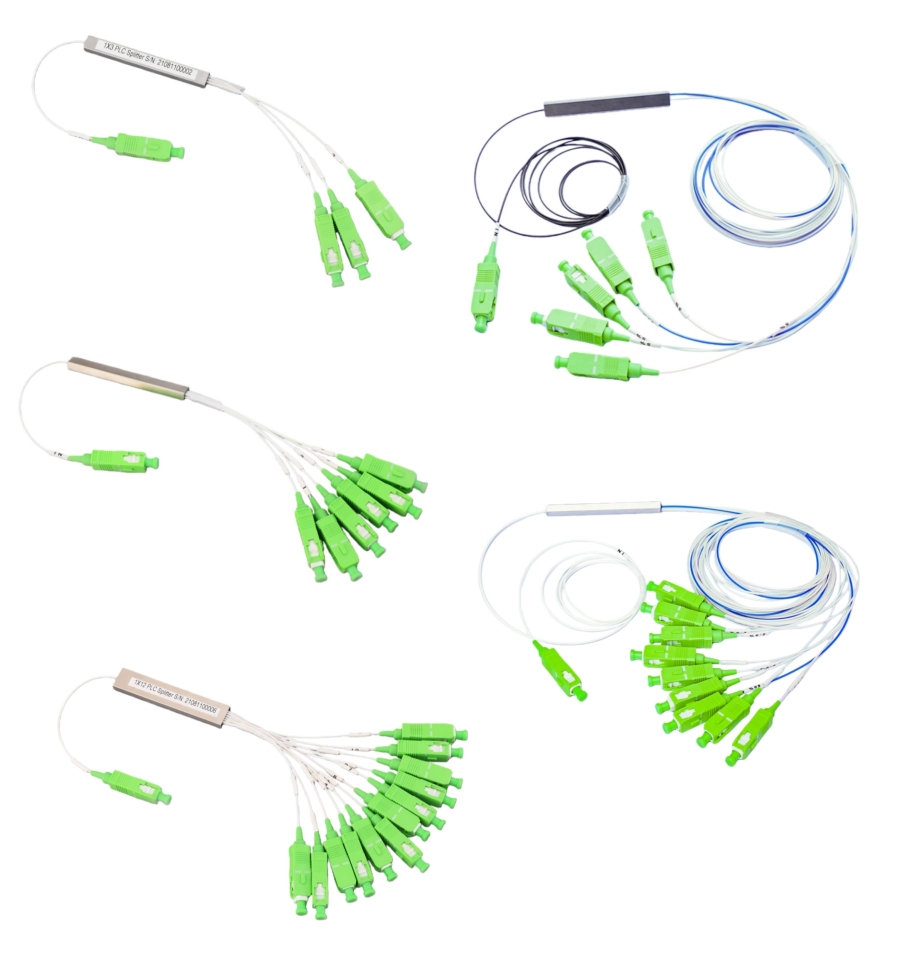

Compact configuration with mini tube splitter module
Low insertion loss and good stability
Suitable for splicing or patching
Custom made with options of splitter counts, connectors, cable color and length
Ordering Information
|
1X5 |
/0.9W |
/1m |
SCA |
||||
|
Splitter Counts |
Cable Jacket |
Cable Length |
Connector Type |
||||
|
1 in 3 out 1 in 5 out 1 in 6 out 1 in 9 out 1 in 12 out |
1X3 1X5 1X6 1X9 1X12 |
0.9mm Colored 0.9mm White |
/0.9C
/0.9W |
0.15 meter 0.3 meter 1 meter 1.5 meters 2 meters |
/0.15m /0.3m /1m /1.5m /2m |
SC/UPC SC/APC LC/UPC LC/APC ST/APC FC/APC |
SCU SCA LCU LCA STA FCA |

Application
Telecommunication networks
FTTH-fiber to the home
CATV-cable television network
Fiber distribution box
Feature
In accordance with international standards

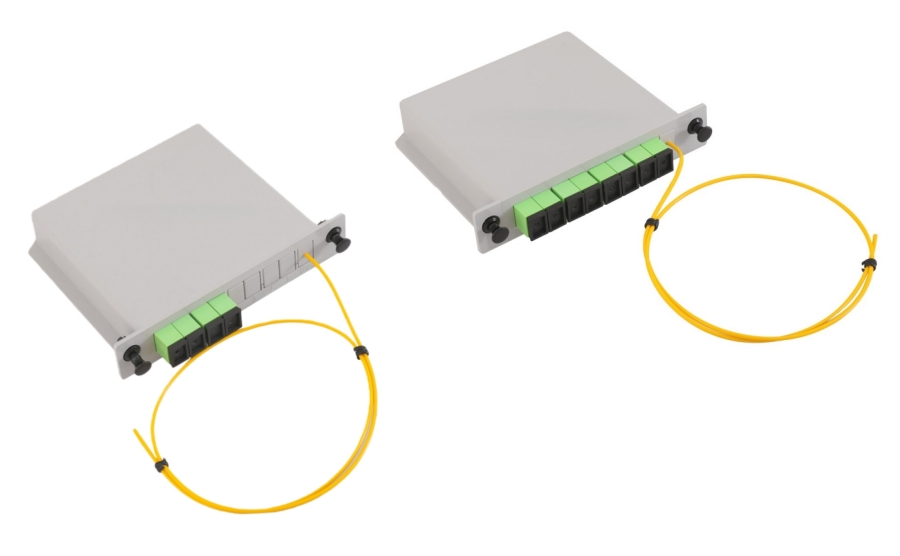

Solid configuration with LGX compatible cassette splitter module
Low insertion loss and good stability
Suitable for splicing on input end and patching on output end
Custom made with options of splitter counts and connectors
Ordering Information
|
1X8 |
SCA |
||
|
Splitter Counts |
Connector Type |
||
|
1 in 4 out 1 in 8 out
|
1X4 1X8
|
SC/UPC SC/APC ST/APC FC/APC |
SCU SCA STA FCA |
Application
Telecommunication networks
FTTH-fiber to the home
CATV-cable television network
Fiber distribution box, patch panel and cabinet
Feature
In accordance with international standards
Tailored aluminum case(100*68.8*12.5mm) with snap-on design
Low insertion loss and good stability
Suitable for splicing or patching connection
Ordering Information
|
2*1x8 |
/2.0 |
/1m |
SCA |
||||
|
Splitter Counts |
Cable Jacket |
Cable Length |
Connector Type |
||||
|
2*(1 in 8 out) 1 in 32 out
|
2*1X8 1X32 |
2.0mm Yellow
|
/2.0
|
1 meter 1.5 meters 2 meters |
/1m /1.5m /2m |
SC/UPC SC/APC LC/UPC LC/APC ST/APC FC/APC |
SCU SCA LCU LCA STA FCA |

Application
Telecommunication networks
FTTH-fiber to the home
CATV-cable television network
High density cabling
Feature
In accordance with international standards
Solid configuration with ABS cassette(120*80*18mm) splitter module
PLC splitter + MPO connector
Low insertion loss and good stability
Suitable for patching connection
Ordering Information
|
12*1x4 |
/2.0 |
/1m |
|||
|
Splitter Counts |
Cable Jacket |
Cable Length |
|||
|
8(1 in 4 out) 12(1 in 4 out) 8(1 in 8 out) 12(1 in 8 out) |
8*1x4 12*1x4 8*1x8 12*1x8 |
2.0mm Yellow
|
/2.0
|
1 meter 1.5 meters 2 meters |
/1m /1.5m /2m |
