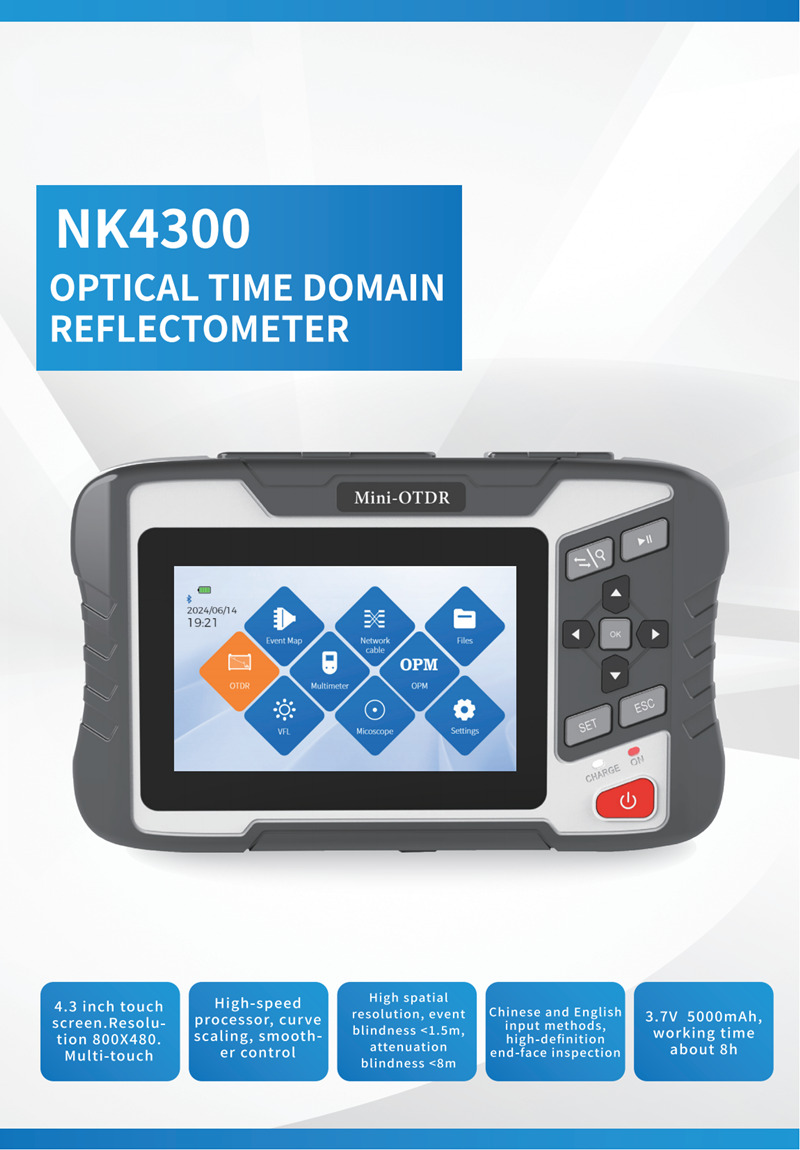

Model: Multi-Functional OTDR
Unit Price: USD238~USD290 (Model D1, Configuration 1310/1550nm 26/24dB)
Lead Time: 3~5 Days

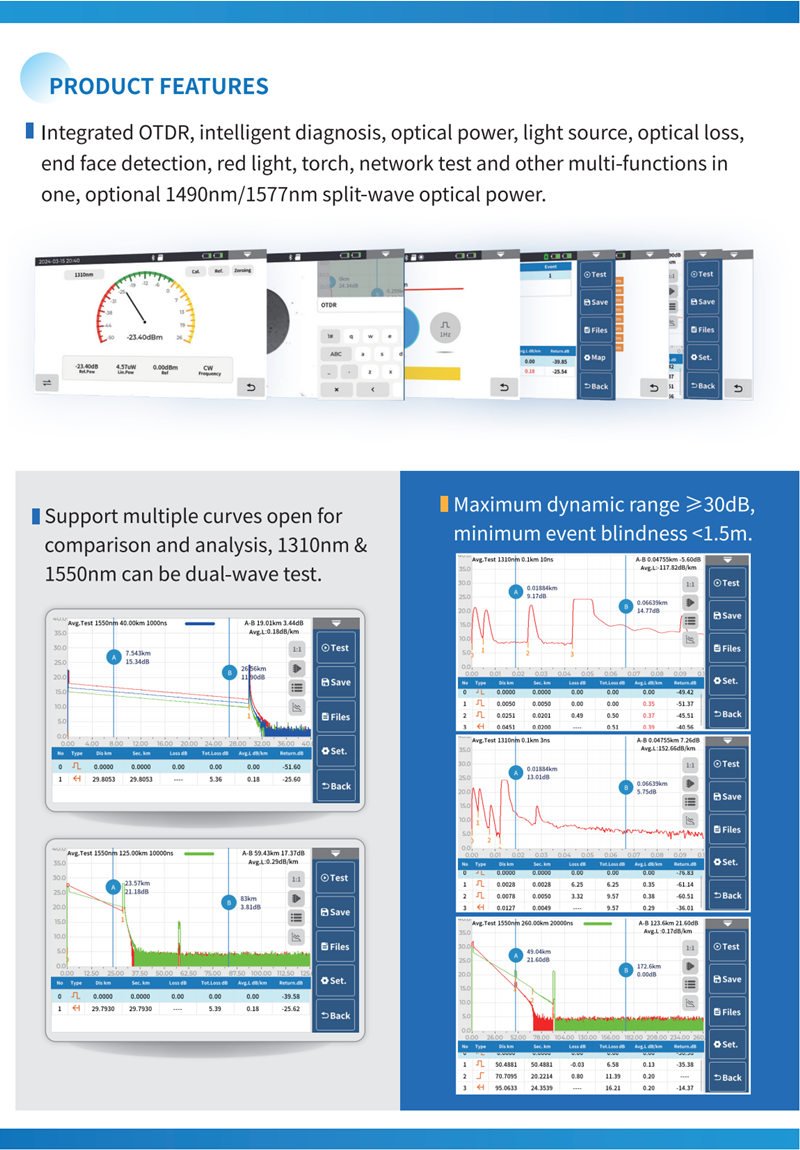

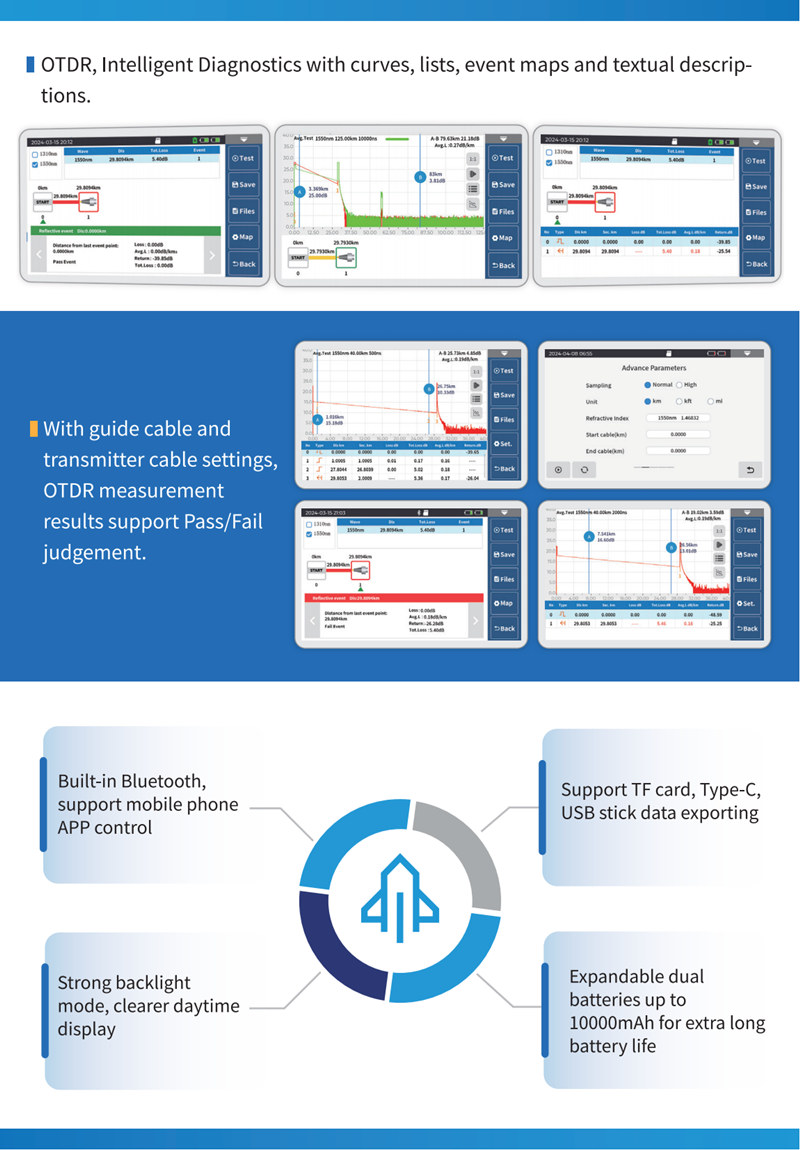

Function Module:
-OTDR
Wavelength 1550nm, 1610nm, 1625nm, 1650nm, Live Test, Dynamic Range 24dB
Wavelength 1310/1550nm, Dynamic Range 26/24dB or 30/28dB
Wavelength 1310/1550/1625nm, Dynamic Range 26/24/24dB
Event Blind Area 1.5 meters, Attenuation Blind Area 8 meters
-Optical Power Meter
Wavelength 850/1270/1300/1310/1490/1550/1577/1625/1650nm
Measurement Range -50~+26dBm, -70~+6dBm, -40~+26dBm(Split Wave Power Meter)
-Visual Fault Locator
Wavelength 650nm, Output Power 10mw
-Optical Light Source
Wavelength (Consistent with OTDR), Output Power ¡Ý-5dBm
-RJ45 Connector Continuity Test
-Network Wire Tracker
-RJ45 Cable Length Test
General Information:

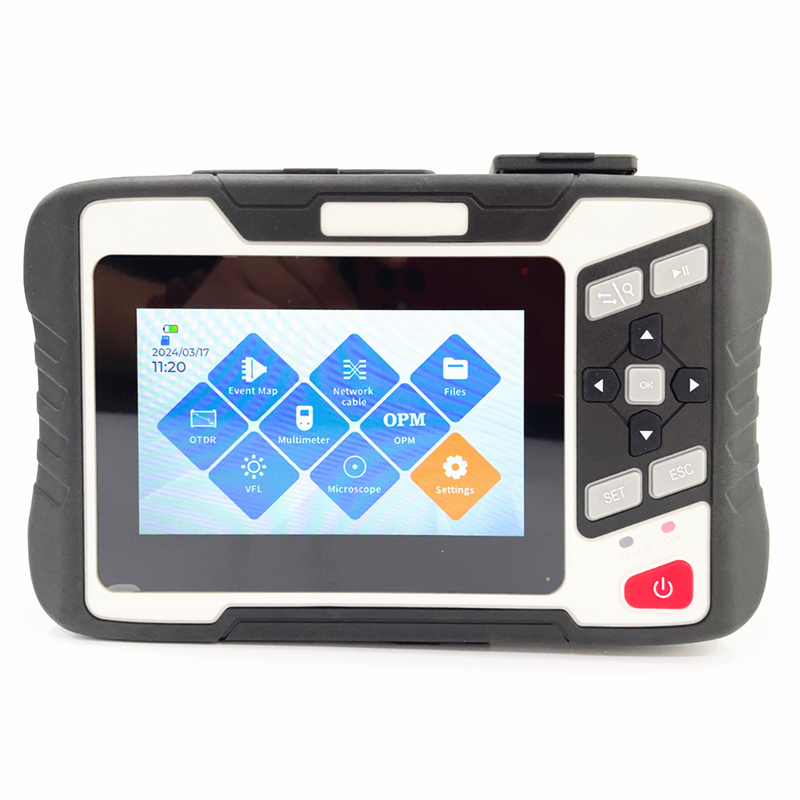

4.3 inch 800*400 IPS Multi-Touch Capacitive Screen
3.7V 5000mAh Built-in Lithium Battery, Dual-Battery Configuration Optional
Internal Storage 8GB, ¡Ý200,000 Curves
Data Interface USB/Type C
Operating Temperature -10~+50¡æ
189*115*43mm, 0.6kg
|
Model |
F1(Live Test) |
F2(Live Test) |
F3(Live Test) |
F4(Live Test) |
D1 |
|
Wavelength |
1550nm |
1610nm |
1625nm |
1650nm |
1310/1550nm |
|
Dynamic Range |
24dB |
24dB |
24dB |
24dB |
26/24dB |
|
Event Dead Zone |
1.5m |
||||
|
Atten. Dead Zone |
8m |
||||
|
Pulse Widths |
3/5/10/20/30/50/80/100/200/300/500/800ns, 1/2/3/5/8/10/20µs |
||||
|
Range Settings |
0.1/0.3/0.5/1.25/2.5/5/10/20/40/80/125/260km |
||||
|
Data Points |
¡Ý160K, .SOR file |
||||
|
Refresh Rate |
3Hz(Typical) |
||||
|

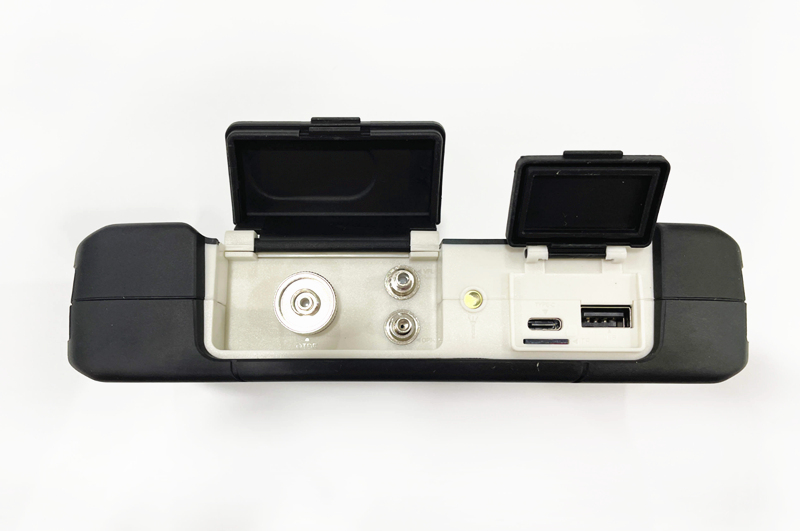

Connector |
FC/UPC, SC/ST Optional |
||||
|
Power Meter |
Wavelength: 850/1270/1300/1310/1490/1550/1577/1625/1650nm, Measurement Range: -50~+26dBm |
||||
|
VFL |
Wavelength: 650nm, Power: 10mw, Transmission Distant¡Ý3km |
||||
|
Light Source |
Wavelength: Consistent with OTDR |
||||
|
Loss Test |
Wavelength: Consistent with Light Source |
||||
|

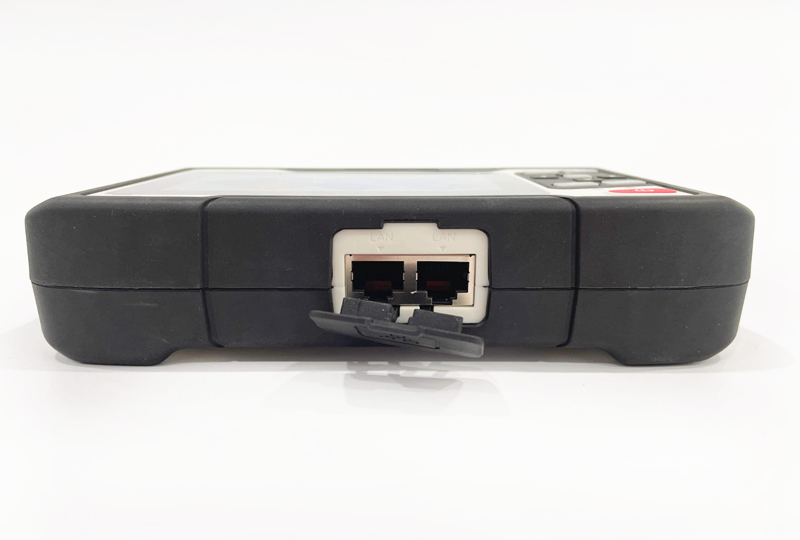

RJ45 Cable Test |
Tracking: Digital tracking, POE Supportable, up to 300m; Length Measurement: up to 300m |
||||
|
Accessories |
Power Adaptor, Data Cable, 8G TF Card, SC Adaptor, Wire Tracker Remote, Clean Cotton Swab Carrying Bag, Warranty Card, Instruction Manual |
||||
|
Optional Functions and Accessories |
|||||
|
Optional Functions |
Split wave 1490/1577nm power meter, 50GPON dual wavelength simultaneous live test |
||||
|
Optional Accessories |
Fiber Inspection Probe, Dual Built-in Battery |
||||
