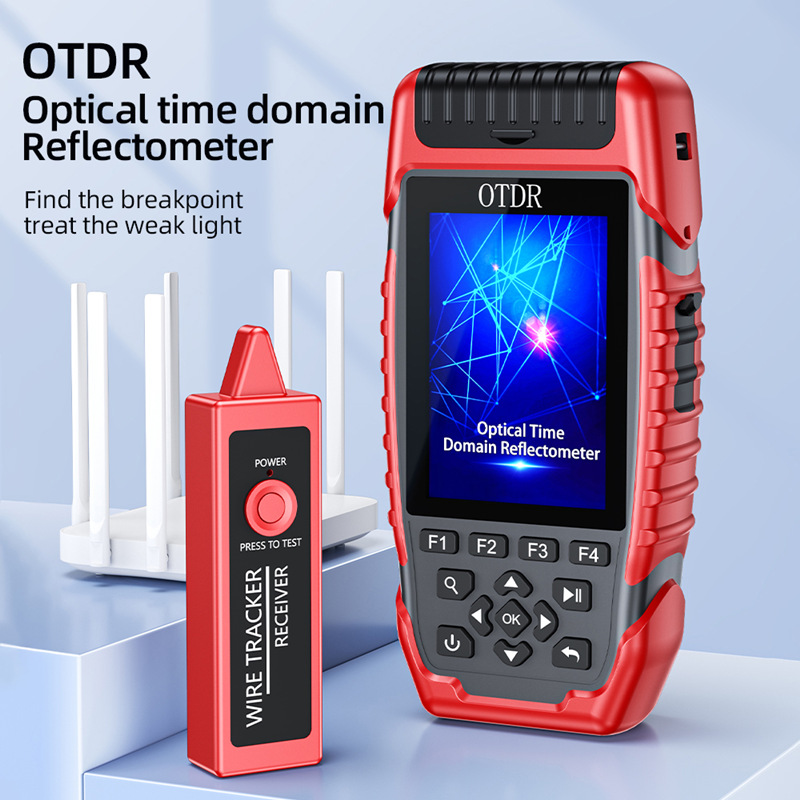

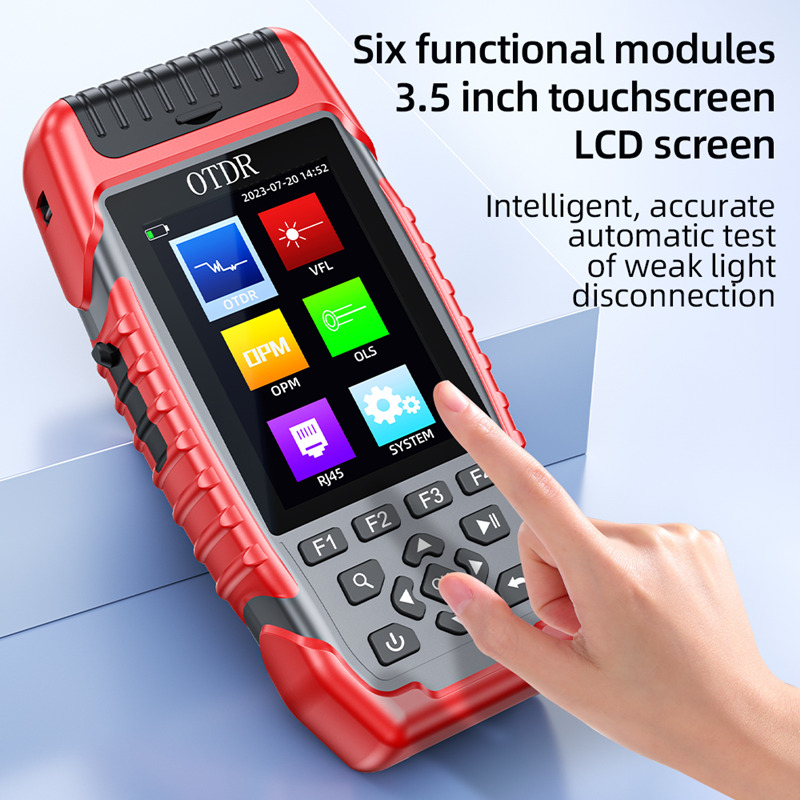

Model: Palm OTDR SM 1310/1550nm
Unit Price: USD130~USD160
Lead Time: 1~3 Days
Function Module:

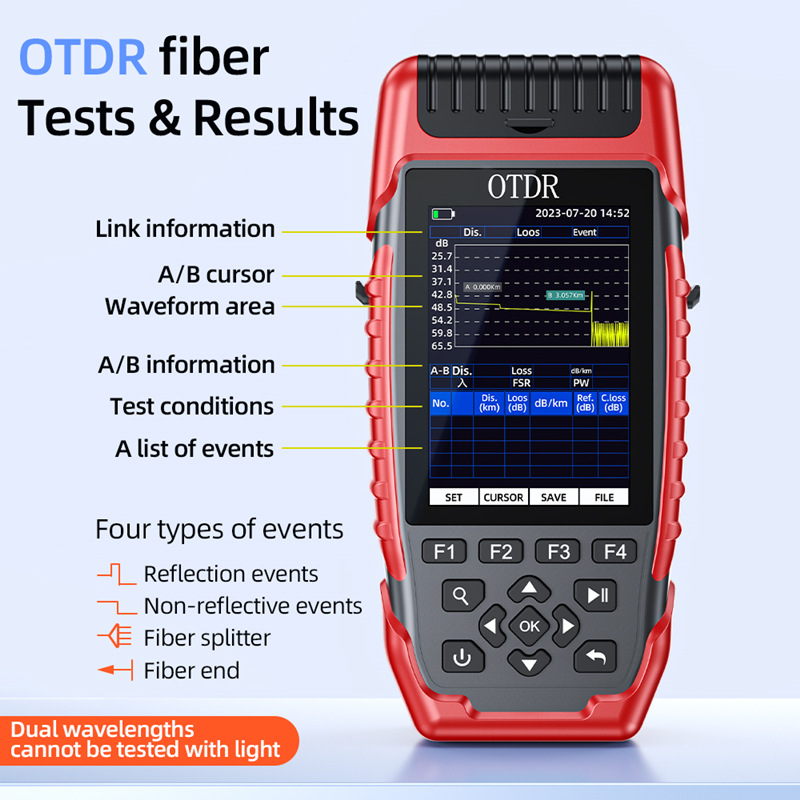

-OTDR
1310/1550nm 24/22dB, 1550nm 22dB
-Optical Power Meter
-70~+8dBm, -50~26dB,
-Optical Light Source
-Visual Locator
-RJ45 Connector Continuity Test
-Wire Tracker
|
MODEL |
Multi-Functional OTDR S-900 |
|
Wavelength |
1310nm/1550nm¡À20nm |
|
Fiber Mode |
G.652 Single Mode |
|
Dynamic Range |
24dB/22dB |
|
Event Blind Area |
3m |
|
Attenuation Blind Area |
8m |
|
Testing Distance |
500m¡«64km |
|
Pulse Width |
3ns¡«l0us |
|
Ranging Accuracy |
¡À(1m+Sample Interval+0.005%¡ÁTesting Distance) |
|
Linearity |
¡À0.2dB/dB |
|
Sample Points |
16k¡«128k |
|
Sample Resilution |
0.05m¡«8m |
|
Reflection Resolution |
¡À3dB |
|
Data Storage |
Internal:>700 Curves; External:TF Card |
|
Laser Safety Level |
Class ll |
|
File Format |
SOR |
|

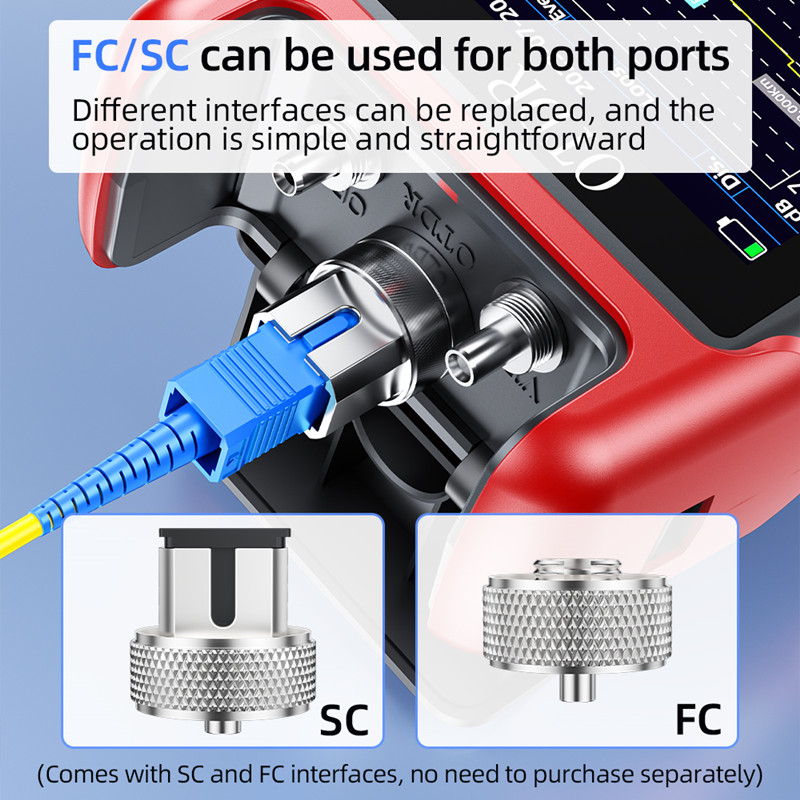

Connector |
FC/UPC(Interchangeable SC¡¢ST) |
|
|

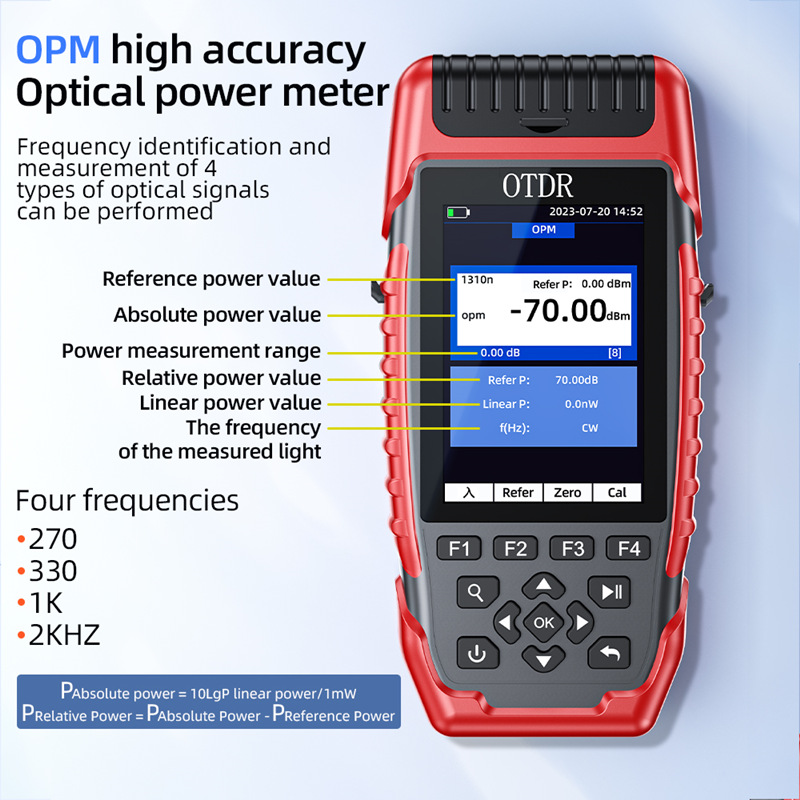

Optical Power Meter |
|
Wavelength |
800nm¡«1700nm |
|
Connector |
Universal FC/SC/ST |
|
Testing Range |
-70¡«+6dBm,-50~+26dBm |
|
Uncertainty |
¡À5% |
|
Frequency |
CW/270/330/1k/2kHz |
|
Calibration Wavelength |
850/980/1270/1300/1310/1490/1550/1577/1625/1650nm |
|
|

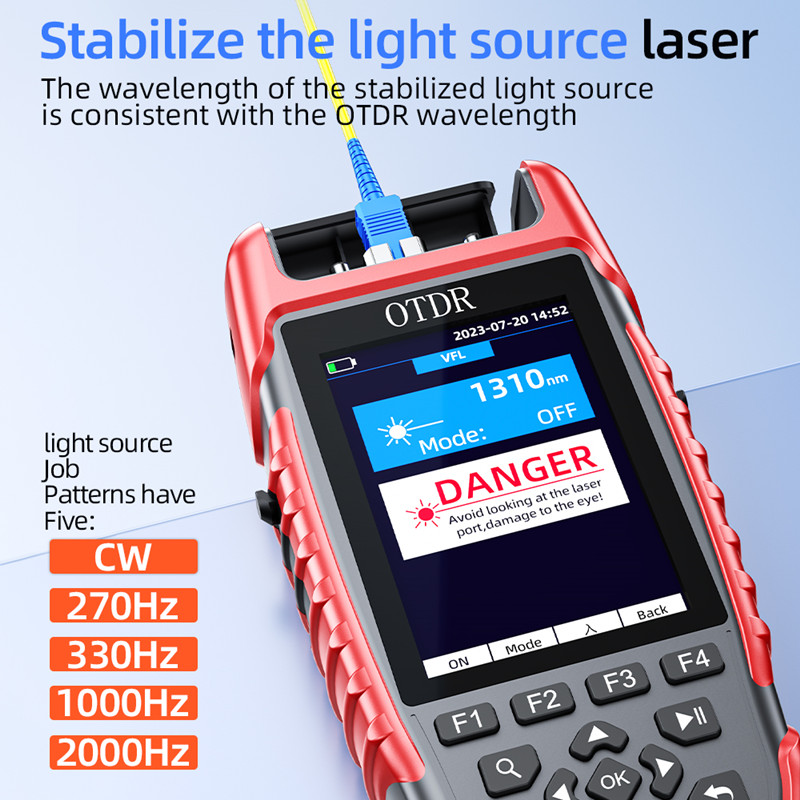

Optical Light Source |
|
Laser Type |
FP-LD |
|
Output Wavelength |
1310nm/1550nm¡À20nm |
|
Output Power |
¡Ý-5dBm |
|
Mode |
CW/270/330/1k/2kHz |
|
Stability |
CW£¬¡À0.5dB/15min(After 15 mins of Preheating) |
|
Connector |
FC/UPC(Interchangeable SC¡¢ST) |
|
|

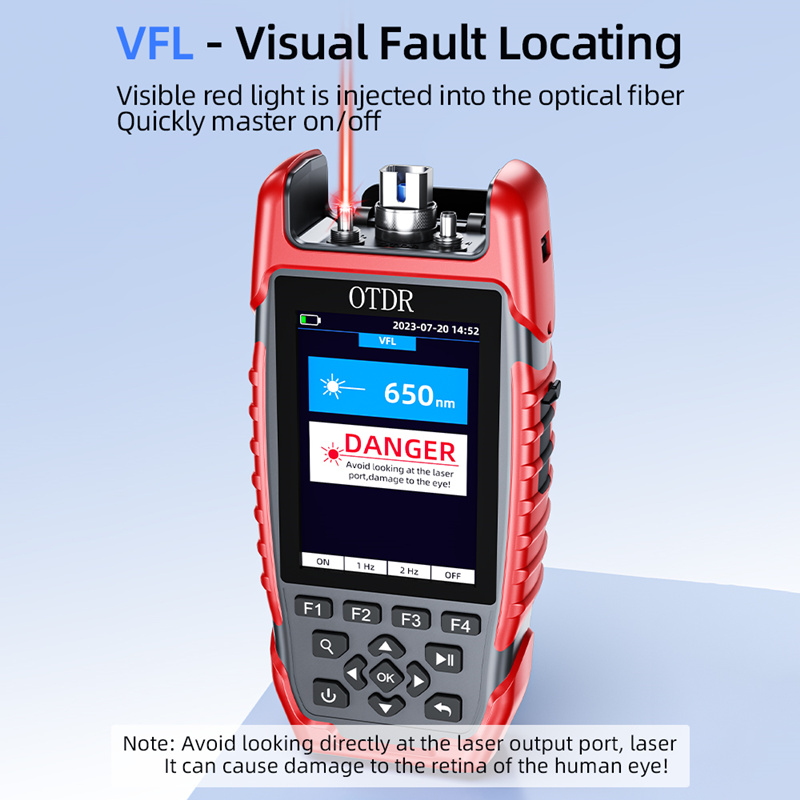

VFL |
|
Wavelrngth |
650nm¡À20nm |
|
Power |
¡Ý10mW |
|
Mode |
CW/1Hz/2Hz |
|
Connector |
Universal FC/SC/ST |
|
|
General Information |
|
Display |
3.5 inch Color Screen |
|
Data Interface |
type_c |
|
External Storage |
TF Card |
|
Power Supply |
Lithium Battery:3.7V£¬4000mA;Power Adaptor:DC5V=2.4A MAX |
|
Battery Working |
Standby>20 Hours;Continuous >12 Hours |
|
Operating Temperature |
-10¡æ¡«+50¡æ |
|
Storage Temperature |
-40¡æ¡«+70¡æ |
|
Relative Humidity |
0¡«95% Non Condensing |
|
Weight |
¡Ü340g |
|
Dimension |
173mm*82mm*37mm |
|
|

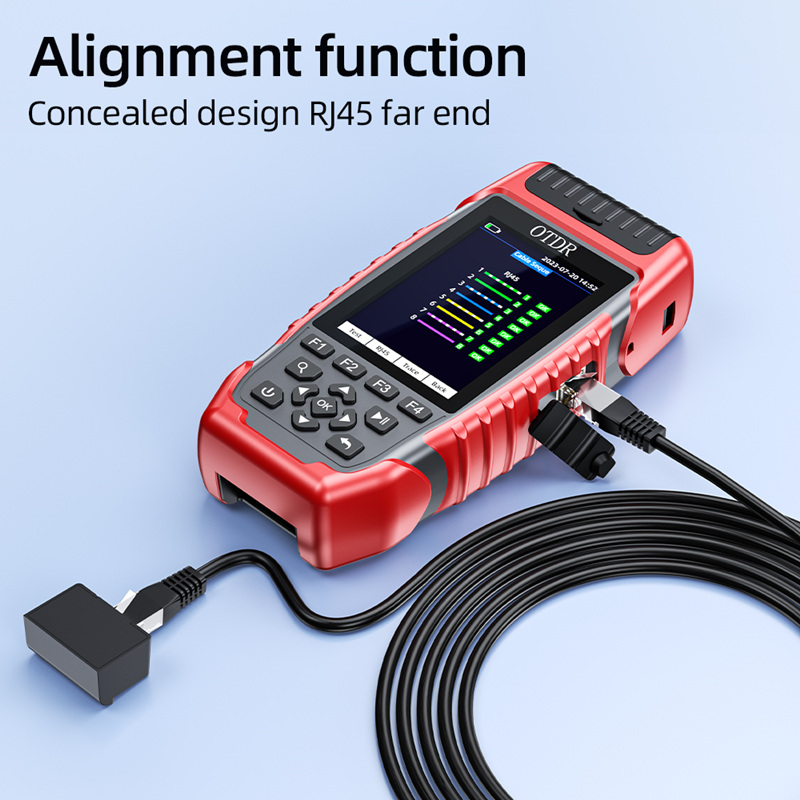

RJ45 Connector Continuity |
|
Connector |
Standard 8P Connector |
|
|

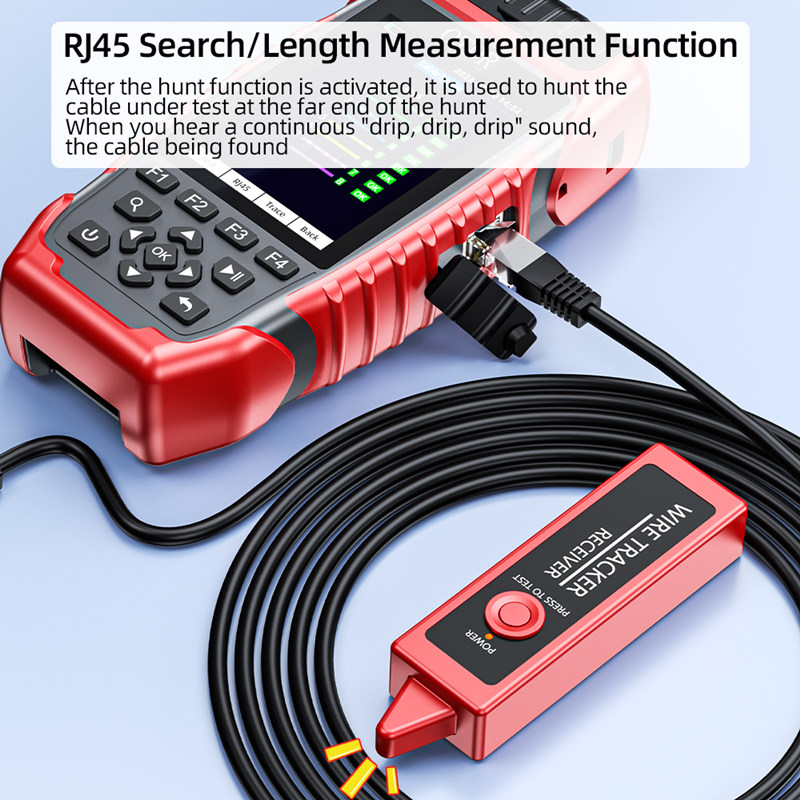

Wire Tracker |
|
Tracking Distance |
1000 Meters |
