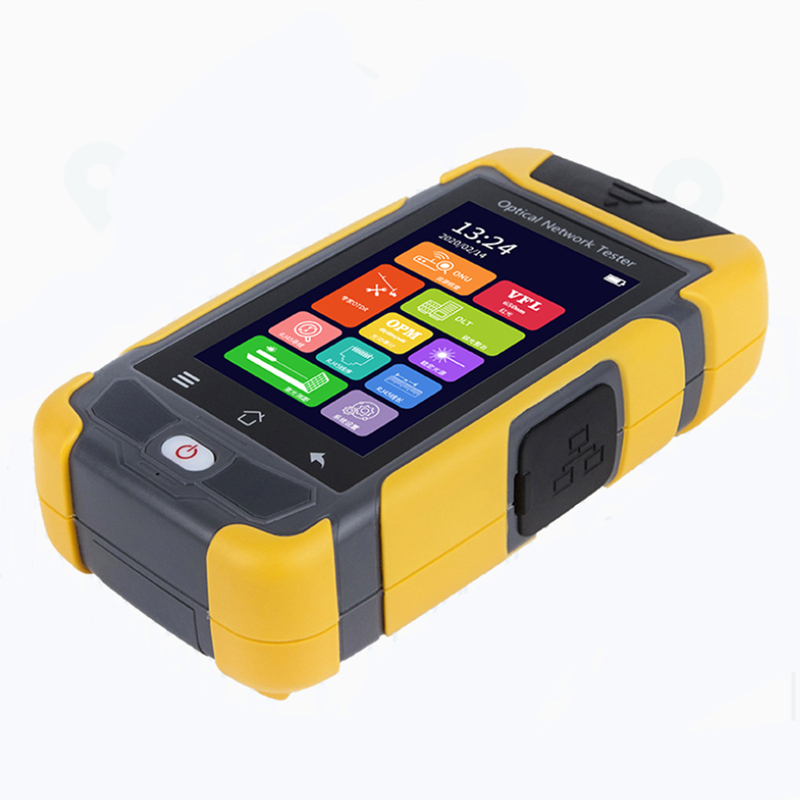

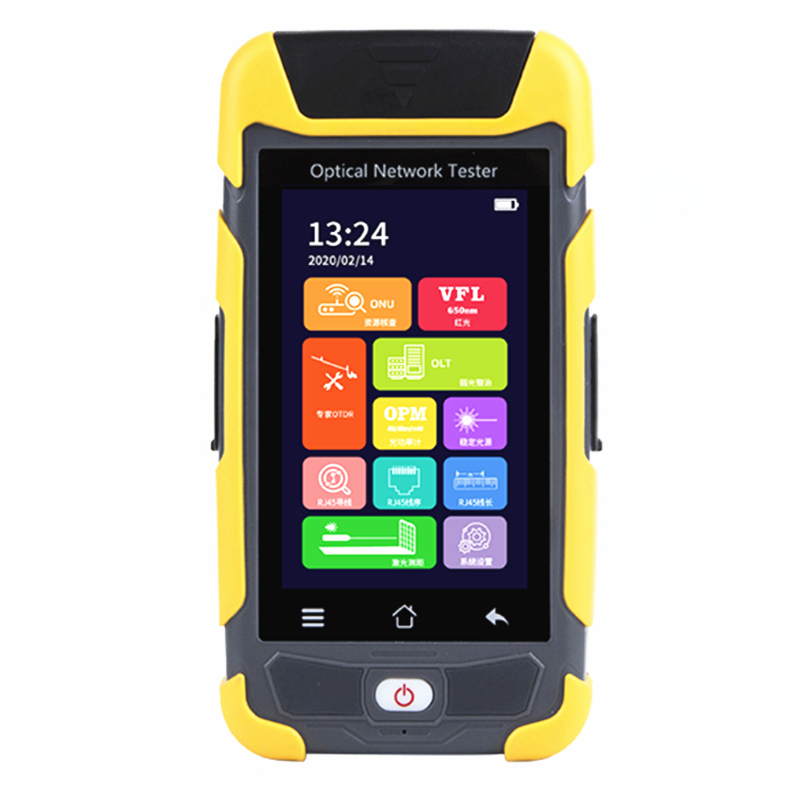

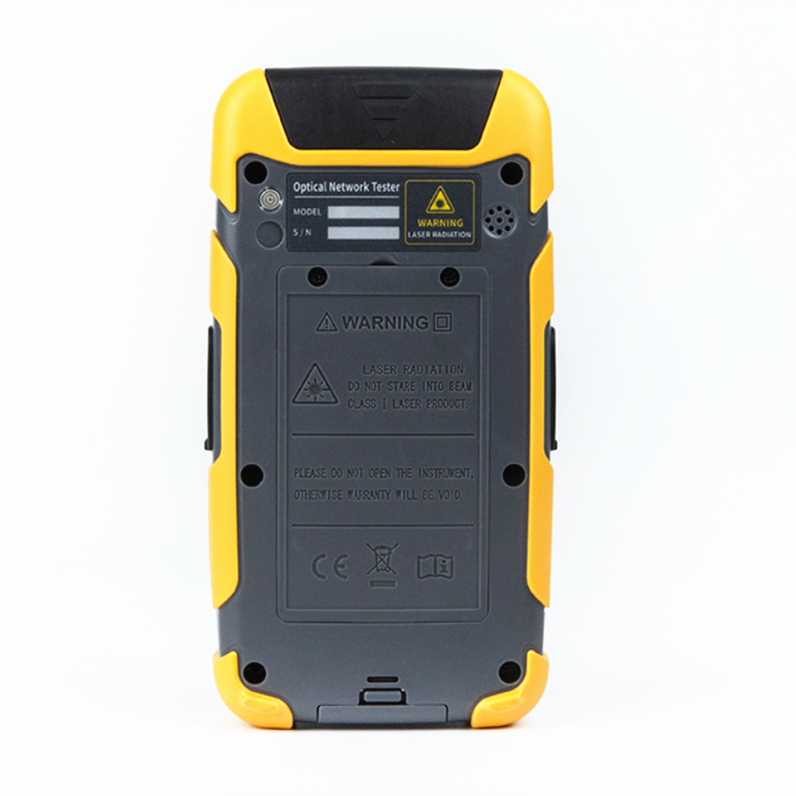

Model: Mini OTDR MM 850/1300nm
Unit Price: USD600~USD800
Lead Time: 3~7 Days
Function Module:
-AUTO OTDR
-Expert OTDR
-Event Map
-Optical Power Meter
-Visual Fault Locator
-Optical Light Source
-Network Wire Tracker
-RJ45 Connector Continuity Test
-RJ45 Cable Length Test
-Laser Ranging
|
Model |
H430 |
H430-M1 |
||
|
Fiber Mode |
SM |
MM |
||
|
Wavelength |
1310/1550nm |
1625nm |
850/1300nm |
|
|
Dynamic Range |
28/26dB |
26dB |
35 dB |
20/22dB |
|
Event Blind Zone |
0.8m |
|||
|
ATT Bline Zone |
6m |
|||
|
Test Range |
500m/1km/2km/4km/8km/16km/32km/64km/100km |
|||
|
Pulse Width |
3ns/5ns/10ns/20ns/30ns/50ns/80ns/160ns/320ns/500ns/800ns/1¦Ìs/2¦Ìs/3¦Ìs/5¦Ìs/8¦Ìs/10¦Ìs/20¦Ìs |
|||
|
Ranging Accuracy |
¡À£¨1m+Sample interval+0.005£¥¡ÁTest distance£© |
|||
|
Linearity |
¡Ü0.05dB/dB |
|||
|
Sample Points |
16k~256k |
|||
|
Sample Resolution |
0.05m~8m |
|||
|
Loss Threshold |
0.01dB |
|||
|
Loss Resolution |
0.001dB |
|||
|
Range Resolution |
0.001m |
|||
|
Refractive Index |
1.00000~2.00000, 0.00001 Stepping |
|||
|
File Format |
SOR |
|||
|
Loss Analysis |
4-point method/5-point method |
|||
|
Laser Safety Level |
Class ¢ò |
|||
|
Connector |
FC/UPC£¨SC¡¢ST exchangeable£© |
|||
|
Real-time Refresh |
3Hz£¨Typical£© |
|||
|
Optical Power Meter |
||||
|
Wavelength |
800nm~1700nm |
|||
|
Calibration Wavelength |
850nm/980nm/1300nm/1310nm/1490nm/1550nm/1625nm/1650nm |
|||
|
Test Range |
-70dBm¡«+10dBm/-50dBm¡«+26dBm |
|||
|
Resolution |
0.01dB |
|||
|
Uncertainty |
¡À5% |
|||
|
Frequency |
CW/270Hz/330Hz/1kHz/2kHz |
|||
|
Wavelength Identification |
Supportable |
|||
|
Connector |
Universal FC/SC/ST |
|||
|
Light Source |
||||
|
Output Wavelength |
Consistent with OTDR |
|||
|
Laser Type |
FP-LD |
|||
|
Output Power |
¡Ý-5dBm |
|||
|
Stability |
CW£¬¡À0.5dB/15min£¨Preheating 15mins to test£© |
|||
|
Connector |
FC/UPC£¨SC¡¢ST exchangeable£© |
|||
|
Mode |
CW/270Hz/330Hz/1kHz/2kHz |
|||
|
Wavelength Identification |
Supportable |
|||
|
Visual Fault Locator |
||||
|
Wavelength |
650nm¡À20nm |
|||
|
Output Power |
¡Ý10mW |
|||
|
Mode |
CW/1Hz/2Hz |
|||
|
Connector |
FC/UPC£¨SC¡¢ST exchangeable£© |
|||
|
Laser Safety Level |
Class ¢ó |
|||
|
Laser Ranging |
||||
|
Test Range |
0.05~40m |
|||
|
Test Resolution |
¡À2.0mm |
|||
|
Laser Mode |
620~690nm |
|||
|
Laser Level |
Class¢ò£¬£¼1mW |
|||
|
RJ45 Tracking |
||||
|
Tracking Mode |
Digital Tacking/Analog Tracking |
|||
|
Test Range |
¡Ý300m |
|||
|
Online Tracking |
Supportable |
|||
|
Line Pair Tracking |
Supportable |
|||
|
RJ45 Cable Length Test |
||||
|
Test Distance |
300m |
|||
|
Others |
||||
|
Display |
4.3 inches 800¡Á480 IPS TFT - LCD£¬Full Touch |
|||
|
Power Supply |
AC/DC Adaptor£ºInput£º100V¡«240V£¬50/60Hz£¬0.6A£¬Output£º5V£¬2A Lithium Battery £º3.7V£¬4000mAh |
|||
|
Battery Working |
Continuous Testing£¬High Brightness£º£¾8 Hours |
|||
|
Data Storage |
Internal Storage£º8GB£¬¡Ý200,000 Curves |
|||
|
Data Port |
USB Type C |
|||
|
Fingerprint Identification |
Optional |
|||
|
Operating Temperature |
10¡æ¡«+50¡æ |
|||
|
Storage Temperature |
-40¡æ¡«+70¡æ |
|||
|
Relative Humidity |
0¡«95£¥ Non-condensing |
|||
|
Net Weight |
0.4kg£¨Battery Included£© |
|||
|
Dimension |
174mm¡Á92mm¡Á45mm |
|||
