Product Overview
Nickel-plated brass cable gland is used for cable entry sealing on communication cabinets, equipment racks and outdoor enclosures. It delivers reliable waterproof & dustproof protection as well as stable cable strain relief, preventing cable pulling, torsion and insulation damage. Widely adopted for fiber distribution boxes, control cabinets, passive optical communication equipment.
Key Features
Main body: Nickel-plated brass, excellent corrosion resistance, long service lifespan
Ingress protection grade: IP66
Integrated rubber sealing insert, provides firm cable clamping and strain relief
Wide working temperature range: -30¡æ ~ +100¡æ
Multiple PG thread specifications available to match various cable outer diameters
Simple assembly, suitable for indoor and outdoor installation scenarios

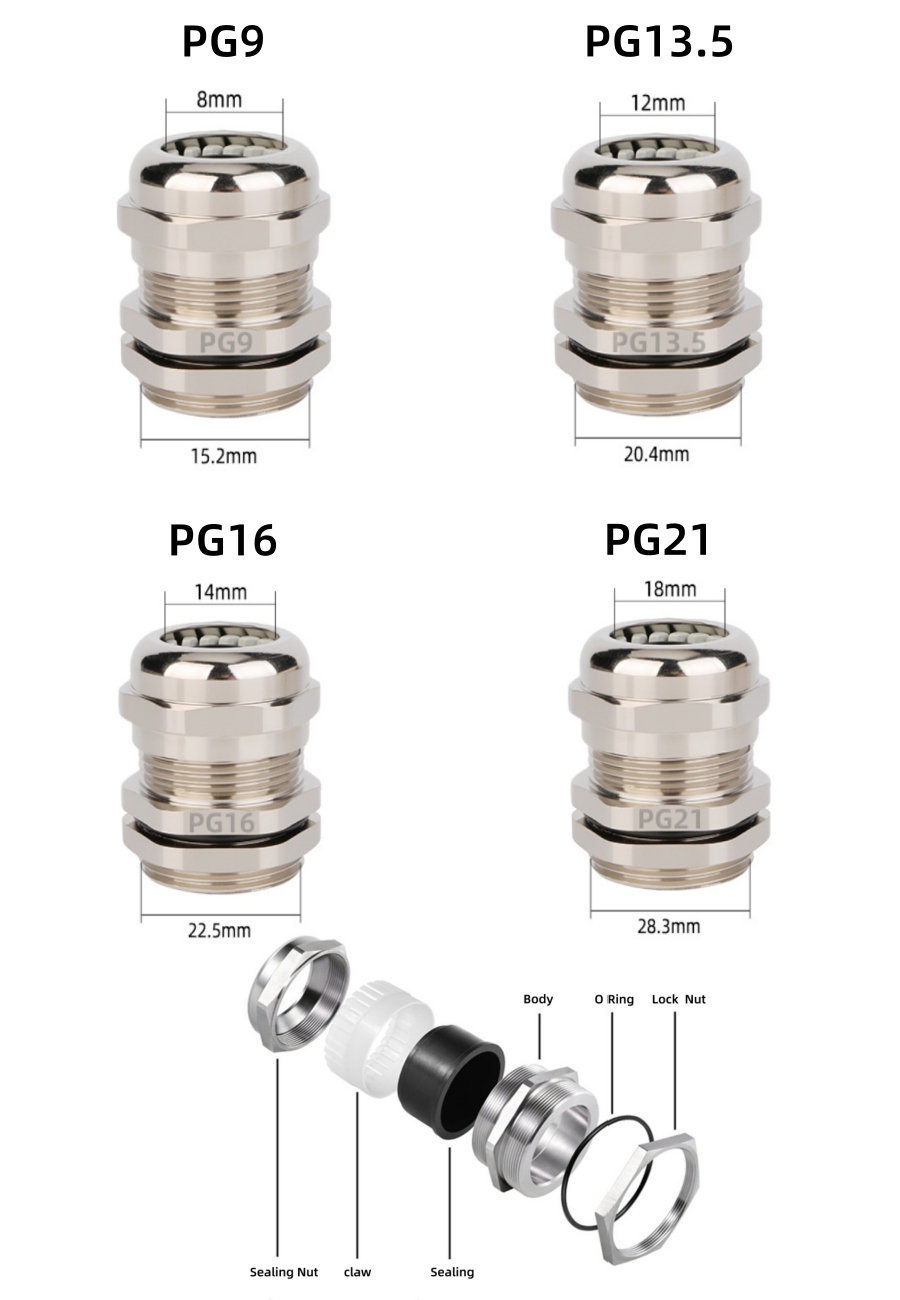

Dimension & Ordering Information
PG9
Cable clamping range: 4~8 mm, 2~6 mm
Thread Outer Diameter L2: 15.2 mm
Thread Length L1: 8 mm
Spanner Size: 17 mm
PG13.5
Cable clamping range: 6~12 mm, 5~9 mm
Thread Outer Diameter L2: 20.4 mm
Thread Length L1: 8 mm
Spanner Size: 22 mm
PG16
Cable clamping range: 10~14 mm, 6~12 mm
Thread Outer Diameter L2: 22.5 mm
Thread Length L1: 8 mm
Spanner Size: 24 mm
PG21
Cable clamping range: 13~18 mm
Thread Outer Diameter L2: 28.3 mm
Thread Length L1: 9 mm
Spanner Size: 30 mm
Additional PG sizes can be supplied upon customer request
Typical Applications
Outdoor fiber distribution boxes and fiber splice closures
Network cabinets, server racks and electrical control enclosures
Industrial automation equipment
FTTH access terminals and pole-mounted communication housings
