Product Overview

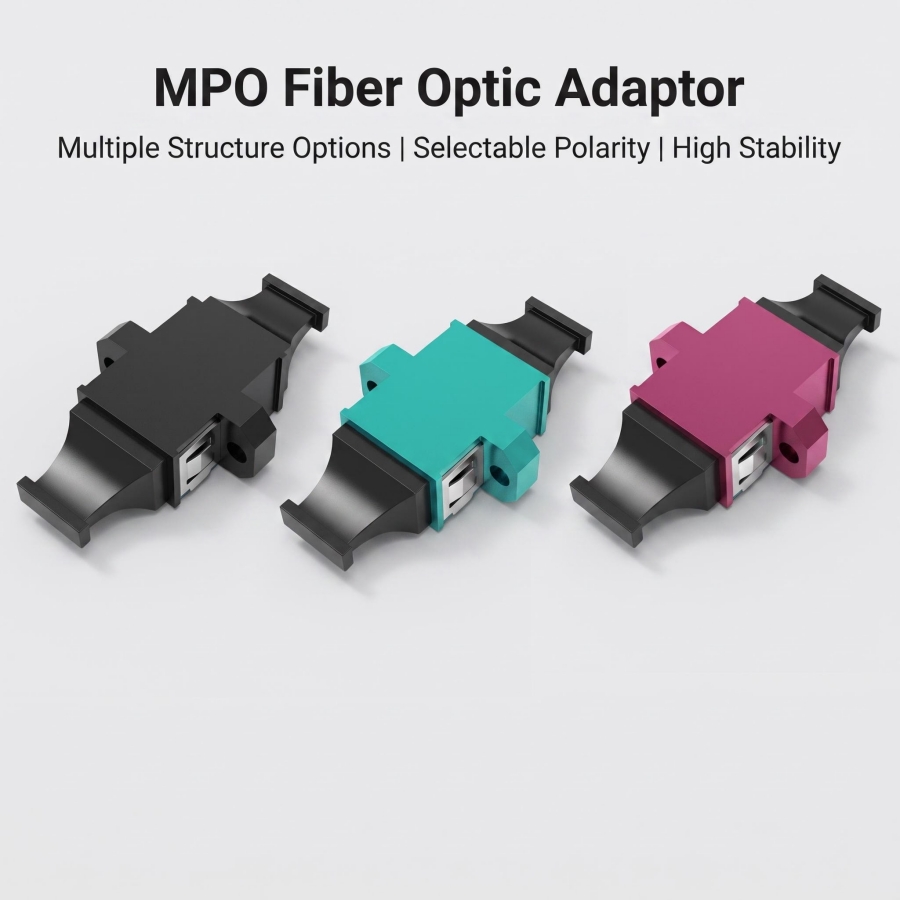

MPO/MTP fiber optic adapter is a high-precision multi-core fiber coupling component widely used in high-density data center cabling and multi-channel optical transmission systems. This series supports rich customizable models, including 12-core / 24-core and 16-core / 32-core versions. Each specification provides flange and flange-free types, with flexible key direction options to meet different polarity wiring requirements. Adopting high-precision alignment structure, it ensures stable and low-loss optical connection after repeated plugging. Compatible with standard MPO/MTP connectors, suitable for patch panels, fiber enclosures and rack-mounted distribution systems.
Key Features
-Four classic configurations for 12/24 core version: SC flanged, SC flangeless, standard flanged, standard flangeless
-Flexible polarity design for 12/24 core: same key direction and reverse key direction optional
-16/32 core high-density version available with flange and flangeless types, default reverse key direction
-High-precision guide pin alignment structure, ensuring accurate fiber core docking
-Good optical stability, suitable for long-term multi-service transmission scenarios
-Wide working temperature range, strong environmental adaptability
-Compliant with IEC 61754 and RoHS 2.0 standards
Optical & Mechanical Specifications
-Operating Wavelength: 1270~1650 nm (Single-mode), 850~1300 nm (Multimode)
-Typical Insertion Loss: ¡Ü 0.5 dB
-Max Insertion Loss: ¡Ü 0.7 dB
-Mating Durability: Loss variation ¡Ü 0.2 dB after 500 mating cycles
-Operating Temperature: -40 ¡æ ~ +75 ¡æ
Typical Applications
-High-density data center optical fiber cabling system
-40G / 100G / 400G high-speed parallel optical transmission links
-5G communication equipment and backbone transmission room
-ODF cabinet, fiber patch panel and integrated wiring terminal
-Large-scale enterprise park and intelligent building optical network engineering
Order & Packaging
-Single piece packed with independent anti-static PE bag
-Batch packaging available with blister tray for neat arrangement and protection
