Application
Telecommunication networks
CATV-cable television network
FTTH-Fiber to the home
Protect and house fiber splices and joints between optical cables
optical splitting, cable splices and branching
Feature
In accordance with international standards
IP68 protection and IK10 impact strength
Applicable for aerial, pole-mount, wall-mount, pipeline and manhole usage
Heat shrink sealing cable entries
Specification
|
Maximum External Dimensions |
400*140mm |
|
Maximum Splice Capacity |
48 splices, 24 splices per splice tray |
|
Splitter Count |
1 set 1x32 PLC splitter or 2 sets 1x16 PLC splitter |
|

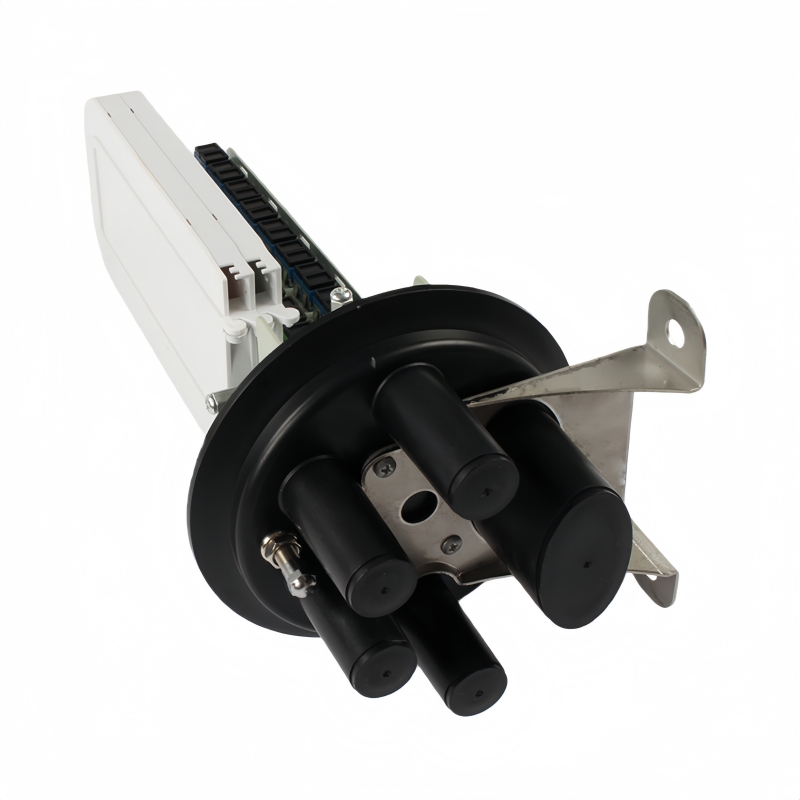

Cable Entries |
5 entries, includes 1 un-cut through cable entries |
|
Cable Diameters Range |
8~16mm, 8~30mm (un-cut through entry) |
|
Material |
PP&Glassfiber material (Body, Cover) ABS material(Splice Tray) Stainless Steel(Metal Parts) |
|
Operating Temperature |
-40~+65¡æ |
|
Relatively Humidity |
¡Ü93%£¨+40¡æ£© |
|
Atmosphere |
70~106Kpa |
|
Outer Carton |
62*37*70.5cm, 26kg, 10pcs/carton |
