Application
Telecommunication networks
CATV-cable television network
FTTH-Fiber to the home
Protect and house fiber splices and joints between optical cables
Cable un-cut through and branching, cable splices and branching
Feature
In accordance with international standards
IP68 protection and IK10 impact strength
Applicable for aerial, pole-mount, wall-mount, pipeline and manhole usage

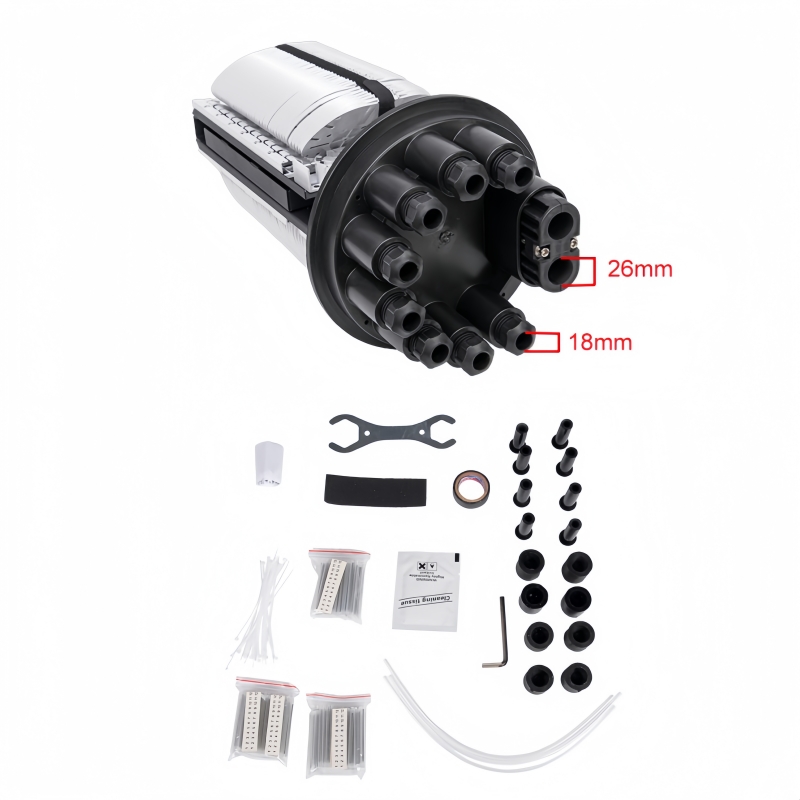

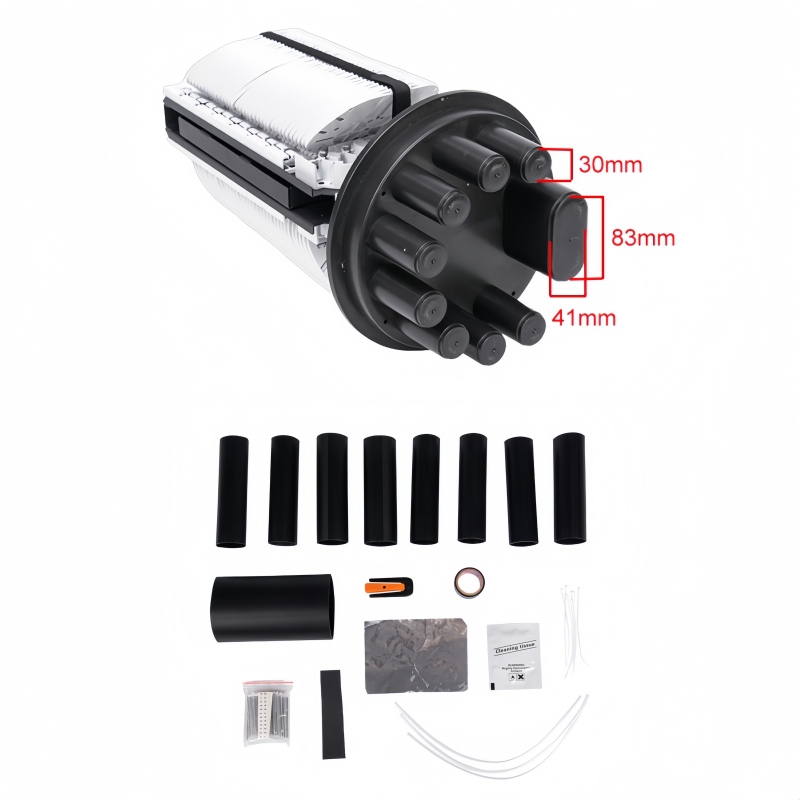

Heat shrink sealing cable entries, Mechanic sealing optional
Specification
|
Maximum External Dimensions |
520*305mm |
|
Maximum Splice Capacity |
840 splices, 12 splices per splice tray |
|
Cable Entries |
9 entries, includes 1 un-cut through entries |
|
Cable Diameters Range |
8~18mm, 8~26mm (un-cut through) |
|
Material |
PP material(Body, Cover) ABS material(Splice Tray) Stainless Steel(Metal Parts) |
|
Operating Temperature |
-40~+65¡æ |
|
Relatively Humidity |
¡Ü93%£¨+40¡æ£© |
|
Atmosphere |
70~106Kpa |
|
Outer Carton |
64*57*59cm, 25kg, 4 pcs/carton |
