Product Overview

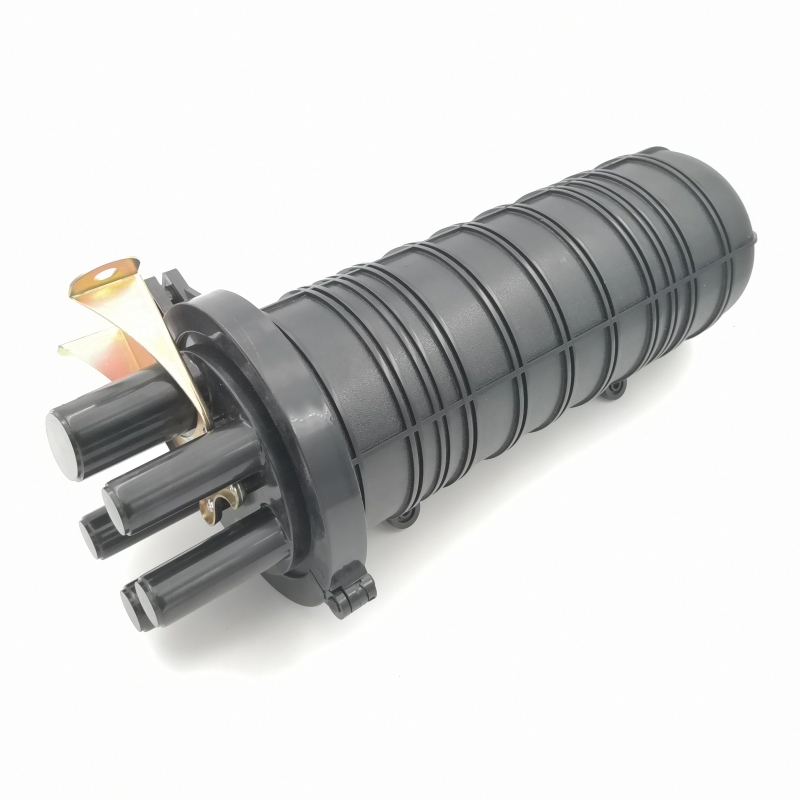

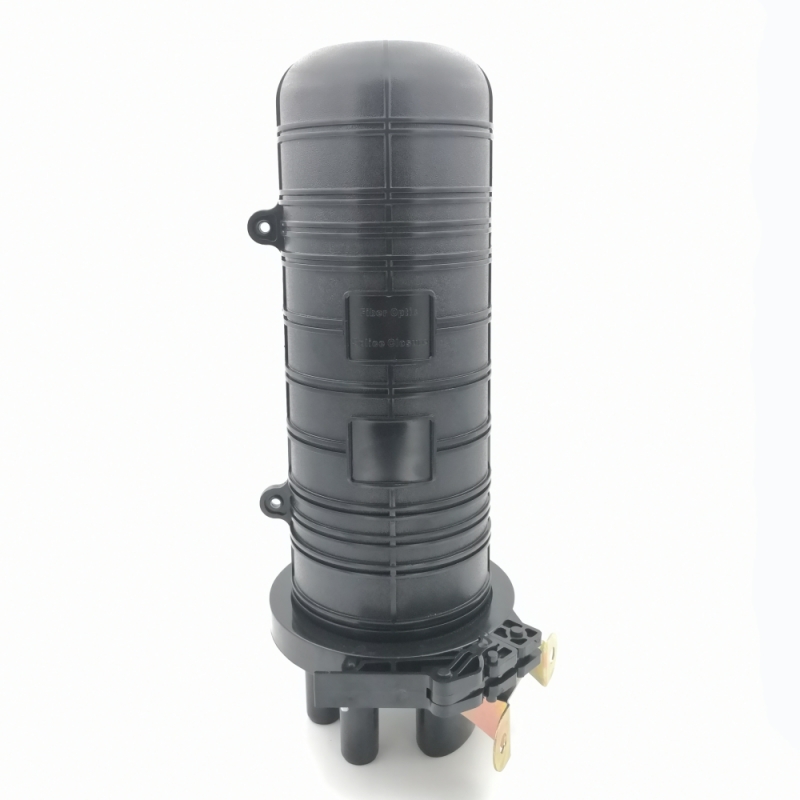

Vertical dome fiber splice closure for outdoor optical cable fusion splicing. Two sealing configurations are selectable, supporting aerial, pole-mount, wall-mount, pipeline and manhole installation. Max splicing capacity up to 96 fibers. Optional bottom air valve for pressure balance. Widely deployed for backbone fiber links and FTTH trunk networks.
Key Features
IP68 ingress protection, IK10 impact resistance
Two sealing options with different cable entry layout

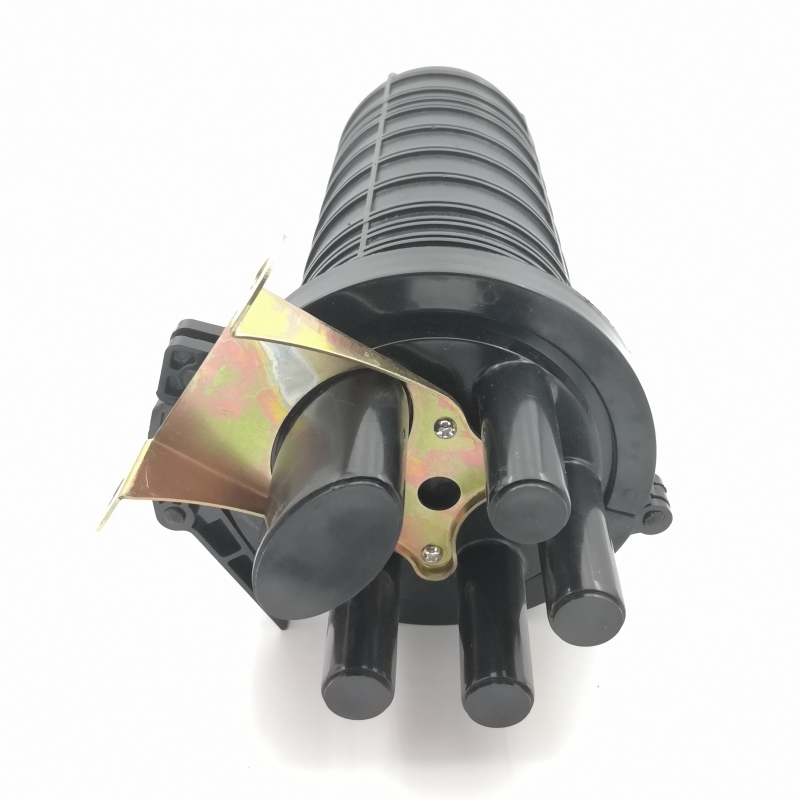

Heat shrink seal: 5 entries (including 1 un-cut through cable entry)
Mechanical seal: 4 cable entries

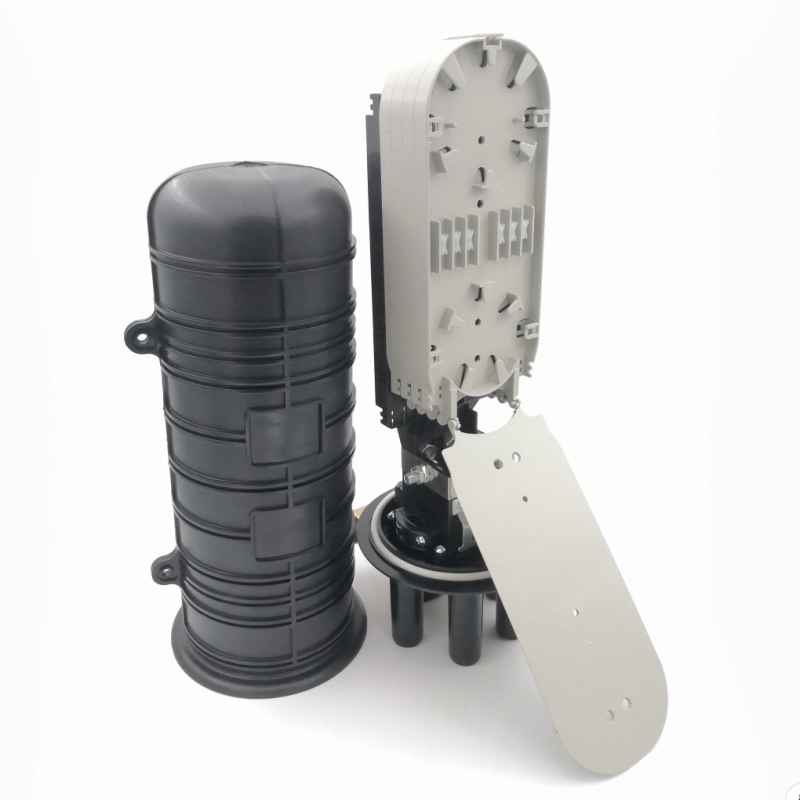

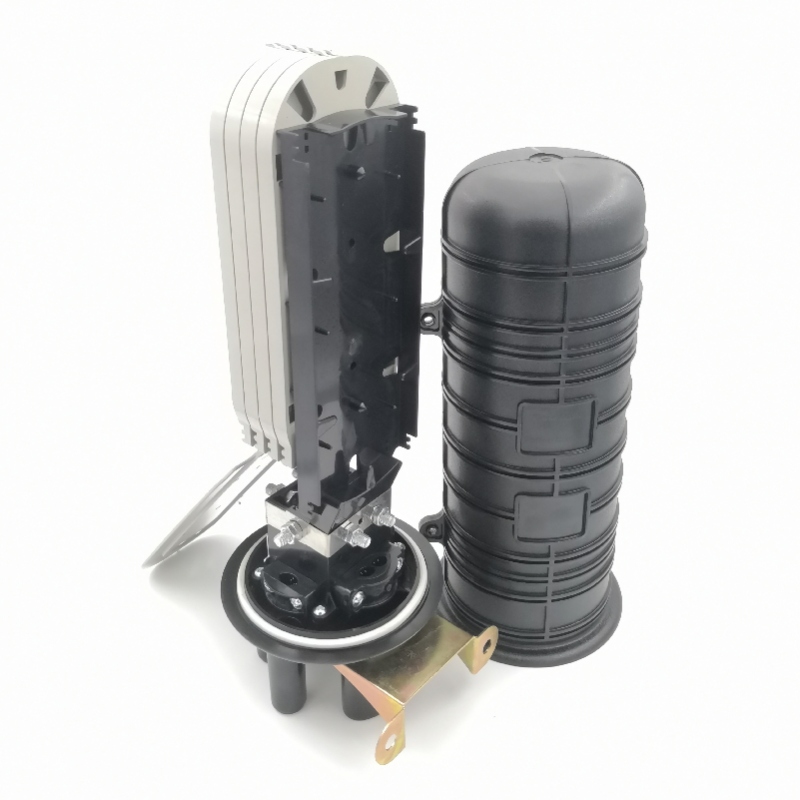

Modular splice tray design, standardized fiber routing and bend radius protection
Anti-aging PC housing, stable performance under long-term outdoor exposure
Full set of installation accessories supplied with each closure
Compliant with IEC 61300 and RoHS 2.0 standards
Technical Specifications
Product Name: Dome Type Splice Closure
Max Outer Dimensions: 425 ¡Á 190 mm
Max Splice Capacity: 96 splices, 24 splices per tray
Applicable Cable Diameter: 8 ~ 16 mm
Air Valve: Optional at bottom
Material
Housing & Cover: PC
Splice Tray: ABS
Metal Parts: Stainless Steel
Environmental Parameters
Operating Temperature: -40 ~ +65 ¡æ
Relative Humidity: ¡Ü93%£¨+40¡æ, non-condensing£©
Atmospheric Pressure: 70 ~ 106 kPa
Typical Applications
Outdoor backbone optical cable splicing
Aerial overhead fiber communication lines
Pipeline & manhole fiber joint points
FTTH passive optical trunk network
Packaging Info
Export Carton: 70 ¡Á 42 ¡Á 45 cm
8 pcs/carton, gross weight: 21 kg
