Application
Telecommunication networks
CATV-cable television network
FTTH-Fiber to the home

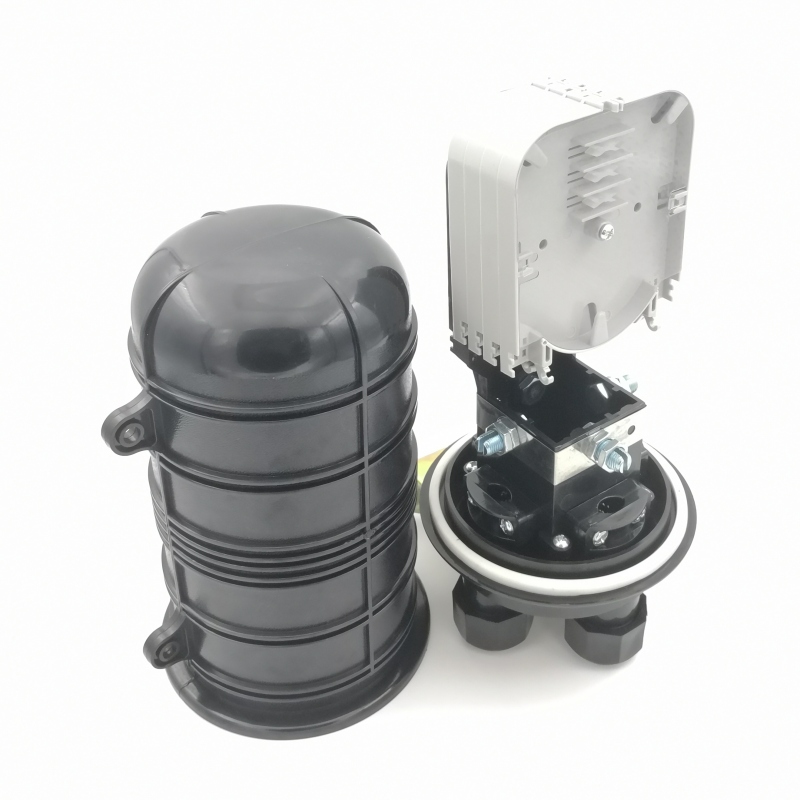

Protect and house fiber splices and joints between optical cables
Feature
In accordance with international standards
IP68 protection and IK10 impact strength
Applicable for aerial, pole-mount, wall-mount, pipeline and manhole usage
Mechanic sealing cable entries, heat shrink sealing cable entries optional
Specification
|
Maximum External Dimensions |
288*178mm |
|
Maximum Splice Capacity |
48 splices, 12 splices per splice tray |
|
Cable Entries |
4 entries |
|
Cable Diameters Range |
8~16mm |
|
Material |
PC material (Body, Cover) ABS material(Splice Tray) Stainless Steel(Metal Parts) |
|
Operating Temperature |
-40~+65¡æ |
|
Relatively Humidity |
¡Ü93%£¨+40¡æ£© |
|
Atmosphere |
70~106Kpa |
|
Outer Carton |
63*40*48cm, 21.5kg, 12 pcs/carton |
