Application
Telecommunication networks
FTTH-fiber to the home
CATV-cable television network
Fiber distribution box, patch panel and cabinet
Feature
In accordance with international standards

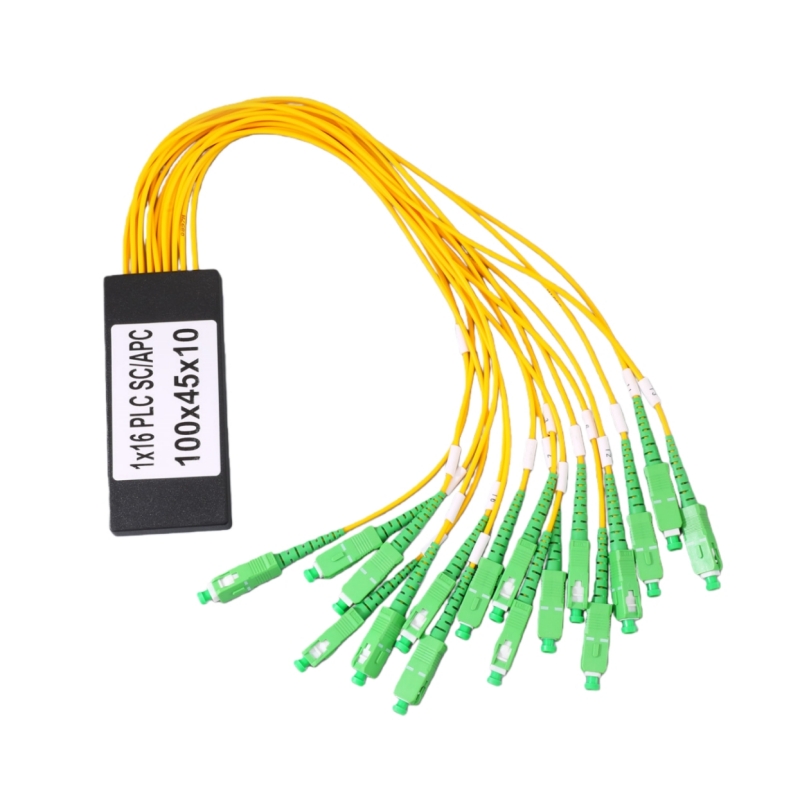

Compact and solid configuration with mini ABS cassette module
Low insertion loss and good stability
Suitable for splicing or patching
Custom made with options of splitter counts, connectors, cable length
Technical Specification
|
Parameter |
1X8 |
1X16 |
|
|
Fiber Core Type |
G657A1 |
||
|
Operating Wavelength(nm) |
1260~1650 |
||
|
Insertion Loss(dB) |
Max |
10.5 |
13.8 |
|
Uniformity (dB) |
Max |
0.8 |
1.0 |
|
Return Loss(dB) |
Min |
50 |
50 |
|
PDL(dB) |
Max |
0.3 |
0.3 |
|
Directionality (dB) |
Min |
55 |
55 |
|
WDL(dB) |
Max |
0.8 |
1.0 |
|
TDL(-40~+85¡æ) |
Max |
0.5 |
0.8 |
|
Mini Module Size (mm) |
100*45*10 |
||
|
Operating Temperature (¡æ) |
-40~85 |
||
|
Storage Temperature (¡æ) |
-40~85 |
||
Ordering Information
|
1X16 |
/2.0 |
/1m |
SCA |
||||
|
Splitter Counts |
Cable Jacket |
Cable Length |
Connector Type |
||||
|
1 in 8 out 1 in 16 out
|
1X8 1X16
|
0.9mm Yellow 2.0mm Yellow |
/0.9
/2.0 |
0.3 meter 1 meter 1.5 meters 2 meters |
/0.3m /1m /1.5m /2m |
SC/UPC SC/APC LC/UPC LC/APC ST/APC FC/APC |
SCU SCA LCU LCA STA FCA |
