Application
Telecommunication networks
FTTH-fiber to the home
CATV-cable television network
Fiber distribution box, patch panel and cabinet
Feature
In accordance with international standards

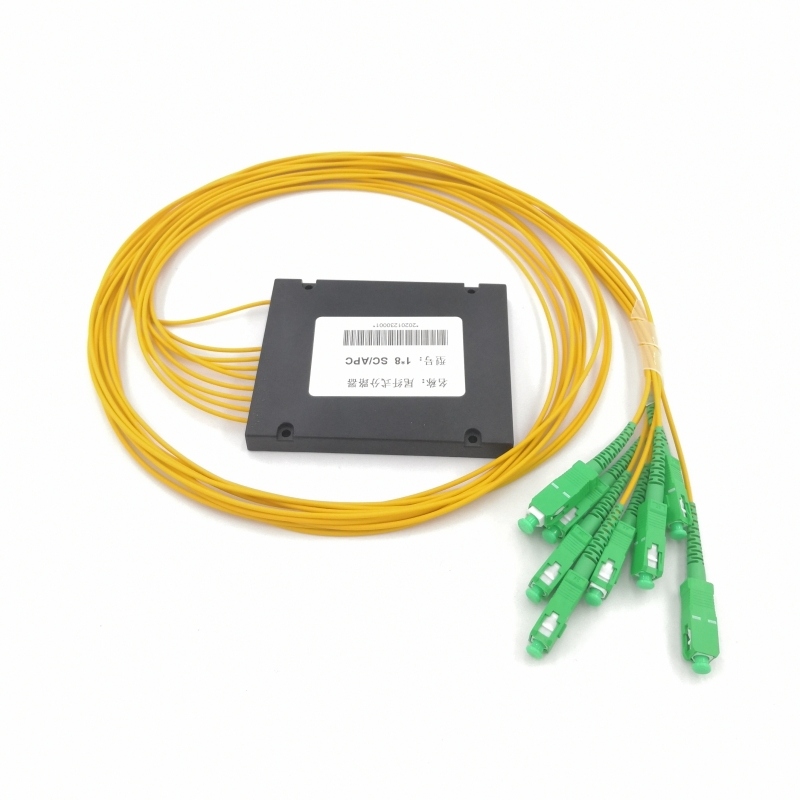

Solid configuration with ABS cassette splitter module
Low insertion loss and good stability
Suitable for splicing or patching
Custom made with options of splitter counts, connectors and cable length
Technical Specification
|
Parameter |
1X2 |
1X4 |
1X8 |
1X16 |
1X32 |
1X64 |
||||||
|
Fiber Core Type |
G657A1 |
|||||||||||
|
Operating Wavelength(nm) |
1260~1650 |
|||||||||||
|
Insertion Loss(dB) |
Max |
4.1 |
7.4 |
10.5 |
13.8 |
17.1 |
20.4 |
|||||
|
Return Loss(dB) |
Min |
50 |
50 |
50 |
50 |
50 |
50 |
|||||
|
Directionality (dB) |
Min |
55 |
55 |
55 |
55 |
55 |
55 |
|||||
|
Uniformity (dB) |
Max |
0.8 |
0.8 |
0.8 |
1.0 |
1.5 |
2.0 |
|||||
|
PDL(dB) |
Max |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
0.4 |
|||||
|
WDL(dB) |
Max |
0.8 |
0.8 |
0.8 |
1.0 |
1.0 |
1.0 |
|||||
|
TDL(-40~+85¡æ) |
Max |
0.5 |
0.5 |
0.5 |
0.8 |
0.8 |
1.0 |
|||||
|
Operating Temperature (¡æ) |
-40~85 |
|||||||||||
|
Storage Temperature (¡æ) |
-40~85 |
|||||||||||
|
Mini Module Dimension(mm) |
100*26*10 |
100*80*10 |
100*80*10 |
120*80*18 |
120*80*18 |
140*115*18 |
||||||
Ordering Information
|
1X8 |
/2.0 |
/1m |
SCA |
||||
|
Splitter Counts |
Cable Jacket |
Cable Length |
Connector Type |
||||
|
1 in 2 out 1 in 4 out 1 in 8 out 1 in 16 out 1 in 32 out 1 in 64 out |
1X2 1X4 1X8 1X16 1X32 1X64 |
2.0mm Yellow 3.0mm Yellow |
/2.0
/3.0 |
1 meter 1.5 meters 2 meters |
/1m /1.5m /2m |
SC/UPC SC/APC LC/UPC LC/APC ST/APC FC/APC |
SCU SCA LCU LCA STA FCA |
