Application
Telecommunication networks
FTTH-fiber to the home
CATV-cable television network
Fiber distribution box, patch panel and cabinet
Feature
In accordance with international standards
Low insertion loss and good stability
Suitable for splicing or patching
Custom made with options of module size, splitter ratio, connectors and cable length
Technical Specification
Operating Wavelength(nm) |
1310~1550 |
Insertion Loss(dB) Max |
3.7 |
Uniformity (dB) Max |
0.4 |
Return Loss(dB) Min |
50 |
PDL(dB) Max |
0.2 |
Directionality (dB) Min |
55 |
WDL(dB) Max |
0.5 |
TDL(-40~+85¡æ) (dB) Max |
0.5 |
Operating Temperature (¡æ) |
-40~85 |
Storage Temperature (¡æ) |
-40~85 |
Ordering Information
|

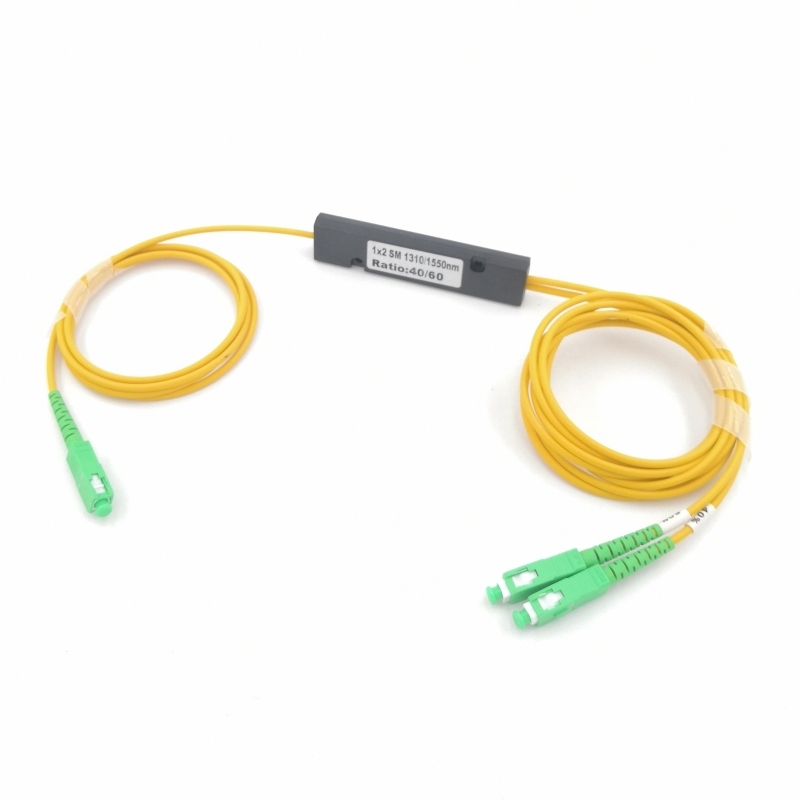

FBTS |
40/60 |
/3.0 |
/1m |
SCA |
||||
|
Module |
Splitter Ratio |
Cable Jacket |
Cable Length |
Connector Type |
||||
|

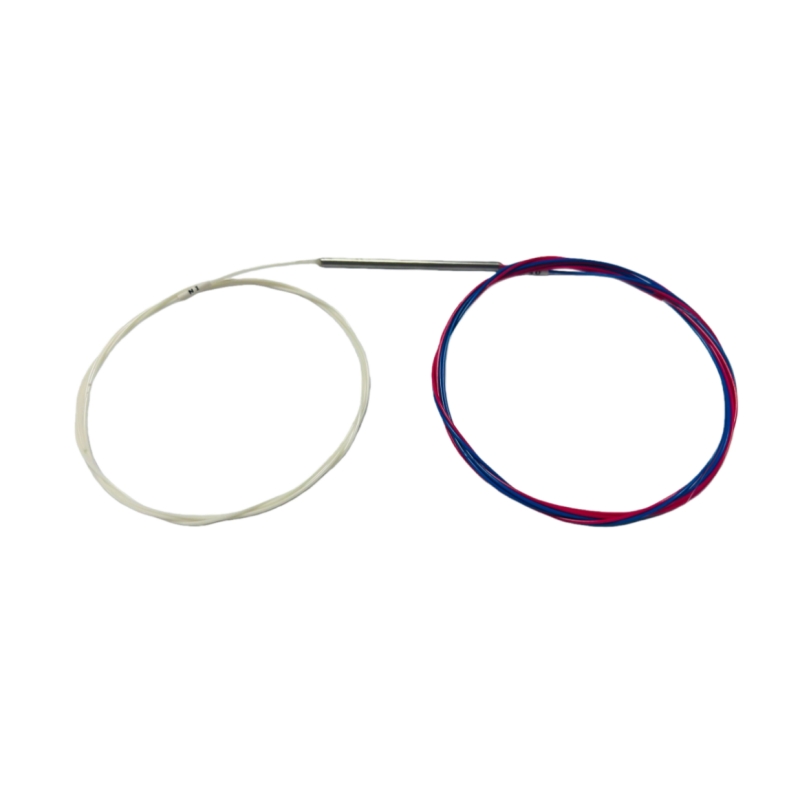

Mini Tube Standard Cassette |
FBTM FBTS |
5/95 10/90 15/85 20/80 25/75 30/70 35/65 40/60 45/55 50/50 |
2.0mm Yellow 3.0mm Yellow |
/2.0
/3.0 |
1 meter 1.5 meters 2 meters |
/1m /1.5m /2m |
SC/UPC SC/APC LC/UPC LC/APC ST/APC FC/APC |
SCU SCA LCU LCA STA FCA |
