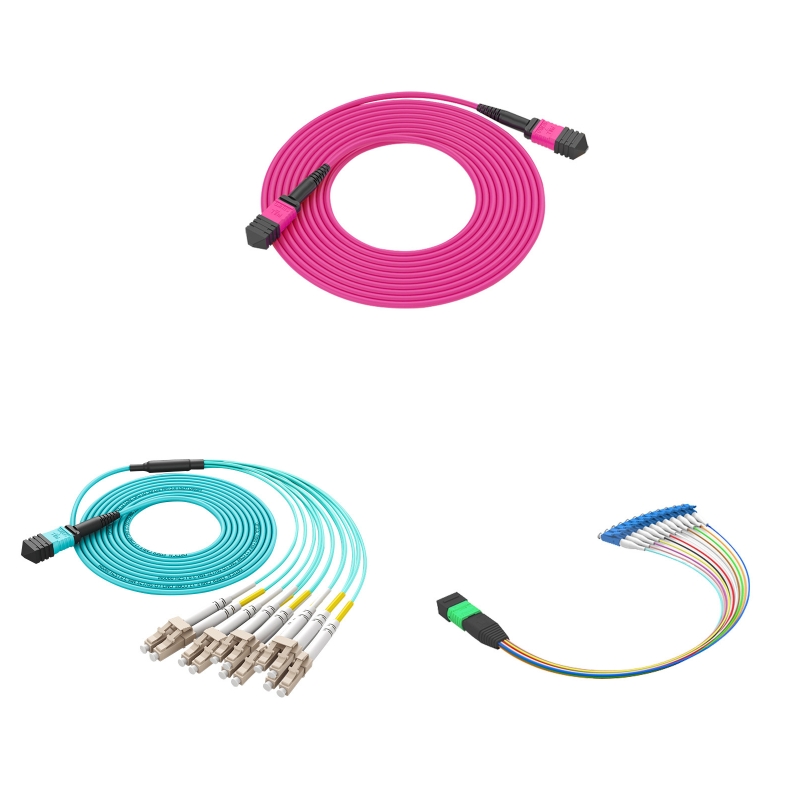

Application
Telecommunication networks
Data centers
LAN Networks
Connections between patch panels and boxes
Feature
In accordance with international standard
Standard and low insertion loss available to choose
3.0mm mini size and small bend radius suits for high density network
Fully custom-made with options on connectors, polarity, fiber mode and count, cable jacket and length
Technical Specification
|
Fiber Mode |
OS2 |
OM3 |
OM4 |
|
|

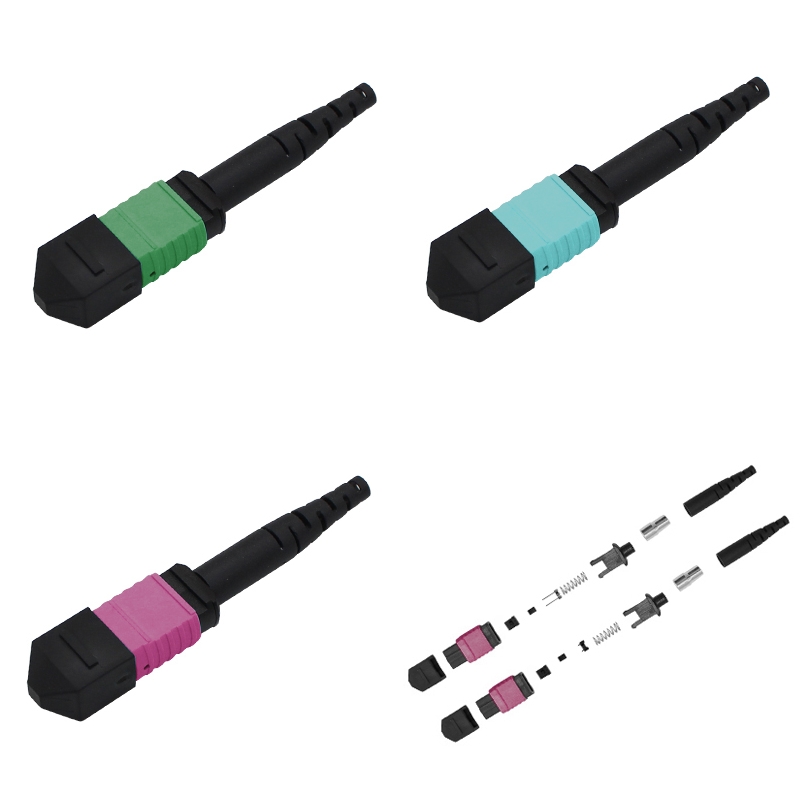

MPO Connector Insertion Loss |
Standard |
¡Ü0.75dB |
¡Ü0.6dB |
|
|
Ultra-low |
¡Ü0.35dB |
¡Ü0.35dB |
||
|
MPO Connector Return Loss |
¡Ý60dB (APC) |
¡Ý20dB |
||
|
SC, LC Connector Insertion Loss |
¡Ü0.3dB |
|||
|
SC, LC Connector Return Loss |
¡Ý50dB |
¡Ý30dB |
||
|
Connector Durability |
500 Times |
|||
|
Cable Outside Diameter |
3.0mm |
|||
|
Cable Color |
Yellow (SM) Aqua(OM3) Purple(OM4) |
|||
|
Bare Fiber Color |
Blue, Orange, Green, Brown, Gray, White Red, Black, Yellow, Purple, Pink, Aqua |
|||
|
Max Tensile Strength |
80N (Long Term) 150 (Short Term) |
|||
|
Min. Bend Radius |
10D (Static) 20D (Dynamic) |
|||
|
Operating Temperature |
-10~+60¡æ (14~140¨H) |
|||
Ordering Information

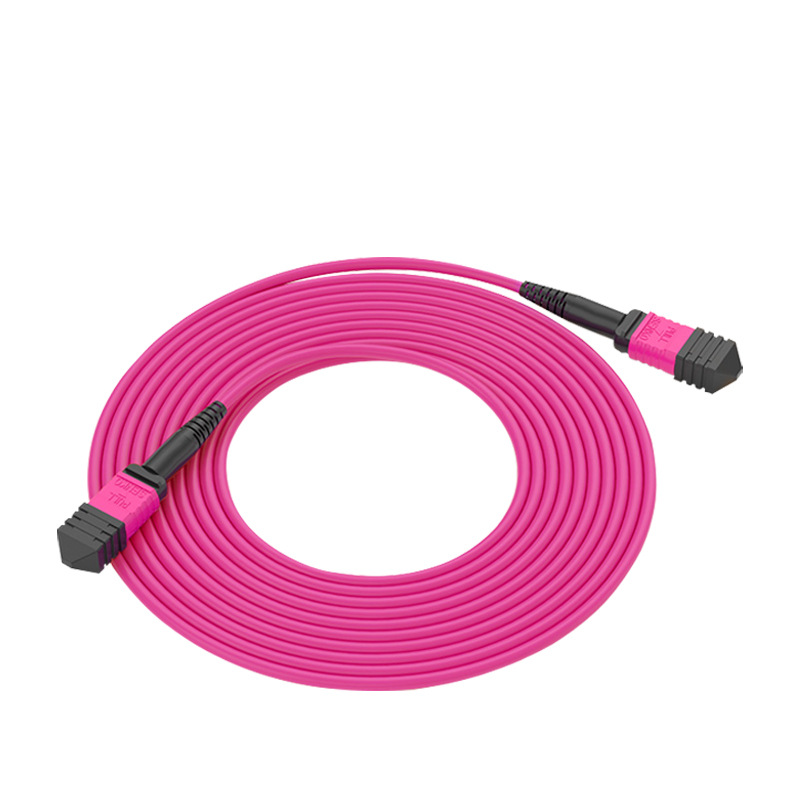

MPO Patch Cable
|
MPF |
MPF |
SL |
B |
M3 |
12 |
H |
3 |
||||||||
|
Connector A |
Connector B |
Insertion Loss (MPO) |
Polarity |
Fiber Mode |
Fiber Count |
Cable Jacket |
Cable Length |
||||||||
|
MPO Male
MPO Female |
MPM
MPF |
MPO Male
MPO Female |
MPM
MPF |
Standard
Low |
S
L |
Type A Type B Type C |
A
B
C |
G657A1 OM3 OM4 |
A1 M3 M4 |
8 FO 12 FO 16 FO 24 FO |
8
12
16
24 |
LSZH OFNP OFNR |
H P R |
1m 2m 3m 5m 10m 15m 20m |
1 2 3 5 10 15 20 |

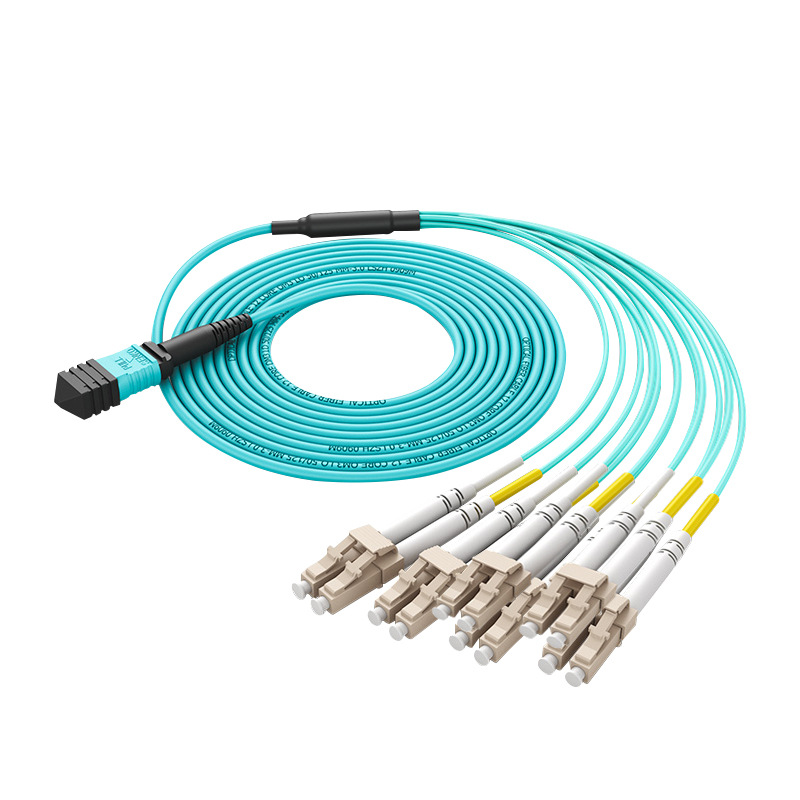

MPO Breakout Harness Cable
|
MPF |
LCU |
SL |
C |
M3 |
12 |
H |
3 |
||||||||
|
Connector A |
Connector B |
Insertion Loss (MPO) |
Polarity |
Fiber Mode |
Fiber Count |
Cable Jacket |
Cable Length |
||||||||
|
MPO Male
MPO Female |
MPM
MPF |
SC/UPC SC/APC LC/UPC LC/APC
|
SCU SCA LCU LCA
|
Standard
Low |
S
L |
Type A Type B Type C |
A
B
C |
G657A1 OM3 OM4 |
A1 M3 M4 |
8 FO 12 FO 24 FO 48 FO |
8
12
24
48 |
LSZH OFNP OFNR |
H P R |
1m 2m 3m 5m 10m 15m 20m |
1 2 3 5 10 15 20 |

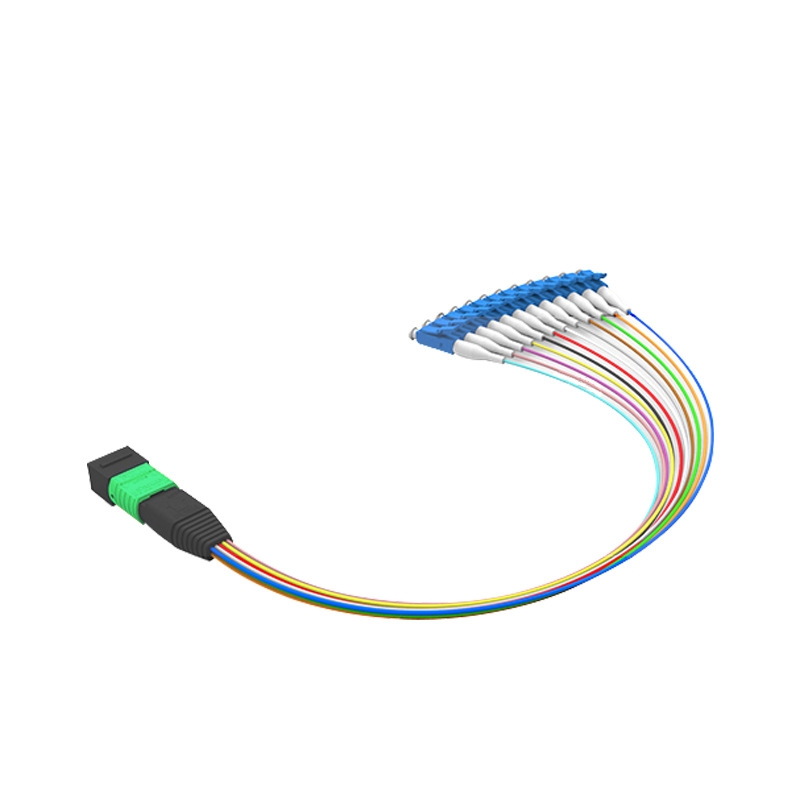

MPO Fan Out Pigtail Cable
|
MPF |
LCU |
SL |
C |
M3 |
12 |
H |
0.3 |
||||||||
|
Connector A |
Connector B |
Insertion Loss (MPO) |
Polarity |
Fiber Mode |
Fiber Count |
Cable Jacket |
Cable Length |
||||||||
|
MPO Male
MPO Female |
MPM
MPF |
LCUPC
|
LCU
|
Standard
Low |
S
L |
Type A Type B Type C |
A
B
C |
G657A1 OM3 OM4 |
A1 M3 M4 |
12 FO
|
12
|
LSZH
|
H
|
0.3m |
0.3 |
