Product Overview

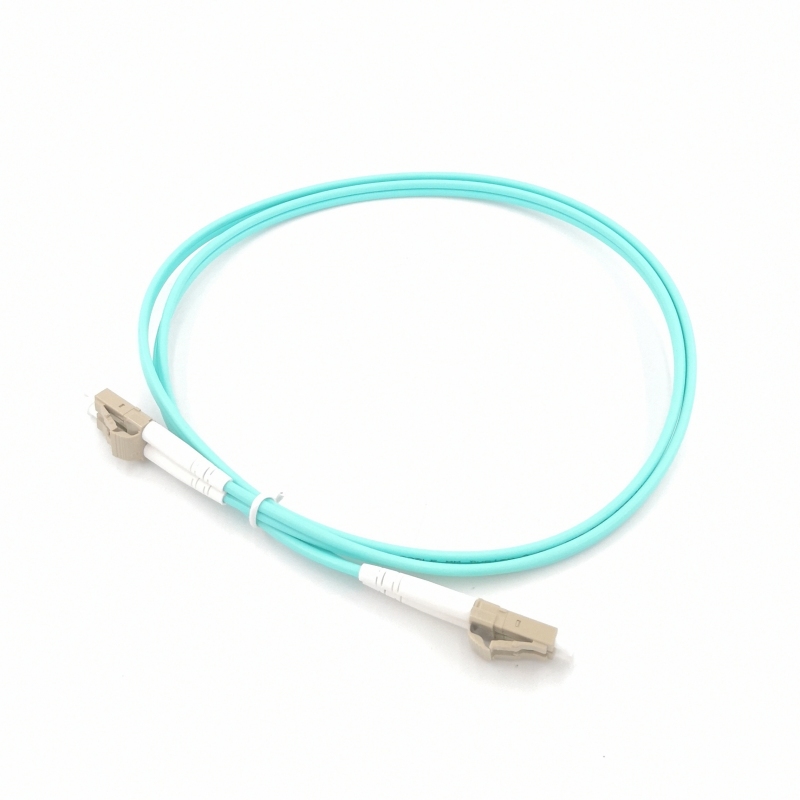

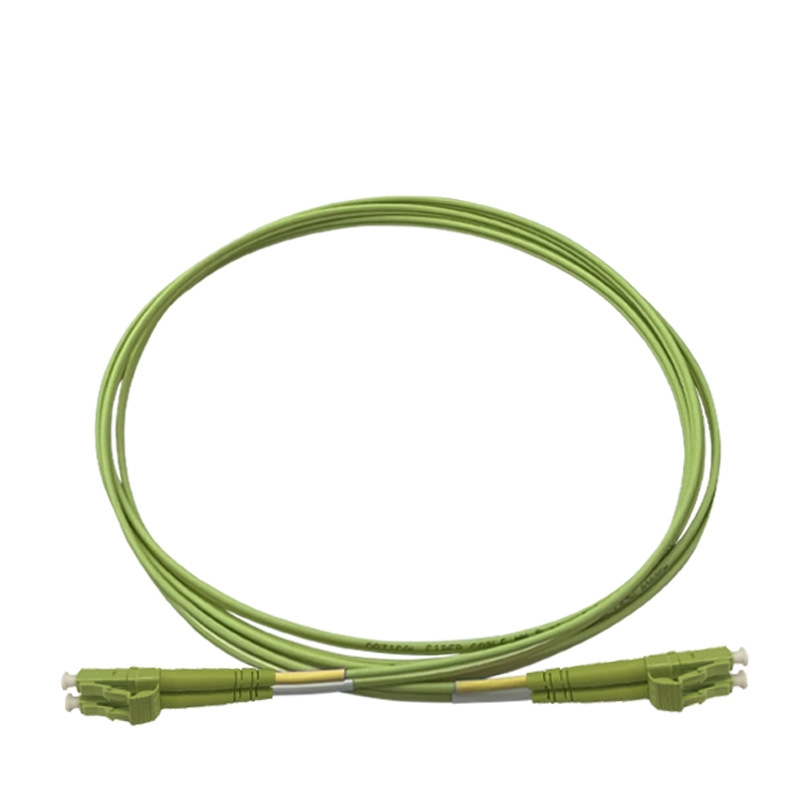

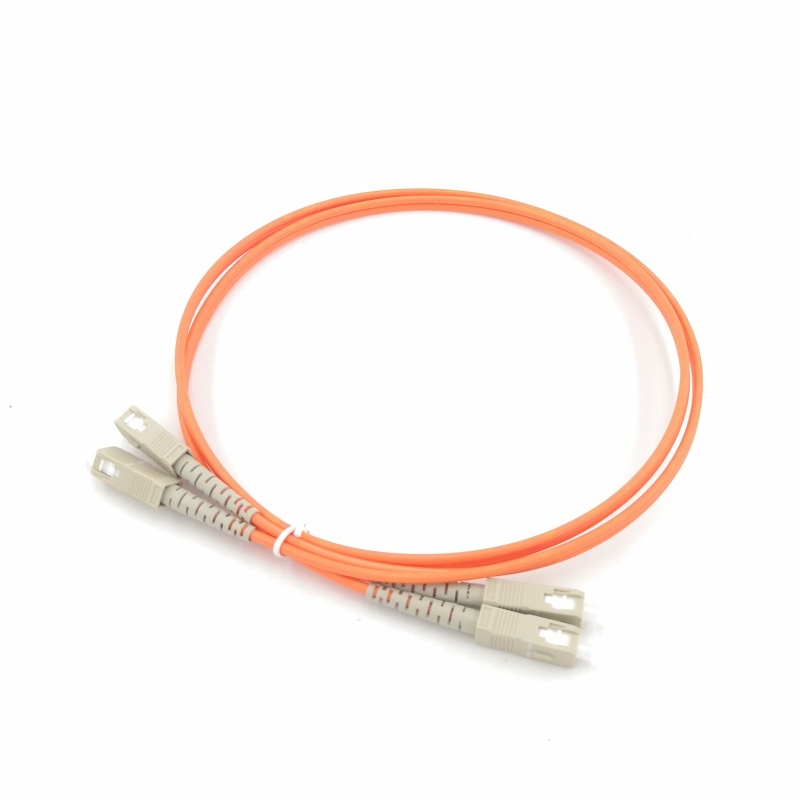

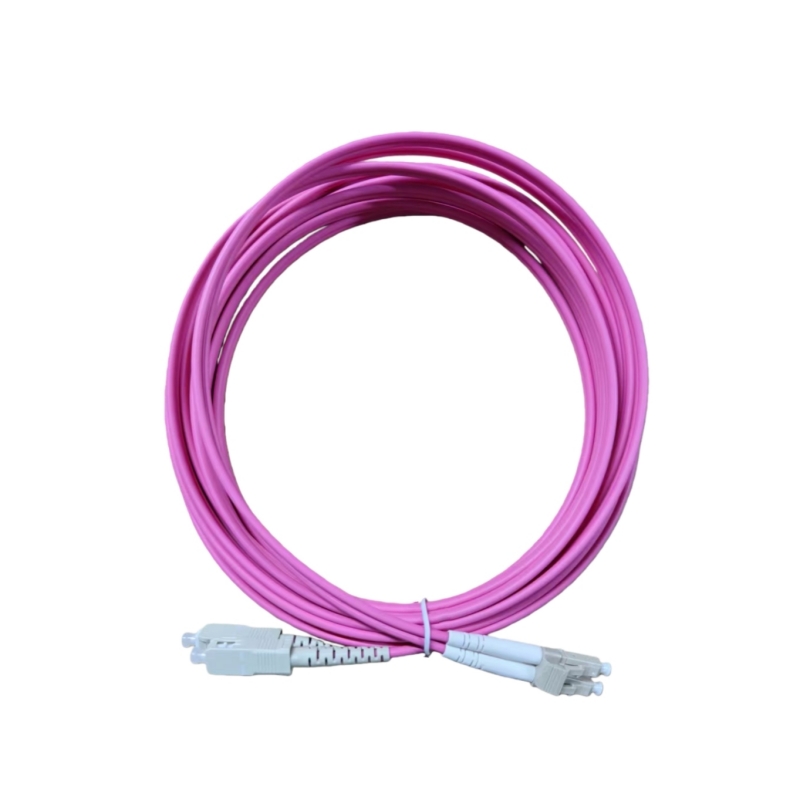

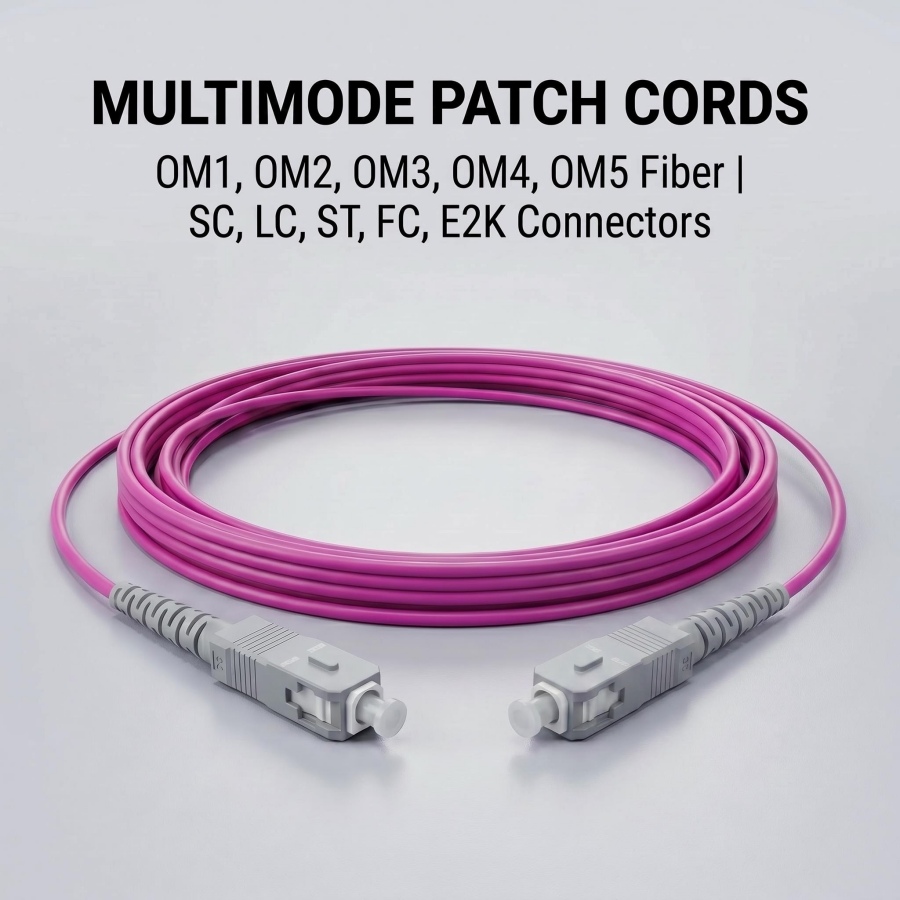

Multi-mode fiber patch cords are pre-terminated optical jumper assemblies specially designed for indoor short-distance high-speed transmission scenarios, including enterprise LAN, data center cabling, campus network and industrial optical interconnection systems. Adopting high-precision ceramic ferrule and advanced polishing technology, the patch cords feature low insertion loss, stable transmission performance and excellent repeatability. Multiple fiber grades, connector types, cable structures and jacket materials are optional, with customizable lengths to meet diverse on-site wiring requirements.
Key Features
- Optional Fiber Core: OM1, OM2, OM3, OM4, OM5 multi-mode fiber

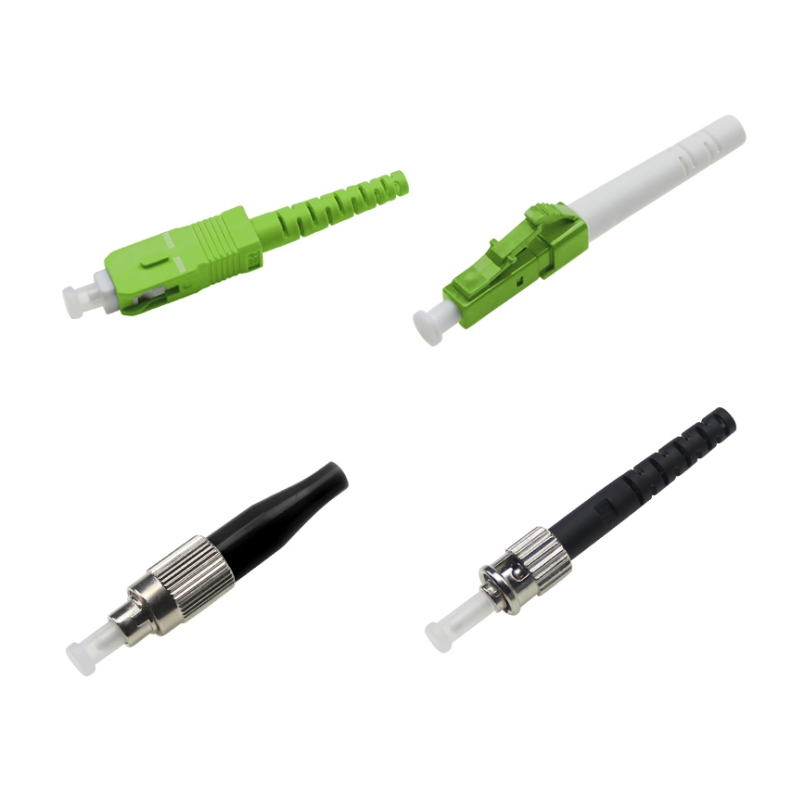

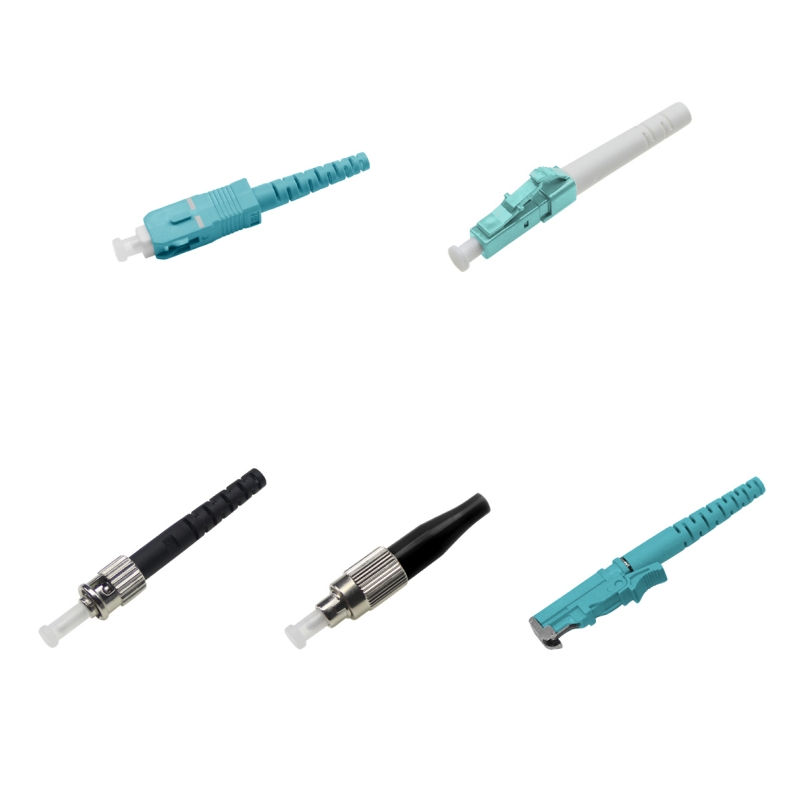

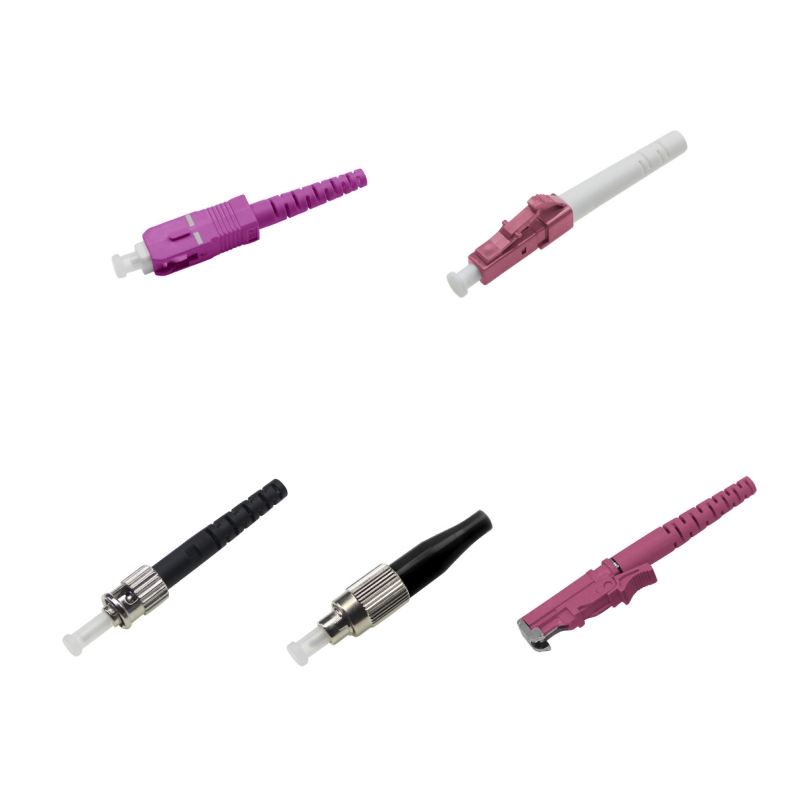

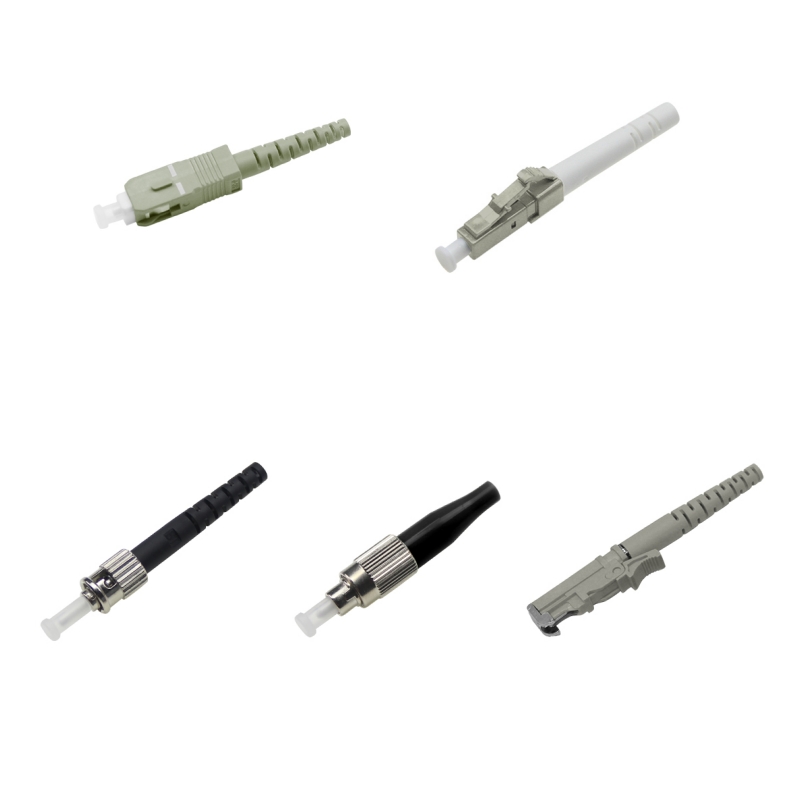

- Optional Connector: SC, LC, ST, FC, E2K (UPC polishing standard)
- Low insertion loss and good interchangeability
- Simplex or duplex configuration available
- Optional PVC or LSZH low-smoke zero-halogen outer jacket
- Standard OD: 2.0mm / 3.0mm; customized cable sizes supported
- Fully tested before delivery; compliant with IEC 61300 & RoHS 2.0
Optical Specifications
- Insertion Loss: ¡Ü0.30 dB (Max)
- Return Loss: ¡Ý30 dB (Multi-mode standard)
- Connector Durability: ¡Ü0.2 dB IL variation after 500 mating cycles
Mechanical & Environmental Specifications

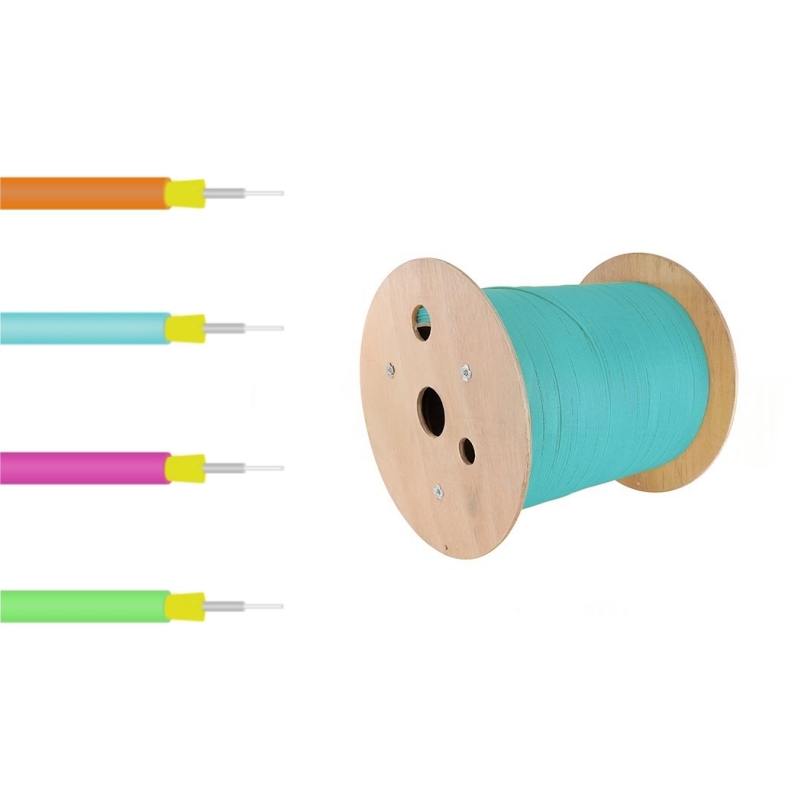

- Fiber Dimension: 62.5/125¦Ìm (OM1), 50/125¦Ìm (OM2/OM3/OM4/OM5)
- Operating Temperature: -40¡ãC ~ +75¡ãC
- Storage Temperature: -40¡ãC ~ +85¡ãC
- Minimum Bend Radius: 20mm (dynamic); 10mm (static for laser-optimized OM3/OM4/OM5)
Typical Applications
- Data center high-speed cabinet interconnection
- Enterprise LAN, campus and building integrated wiring
- Industrial control and indoor short-distance optical transmission
- Switch, server and optical equipment jumpers connection
Order & Packaging
- Standard length: 1m, 2m, 3m, 5m, 10m; custom lengths acceptable
- Standard package: Each cord packed with plastic bag; custom labeling available
- Fast lead time for standard and small-batch customized orders
