Application
Fiber Optic Polishing
Feature
Lightweight design, suitable for field polishing
Available for 3 or 4 pcs connectors at one time

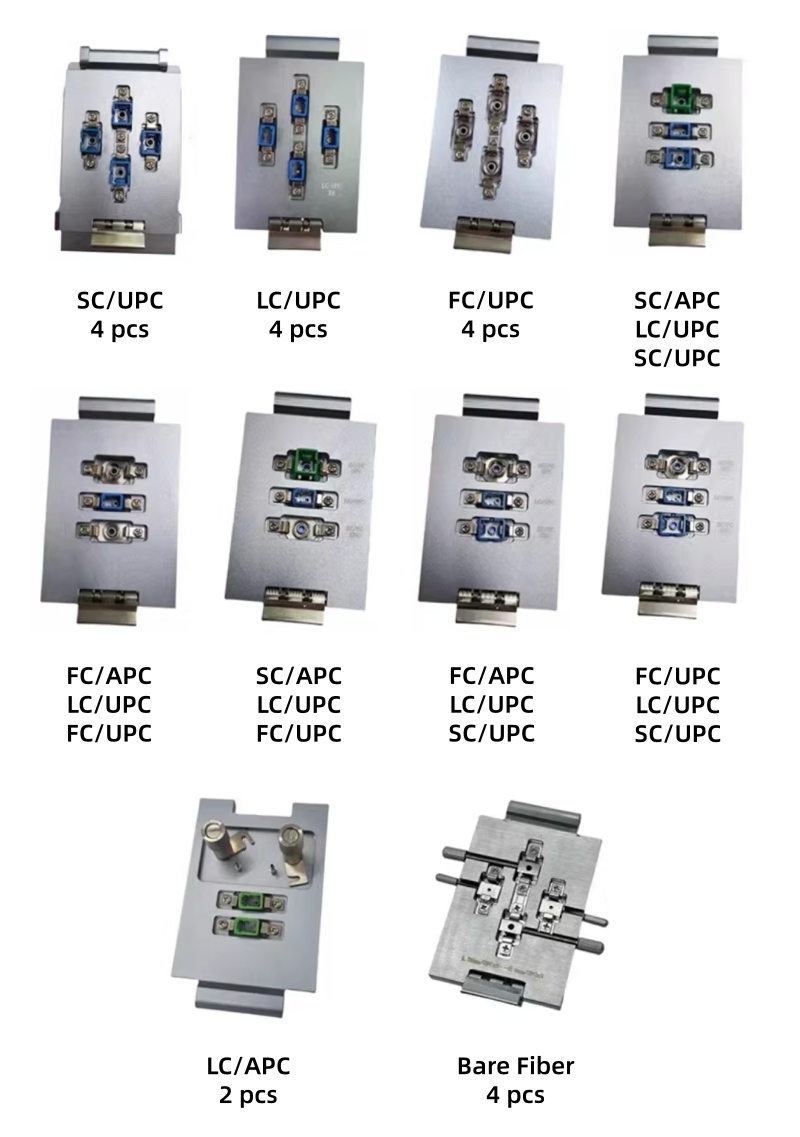

Various connector jigs available
Technical Information
|

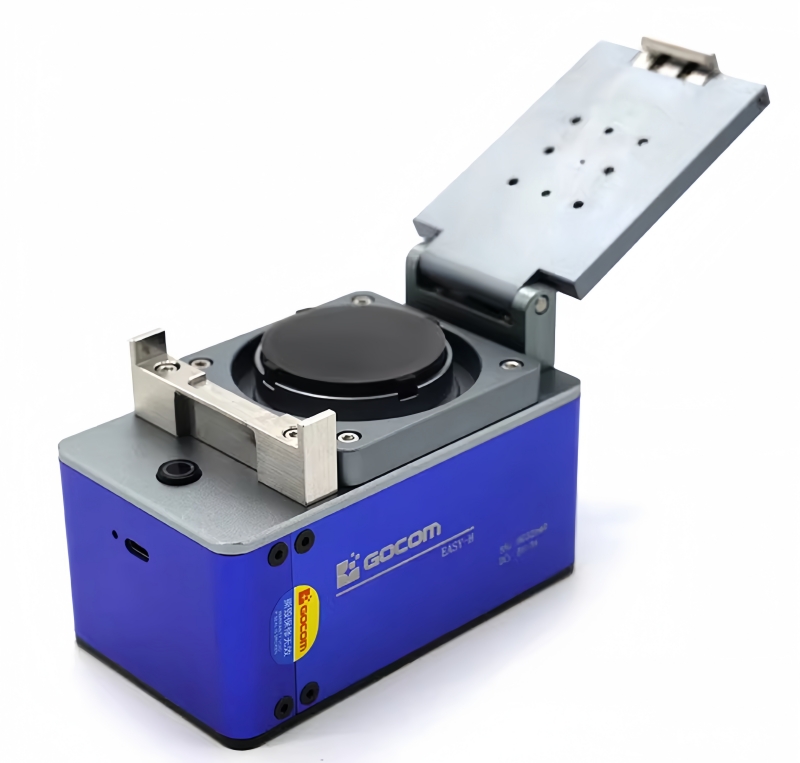

Model |
Easy-H |
|
Connectors Application |
SC, LC, ST, FC, SMA905, bare fiber, plastic fiber |
|
Average Insertion Loss |
¡Ü0.3dB(depends on connector quality) |
|
Average Return Loss |
¡Ý45dB(depends on connector quality) |
|
Polishing Mode |
Step by step |
|
Single-step Polishing Time |
30s |
|
Motor Speed |
180 RPM |
|
Polishing Film Duration |
30 times |
|
Machine Dimension |
120*70*80mm |
|
Machine Net Weight |
1.1kg |
|
Built-in Battery |
2000mAh 11.1V |
|
DC Power Input |
DC 5V-3A |
|
Operating Temperature |
-10~+50¡æ |
Application
Fiber Optic Polishing
Feature
Automatic design, no need to change polishing film step by step
Available for one connector at one time

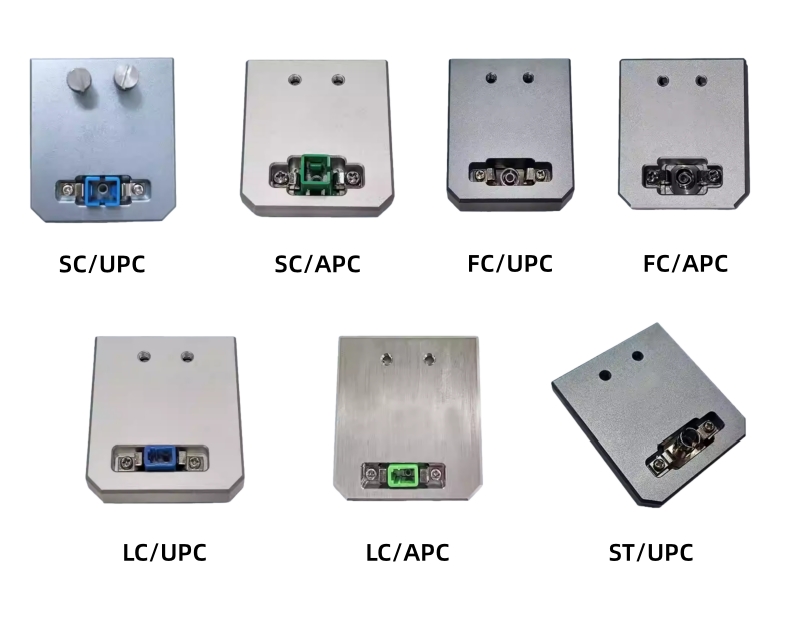

Various connector jigs available
Technical Information
|

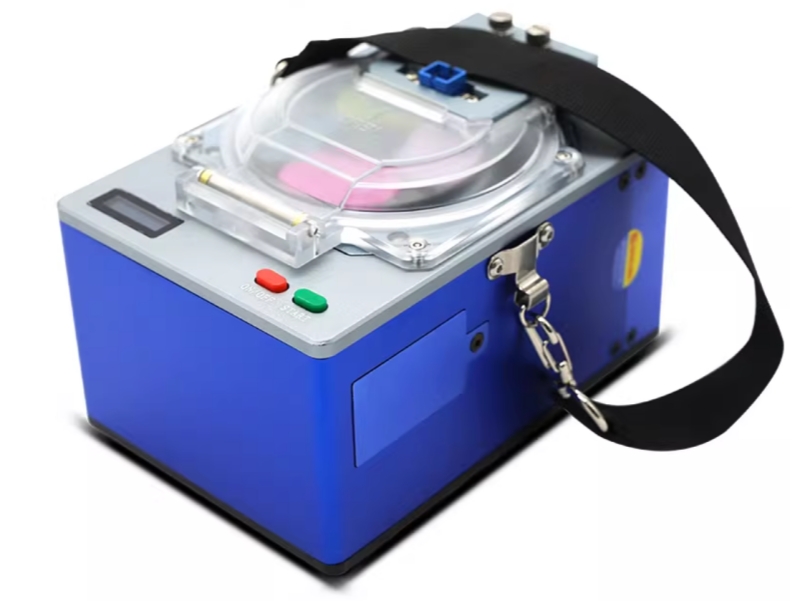

Model |

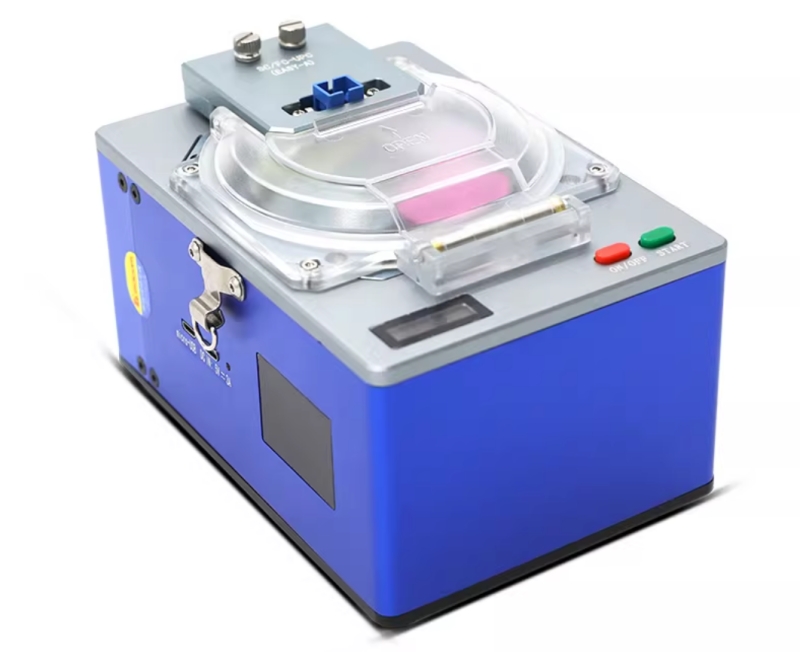

Easy-A |
|
Connectors Application |
SC, LC, ST, FC |
|
Average Insertion Loss |
¡Ü0.3dB(depends on connector quality) |
|
Average Return Loss |
¡Ý45dB(depends on connector quality) |
|
Polishing Mode |
Automatic |
|
Total Polishing Time |
80s(UPC), 85s(APC) |
|
Motor Speed |
180 RPM |
|
Pressure Source |
Central pressurization |
|
Polishing Film Duration |
30 times |
|

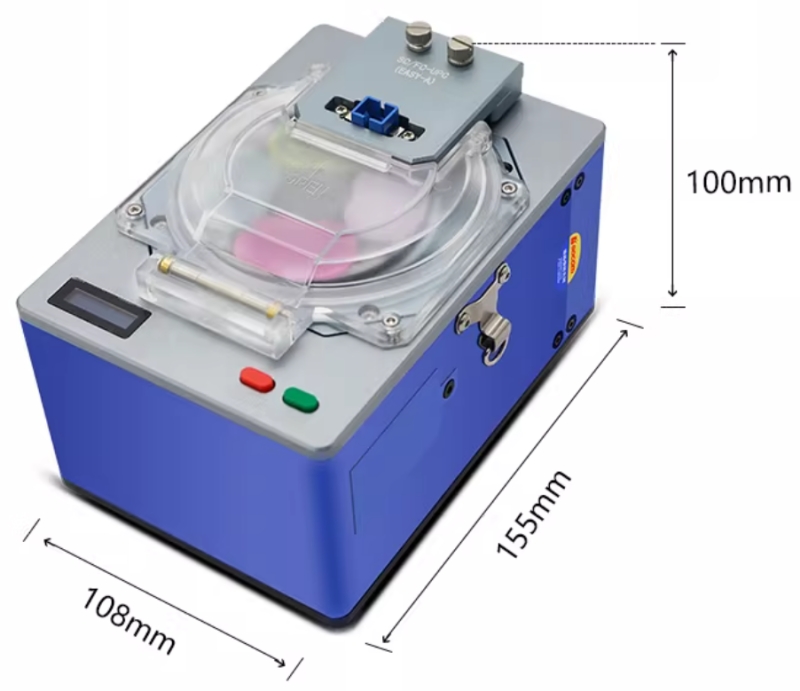

Machine Dimension |
155*108*100mm |
|
Machine Net Weight |
2kg |
|
Built-in Battery |
2000mAh 11.1V |
|
DC Power Input |
DC 5V-3A |
|
Operating Temperature |
-10~+50¡æ |
