Unit Price: USD36~USD46

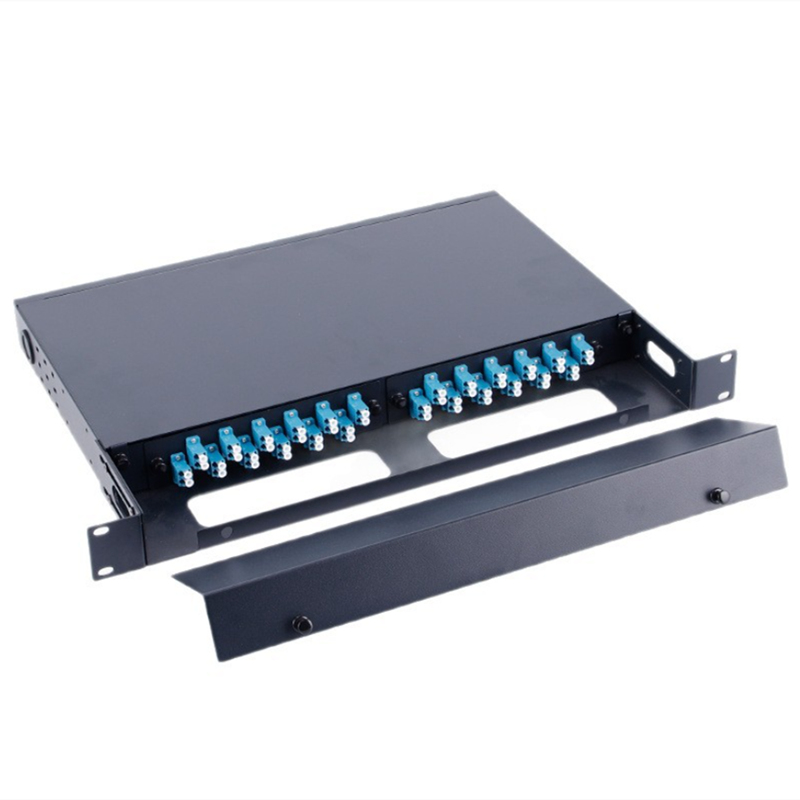

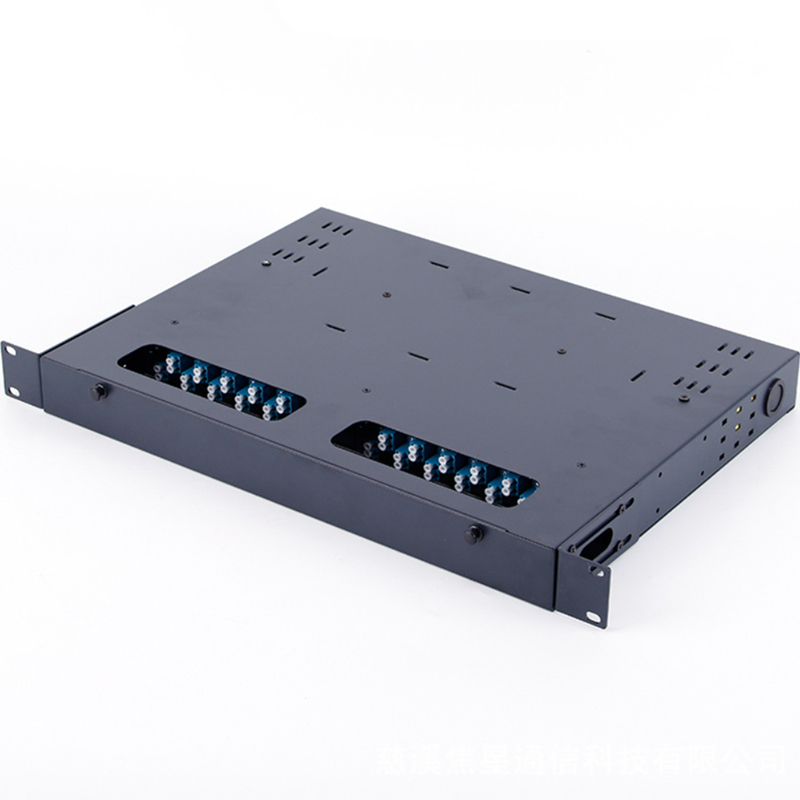

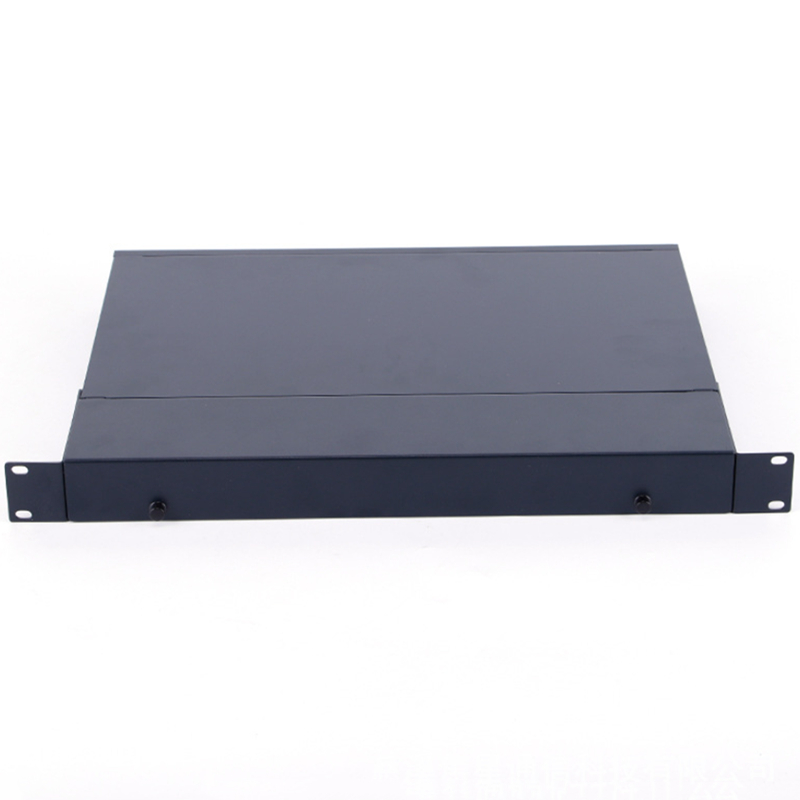

Model: 1U Fixed Panel, 48 LC/UPC Fibers Full Loaded, G652D Single Mode
Part Number: LCUDX2D48P
Feature
Standard 1U Design, Suitable for EIA 19¡å Rack
Made of Thickness 1.1mm Cold-rolled Steel Sheet and Powder Coated

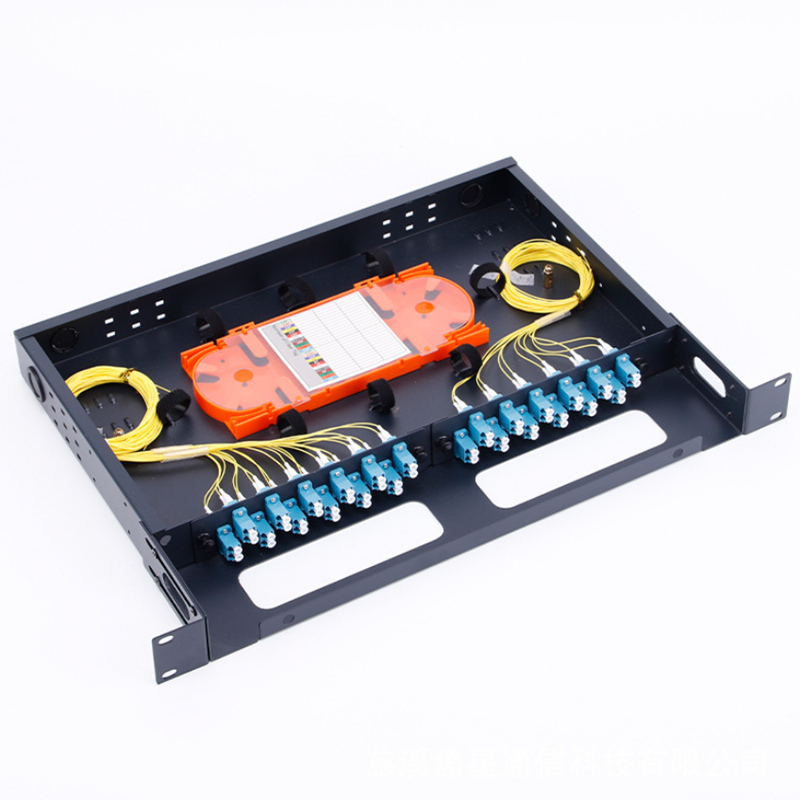

Integrated with Cable Routing Design and Built-in Removable Dust Shield

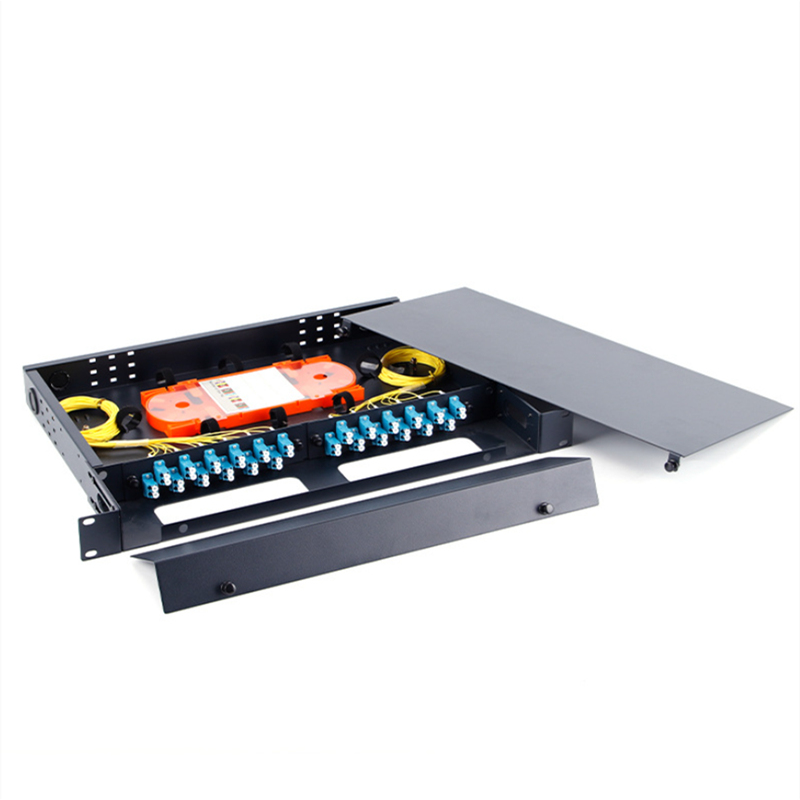

Toolless Removable Cover allows Complete Accessibility to the Panel
Modular Adaptor Plate for Easy Organization, up to 48 Fibers (LC)
2 Rear and 2 Side Cable Entries
Technical Specification
|
Product Type |
Fixed Panel with Removable Cover |
|
Mounting Type |
Rack Mount |
|
Dimensions |
483*295*44mm |
|
Adaptor Plates |
2 for Each Panel |
|
Adaptor Type |
SC, LC, ST, FC, E2000 |
|
Fiber Capacity |
Up to 48 Fibers (LC) |
|
Splice Tray |
24 Fibers Each |
Ordering Information
|
LC |
U |
DX |
2D |
48 |
P |
||||||
|
Adaptor Type |
Polish Type |
Mode |
Fiber Type |
Fibers |
Configuration |
||||||
|
SC LC ST FC E2000 |
SC LC ST FC E2 |
UPC
APC
N/A |
U
A
N |
Simplex
Duplex |
SX
DX |
G652D G657A1 OM1 OM2 OM3 OM4 OM5 |
2D A1 M1 M2 M3 M4 M5 |
24
48 |
24
48 |
*Empty
*Adaptor
*Pigtail |
E
A
P |
*Empty: Standard Accessories
*Adaptor: Standard Accessories, Adaptors
*Pigtail: Standard Accessories, Adaptors, Pigtails
