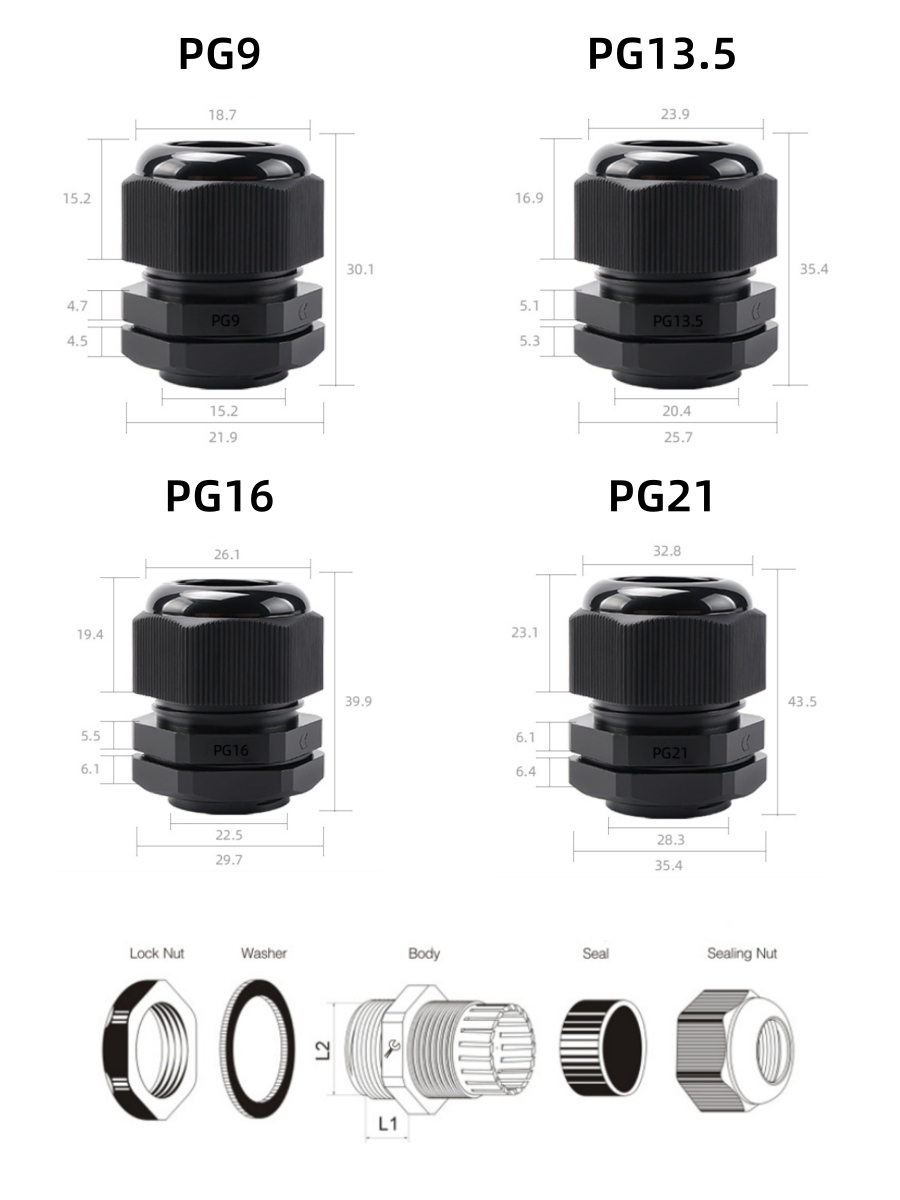

Technical Specification
|
Product type |
Cable Gland |
|
Application |
Cabinets, Racks |
|
Material |
PA66 |
|
Color |
Black, Gray |
|
Waterproof Rating |
IP68 |
|
Working Temperature |
-30~+100¡æ |
Ordering Information
|
Model |
Cable Range (mm) |
Thread O.D. L2 (mm) |
Thread Length L1 (mm) |
Spanner Size (mm) |
|
PG9 |
4~8 |
15.2 |
9 |
22/19 |
|
PG13.5 |
6~11 |
20.4 |
10 |
27/24 |
|
PG16 |
10~13 |
22.5 |
10 |
30/27 |
|
PG21 |
13~18 |
28.3 |
12 |
35/33 |

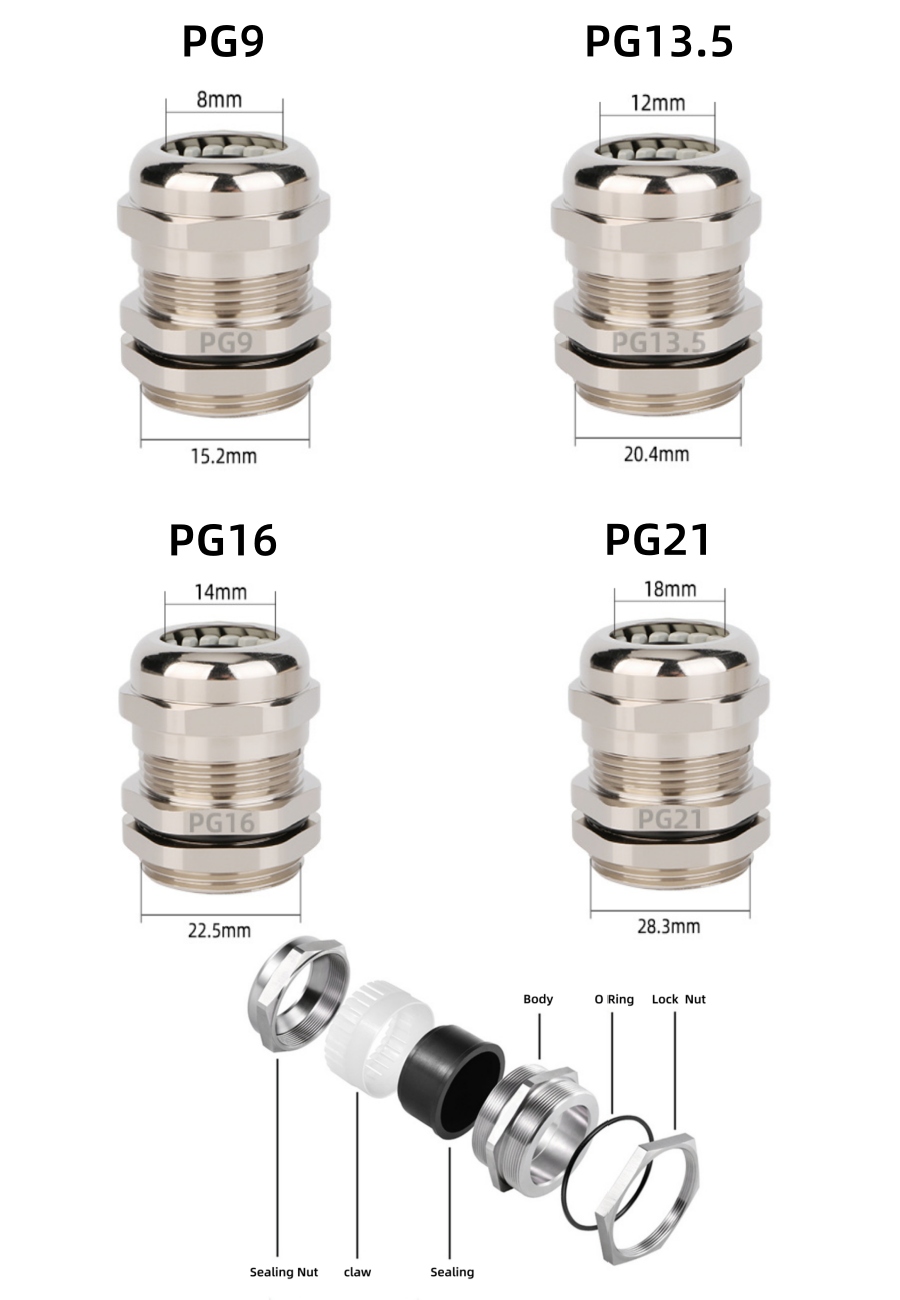

Technical Specification
|
Product type |
Cable Gland |
|
Application |
Cabinets, Racks |
|
Material |
Nickel plated brass |
|
Waterproof Rating |
IP68 |
|
Working Temperature |
-30~+100¡æ |
Ordering Information
|
Model |
Cable Range (mm) |
Thread O.D. L2 (mm) |
Thread Length L1 (mm) |
Spanner Size (mm) |
|
PG9 |
4~8 |
15.2 |
8 |
17 |
|
2~6 |
||||
|
PG13.5 |
6~12 |
20.4 |
8 |
22 |
|
5~9 |
||||
|
PG16 |
10~14 |
22.5 |
8 |
24 |
|
6~12 |
||||
|
PG21 |
13~18 |
28.3 |
9 |
30 |

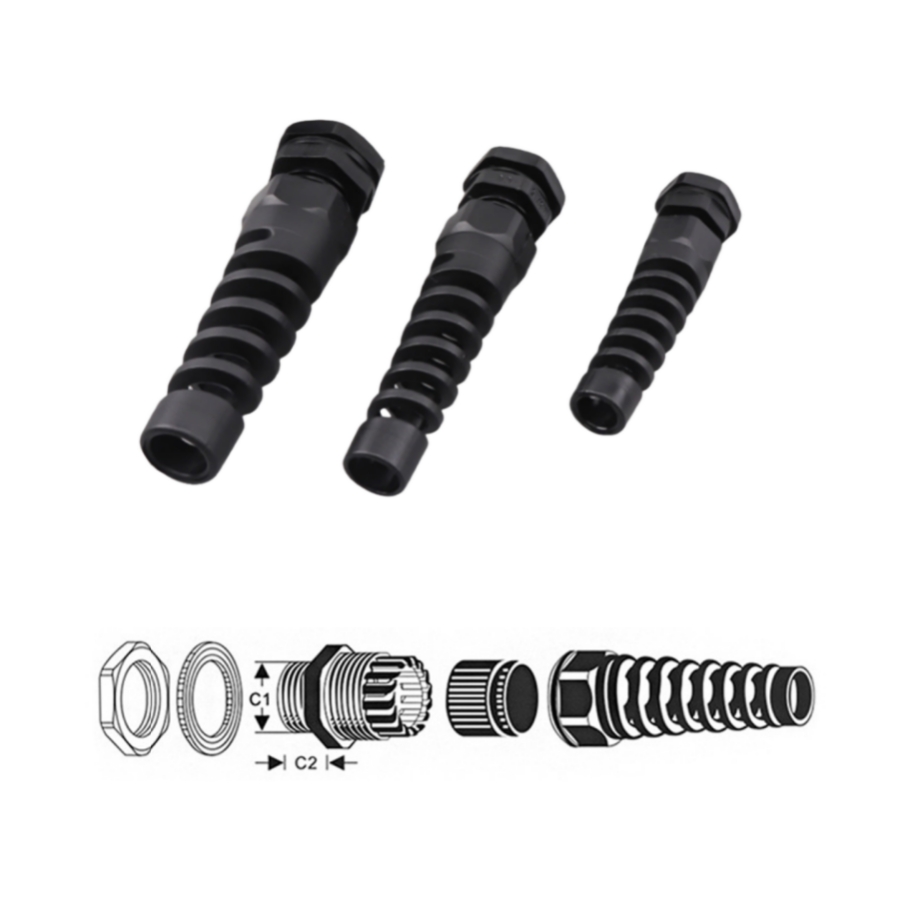

Technical Specification
|
Product type |
Tailed Cable Gland |
|
Application |
Cabinets, Racks |
|
Material |
PA66 |
|
Color |
Black, Gray |
|
Waterproof Rating |
IP68 |
|
Working Temperature |
-30~+100¡æ |
Ordering Information
|
Model |
Cable Range (mm) |
Thread O.D. C1 (mm) |
Thread Length C2 (mm) |
Spanner Size (mm) |
|
PG9 |
4~8 |
15.2 |
8 |
19 |
|
2~6 |
||||
|
PG13.5 |
6~12 |
20.4 |
9 |
24 |
|
5~9 |
||||
|
PG16 |
10~14 |
22.5 |
10 |
27 |
|
7~12 |
||||
|
PG21 |
13~18 |
28.3 |
10 |
33 |
Technical Specification
|
Product type |
Multi-port Cable Gland |
|
Application |
Cabinets, Racks |
|
Material |
PA66 |
|
Color |
Black, Gray |
|
Waterproof Rating |
IP68 |
|
Working Temperature |
-30~+100¡æ |
Ordering Information
|
Model |
Ports |
Cable Range (mm) |
Thread O.D. C1 (mm) |
Thread Length C2 (mm) |
Spanner Size (mm) |
|
PG9 |
2 |
1.2~3 |
15.2 |
8.5 |
22/19 |
|
3 |
1~2.6 |
||||
|
4 |
1~2.3 |
||||
|
PG13.5 |
2 |
2.5~5 |
20.4 |
10 |
27/24 |
|
3 |
2~5 |
||||
|
4 |
1.5~4 |
||||
|
PG16 |
2 |
3~6 |
22.5 |
10.8 |
30/27 |
|
3 |
2~5 |
||||
|
4 |
1~2.5 |
||||
|
1~3.5 |
|||||
|
2~4.5 |
|||||
|
5 |
1~3 |
||||
|
PG21 |
2 |
3~6.5 |
28.3 |
12 |
36/33 |
|
4~8 |
|||||
|
5~9 |
|||||
|
3 |
2~5 |
||||
|
4~8 |
|||||
|
4 |
2~5 |
||||
|
3~6 |
|||||
|
3~7 |
|||||
|
4~8 |
|||||
|
5~9 |
|||||
|
5 |
3~6 |
||||
|
6 |
2~5.3 |
||||
|
7 |
2~4.3 |
||||
|
8 |
1.5~4 |
