Function Module:
-Identifier
Wavelength 800~1700nm

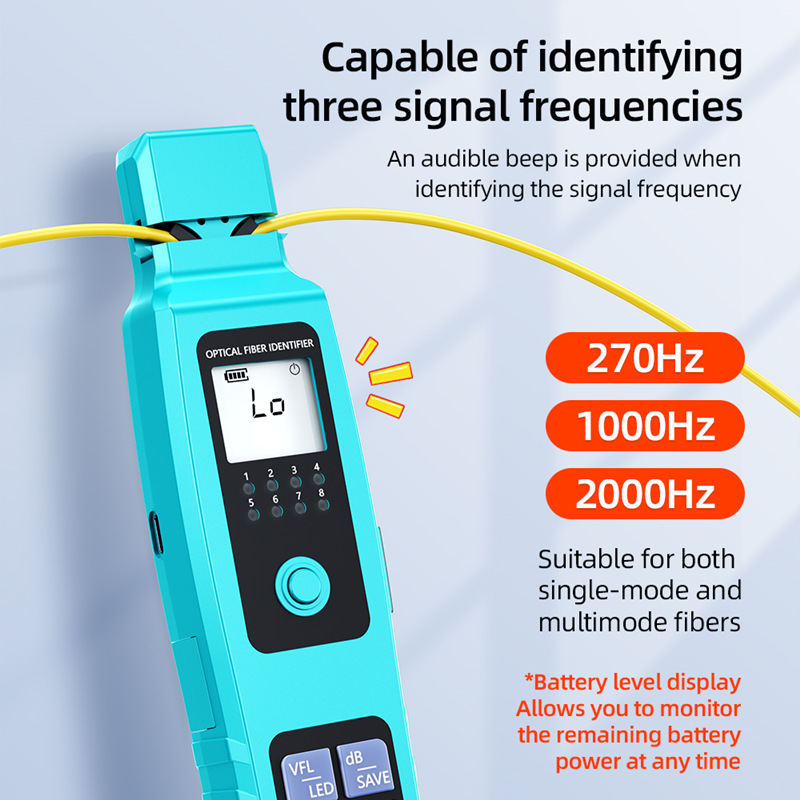

Frequency CW, 270Hz, 1000Hz, 2000Hz
Detector OD 1mm, InGaAs 2 pcs
Signal Direction On Display

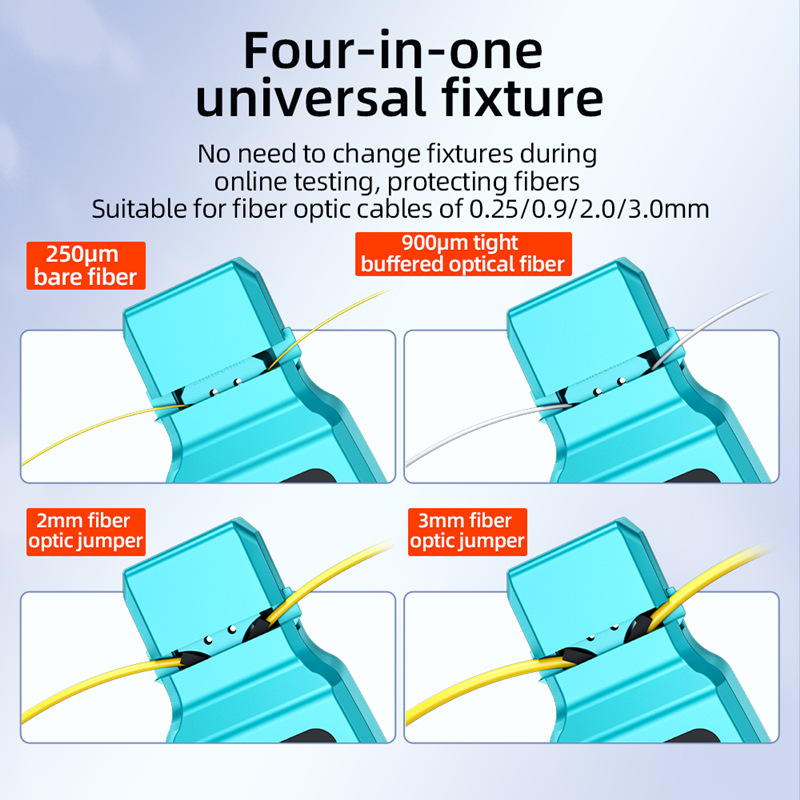

Applicable Cable 0.25mm, 0.9mm, 2.0mm,
3.0mm
Optical Power Measurement Range -40~+10dBm
-Optical Power Meter
Wavelength 850~1650nm
Testing Range -70~+10dBm, -50~+26dBm
-Visual Fault Locator
Wavelength 650nm, Power 30mw

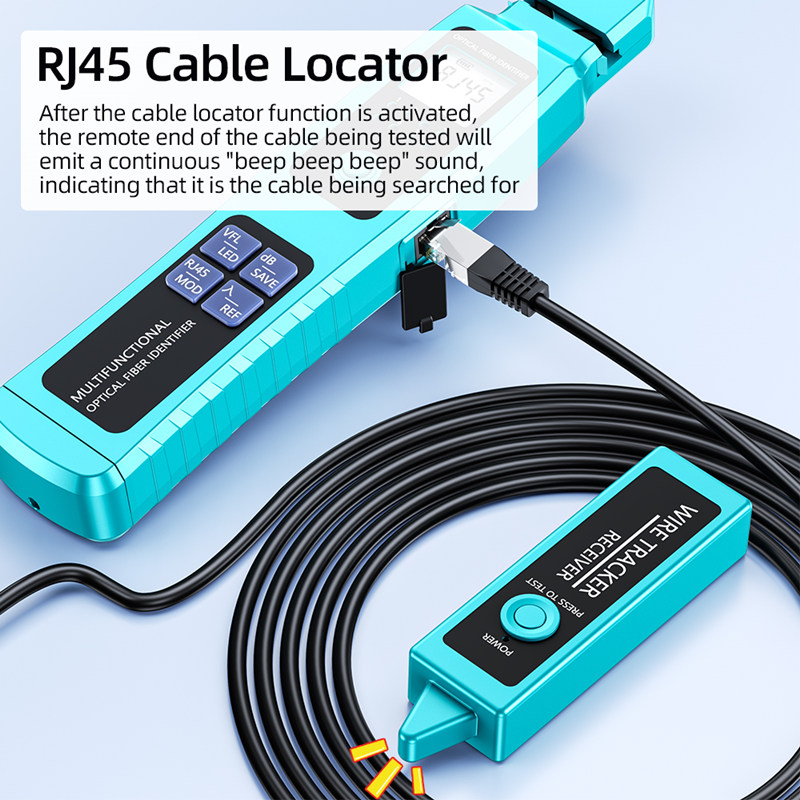

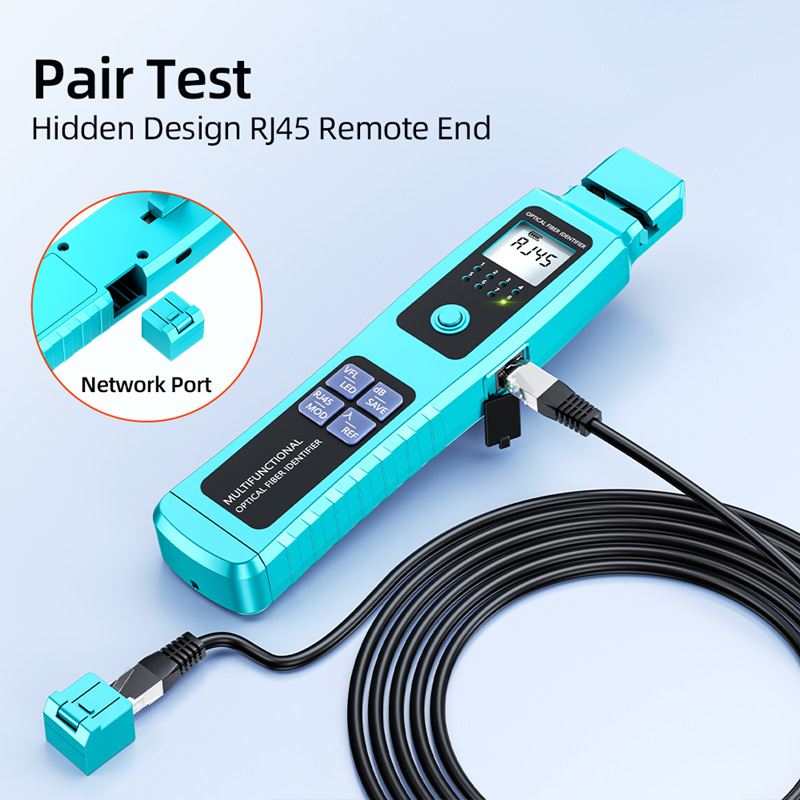

-RJ45 Connector Continuity Test
-LED Flashlight
General Information
-Power Supply 2*AA Battery, Built-in 3.7V
800mAh Lithium Battery
-Operating Temperature -10~+60¡æ
-Dimension 243*50*50mm
-Weight 177g
