Kit at a Glance

What the Kit Does

1 · Strip drop & fiber → 2 · Cleave → 3 · Clean → 4 · Terminate (connector / splice) → 5 · Verify

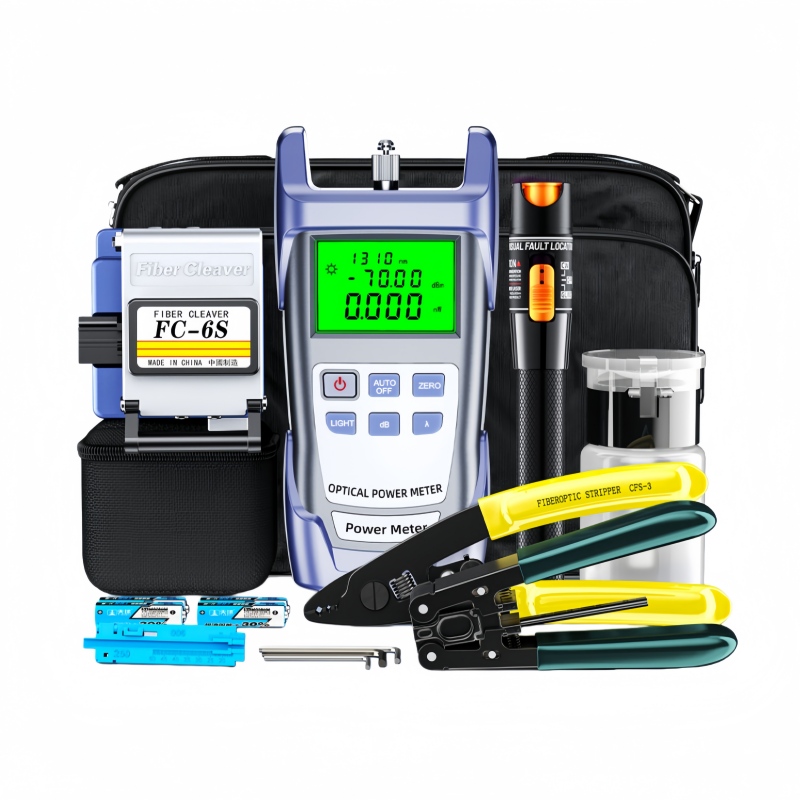

Standard Kit Contents

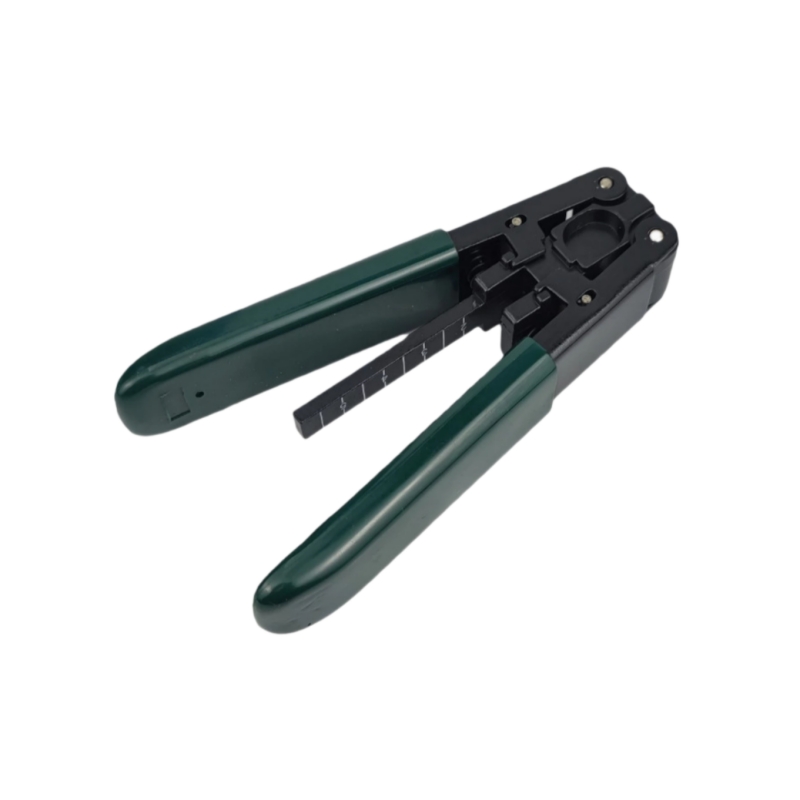

Flat drop cable slitter	Slits the jacket of 2.0×3.0 mm flat drop (steel or FRP strength members) without nicking the fibers; guide marks keep the prepared length consistent

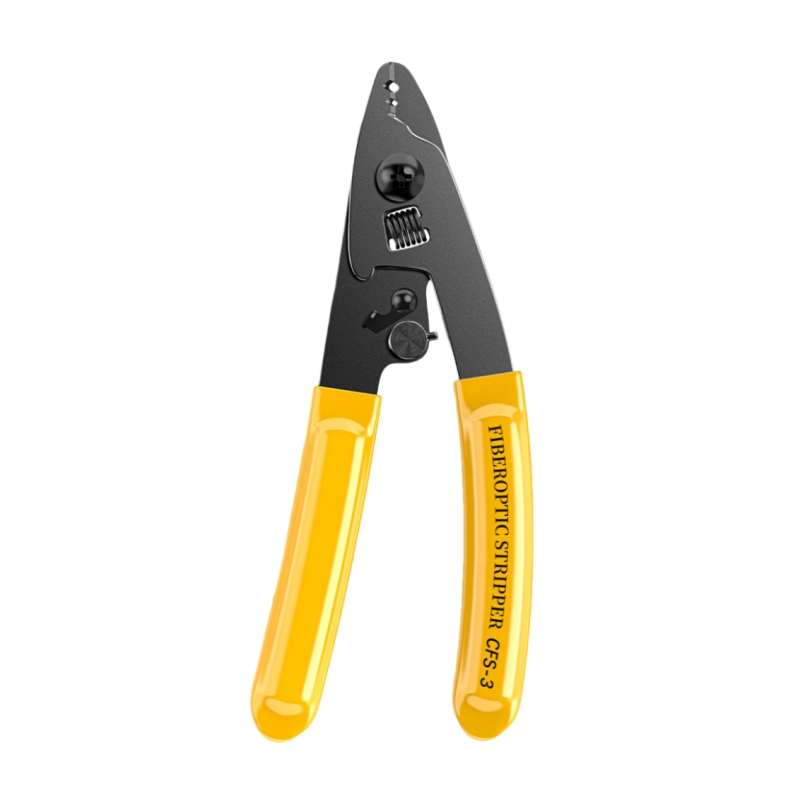

CFS-3 3-hole stripper	Factory-set notches for 250 µm coating, 900 µm tube and 2–3 mm jacket; no adjustment needed

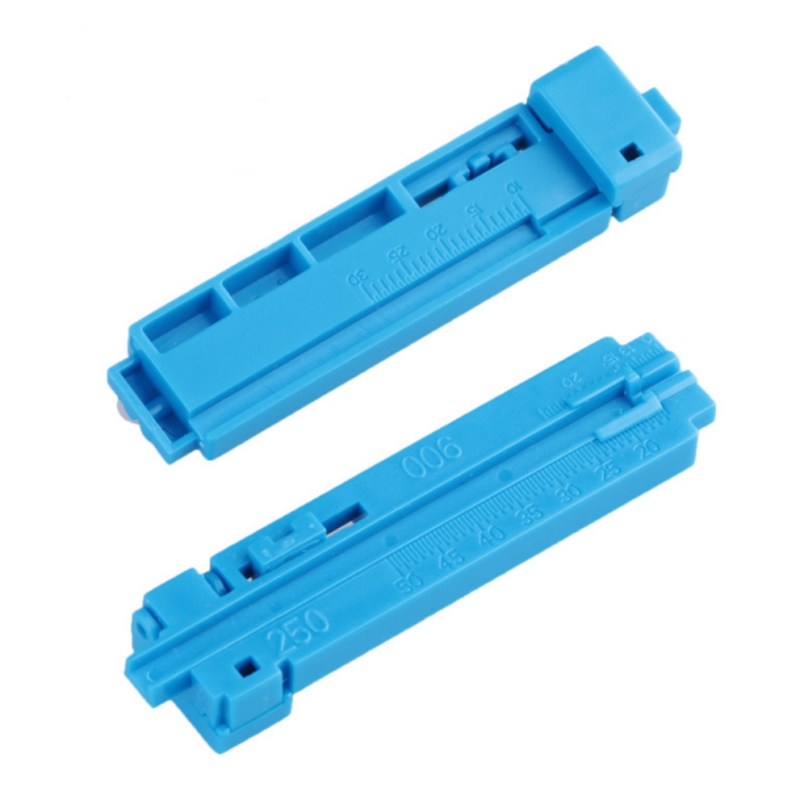

Fixed-length fiber guide	Presets coating stripping length (10–30 mm) and cleaver cutting length (20–50 mm) for repeatable terminations

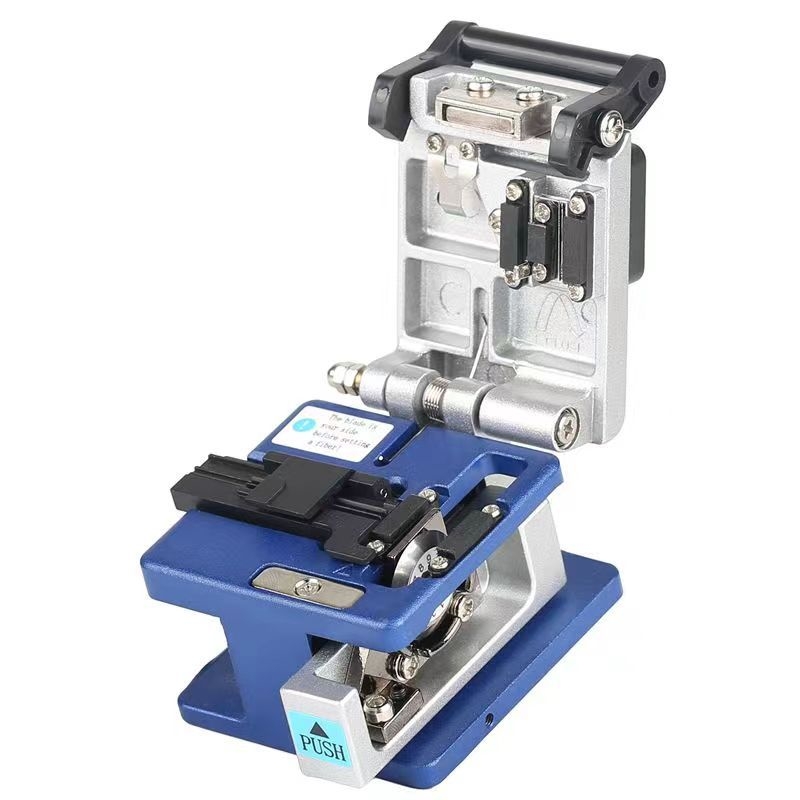

FC-6S precision cleaver	12-position blade, 36,000 cleaves; close lid and push the slide to cut, slide auto-returns on opening; new blade typical 0.5°, lifetime average 0.5–2.0°; holds 0.25 mm bare fiber, 0.9 / 3.0 mm round and 2.0×3.0 mm flat drop; cleave length 9–16 mm; 63×75×59 mm, 0.29 kg

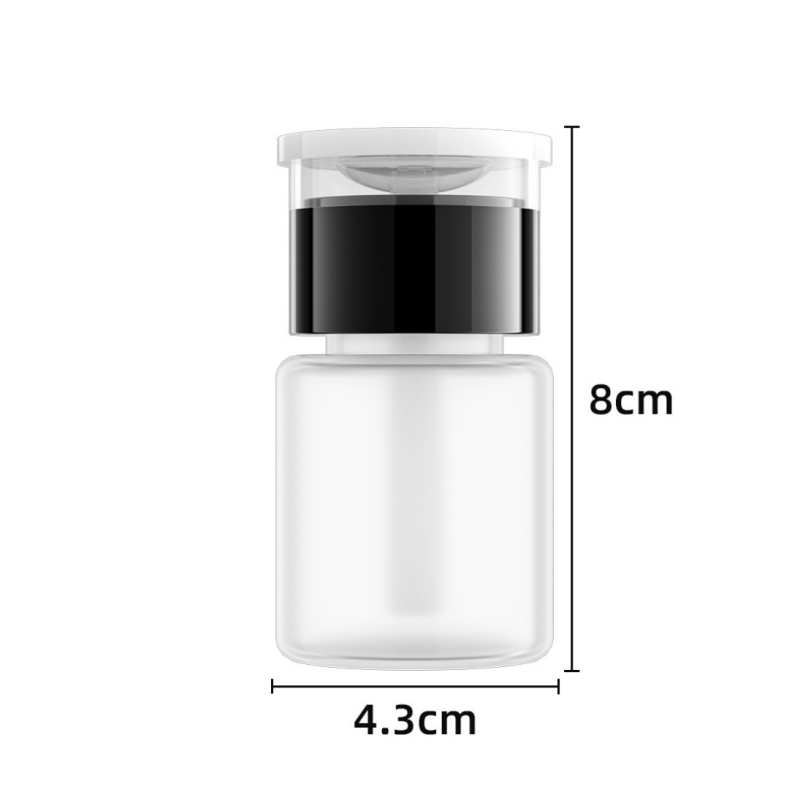

Alcohol pump dispenser	60 ml, for cleaning fiber and ferrules

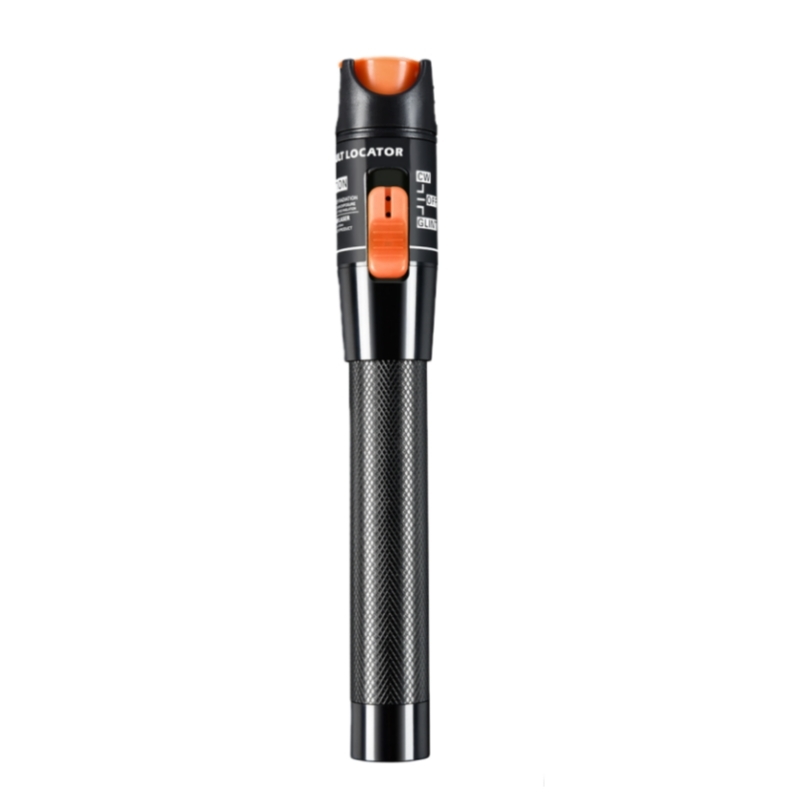

Visual fault locator	650 nm, 10 mW, range >3 km; 2.5 mm universal connector; 2×AA batteries

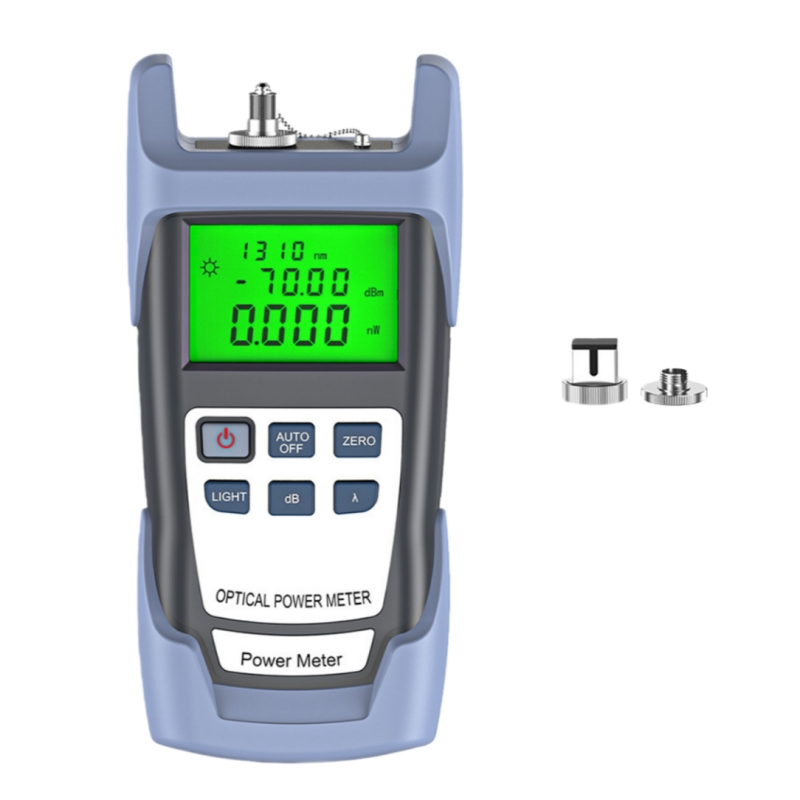

Optical power meter	850–1625 nm; calibrated 850/980/1300/1310/1490/1550/1625; −70 to +10 dB; 0.01 dB resolution; ±0.2 dB; SC/FC adapters; stores 500 records
Tool bag	Zippered carry bag, 24×10×19 cm, with organized pockets

Note: actual cleave angle and blade service life vary with operating conditions and operator technique.

Upgrades & Branding

Tool upgrades in range	The flat drop slitter, 3-hole stripper, cleaver, VFL and power meter can be selected or upgraded from our standard fiber tool and meter ranges to match the job; we do not substitute other brands
PON power meter upgrade	Replace the standard meter with a PON power meter reading 1310 / 1490 / 1550 nm simultaneously, for GPON / EPON activation and sign-off
Custom logo	Heat-transfer printing of a logo on the tool bag for orders of 100+ kits, as a paid option

Typical Applications

• FTTH drop termination at the customer premises using field-installable connectors or mechanical splices.
• High-volume drop installation by contractor and installer teams.
• Drop power verification and service activation (PON meter upgrade).
• Drop repair or restoration where a fusion splicer is not practical.

FAQ

Q1. Does the kit include a fusion splicer? No — it is purpose-built for field-installable connector and mechanical-splice termination, which need no power and set up quickly. Fusion splicers are listed under XHT-T04.

Q2. Which meter do I need? The standard optical power meter covers received-power checks. Choose the PON power meter upgrade when activating on a GPON / EPON and reading 1310 / 1490 / 1550 nm at once.

Q3. Can tools be upgraded, and are connectors or branding offered? The five core tools can be selected or upgraded within our standard ranges. Field-installable connectors or mechanical splices are supplied by type and quantity on the order. A heat-transfer logo on the bag is available for 100+ kits as a paid option.

Ordering & Service

• Part number: XHT-T05 (standard, with optical power meter); specify tool upgrades or the PON meter on the order.
• MOQ 1; reference lead time about 3 days; response within 24 h.
• Each kit is checked against the contents list and the meter configuration prior to packing.

Focus note: To configure the correct kit, tell us the field-installable connector type (connectors are quoted separately by type and quantity), whether PON activation is required and any in-range tool upgrade preference. We build the kit to the job and will not recommend more tooling than the application requires.

Related Products

• Fiber technician field kit → XHT-T06
• Fiber optic cleavers → XHT-T03
• Fiber optic strippers → XHT-T02
• Fusion splicers (when fusion is preferred) → XHT-T04
• SC field-installable connectors → XHT-A04

FTTH drop termination kit for field-installable connector and mechanical-splice work. Contents are confirmed on the order; no fusion splicer is included. RoHS compliant.
