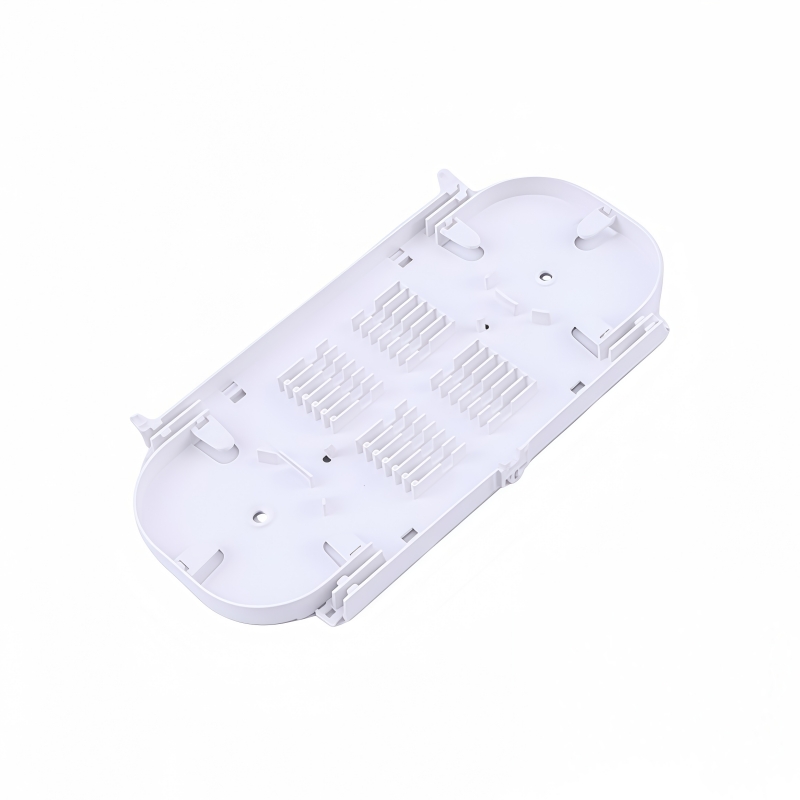

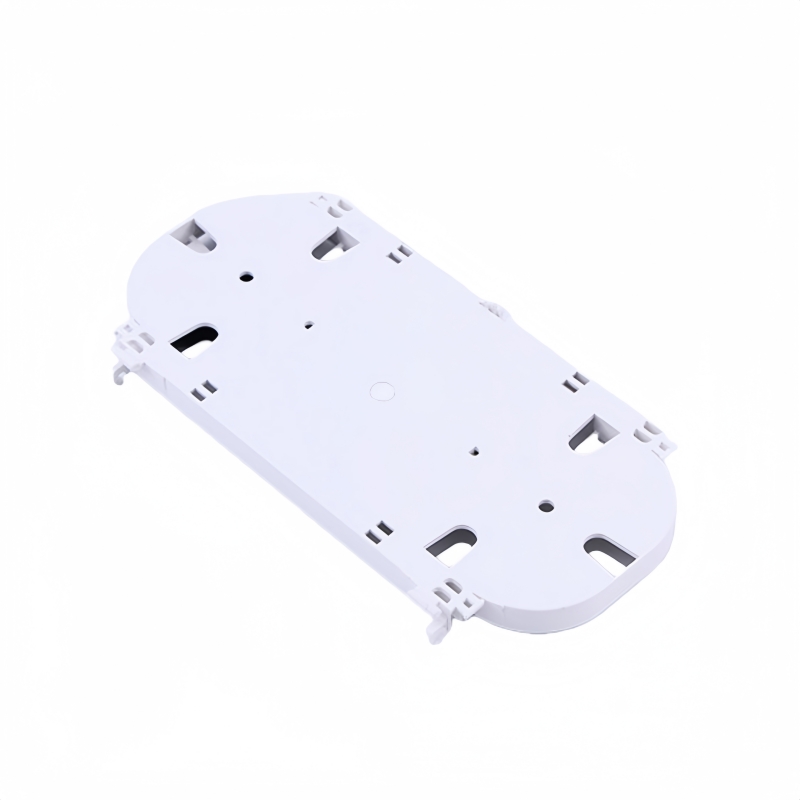

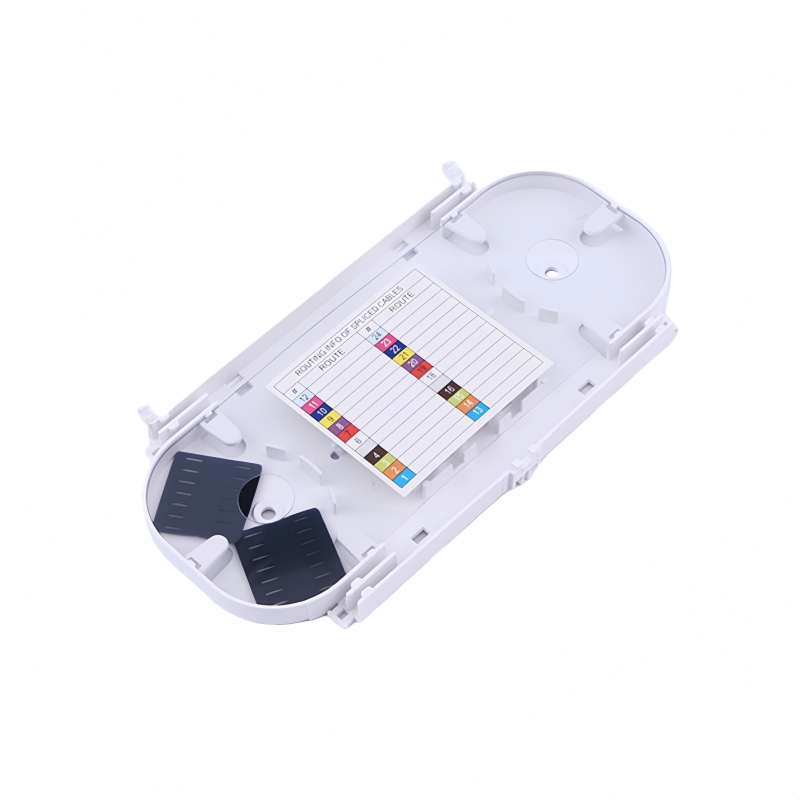

Product Overview

24-core fiber optic splice tray is used for fiber fusion splicing, fiber storage and management inside splice closures, distribution boxes and patch panels. Made of high-quality ABS material, it adopts stackable design to expand capacity flexibly. Standard internal routing ensures fiber minimum bend radius protection, widely used in outdoor joint closure, FTTH distribution box and indoor wiring cabinets.



Key Features

Material: High-strength ABS plastic

Overall Dimension: 225 × 116 × 16 mm

Maximum splice capacity: 24 fibers

Stackable design, multiple trays can be stacked together for capacity expansion

Optimized internal routing to avoid excessive fiber bending

Reserved space for heat shrink protection sleeves

Compact dimension, suitable for fiber splice closure and distribution box installation



Typical Applications

Dome & horizontal fiber splice closure

FTTH outdoor fiber distribution box

Indoor fiber termination box and rack-mounted patch panel

Backbone optical cable splicing projects
